Description of product: IMX290-83 IR-CUT 2 Mpx camera - for Raspberry Pi - Waveshare 22025
The IMX290-83 IR-CUT is a starlight camera designed for the Raspberry Pi series of boards and modules. It uses the Sony IMX290 optical sensor with a resolution of 2 million pixels and has a built-in IR-CUT filter. It allows you to switch between day (RGB) and night (monochrome) modes. It allows you to take shots even in difficult lighting conditions.
We also offer a wide selection of cameras with different parameters for the Raspberry Pi. Additional filtering in the camera category enables easy selection of a product suitable for the needs.

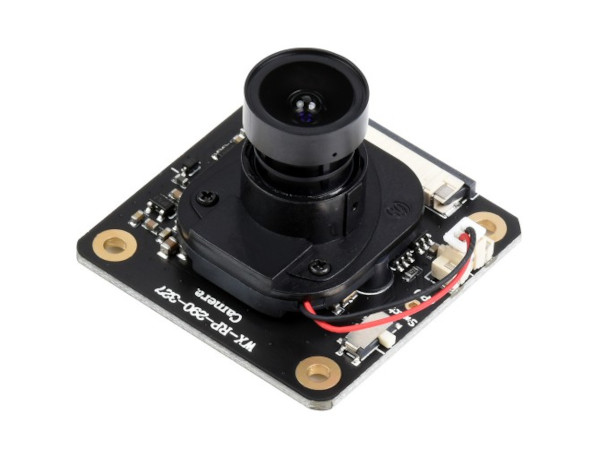

IMX290-83 IR-CUT 2 Mpx camera .
The top photo was taken with a starlight camera .
Starlight cameras
Starlight is an advanced technology used in vision security systems. Thanks to advanced sensors, it enables image recording even at night, in low light conditions. Starlight devices use even a small amount of natural light to get the best picture possible. These cameras have larger sensors, a wider aperture and a faster shutter speed.
Features of the IMX290-83 IR-CUT camera
- Compatible with Raspberry Pi: 4B / 3B + / 3A + / Zero / Zero 2 W and CM 3 / 3+ / 4.
- Built-in IR-CUT filter. It allows you to correct the color deviation of the infrared camera during the day. Provides a better imaging effect.
- In the case of connecting the camera with Raspberry Pi series Zero / Zero 2 W, it is necessary to use an adapter (not included).
Specification Camera IMX290-83 IR-CUT
- Developer: Waveshare
- Model designation: 22025
- Sensor: IMX290
- Resolution: 2 Mpx (1920 x 1080 px)
- Focal length: 3.95 mm
- Camera type: color
- Distortion: ‹33%
- CMOS size: 1 / 2.8 ''
- Aperture: F2
- Field of view: 98 °
- Focus: fixed
- Shutter Type: Rolling Shutter
- Dimensions: 38 x 38 mm
Kit contents
- IMX290-83 IR-CUT 2 Mpx camera - 1 pc.
- 15-pin FFC cable (contacts on opposite sides) - 1 pc.

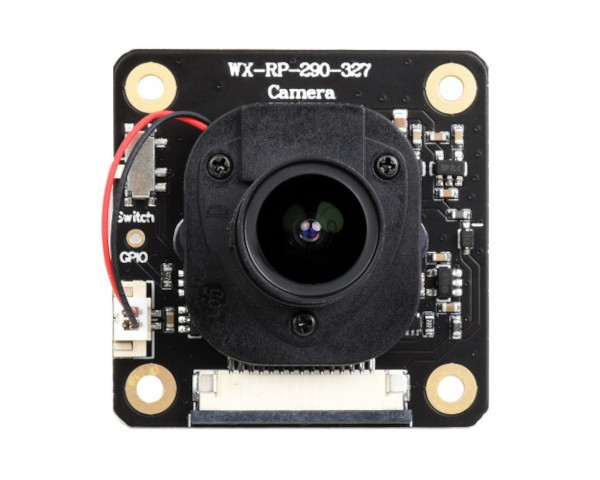

IMX290-83 camera - Waveshare 22025 .
