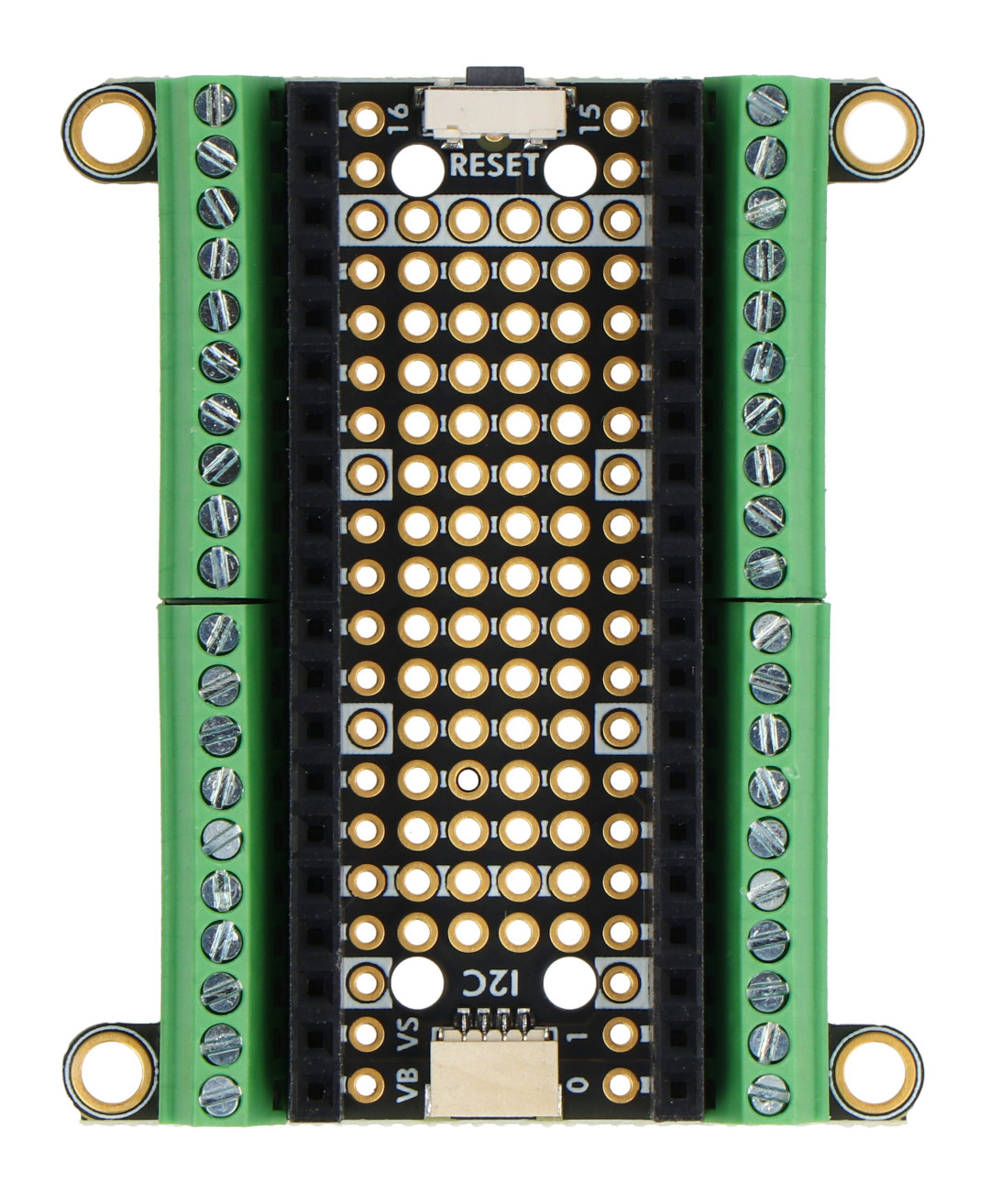

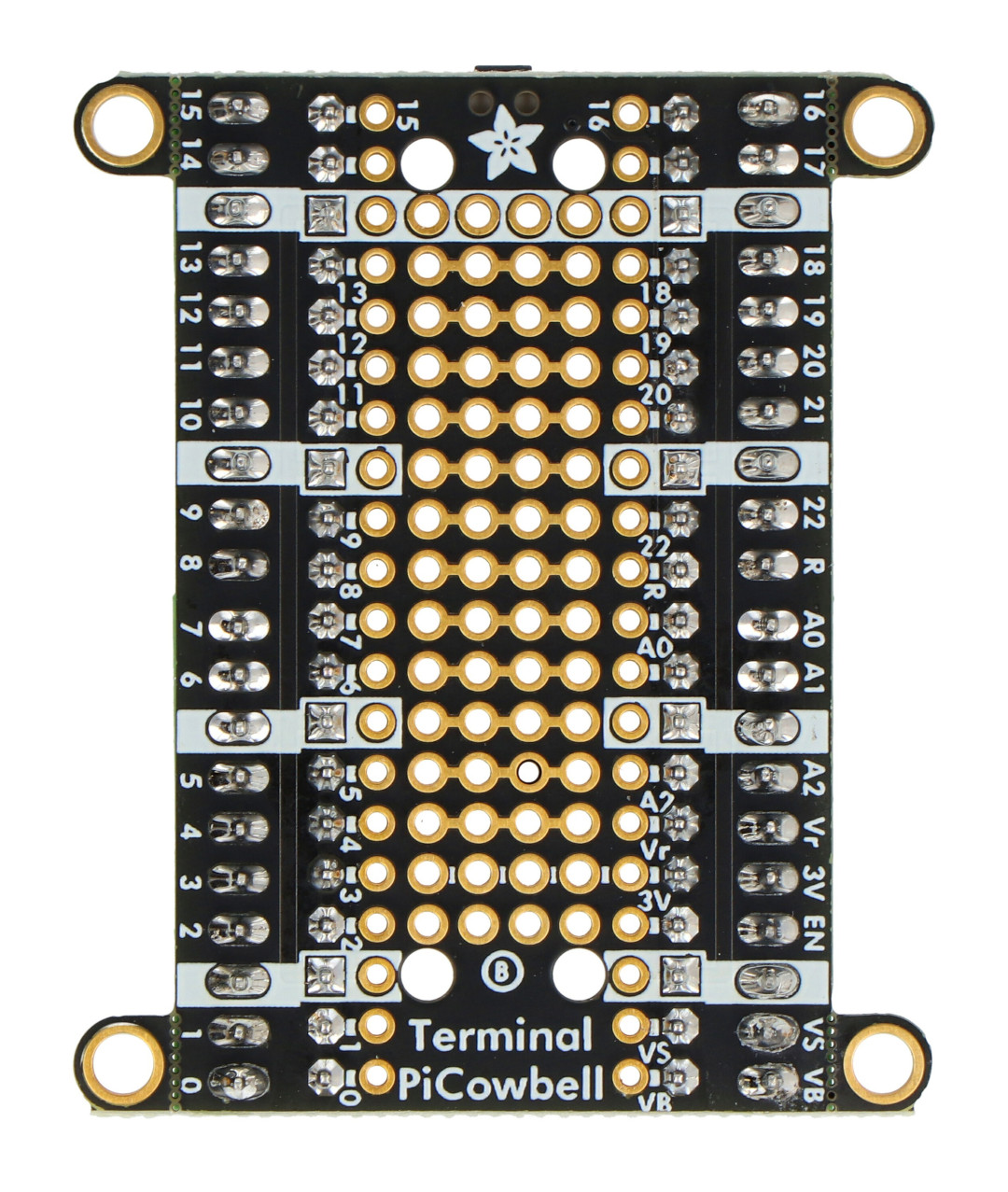

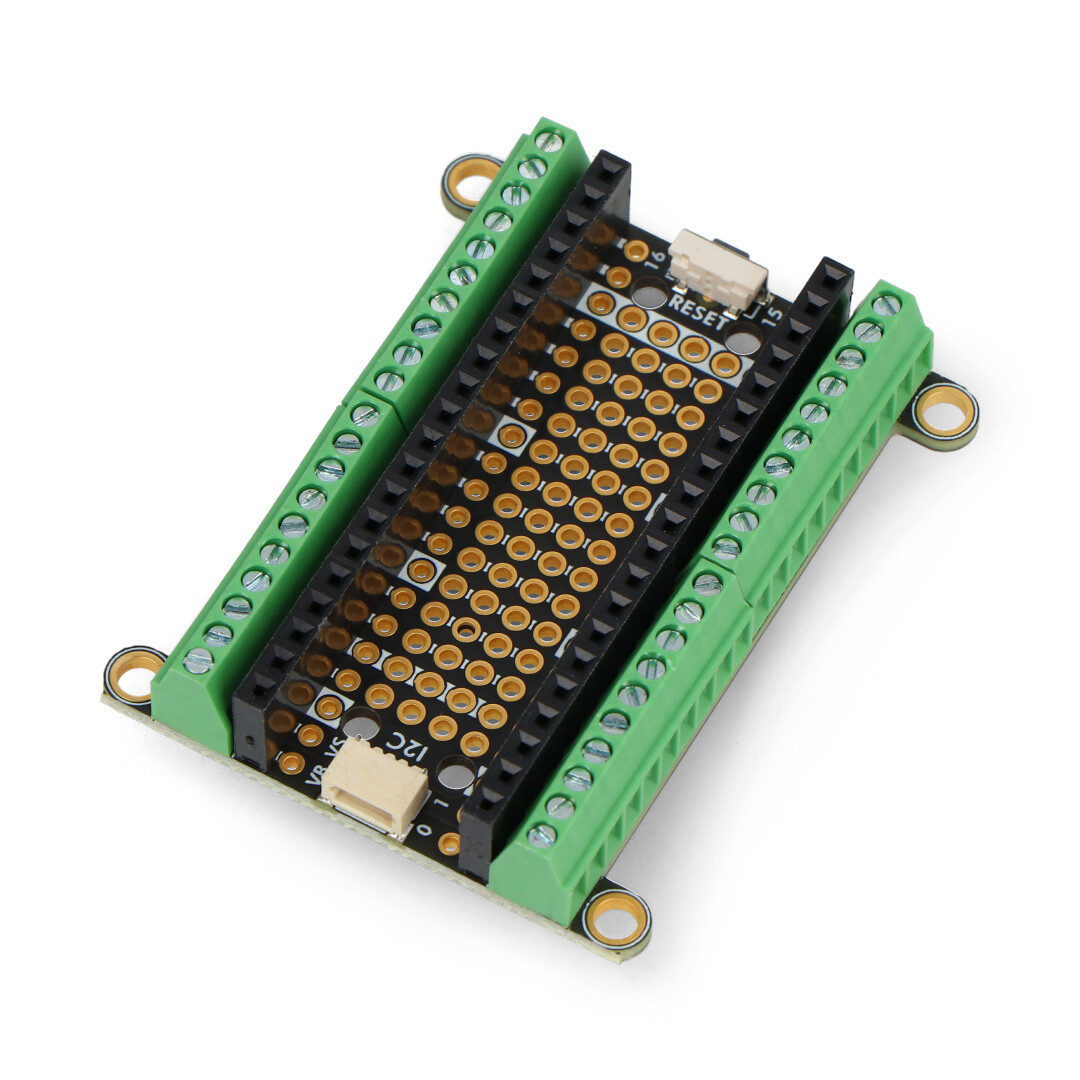

PiCowbell terminal - overlay for Raspberry Pico/Pico W - screw connectors - reset button - STEMMA QT - Adafruit 5907
The Adafruit PiCowbell Terminal is a practical extension designed for projects based on the Raspberry Pi Pico and Pico W. With four 10-pin screw connectors with a pitch of 2.54 mm , it allows you to connect wires from 18 AWG to 26 AWG to each GPIO pin. It also has a reset button, a JST SH connector for I2C, and additional solder pads for connecting to other devices.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.
Product description: PiCowbell terminal - shield for Raspberry Pico / Pico W - screw connectors - reset button - STEMMA QT - Adafruit 5907
The Adafruit PiCowbell Terminal is a practical extension designed for projects based on the Raspberry Pi Pico and Pico W . With four 10-pin screw connectors with a pitch of 2.54 mm , it allows you to connect wires from 18 AWG to 26 AWG to each GPIO pin. It also has a reset button, a JST SH connector for I2C, and additional solder pads for connecting to other devices. Each pin is mapped 1:1 to its corresponding pin on the board, providing multiple connections to ground (GND). The module comes with pre-soldered connectors, allowing you to use it right away without having to solder. Additionally, the board has a reset button and a JST SH connector for the I2C / STEMMA QT / Qwiic interface, allowing you to easily connect I2C modules or use it for standard GPIO wiring. There are also lead-out holes next to the JST SH connector for additional I2C connections or assigning another I2C port.
PiCowbell terminal - shield for Raspberry Pico / Pico W - screw connectors - reset button - STEMMA QT - Adafruit 5907.
The Adafruit PiCowbell Terminal is a practical extension designed for projects based on the Raspberry Pi Pico and Pico W.
Special Features
- Screw connectors for each Pico or Pico W pin - 40 pins and 40 connectors in total
- Pre-soldered connectors - allow you to connect your Pico or Pico W immediately without the need for soldering
- Reset button - located at the end of the board for easy access
- JST SH connector - supporting I2C / STEMMA QT / Qwiic, allowing easy integration with I2C modules
- Additional pinout holes - next to the JST SH connector, allow for I2C connections or assigning another port
- Prototype area - 12 rows of 4 connections, organized in the central part of the board, allow for quick building of simple electronic circuits without using a traditional breadboard
- Multiple ground connections - marked with white print for easy identification
- A row of connected holes designed for 3.3V power supply - for easy connection
Technical specifications PiCowbell Terminal
- Compatibility: Raspberry Pi Pico, Pico W
- Screw connectors: 4 x 10-pin, pitch 2.54 mm
- Supported wire sizes: 18 to 26 AWG
- Power supply: long strip of holes for 3.3 V voltage - row of connected holes
- I2C connector: JST SH (STEMMA QT / Qwiic)
- Power supply: long strip of holes for 3.3 V
- Soldering pads: gold plated, for easy soldering
- Dimensions: 52.1mm x 43.1mm x 10.6mm
With four 10-pin screw connectors with a pitch of 2.54 mm, it allows you to connect wires with a cross-section of 18 AWG to 26 AWG to each GPIO pin.
Useful links
| Name | Value |
|---|---|
| Width | 7.5 cm |
| Height | 12 cm |
| Depth | 1 cm |
| Weight | 0.022 kg |
