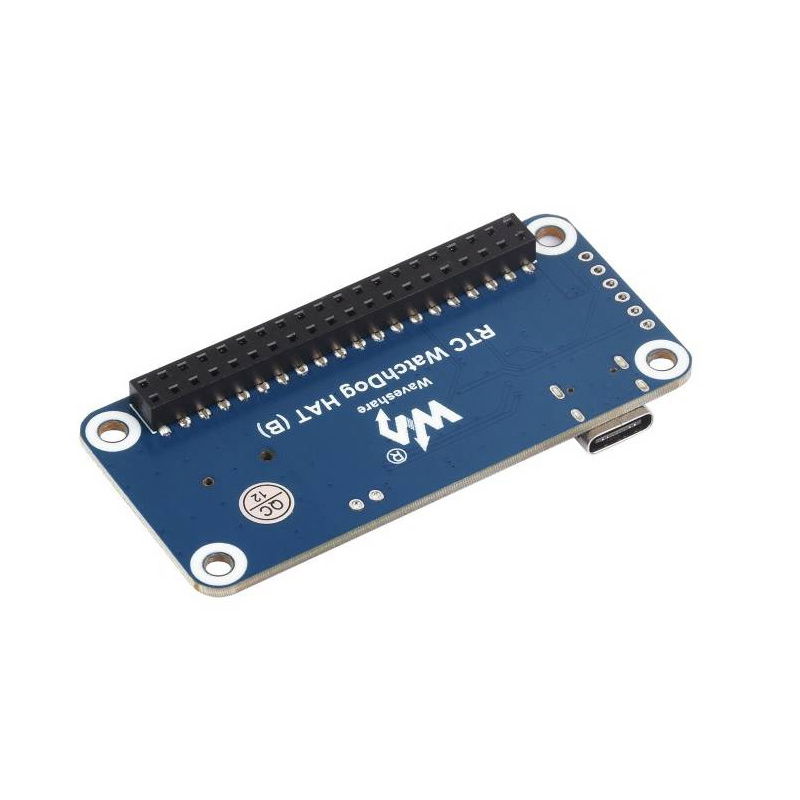

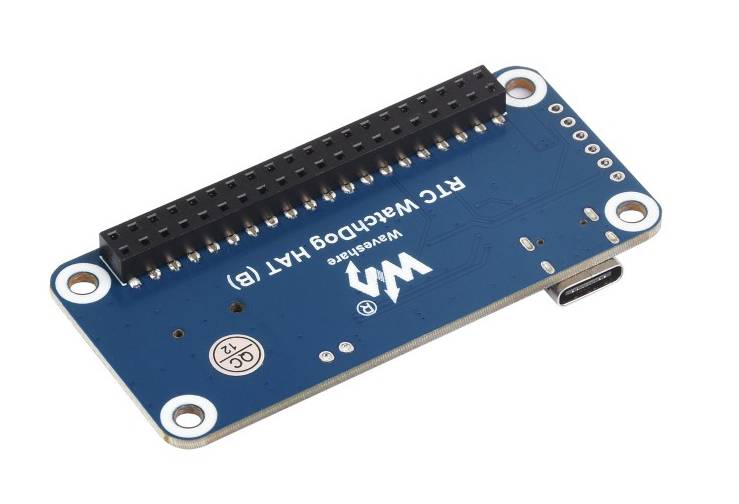

Real-time clock module RTC DS3231SN with Watchdog circuit for Raspberry Pi - Waveshare 25766
The RTC Shield with Built-in Watchdog for Raspberry Pi is a compact expansion module equipped with a precise DS3231SN real-time clock and a CH32V003 hardware watchdog . Communication is via an I2C interface , and the standard 40-pin GPIO connector ensures full compatibility with Raspberry Pi boards . The module supports time backup on a CR1220 battery and automatic system reset in the event of a system hang.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: DS3231SN RTC module with watchdog for Raspberry Pi - Waveshare 25766
The shield combines the functions of a real-time clock (RTC) with a hardware system supervisor and is designed for use with Raspberry Pi boards . The built-in DS3231SN ensures high-accuracy timing thanks to temperature compensation, which is particularly important in systems operating without internet access. The CH32V003 chip implements a watchdog function, monitoring the Raspberry Pi's operation and automatically resetting it if there is no response within a specified time. The supervisory time can be configured from 1 s to 65,535 s.
Module with real-time clock RTC DS3231SN and Watchdog circuit for Raspberry Pi - Waveshare 25766.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
The module uses the DS3231 RTC chip.
Main features of the module
- DS3231SN RTC clock : provides high-precision timekeeping with temperature compensation
- Built-in Watchdog Chip CH32V003 : enables automatic system reset in case of hang-up
- I2C interface : simple integration with Raspberry Pi
- Configurable supervision time : range from 1 s to 65535 s
- CR1220 battery support : time backup in the event of a mains power failure
- 40-pin GPIO connector : fully compatible with the Raspberry Pi family
Elements on the board
- USB Type-C power input
- Watchdog Chip CH32V003
- CR1220 battery socket
- Watchdog Status Indicator
- Power indicator
- 40-pin GPIO connector
- RTC DS3231SN
- Watchdog Reset Pin Selection
- Control interface

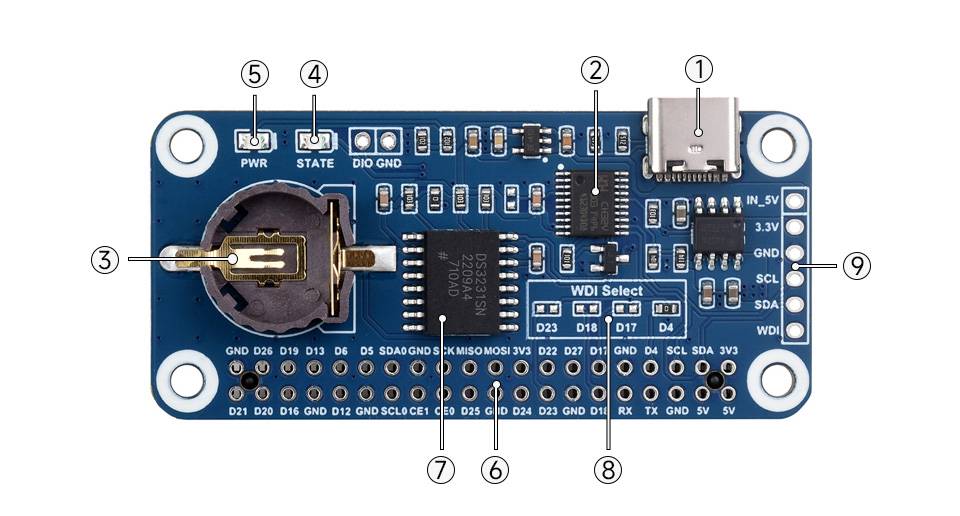

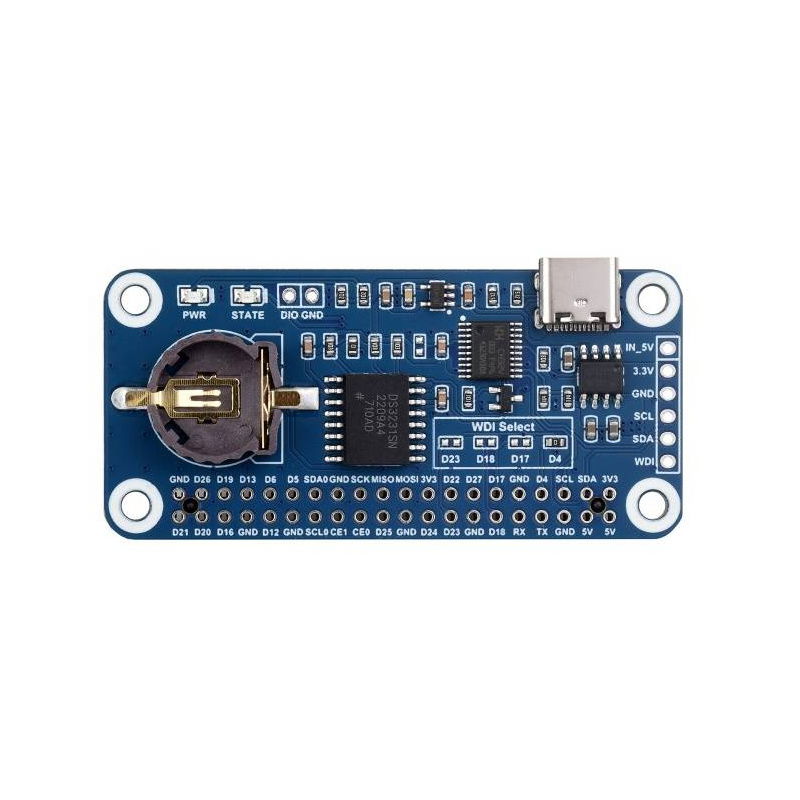

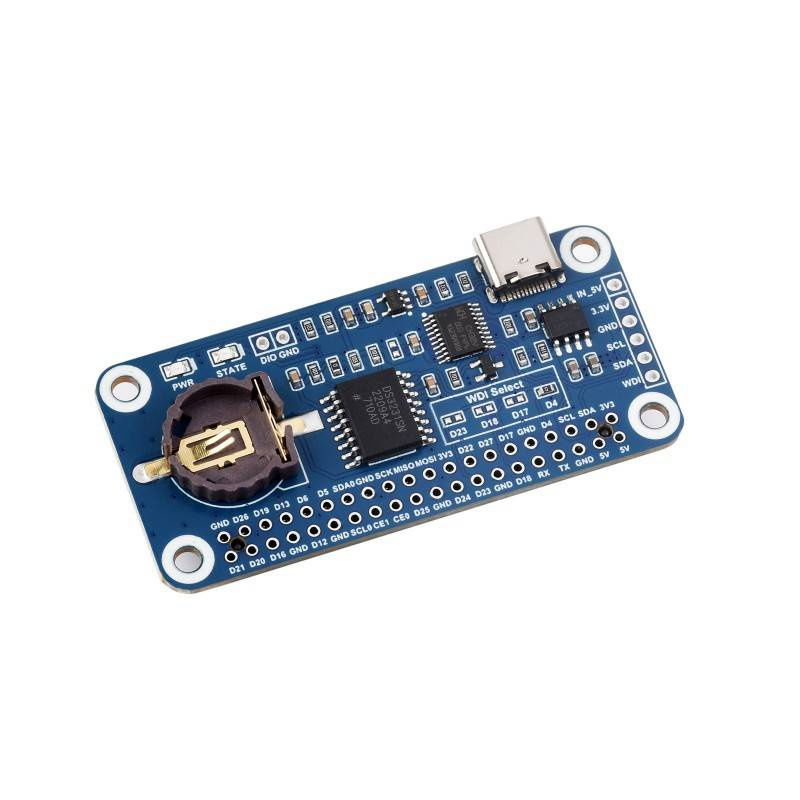

Arrangement of components on the board.

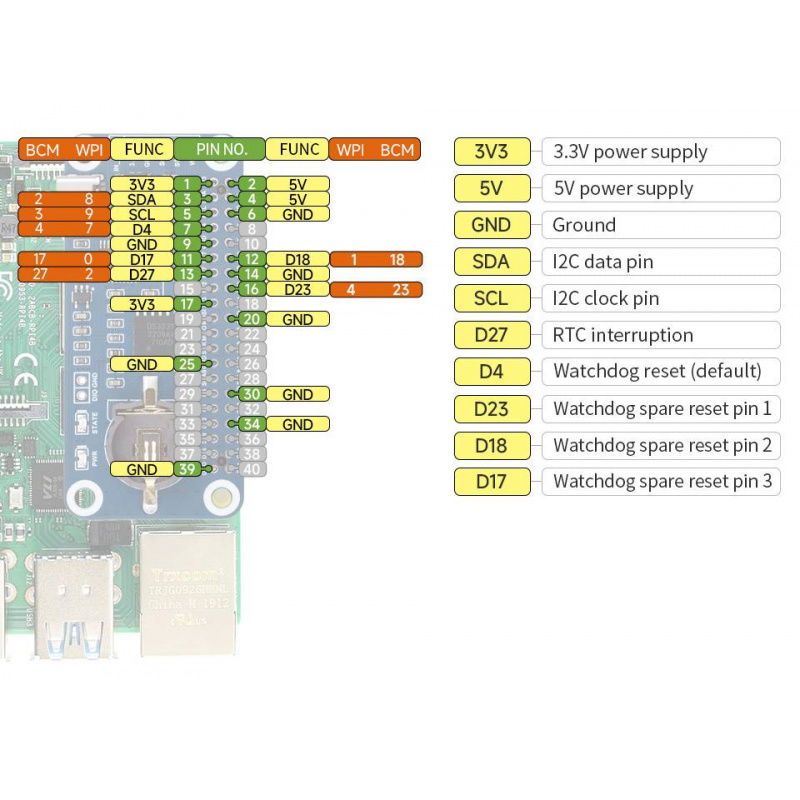

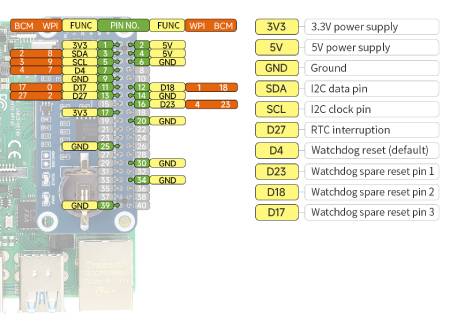

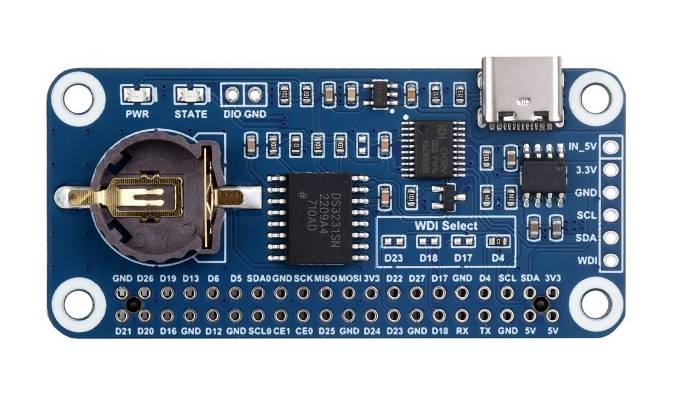

Module pins.

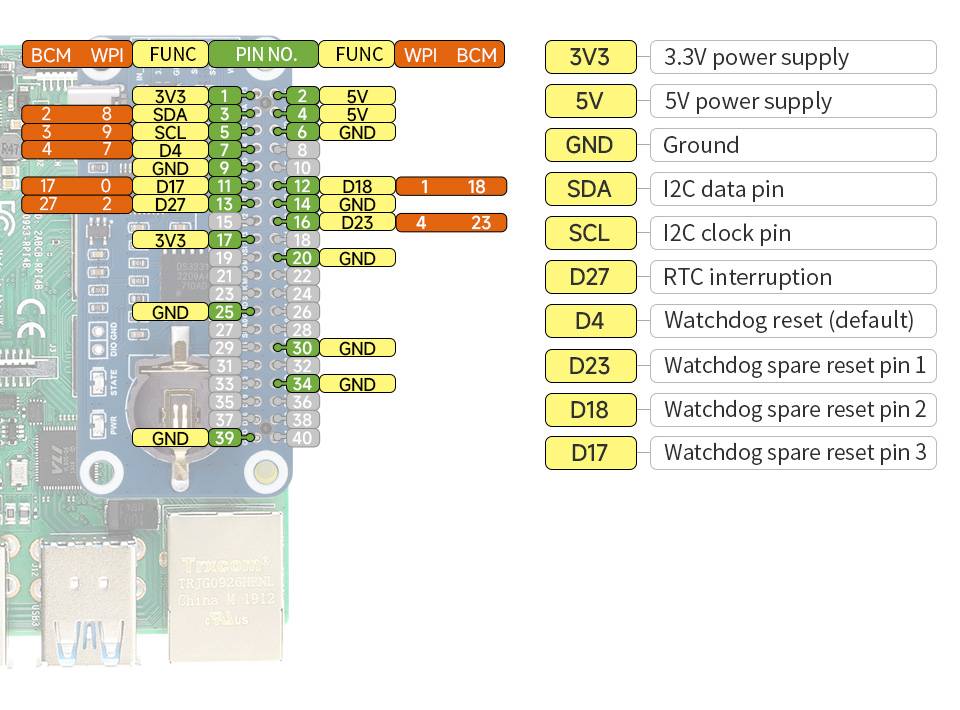

Pinout description

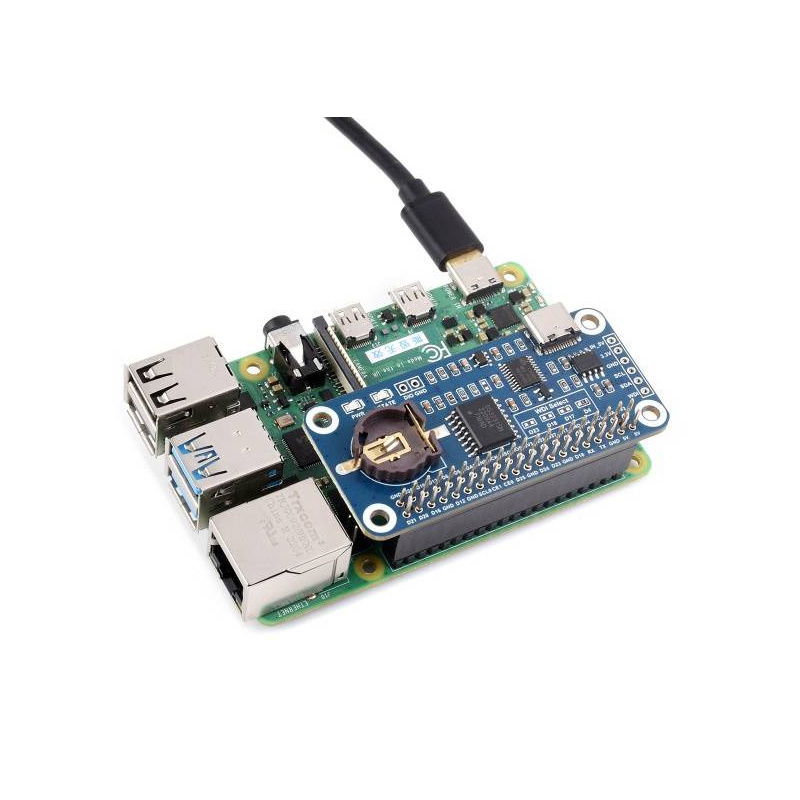

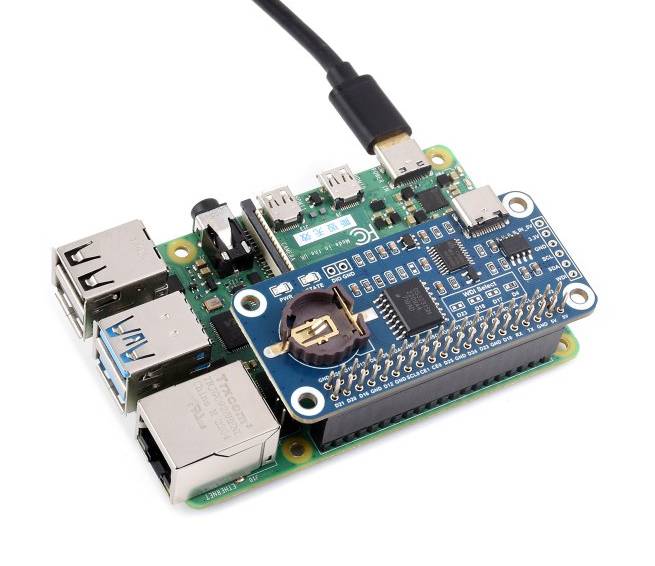

The module uses the standard 40-pin GPIO connector on the Raspberry Pi. The most important signals are:
- 3V3 - 3.3 V power supply
- 5V - 5V power supply
- GND - ground
- SDA - I2C bus data line
- SCL - I2C bus clock line
- D27 - RTC interrupt signal
- D4 - default Watchdog reset line
- D23 / D18 / D17 - Alternate Watchdog reset pins (selectable by configuration)
Technical specifications of the module
- Type: HAT RTC overlay with built-in Watchdog
- RTC chip: DS3231SN
- Watchdog: CH32V003
- Communication interface: I2C
- Power supply: 5V
- Backup battery: CR1220
- Diameter of mounting holes: 3 mm
- Dimensions: 65 x 30.5 mm
- Weight: 28 g
Contents of the set
- 1x RTC Shield with Built-in Watchdog for Raspberry Pi
- 1x Female header 2x20-pin
- 1x Set of mounting screws and spacers
The board has a USB Type-C power input.
