Product description: Aqara T1 SSM-U02 - single-channel flush-mounted relay without N - ZigBee
The Aqara T1 SSM-U02 is a compact, flush-mount relay designed for lighting automation and other compatible electrical circuits. The module is mounted in the live wire and does not require a neutral wire , making it suitable for installations where the neutral wire is not located in the switch box. ZigBee 3.0 communication allows you to connect the device to a compatible gateway and create Smart Home scenarios. The module works with traditional switches and allows for remote control, scheduling , and configuration of behavior after a power outage. Its small size makes it easy to conceal the relay in an installation box.

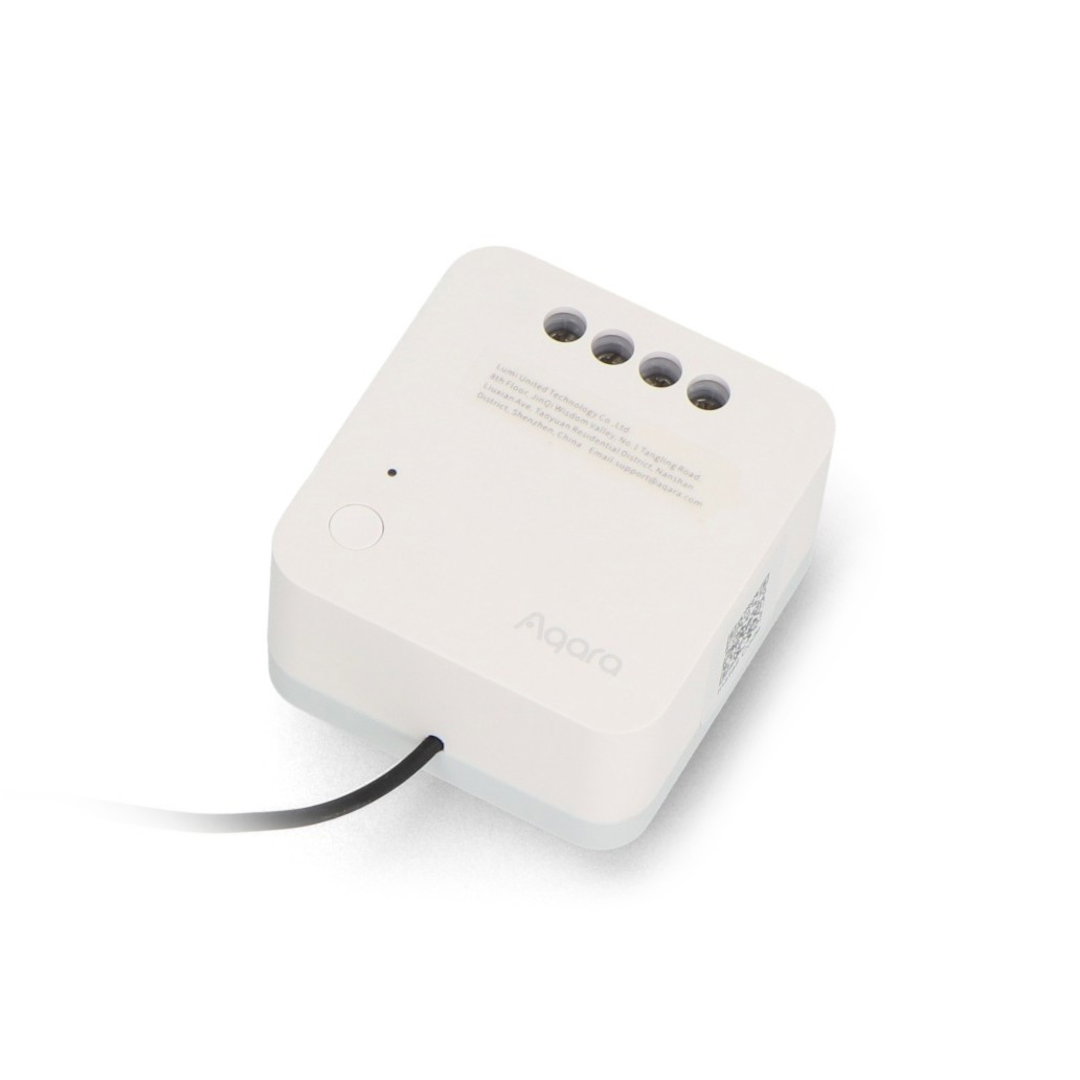

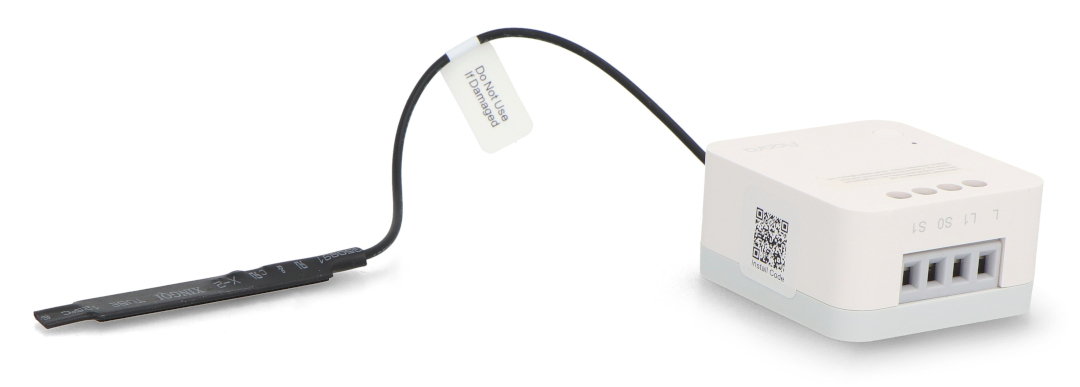

Aqara T1 SSM-U02 - single-channel flush-mounted relay without N - ZigBee.
The relay supports devices with power from 3 to 1250 watts.
Main features of the Aqara T1 module
- No need for a neutral wire : the module is designed for installations where a phase wire is available in the switch box but there is no neutral wire
- ZigBee 3.0 connectivity : ensures communication between the module and a compatible gateway and other components of the smart home system
- Single-channel control : allows intelligent control of one circuit
- Load power from 3 W to 1250 W : allows operation of compatible devices and lighting within the parameters specified by the manufacturer
- Maximum current 5 A : allows the module to be matched to the parameters of the controlled circuit
- Compact dimensions : small housing makes it easy to install the device behind an existing switch
- Remote control and scheduling : once connected to the appropriate gateway, the device can be managed from the Smart Home system
- Automation support : the module can work with Aqara sensors, allowing you to create extensive scenarios
- Power Outage Memory : Allows you to configure the device's behavior after power is restored.
- Overheating protection : the module monitors the temperature and signals its excessive increase
- Bidirectional Switch Support : The module design allows for integration with an appropriately connected existing switch system.
ZigBee 3.0 in the Aqara T1 relay
The Aqara T1 uses the ZigBee 3.0 protocol , making it a powerful part of a comprehensive home automation system. When paired with a compatible Aqara gateway , the module can work with motion sensors, door and window opening sensors, and other smart home devices , allowing you to create automated scenarios. For example, you can automatically turn on the light when a door is opened, or turn it off after a specified period of time without detecting motion. A compatible gateway is required to use networking and automation features. ZigBee 3.0 .

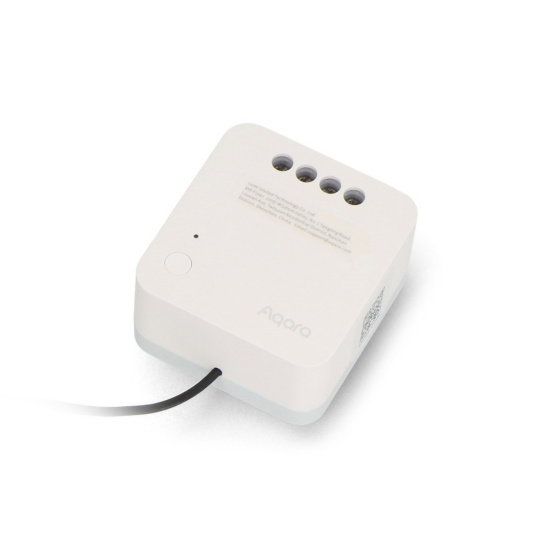

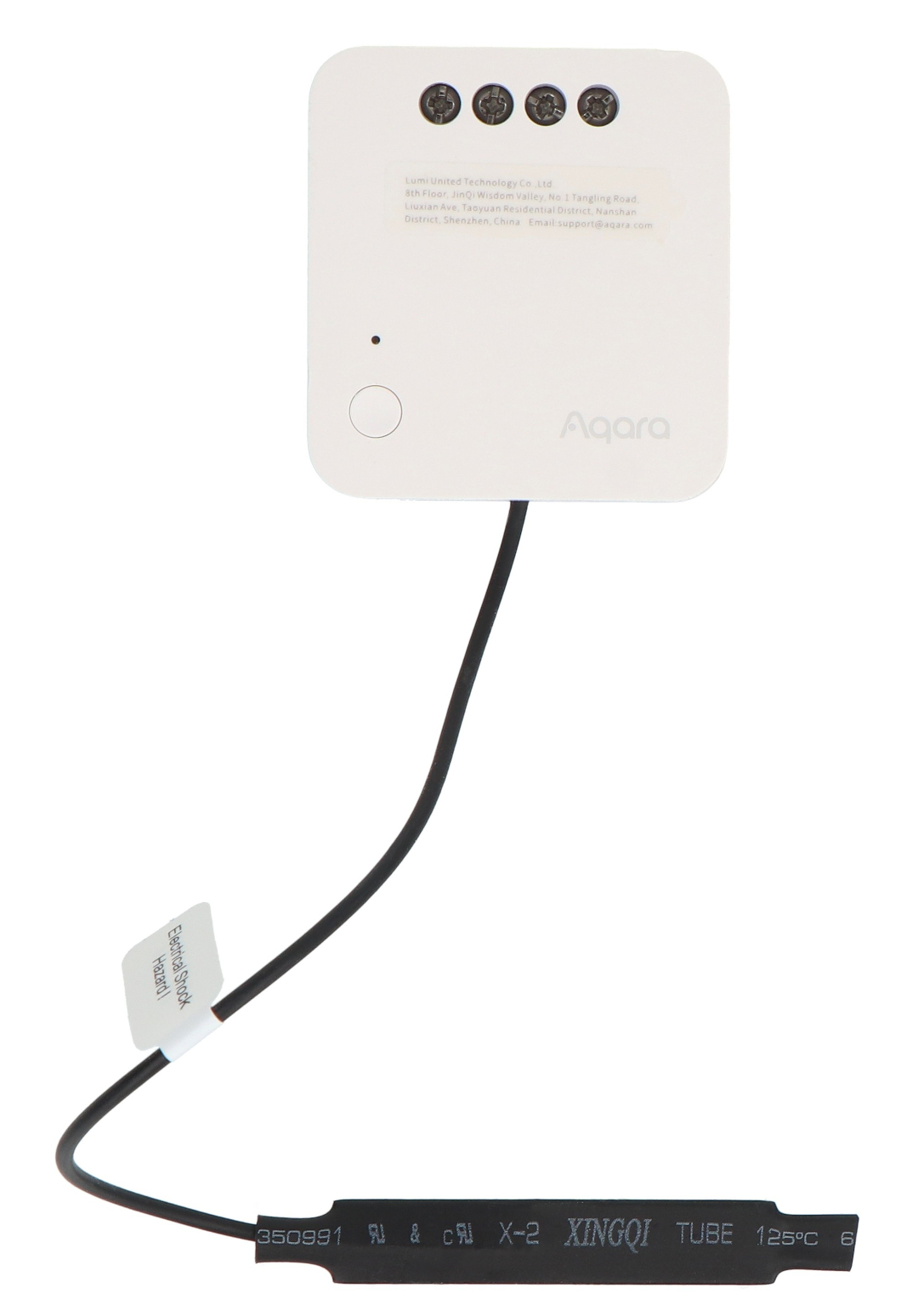

Compact dimensions make it easy to install in a standard wall box.

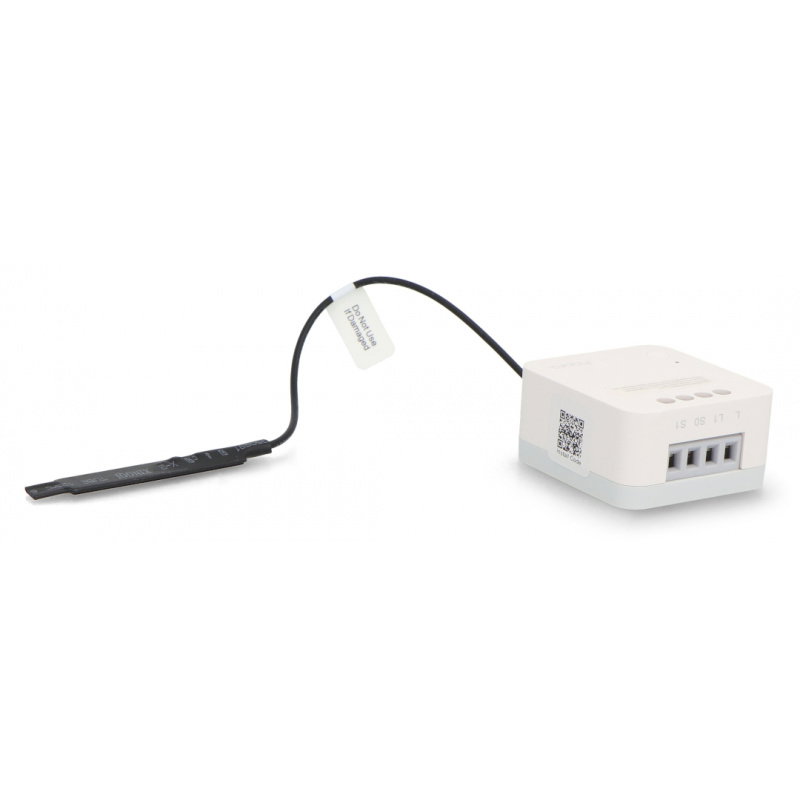

The module does not require a neutral wire connection.
Aqara T1 Technical Specifications
- Model: SSM-U02
- Type: single-channel relay module
- Installation: flush-mounted
- Number of controlled circuits: 1
- Neutral wire: not required
- Communication protocol: ZigBee 3.0
- ZigBee operating frequency: 2405 MHz to 2480 MHz
- Maximum ZigBee output power: ≤ 13 dBm
- Nominal voltage: 100 V to 250 V AC
- Mains frequency: 50/60 Hz
- Maximum current: 5 A
- Minimum load power: 3 W
- Maximum load power: 1250 W for resistive load
- Operating temperature: 0°C to 35°C
- Functions: remote control, schedules, automation, state memory after power outage
- Protection: against overheating
- Maximum cross-section of the wire connected to the terminals: 2.5 mm²
- Application: indoors
- Dimensions: 42.9 x 40 x 21.4 mm
