Product description: Aqara P1 MS-S02 - motion and light sensor - ZigBee
The Aqara Motion Sensor P1 MS-S02 combines motion detection with light intensity measurement , allowing it to control lighting, scenes, and security system components. The sensor uses PIR technology and operates on the ZigBee 3.0 network via a compatible gateway. You can choose from three sensitivity levels and set the re-detection time from 1 to 200 seconds. The field of view is up to 170° at a distance of up to 2 m and up to 150° at a distance of up to 7 m. The built-in light sensor allows you to create automations dependent on both motion and ambient brightness. Powered by two CR2450 batteries, it can last up to 5 years, depending on configuration and activation frequency.

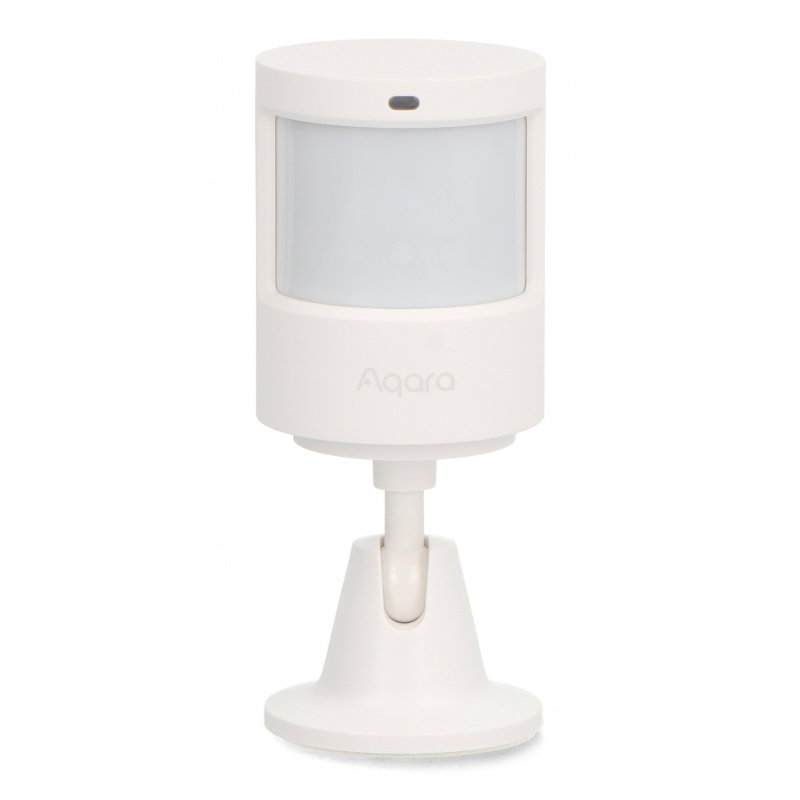

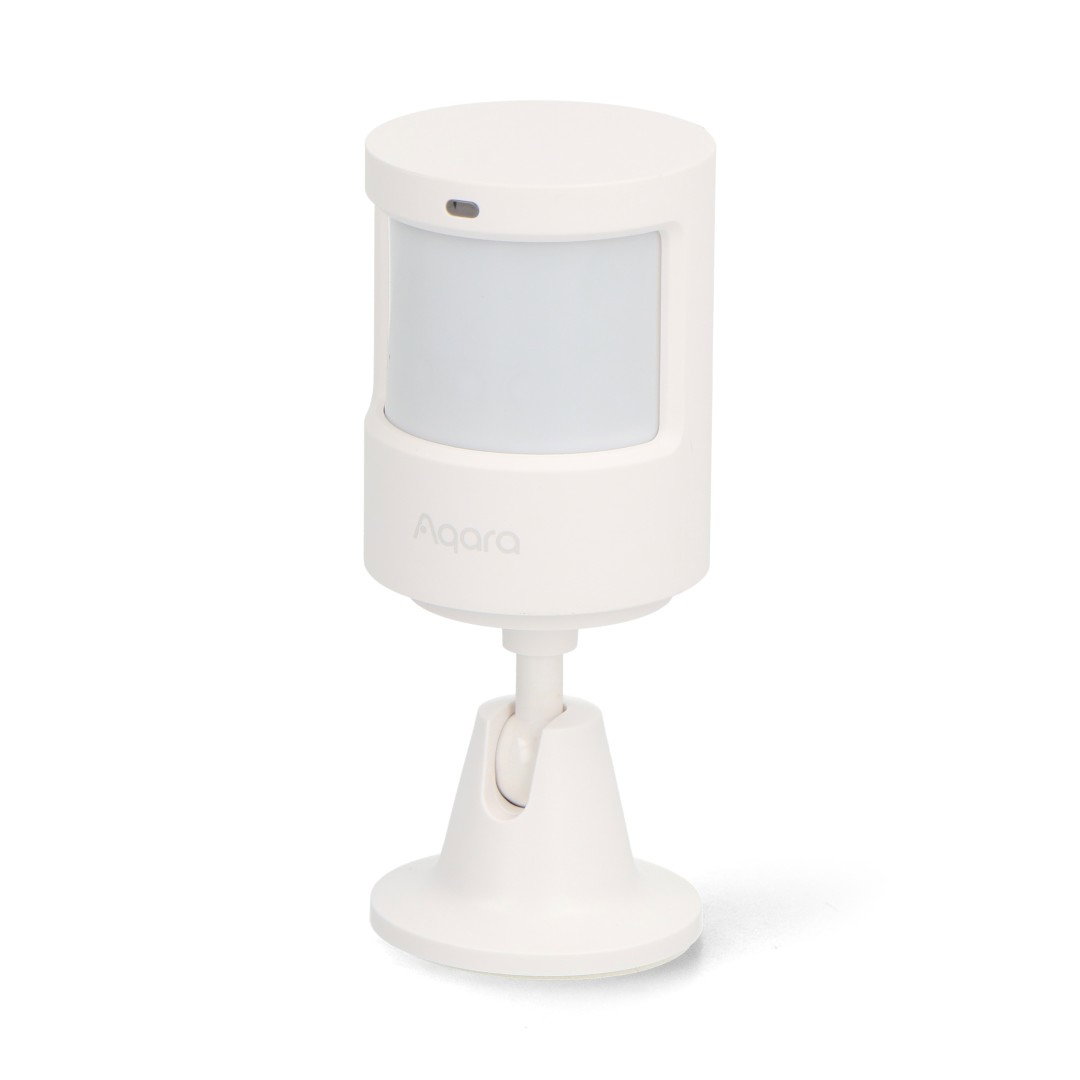

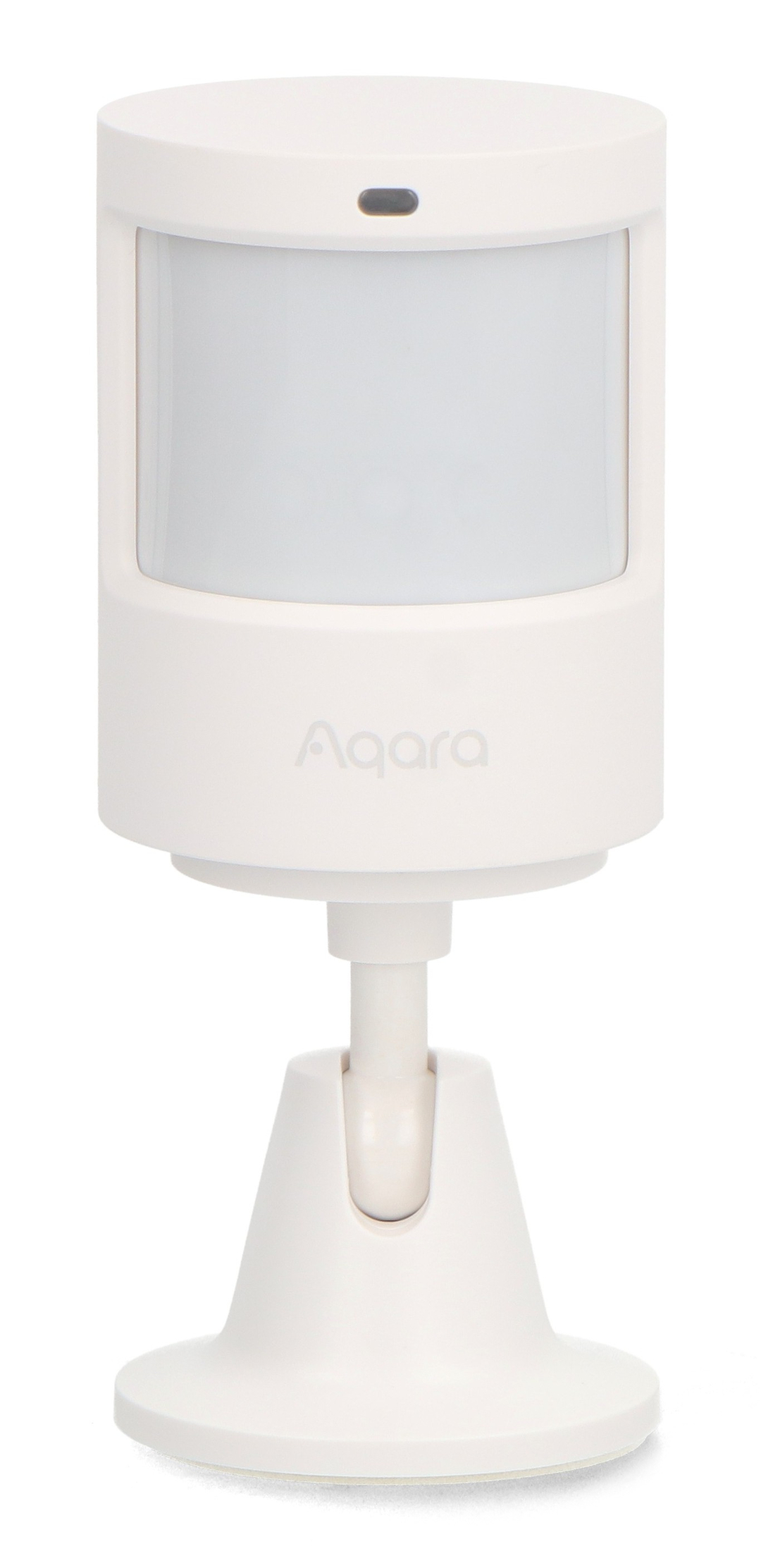

Aqara P1 MS-S02 - motion and light sensor - ZigBee.
The sensor offers a wide field of view - 170° for distances up to 2 m and 150° for distances up to 7 m.
Main features of the Aqara P1 sensor
- PIR motion detection : detects movement in the room and can trigger prepared automations
- Light intensity measurement : allows you to make the operation of lighting or other devices dependent on the ambient brightness
- ZigBee 3.0 : provides energy-efficient communication with a compatible smart home gateway
- Wide field of view : angle up to 170° at a range of up to 2 m and up to 150° at a range of up to 7 m
- 3 sensitivity levels : allow you to adjust the detection distance to a specific room and installation method
- Adjustable re-detection time : can be set from 1 s to 200 s via the Aqara Home app
- Long operating time : 2 CR2450 batteries can provide up to 5 years of operation with proper configuration
- 360° holder : allows you to precisely set the direction and area of motion detection
- OTA update support : allows you to install device software updates
- Integration with Smart Home systems : compatibility with Aqara Home, Apple HomeKit, Amazon Alexa and IFTTT, depending on the gateway used and integration availability
- Easy installation : the included bracket and sticker allow for tool-free installation
- Compact design : small dimensions make it easy to place the sensor discreetly in your home
ZigBee 3.0 and smart home connectivity
The ZigBee 3.0 protocol allows the Aqara Motion Sensor P1 to communicate with a compatible gateway while maintaining low power consumption, which is especially important for battery-powered devices. The sensor can be part of a larger smart home system, where detection of motion or appropriate lighting levels triggers other devices, scenes, and automations . A compatible ZigBee gateway is required for full network functionality. , and the availability of integration with external platforms depends on the hub used and system configuration. Support for OTA updates allows for additional device software development without the need to replace it.
The set includes a 360-degree stand that allows you to adjust the viewing angle.
The motion and light sensor is compatible with a wide range of smart home ecosystems and voice assistants.
Sensor technical specifications
- Model: MS-S02
- Device type: motion and light intensity sensor
- Detection technology: PIR
- Wireless connectivity: ZigBee 3.0
- Operating frequency: 2400 MHz to 2483.5 MHz
- Detection angle: up to 170°
- Field of view: 170° for distances up to 2 m and 150° for distances up to 7 m
- Detection range: up to approximately 7 m
- Sensitivity adjustment: 3 levels - low, medium and high
- Adjustable redetection time: 1 s to 200 s
- Sensors: PIR motion and light intensity
- Software updates: OTA
- Power supply: battery
- Batteries: 2 x CR2450
- Battery capacity: 1240 mAh
- Declared operating time: up to 5 years, depending on settings and activation frequency
- Operating temperature: -10°C to 55°C
- Operating humidity: 0% RH to 95% RH, non-condensing
- Color: white
- Housing material: ABS
- Handle: 360° adjustable
- Dimensions: 33.1 x 33.1 x 41.6 mm
- Weight: 33 g

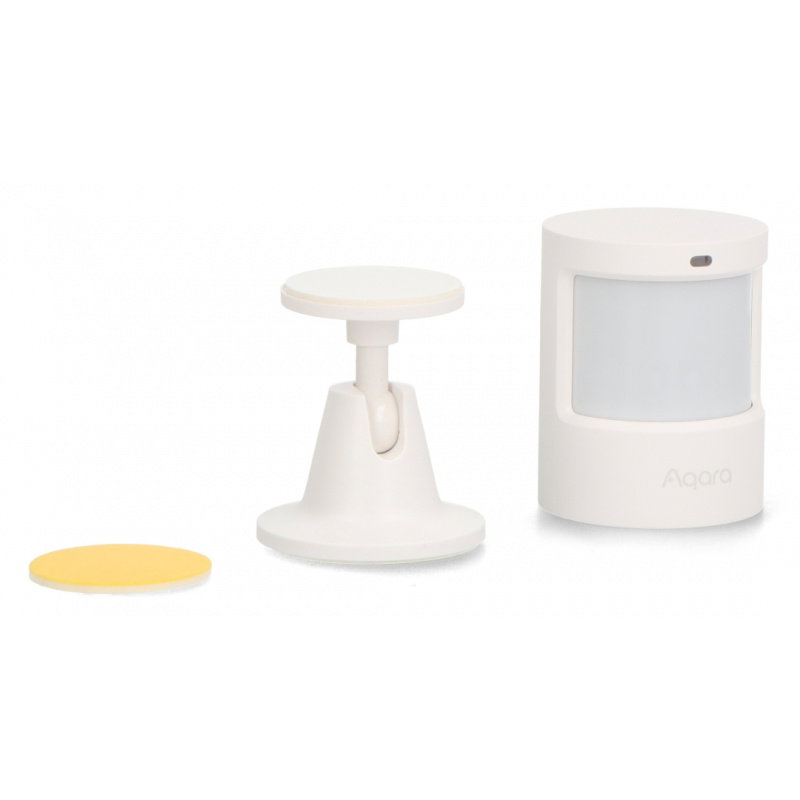

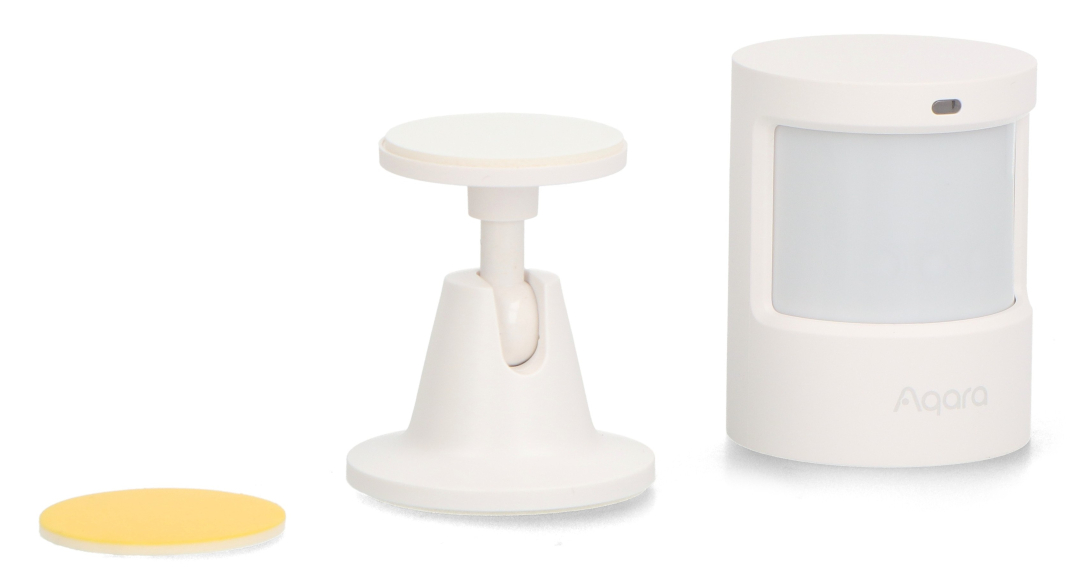

Contents of the set
- Aqara P1 MS-S02
- Mounting bracket
- Installation sticker
- 2 CR2450 batteries
