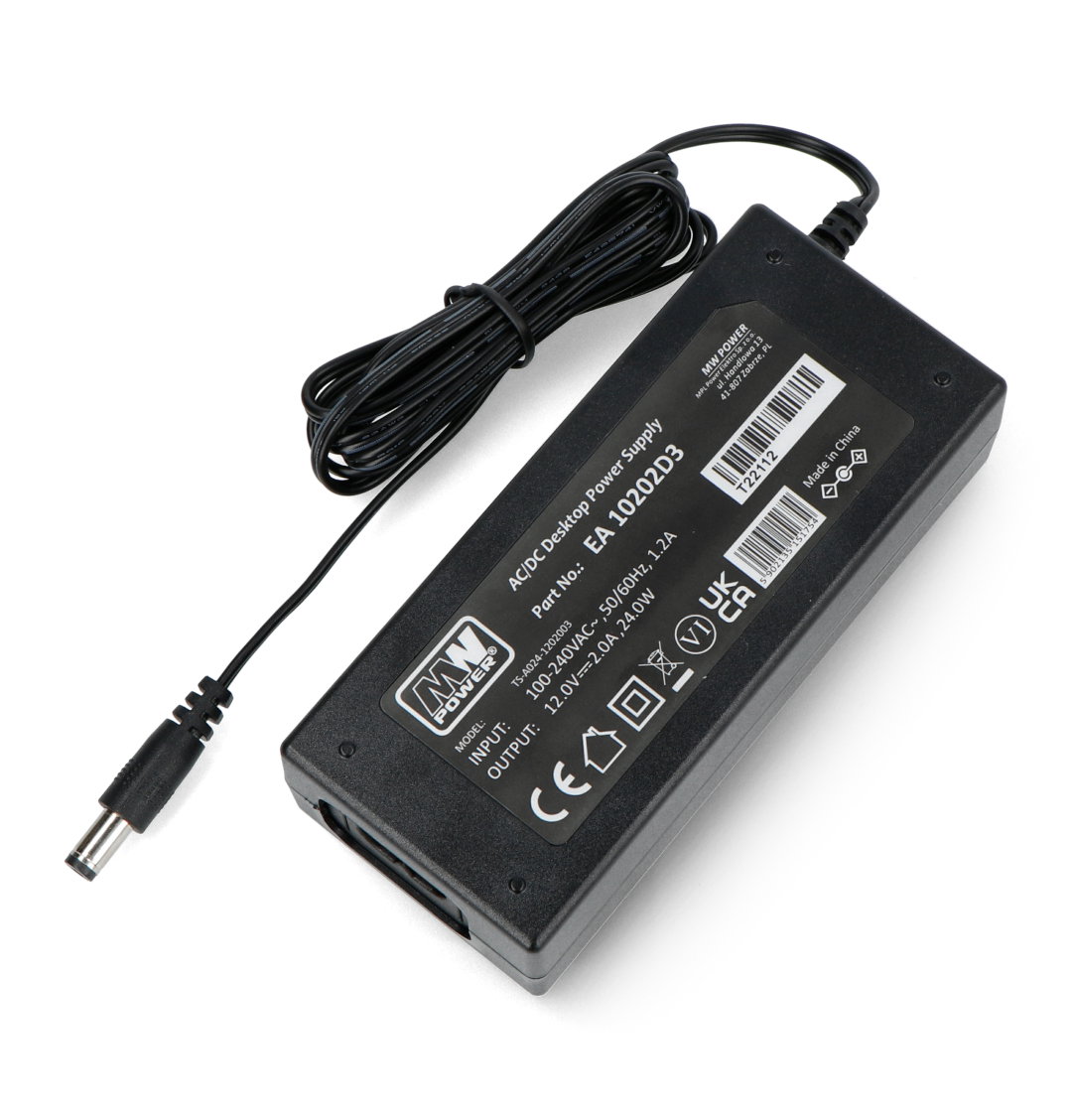

Power supply MW Power EA 10202D3 12V/2A - DC plug 5,5/2,1mm

Index: WAK-15681 EAN: 5902135151754

The EA 10202D3 Switch Mode Power Supply EA 10202D3 by MW Power is designed to supply electricity to devices with a socket DC 5.5 / 2.1 mm. The output of the power supply provides a DC voltage of 12 V and allows for the connection of devices with a maximum power of 24 W.

Power supply MW Power EA 10202D3 12V/2A - DC plug 5,5/2,1mm
€8.50
€6.91 tax excl.
Waiting time: 1-2 weeks
Temporarily unavailable
PayPal payment
Manufacturer: MW Power

Product description: MW Power Switch Mode Power EA 10202D3 12 V / 2 A - 5.5 / 2.1 mm DC plug

TheEA 10202D3 Switch Mode Power Supply EA 10202D3 by MW Power is designed to supply electricity to devices with 5.5 / 2.1 mm DC socket.The output of the power supply provides 12 V DC voltage and allows the connection of devices with maximum power up to 24 W. A built-in electronic protection unit protects the power supply against short circuit and thermal and electrical overload. Once the cause of the fault has been removed, the power supply automatically returns to normal operation. Its design enables both AC and DC power supply.

Zasilacz impulsowy MW Power EA 10202D3 12V/2A - wtyk DC 5,5/2,1mm

MW Power Switch Mode Power EA 10202D3 12 V / 2 A - 5.5 / 2.1 mm DC plug.

Technical data of the Switch Mode Power Supply EA10202D3

  • Power supply design: impulse

  • Output voltage: 12 V

  • Current capacity: 2 A

  • Maximum output power: 24 W

  • Mains voltage range: 100 V AC to 240 V AC

  • Mains current consumption: 1,2 A

  • Mains voltage frequency range: 50 Hz to 60 Hz

  • Efficiency: 82.5%

  • Short-circuit protection: yes

  • Overload protection: yes

  • Overvoltage protection: yes
  • Thermal protection: yes
  • Plug: DC 5.5 / 2.1 mm

  • Output cable length: 1 m
  • Protective class: II

  • Operating environment temperature range: from0°Cup to +40°C

  • Dimensions: 113 x 49 x 32 mm

Colour black
Voltage to 100 V AC
Voltage from 240 V
Nominal output voltage 12.0 V
Nominal power 24 W
Current 2 A
Power supply - type typical plug-in
Power supply - Plug 5.5 / 2.1 mm
Package width 19 cm
Package height 12.5 cm
Package depth 4.5 cm
Package weight 0.204 kg
