Product description: Sonoff IP66 - Hermetic enclosure
Two-piece hermetic enclosure Sonoff dedicated for Basic and RF switches,the enclosureis compatible with POW, TH10,TH16,DUALand G1 switches when the sensor board is removed from the factory enclosure. For safe connection of cables to the switch PG7 chokes have been used, allowing for routing of cables with diameter from 3mm to 6.5 mm.The seal should be placed in the appropriate hole in the upper transparent cover, which after placing the switch in the middle should be screwed to the rest of the housing.

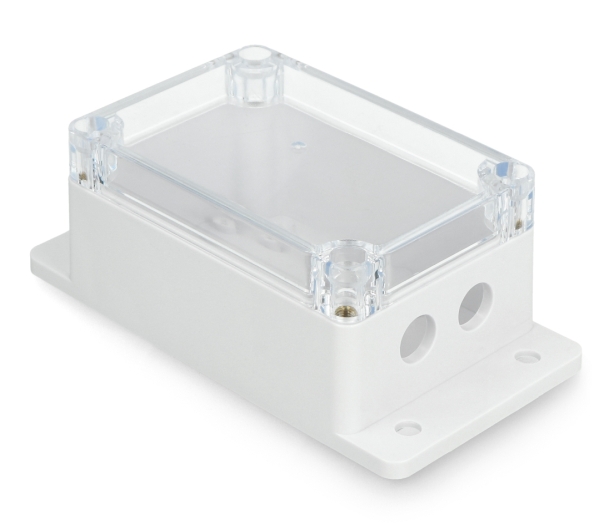

SonoffIP66hermetic enclosure.
Technical specification
- Dust and watertight class: IP66
- Housing material: ABS V0
- Material of the upper case: PC V0
- Colour: white
- Dimensions: 132.2 x 68.7 x 50.1 mm

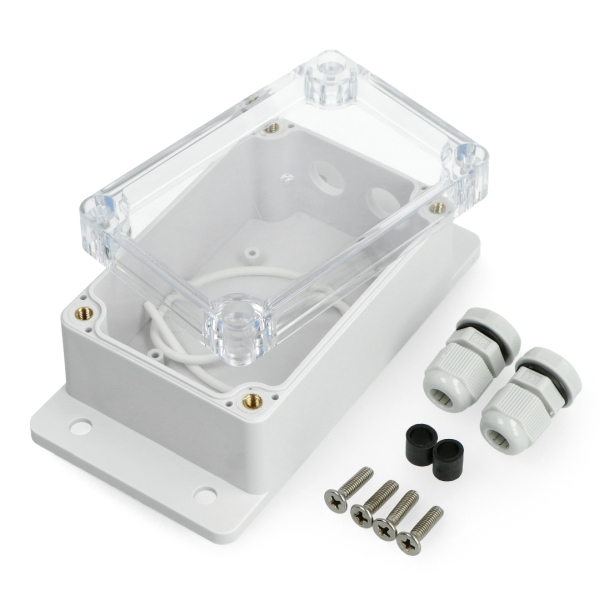

SonoffIP66kit contents.
Set contents
- 1x silicone gasket
- 2x PG7 choke
- 4x screws for connecting the elements
- 1x two-piece housing
