Product description: Sonoff NSPanel - smart WiFi control panel - with switches - white
Sonoff NSPanel is not only a smart wall switch , but also a control center for your home. Equipped with a 3.5-inch HMI touch screen , NSPanel allows you to manage various devices, lighting, and air conditioning. Additionally, two physical buttons located under the screen allow quick access to your favorite devices. The panel supports WiFi connectivity and is compatible with the eWeLink app and popular voice assistants such as Google Assistant and Amazon Alexa. Sonoff NSPanel allows you to group devices of the same type, allowing you to operate them with a single button. Its elegant and simple design makes it fit perfectly into any interior.
Sonoff NSPanel - smart WiFi control panel - with switches - white.
Sonoff NSPanel will allow you to easily control devices at home.Simple and intuitive operation of the entire home
The Sonoff smart panel allows you to conveniently manage various Smart Home functions, such as lighting, heating or alarm systems . The home screen personalization option allows you to adjust the interface to individual user preferences.
Creating scenes and schedules
Want to set specific room temperature and brightness conditions while working, sleeping or watching a movie? NSPanel lets you save specific settings for different scenarios that can be activated at any time. Switch from movie watching mode to leaving home mode with a single touch to instantly activate all your preferences for that scene.
Possibility to group devices
Imagine that sometimes when you come home you just want to turn on one light and enjoy the peace and quiet, but other times you want to turn on all the lights to welcome your family or friends. NSPanel allows you to control the same types of smart devices individually or in groups , adapting them to your specific preferences.
Intelligent temperature control
Create your own personalized thermostat by selecting the temperature source and actuators . This allows you to automatically maintain the optimal room temperature, adjusted to your preferences.
The panel allows you to create scenes and schedules.

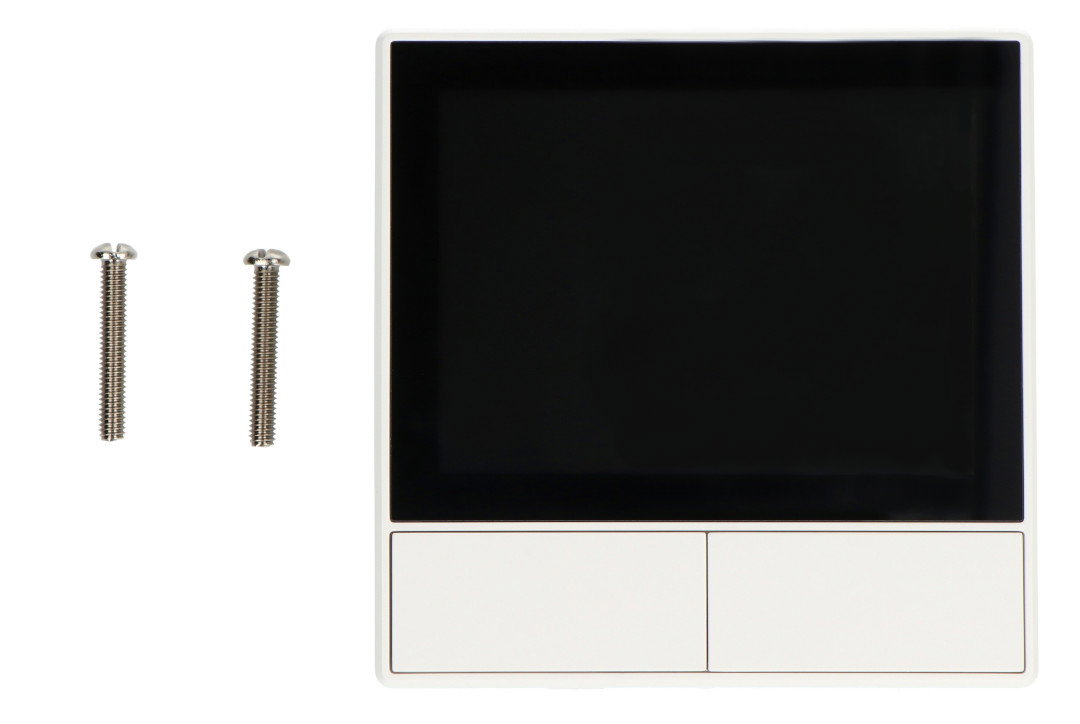

Items included in the set.
Technical specification of the panel
- Model: NSPanel-EU
- Display: TFT, 3.5''
- Display resolution: 480 x 320 px
- WiFi Protocol: 802.11 b/g/n
- Bluetooth Protocol: 4.2
- Supported systems: Android, iOS
- Output voltage: 100V to 240V
- Current: 2A per channel, 4A total
- Supply voltage: 100 V to 240 V
- Maximum LED load: 150W/110V per channel, 300W/110V total
- Material: PC V0 + CRS + tempered glass
- Color: white
- Dimensions: 86 x 86 x 41.7 mm
Kit Contents
- Sonoff NSPanel - Smart WiFi Control Panel - with Switches - White
- 2x mounting screw
- User manual
