Product description: Feetech FT6325M servo - standard
Standard type servo by Feetech. It is powered with voltagefrom 6 V to 8.4 V. Current consumption without load is1200 mA. Range of servo movement is from 0° to 360°. It has a300 mmlong cable that is terminated with a JR connector. The kit includes several additional servo orbs and the parts needed to mount them.
Feetech FT6325M servo standard type.
Technical drawing of Feetech FT6325M servo.
Servo specifications
- Manufacturer: Feetech
- Model: FT6325M
- Supply voltage: from 6 V to 8.4 V
- Servo type: digital
- Servo range: 360°
- It has a movement limiter
- Storage temperature: from -30°C to 80°C
- Operating temperature: from -20°C to 60°C
- Cable length: 30 cm
- Orbit type: 25T / 9.5 mm
- Controls:
- Stop position: 1500 µs
- Counterclockwise rotation: 1500 -> 2000 µs
- Maximum pulse range: 500 to 2500 µs
- Bearing: Ball bearing
- Degree of protection: IP54
- Connector: standard JR connector
- No load speed: 0.151 s / 60°.
- Servo dimensions: 55 x 20 x 43 mm
- Weight: 67 g
- Specifications for 6 V:
- Torque: 20.5 kg*cm
- Speed: 0.185 s/60°
- Current consumption when the shaft is stopped: 3 A
- No-load current consumption: 1000 mA
- Parameters for 7.4 V:
- Torque: 25 kg*cm
- Speed: 0.151 s/60°
- Current consumption when the shaft is stopped: 3,5 A
- No-load current consumption: 1200 mA
Package contents
- Feetech servo FT6325M
- Set of pendulums
- Mounting elements
We also offer servocontrollers.

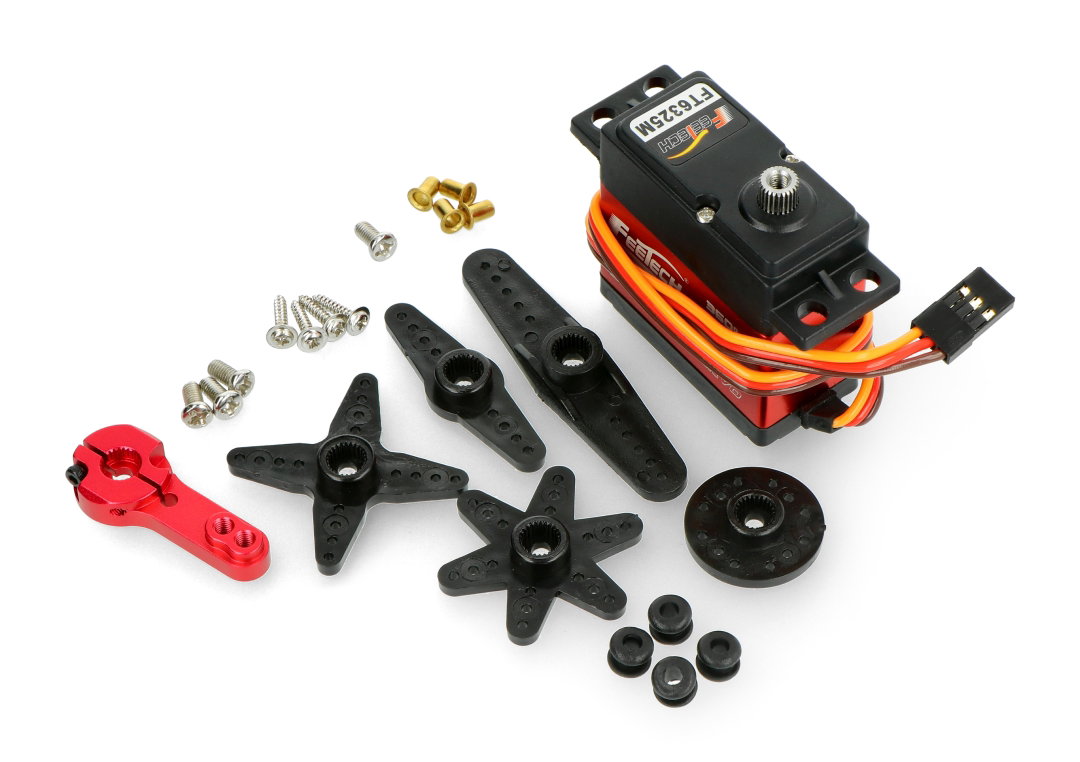

Contents of Feetech FT6325M servo set.
