Specification
- Microcontroller: STM32F103RBT6
- Core: ARM Cortex M3 32-bit
- Clock frequency: 72 MHz
- Flash memory: 128 KB
- SRAM: 20KB
- 2 x analog-to-digital converter: 12-bit, 16-channel
- Number of Timers: 7
- Interfaces: 3x USART, 2x SPI 18Mbit/s, 2x I2C, Full Speed USB, CAN 2.0 B
- Two types of connectors:
- Connectors for shields compatible with Arduino Uno Rev3
- Standard pins STMicroelectronics Morpho to access the leads of the microcontroller
- The module is compatible with the operating system mbed (mbed.org)
- The debugger ST-Link/V2 is placed on the board with the possibility to work as a standalone device with the SWD output.
- The posibility to power through USB connector
- Embedded three LEDs:
- 1 x for indication of supply voltage
- 1 x indicating connection
- 1 x at user disposal
- Two buttons:
- 1 x RESET
- 1 x at user disposal
- Three different interfaces via connectorminiUSB(USB re-enumeration):
- Virtual COM port
- Mass memory
- Port for programming/debugging
- The module supports most of the popular environments, i.a.: IAR, Keil and the platforms based on GCC compiler
A detailed description can be found in thedocumentationand onthe website of the manufacturer.

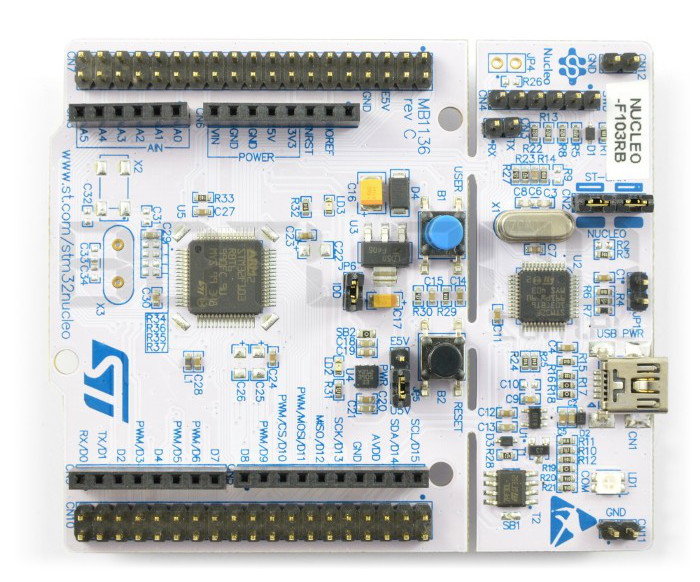

Nucleo allows for the implementation of projects based on efficient microcontroller with 32-bit core ARM Cortex. The modules are compatible with Arduino shields and the on-line compiler's system mbed.org. Nucleo works with most of popular programming platforms, including Keil, IAR and with environments based on the GCC compiler.
