Product description: STM32 NUCLEO-WB15CC - STM32WB15CC ARM Cortex M4
Module produced by STMicroelectronics with 32-bit microcontroller equipped with ARM Cortex M4 core, 320 kB Flash, 48 kB SRAM. Nucleo module is compatible with mbed platform, it has connectors for Arduino overlays (so called Arduino Shield).
Nucleo allows to implement projects based on efficient microcontroller with 32-bit ARM Cortex core. The modules are compatible with Arduino over lays and online compiler system mbed.org. Nucleo works with most popular development platforms including IAR Embedded Workbench ®, MDK-ARM, STM32CubeIDE.

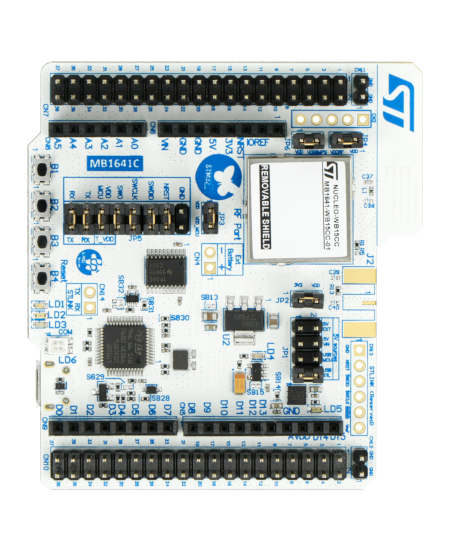

STM32 NUCLEO-WB15CC - STM32WB15CC ARM Cortex M4.

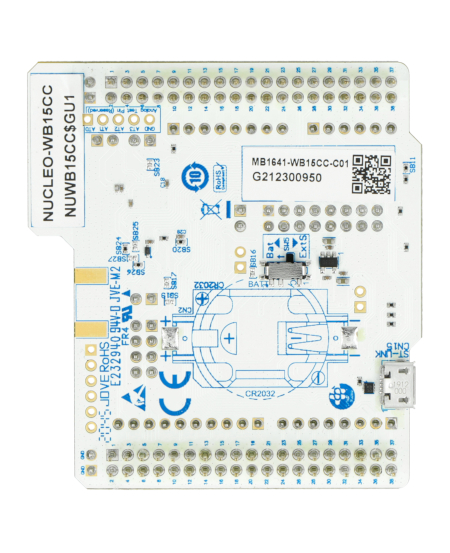

Module with 32-bit microcontroller equipped with ARM Cortex M4 core.STM32 NUCLEO-WB15CC specification.
- STM32WB15CC microcontroller:
- Core: Cortex M4
- 64 MHz clock speed
- 320 kB Flash
- 48 kB SRAM
- Housing VFQFPN48
- Interfaces: I2C, SPI, UART, USART, USB
- Module compatible with mbed system(mbed.org)
- ST-Link/V2 debugger located on the board
- Circuit powered from USB or external source: 5 V / 3.3 V
- The board also includes:
- Three LEDs (one user accessible)
- Three buttons (3 user buttons and reset)
- Goldpin connector for I/O ports
- Integrated antenna and SMA connector
- Built-in slot for mounting a CR2032 battery
