Product Description: SYN115 RF Transmitter - 433 MHz - Unit extension module for M5Stack development modules

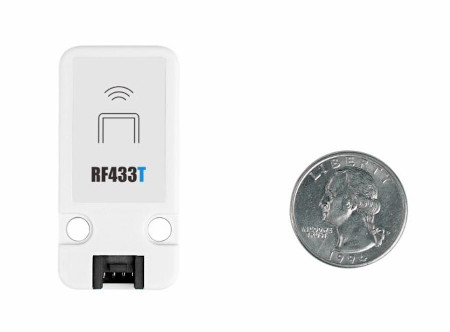

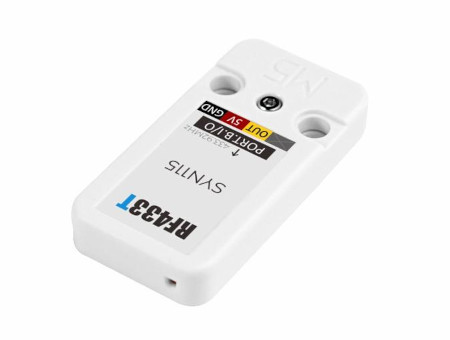

Unit type extensionin the form of anRF transmitterfrom M5Stack. TheRF433Tmodule is a wireless RF transmitter. It is equipped with theSYN115chip, whose operating frequency is433.92 MHz(with ASK modulation). The 433.92 MHz frequency is used in various types ofwireless controllers. The module is also equipped with a PCB antenna, which ensuresstabledatatransmissionover the maximum distance of10 m. The module's design is robust and compact with two practical mounting holes (in accordance with the LEGO standard).The RF transmittercan be used in projects with remote control, security alarms orwireless meter reading. The elements of the set have been placed in a convenient package for easy storage.
Technical specifications
- Embedded Receiver IC: SYN115
- Frequency: 433.92 MHz (with ASK modulation)
- Stable transmission distance: up to 10 m
- Output power: 10 dBm
- Transmission speed: 10 kbps
- Operating current: 12 mA
- Antenna type: PCB
- Equipped with two holes compatible with LEGO standard
- Module dimensions: 48 x 24 x 8 mm
- Weight: 6 g
Suggested application
- Building automation
- Security alarms
- Home and industrial automation
- Remote control of electronic devices
- Receiving element in projects with wireless data transmission

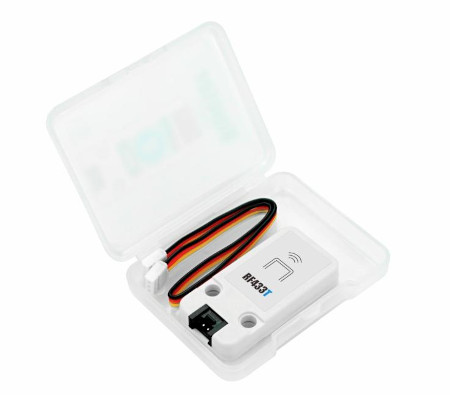

Contents of the set
- SYN115 RF transmitter - 433 MHz
- Connection cable with Grove connector
In our shop you will also find other extensions of theUnittype, which will allow you to expand any project according to individual needs.
