SYN513R RF Receiver - 433 MHz - expansion module Unit for M5Stack Development Modules

Index: MSS-19586 EAN: 5904422363734

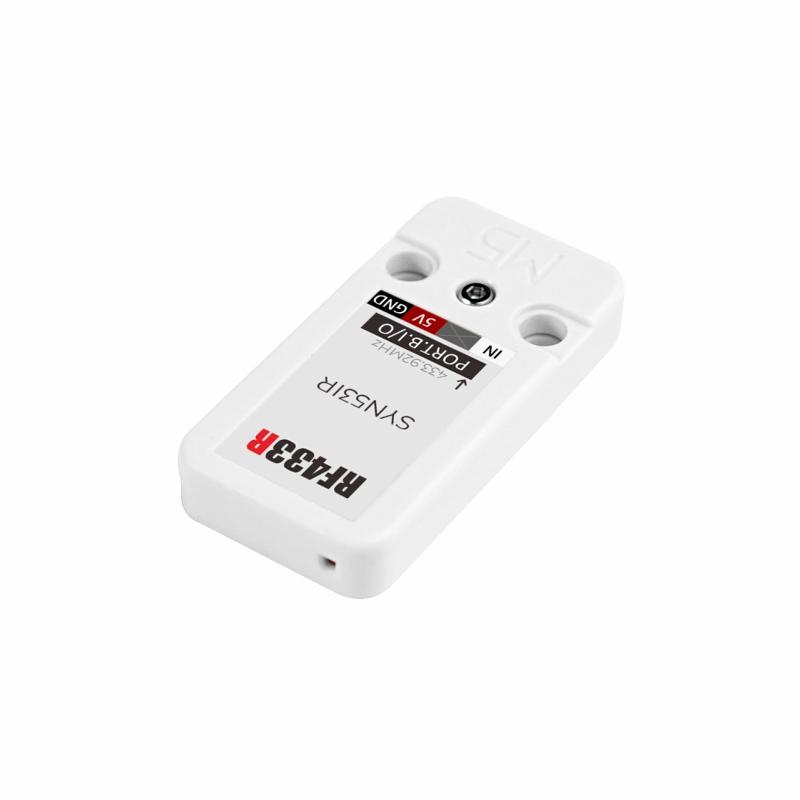

Unit type extension in the form of an RF receiver from M5Stack. The RF433R module is a wireless RF receiver equipped with the SYN531R chip, whose operating frequency is 433.92 MHz (with ASK modulation). This frequency is commonly used in various types of wireless controllers. The module also has a built-in PCB antenna, which ensures stable reception at distances up to 10 m.
SYN513R RF Receiver - 433 MHz - expansion module Unit for M5Stack Development Modules
€5.00
€4.07 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: M5Stack

Product description: SYN513R RF Receiver - 433 MHz - Unit extension module for M5Stack development modules

Unit typeexpansion in the form of anRF receiverfrom M5Stack. TheRF433Rmodule is a wireless RF receiver featuring theSYN531Rchip, which has an operating frequency of433.92 MHz(with ASK modulation). This frequency is commonly used in various types ofwireless controllers. The module has also built-in PCB antenna, which ensuresstablereception at distancesup to 10 m. It features excellent selectivity and effective noise suppression. Thanks to its robust and compact design, including practical mounting holes,the RF receivercan be used in projects with remote control, security alarms orwirelessmeterreading. The kit's components are packed in a convenient carrying case for easy storage.

Odbiornik RF SYN513R - 433 MHz - moduł rozszerzeń Unit do modułów deweloperskich wyprodukowanych przez M5Stack.

The SYN513R RF Receiver - 433 MHz - Expansion Unit for development modules manufactured by M5Stack.

Obsługiwany przez popularne środowiska programistyczne takie jak Arduino.Supported by popular development environments such as Arduino.

Technical specifications

  • Embedded Receiver IC: SYN531R
  • Frequency: 433.92 MHz (with ASK modulation)
  • Stable reception distance: up to 10 m
  • Sensitivity: -109 dBm
  • Reception speed: 1 kbps
  • Operating current: 8 mA
  • Excellent selectivity and noise suppression
  • Antenna type: PCB
  • Equipped with two holes compatible with LEGO standard

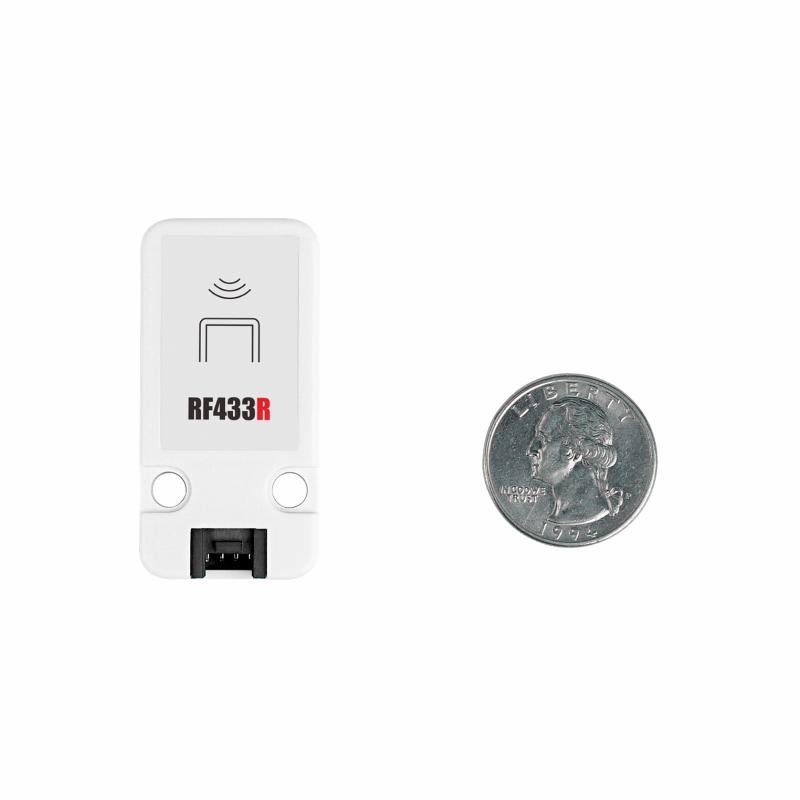

  • Module dimensions: 48 x 24 x 8 mm
  • Weight: 6 g

Suggested application

  • Building automation
  • Security alarms
  • Home and industrial automation
  • Remote control of electronic devices
  • Receiving element in projects with wireless data transmission

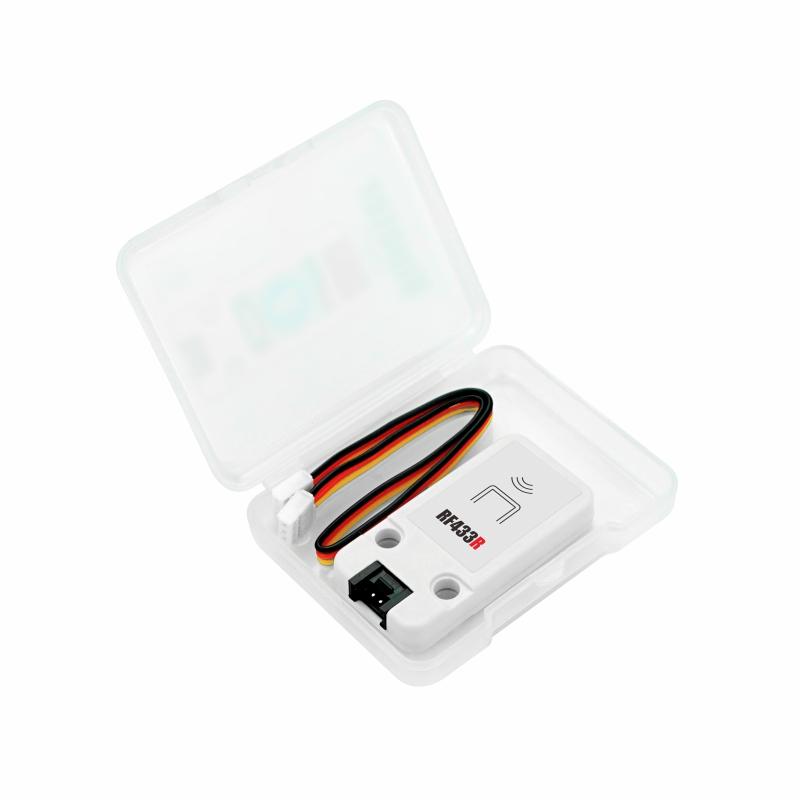

Set contents

  • SYN513R RF Receiver - 433 MHz
  • Connection cable with Grove connector

In our shop you will also find other extensions of theUnittype, which will allow you to expand any project according to individual needs.

W skład zestawu chodzi także dedykowany przewód połączeniowy.
Also includes a dedicated connection cable.
Frequency from 433,92 MHz
Frequency to 433,92 MHz
Package width 7 cm
Package height 1 cm
Package depth 5 cm
Package weight 0.019 kg
