Product description: IoT module CAT-M / NB-IoT + GNSS SIM7080G - with telecommunications antenna - M5Stack U137
IoT module manufactured by M5Stack and equipped with a SIM7080G chip. It enables wireless communication and data transmission that supports CAT-M , NB-IoT and global GNSS modes. The set includes a connecting cable with a Grove connector and two antennas - GNSS and LTE, which improve the quality of communication and signal stability . IoT CAT-M / NB-IoT + GNSS SIM7080G can be programmed with Arduino IDE, UIFlow, as well as AT commands and multiple communication protocols files.

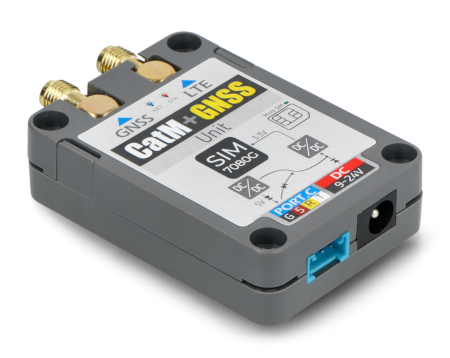

IoT CAT-M / NB-IoT + GNSS module with SIM7080G chip.

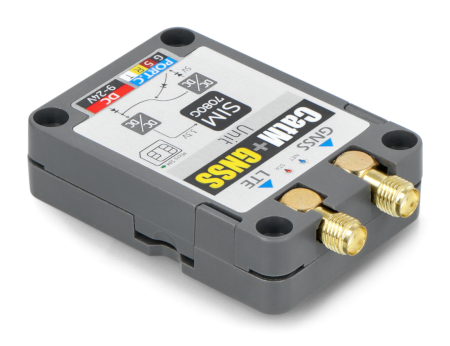

The module has connectors for connecting the included antennas - GNSS and LTE.
Main features of the module
- GSM SIM7080G wireless communication module
- Supports CAT-M, NB-IoT and GNSS global coverage
- UART interface, operation via AT command
- Micro SIM card slot
- External GNSS and LTE antenna included in the kit
- Certificates:
- Softbank / Telec / RoHS / REACH / JATE / Docomo / KDDI / RCM / CE (RED) / GCF
- Deutsche Telekom / FCC / PTCRB / AT&T / Verizon / T-Mobile / US Cellular / IC
- Supported development platforms such as Arduino IDE, UIFlow
IoT module specification CAT-M / NB-IoT + GNSS
- Built-in chip: SIM7080G, UART 115200 8N1 interface
- Support for CAT-M bands: B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B14 / B18 / B19 / B20 / B25 / B26 / B27 / B28 / B66 / B85
- Support for CAT-NB bands: B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 / B66 / B71 / B85
- GNSS support: GPS / GLONASS / BeiDou / Galileo
- CAT-M download and upload speed: up to 1119 kbps upload, up to 589 kbps download
- NB-IoT download and upload speed: up to 150 kbps upload, up to 136 kbps download
- RF Power Class: Class 5 (21dBm)
- Supported protocols: TCP / UDP / HTTP / HTTPS / TLS / DTLS / PING / LWM2M / COAP / MQTT and other communication protocols
- Supply voltage:
- DC input 9V to 24V (5.5/2.1mm DC jack), built-in DC/DC circuit to convert 9V to 24V to 5V
- External DC 5V power supply via HY2.0-4P connector
- Power consumption:
- 42 mA / 12 V - when the module is connected to the network
- 13 mA / 12 V - when the module is idle
- Communication interfaces: UART (3.3V TTL, AT commands
- Module dimensions: 62 x 40 x 18.4mm
- Weight: 25.1g

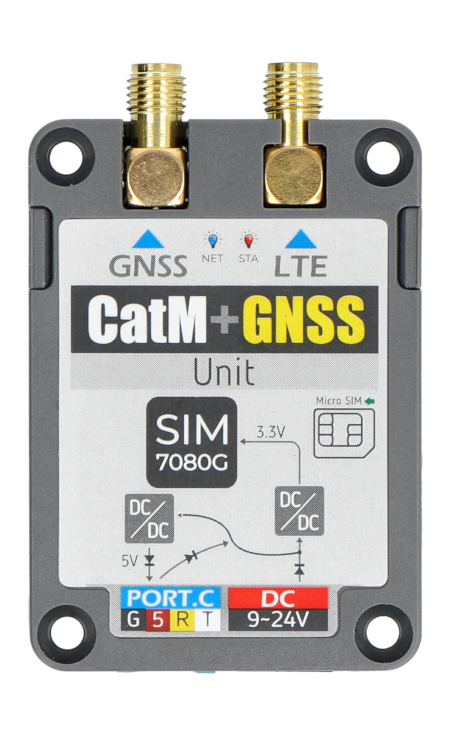

IoT module CAT-M / NB-IoT + GNSS SIM7080G - with telecommunications antenna - M5Stack U137.

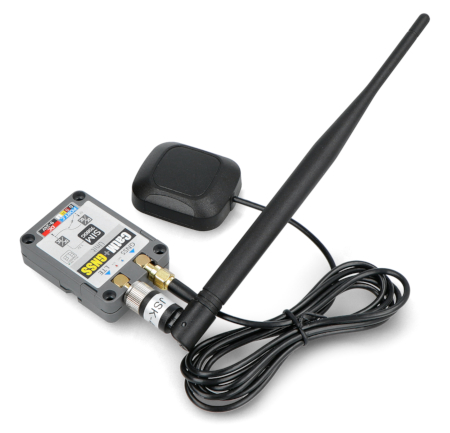

Components included in the set.
Kit contents
- 1 x CAT-M IoT module
- 1 x 4G LTE antenna (telecommunications)
- 1 x GPS Antenna
- 1 x 20 cm Grove connection cable
