Product description: NFC Unit - NFC / RFID reader 13.56 MHz - ST25R3916 - M5Stack U216

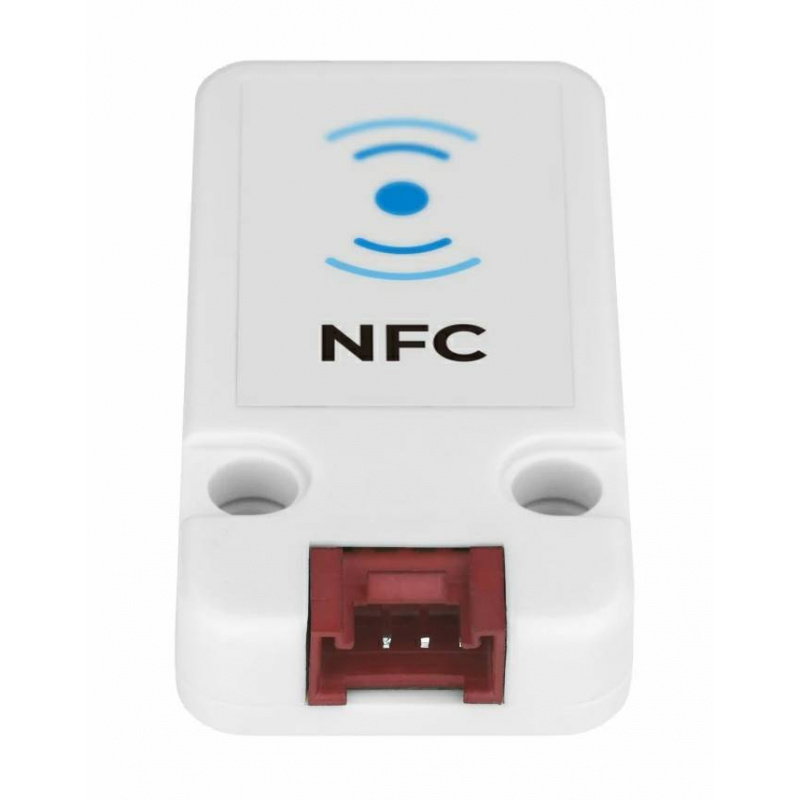

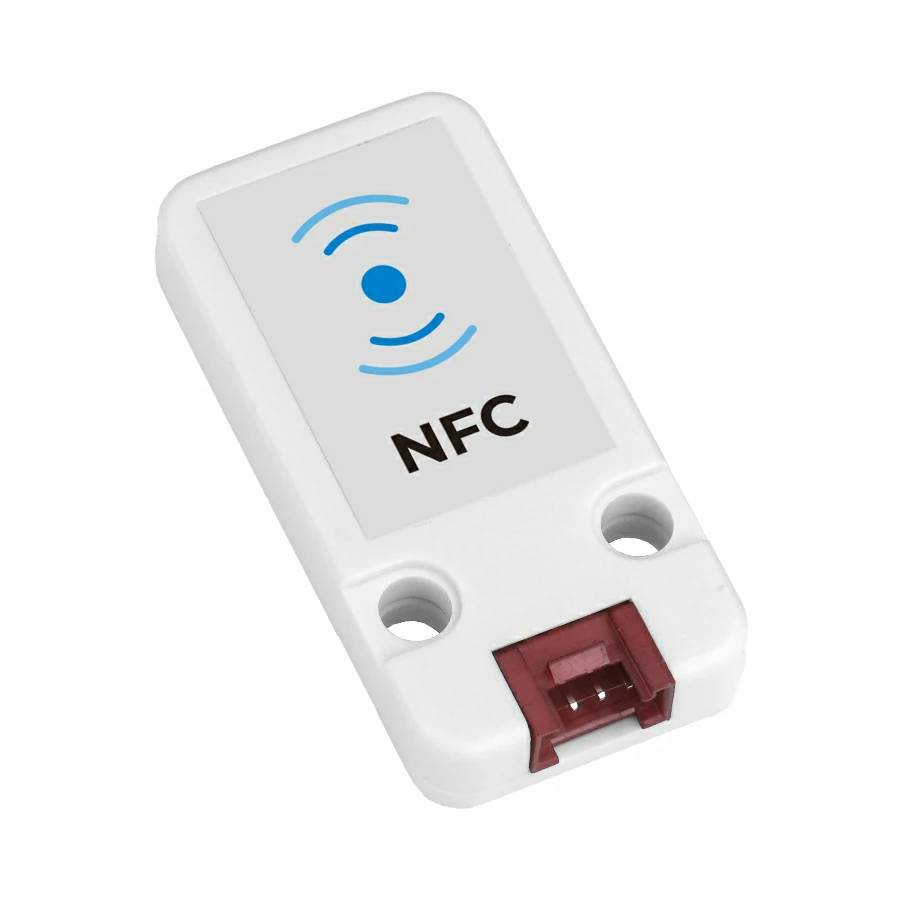

The M5Stack Unit NFC is a compact proximity communication module designed to read, write, and exchange data with popular NFC/RFID cards and tags . The ST25R3916-AQWT chip supports the NFC-A, NFC-B, NFC-F, and NFC-V standards, allowing the module to work with media compliant with ISO 14443A, ISO 14443B, FeliCa, and ISO 15693 , among others. The device communicates with a master controller via the I2C bus, using address 0x50 and a frequency of 100 kHz or 400 kHz . The module supports read/write modes, card emulation, and custom communication protocols . Automatic antenna tuning and high receiver sensitivity facilitate stable communication in access control, user identification, and automation projects.
NFC Unit - NFC / RFID reader 13.56 MHz - ST25R3916 - M5Stack U216.
The module is equipped with a powerful ST25R3916 chip, supporting popular protocols such as ISO 14443A, ISO 14443B, FeliCa and ISO 15693.
Main features of the M5Stack Unit NFC module
- ST25R3916-AQWT chip : a high-performance front-end chip designed for NFC and RFID communication
- 13.56 MHz frequency : compatible with popular proximity cards, key fobs and tags
- Multi-protocol support : compatible with ISO 14443A, ISO 14443B, FeliCa and ISO 15693
- Three operating modes : Reader/Writer, Card Emulation and Custom Protocol
- I2C interface : communication with address 0x50 and frequency 100 kHz or 400 kHz
- Read and write range up to 40 mm : convenient handling of proximity cards and tags
- Automatic antenna tuning : helps maintain stable communication
- High receiver sensitivity : improves the reliability of reading compatible media
- HY2.0-4P connector : easy connection to compatible M5Stack controllers
- LEGO compatible holes : make it easy to mount the module in housings and structures
- UiFlow2 and Arduino IDE support : graphical and text programming capabilities
- Grove cable included : you can quickly start working with the module
M5Stack Compatibility and NFC Module Programming
The M5Stack NFC module is designed to work with controllers equipped with a Grove connector and an I2C bus . It can be connected to devices from the M5Stack Core, Atom, Stick, Cardputer family , and other controllers supporting 5V power and SDA and SCL lines. For selected devices, the pin numbers in the program must be adjusted to match the port used by the specific controller. Programming the module is possible in the UiFlow2 environment, which allows you to create applications using blocks, and in the Arduino IDE. using a library prepared by the manufacturer. The documentation includes a quick start example, a connection diagram, and a pinout map. This makes the module suitable for both educational projects and more complex identification and automation systems.

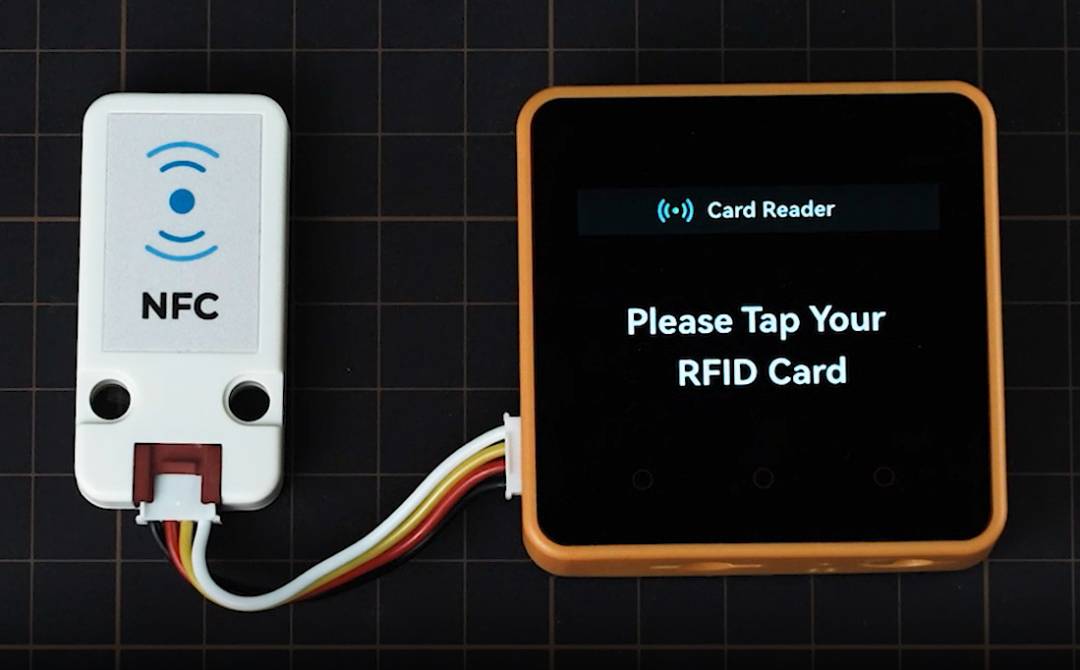

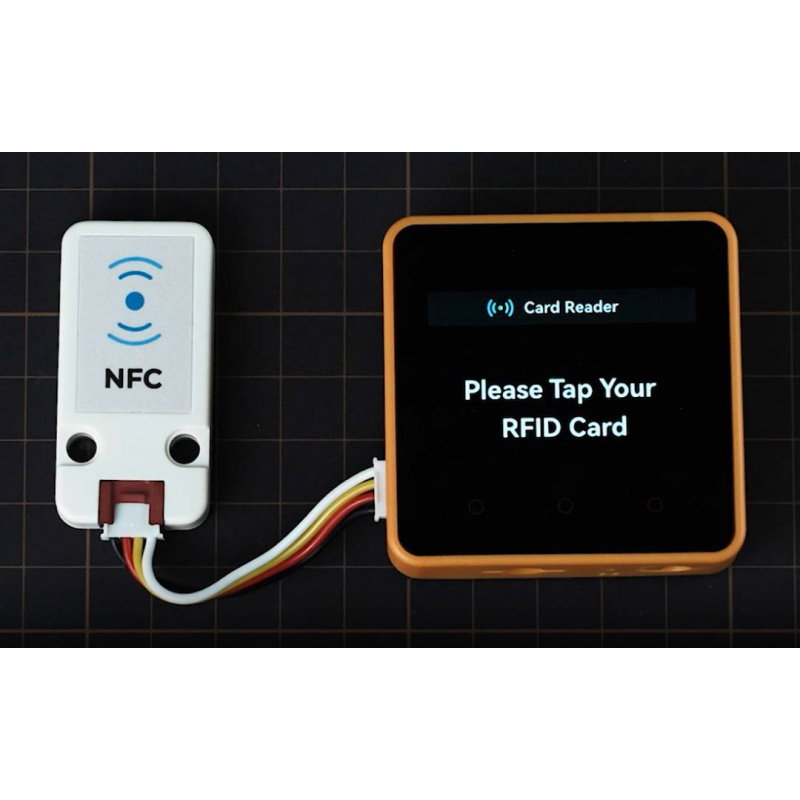

M5Stack Unit NFC can be used to build access control systems based on cards, key fobs or proximity tags.
A Grove cable is included in the set.
Technical specifications of M5Stack Unit NFC U216

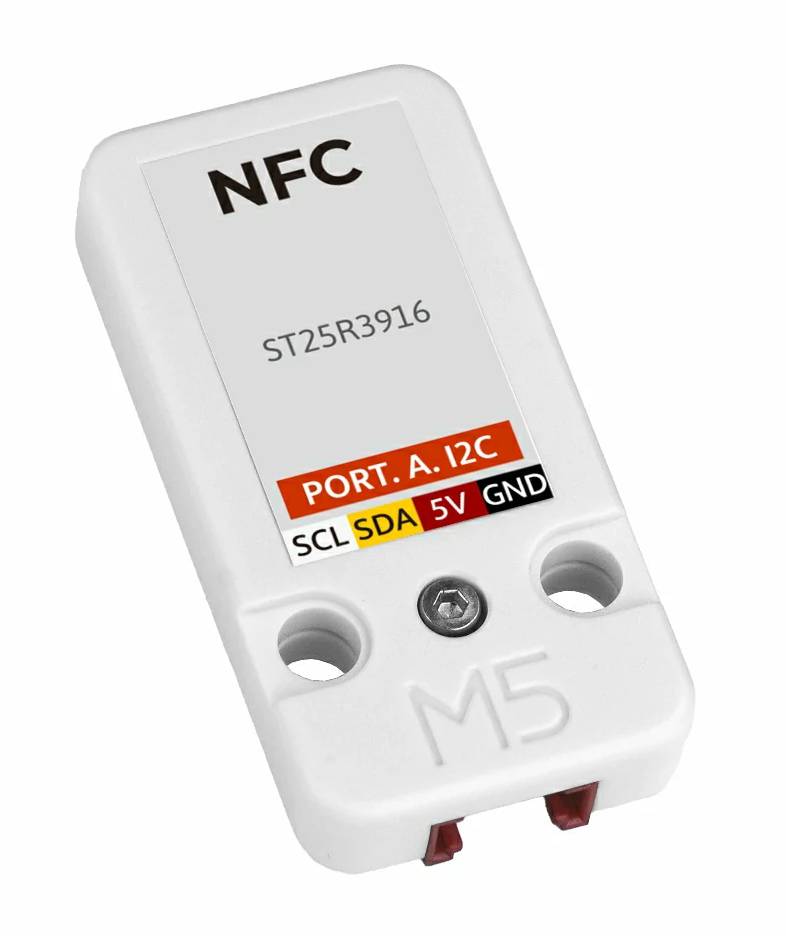

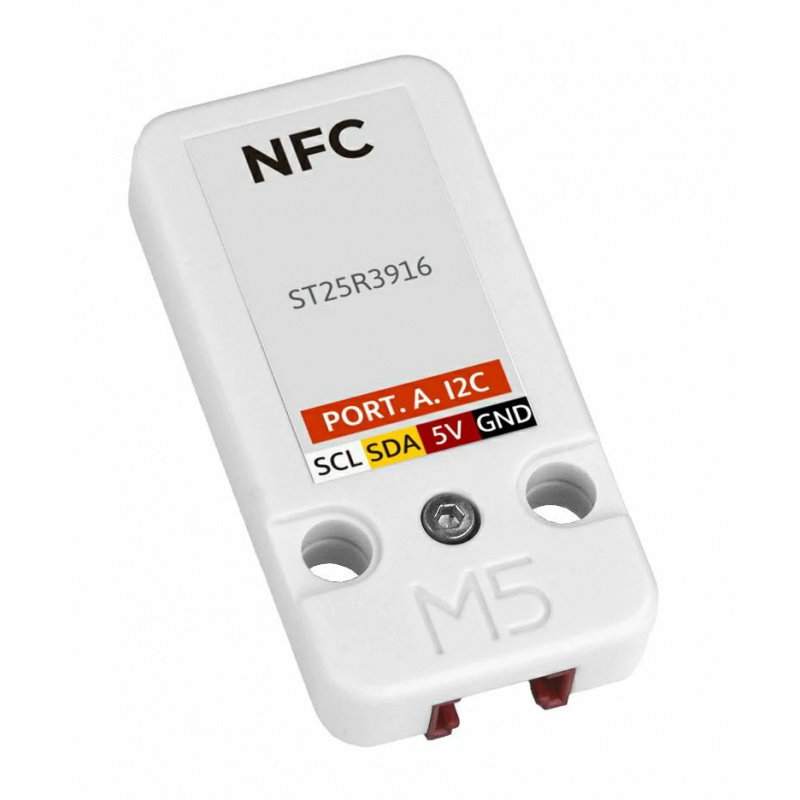

- System type: ST25R3916-AQWT
- Module type: NFC/RFID reader and programmer
- Operating frequency: 13.56 MHz
- Communication interface: I2C
- I2C address: 0x50
- I2C bus frequency: 100 kHz or 400 kHz
- Supported protocols in Reader/Writer mode: NFC-A/B compliant with ISO 14443A/B, NFC-F FeliCa and NFC-V compliant with ISO 15693
- Supported protocols in Card Emulation mode: NFC-A and NFC-F
- Operating modes: Reader/Writer, Card Emulation, Custom Protocol
- Read and write range: up to 40 mm
- Connector: HY2.0-4P Grove
- Connector pins: GND, 5 V, SDA, SCL
- Supply voltage: 5 V
- Sleep mode current consumption: 19.33 µA
- Power consumption after startup without configuration: 19.79 µA
- Current consumption during continuous reading: 67.65 mA
- Current consumption during intermittent reading: 66.48 mA
- Supported environments: UiFlow2, Arduino IDE
- Dimensions: 48 x 24 x 8 mm
- Weight: 5.9 g
Contents of the set
- 1x M5Stack Unit NFC Module

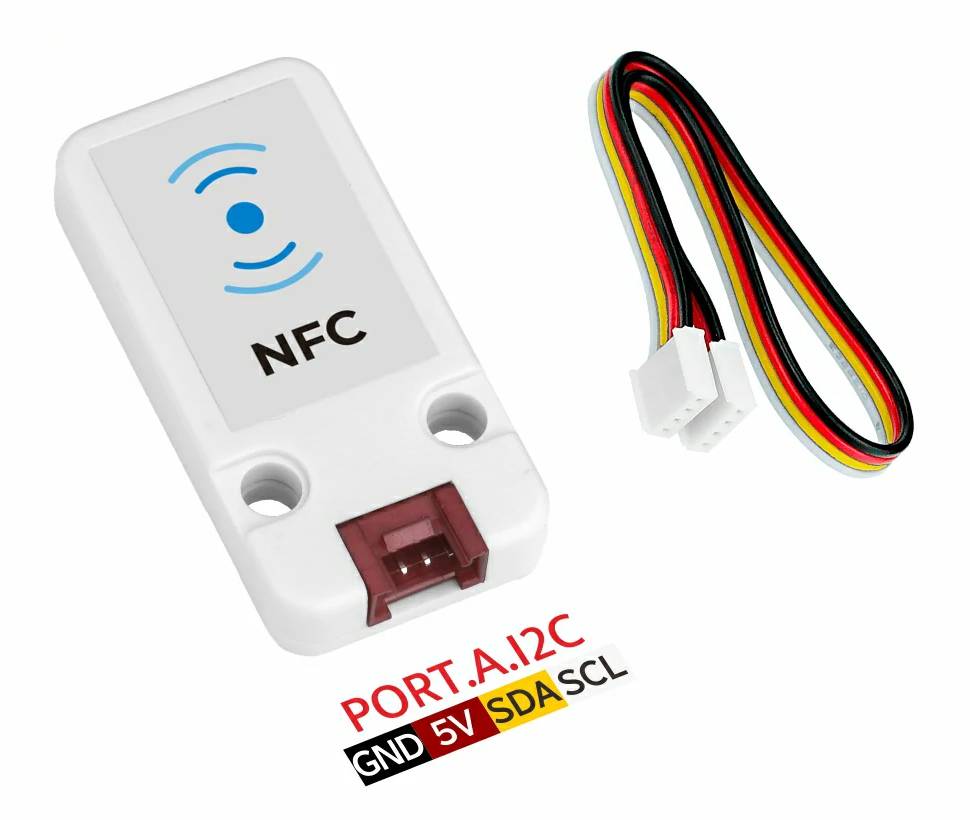

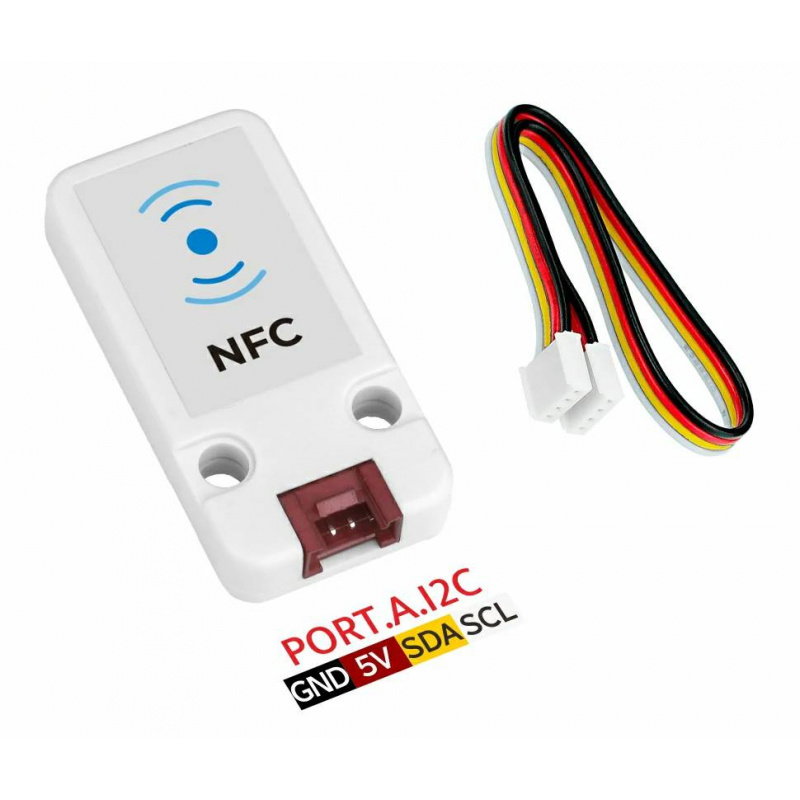

- 1x HY2.0-4P Grove Cable 20cm long
