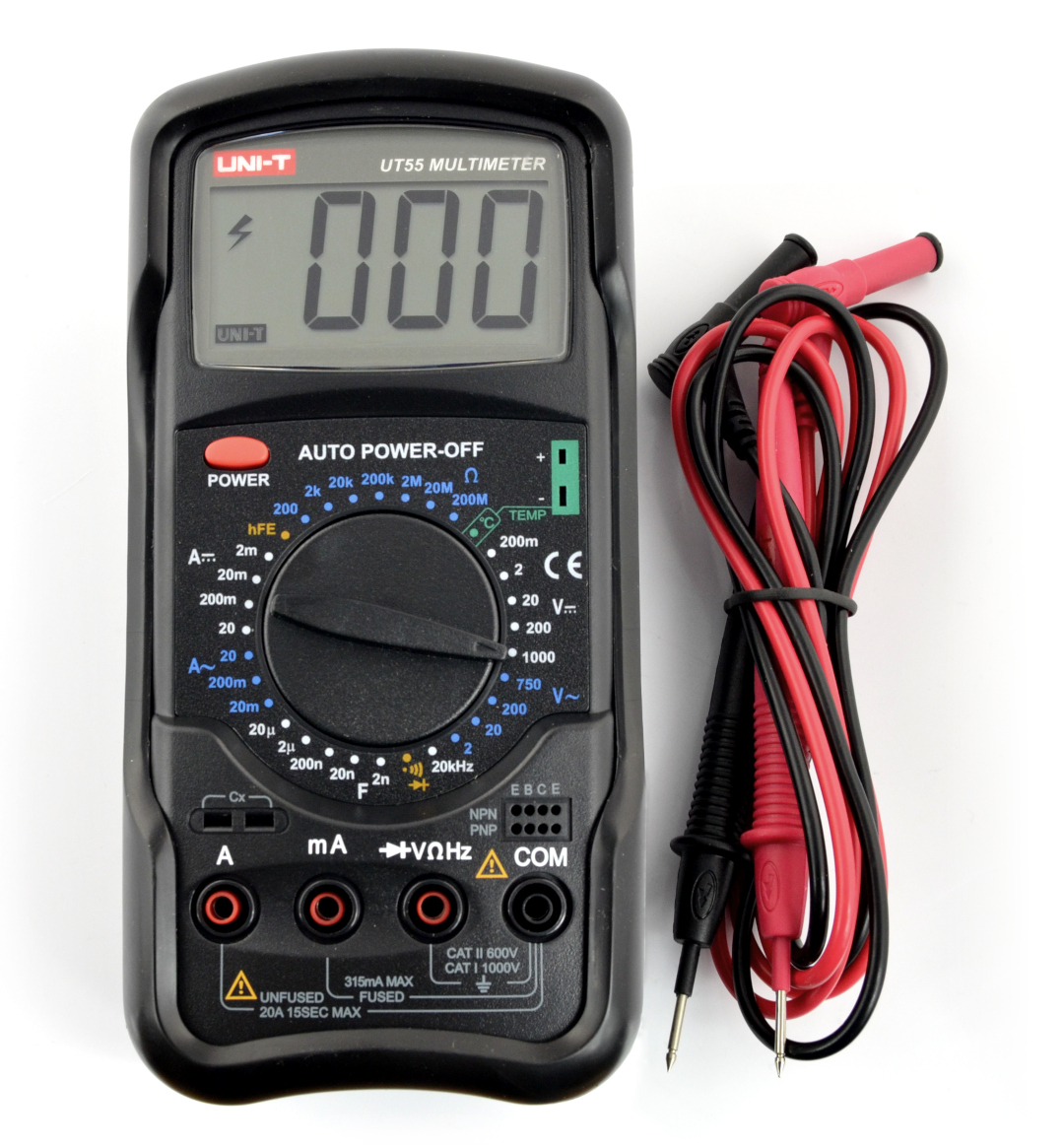

Product description: Universal multimeter UNI-T UT55
The multimeter enables to measure DC and AC voltage, flow of DC and AC current, resistance, capacitance and frequency. Temperature measurement in range of -40÷1000°C allows the attached probe.The continuity is indicated via an acoustic signal.The device has the function of testing transistors, as well as the auto deactivation after 30 minutes of inaction.The meter is powered by the popular 9V battery which is also included.On its level of discharge informs the digital indicator. Large, easy to read display and attached leash make it easy to use a multimeter.Everything is sent in properly protected, original box.
Includes:
- Test leads
- Probe for temperature measurement
- 9V battery
- Leash
- Instruction: in English and Polish
- Warranty: 24 months
Specification multimeter UNI-T UT55
| Parameter | Range |
|---|---|
| Constant voltage (DC) | 200 mV / 2 V / 20 V / 200 V / 1000 V |
| AC voltage | 2 V / 20 V / 200 V / 750 V |
| DC | 2 mA / 20 mA / 200 mA / 20 A |
| AC | 200 mA / 20 A |
| Resistance | 200 Ω/ 2 kΩ/ 20 kΩ/ 200 kΩ / 2 MΩ/ 20 MΩ/ 200 MΩ |
| Capacity | 20 nF / 20 nF/ 200 nF / 2µF / 20µF |
| Inductance | no |
| Frequency | from 2 kHz to 20 kHz |
| Temperature | -20 °C to 1000 °C |
| Automatic range selection | no |
| Standby mode | no |
| Sound buzzer | yes |
| Transistor tester | yes |
| Tester of diodes | yes |
| Battery tester | no |
| Function of Data Hold | no |
| Battery indicator | yes |
| Backlight | no |
| Display | LCD 1999 (33 x 65 mm) |
| Dimensions | 190 x 88 x 34 mm |
| Power | 9 V battery (included) |
| Weight | 850 g |
