Product description: Velleman DVM010 multimeter
The Velleman DVM010 digital multimeter is a handy tool designed to measure AC/DC voltage up to 600 V, AC/DC current up to 10 A, and resistance . It features a backlit LCD display , making readings easy even in low light. The meter also offers diode testing, transistor testing, continuity testing , and a data hold function. Manual ranging allows for better adjustments to the measurement being performed, while automatic power-off helps reduce battery drain. The robust ABS housing and silicone cover enhance the meter's durability during everyday use. The included 100 cm test leads allow for easy maneuvering during testing.

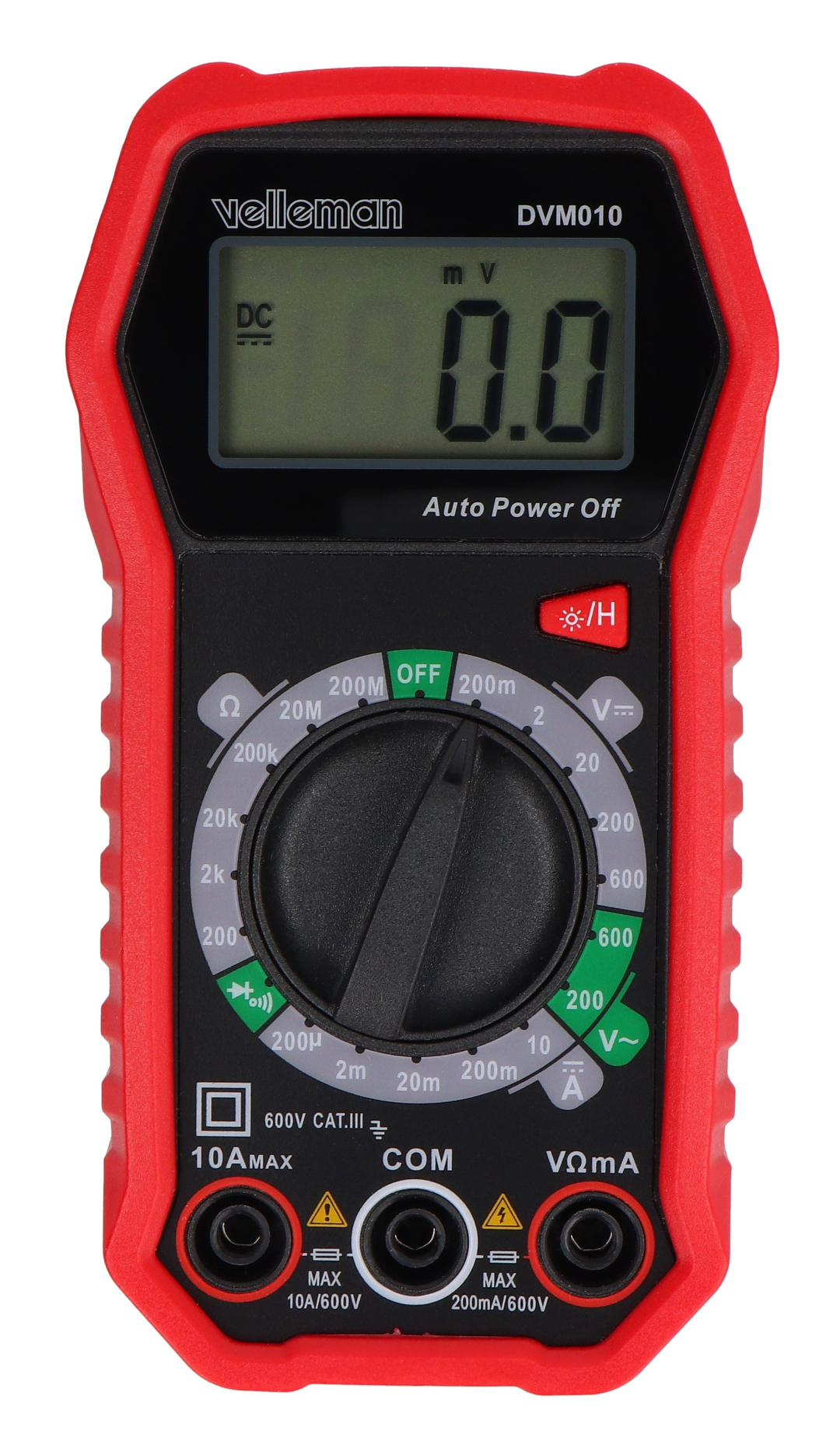

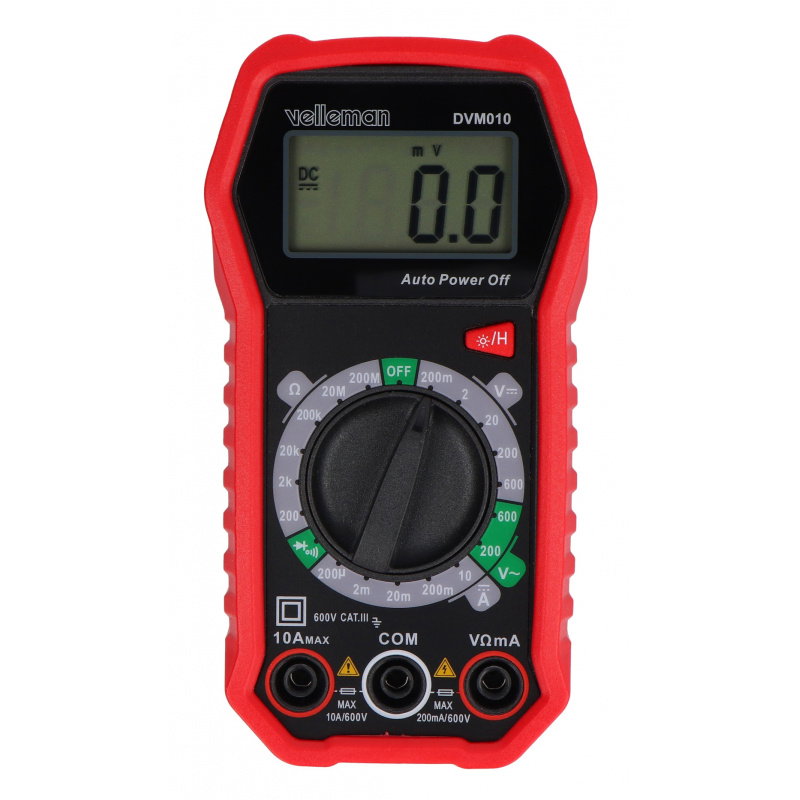

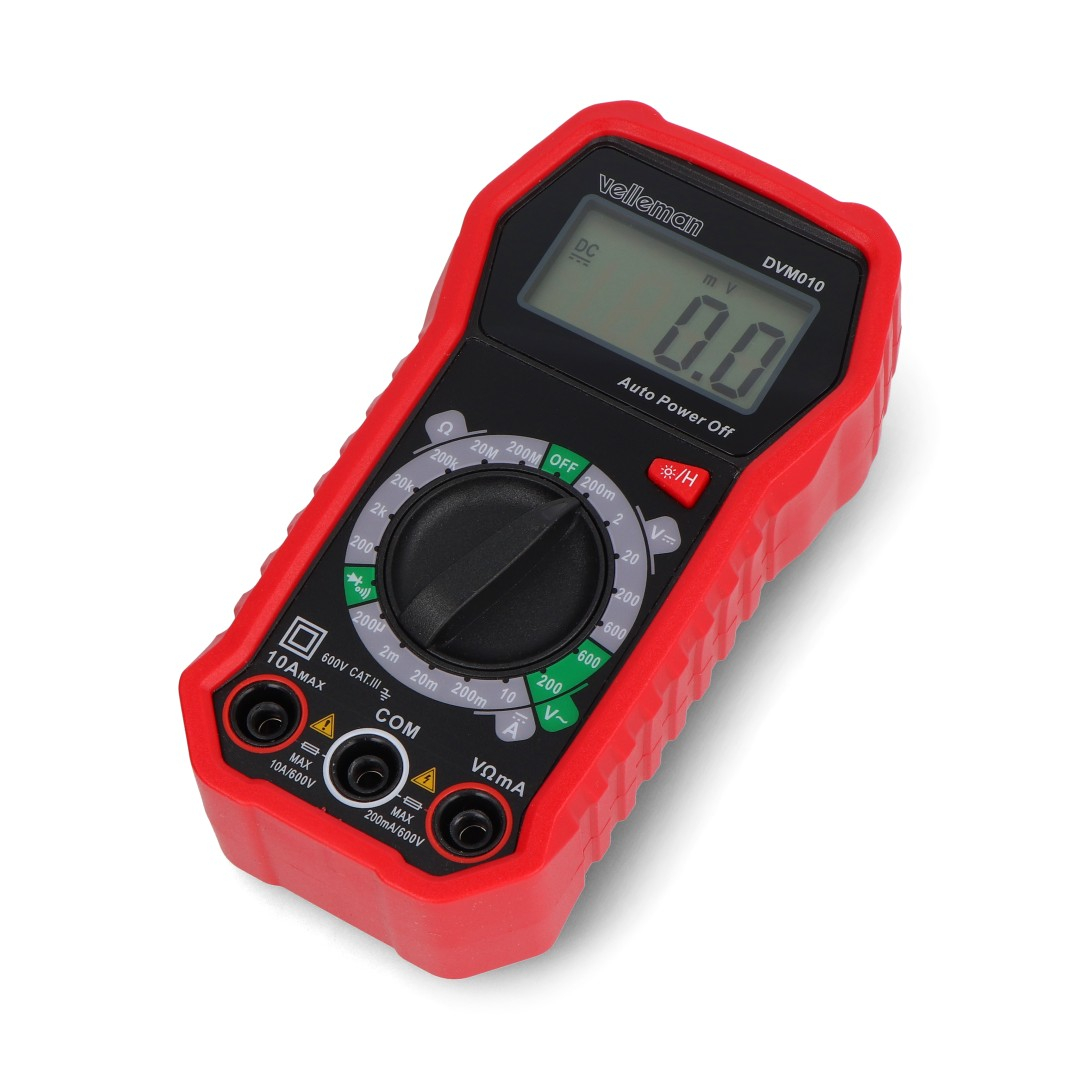

Velleman DVM010 multimeter.
The multimeter allows you to measure AC / DC voltage up to 600 V, AC / DC current up to 10 A and resistance.
Main features of the meter
- LCD display : clear screen with backlight for easy reading of results
- AC/DC voltage and current measurement : universal use in electronics and basic installation diagnostics
- Resistance measurement : wide measurement range for checking components and circuits
- Data Hold function : freezes the result on the screen after the measurement is taken
- Diode, Transistor and Continuity Test : Practical Diagnostic Functions in One Device
- Manual range change : full control over the measurement and easy adjustment of settings
- CAT III 600 V Safety : Safe operation for typical electrical measurements
- Auto power off : saves energy when on the go
- Compact housing with silicone cover : greater durability and comfort of use
| Measurement parameters of the Velleman DVM010 multimeter | |||
|---|---|---|---|
| Function | Range | Resolution | Accuracy |
| DC voltage | 200mV/2V/20V/200V/600V | 100 µV / 1 mV / 10 mV / 100 mV / 1 V | ±(0.8% + 5) |
| AC voltage | 200V / 600V | 100 mV / 1 V | ±(1% + 10) |
| DC current | 200 µA / 2 mA / 20 mA / 200 mA / 10 A | 0.1 µA / 1 µA / 10 µA / 100 µA / 10 mA | 200 µA / 2 mA / 20 mA: ±(1% + 5) 200 mA: ±(2% + 5) 10A: ±(3% + 5) |
| AC current | 200 mA / 10 A | - | ±(1.5% + 3) |
| Resistance | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 20 MΩ / 200 MΩ | 0.1 Ω / 1 Ω / 10 Ω / 100 Ω / 10 kΩ / 100 kΩ | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ: ±(1% + 5) 20 MΩ: ±(1.2% + 8) 200 MΩ: ±(5% + 10) |
Technical specifications of the multimeter
- Display: LCD, 2000 counts
- Backlight: yes
- Data Hold Function: Yes
- Range change: manual
- Automatic shutdown: yes
- Diode test: yes
- Transistor test: yes
- Continuity test: yes
- Low battery indicator: yes
- Overrange indicator: yes
- Input impedance: 10 MΩ
- Fuses: F 0.2 A / 600 V, 5 x 20 mm and F 10 A / 600 V, 5 x 20 mm
- Safety category: CAT III 600 V
- Degree of protection: IP20
- Housing material: ABS
- Length of measuring cables: 1 m
- Power supply: 2 x AAA
- Dimensions: 133 x 71 x 47 mm
- Weight: 190 g
Kit contents
- Velleman DVM010 digital multimeter
- TLM80 test leads - CAT III 1000 V / CAT IV 600 V - length 100 cm

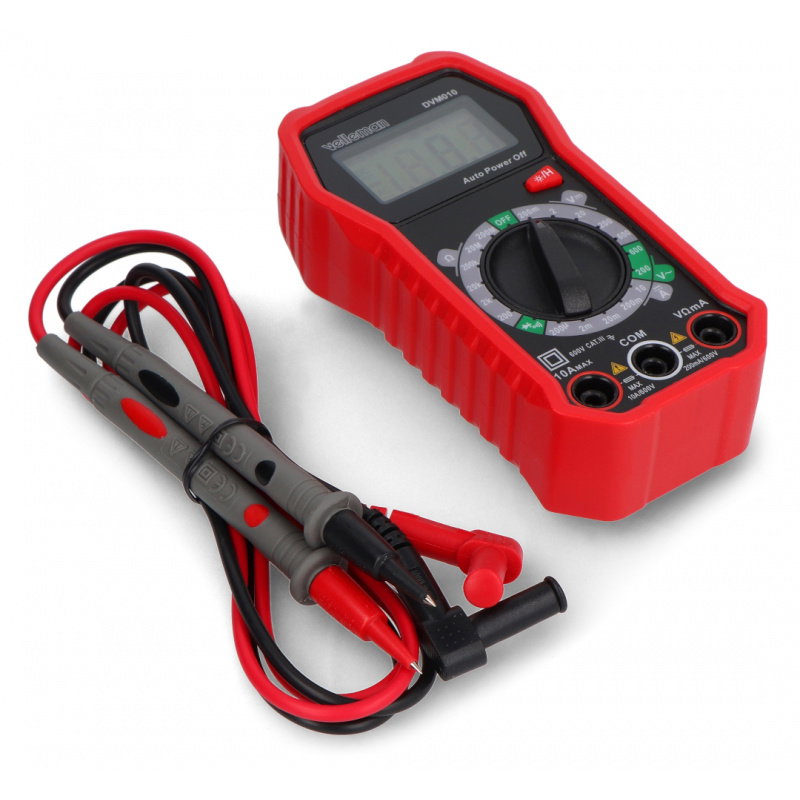

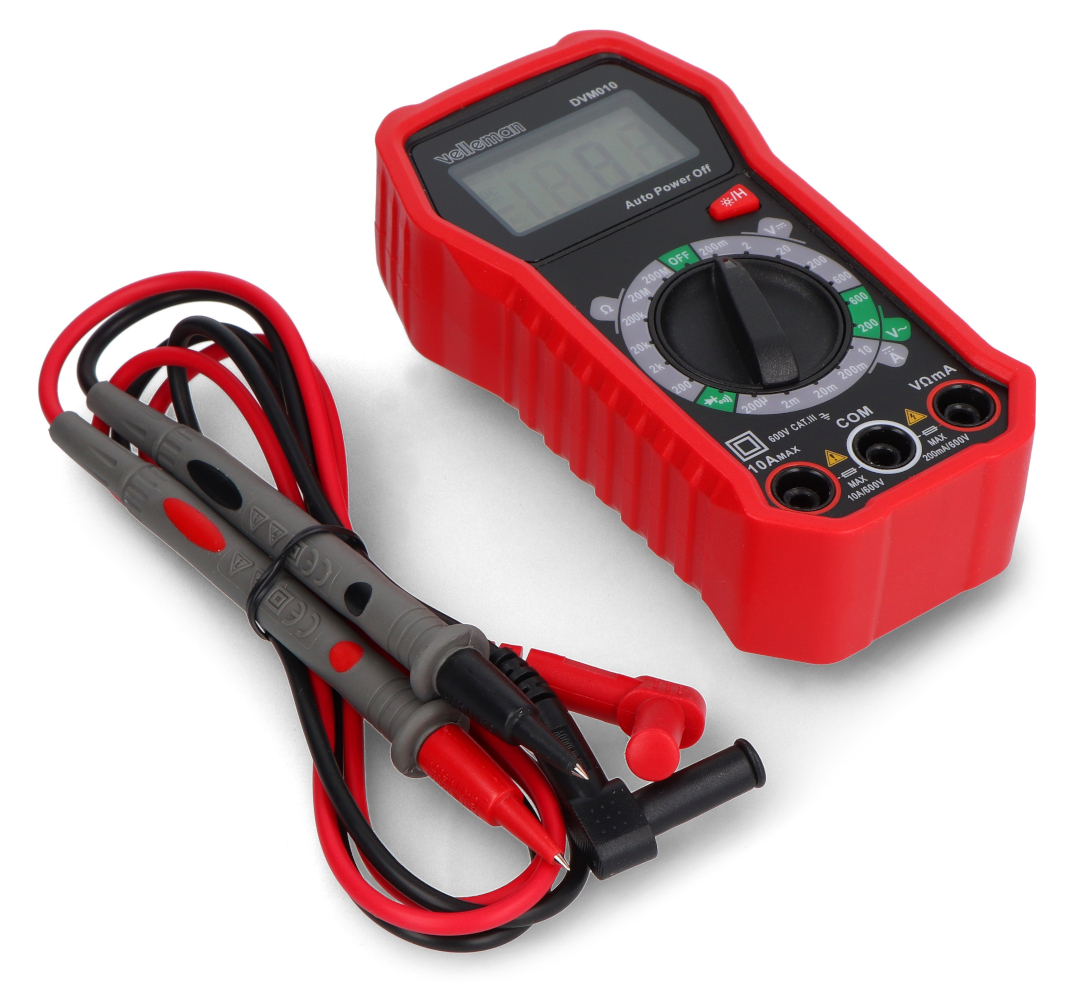

Elements included in the set.
