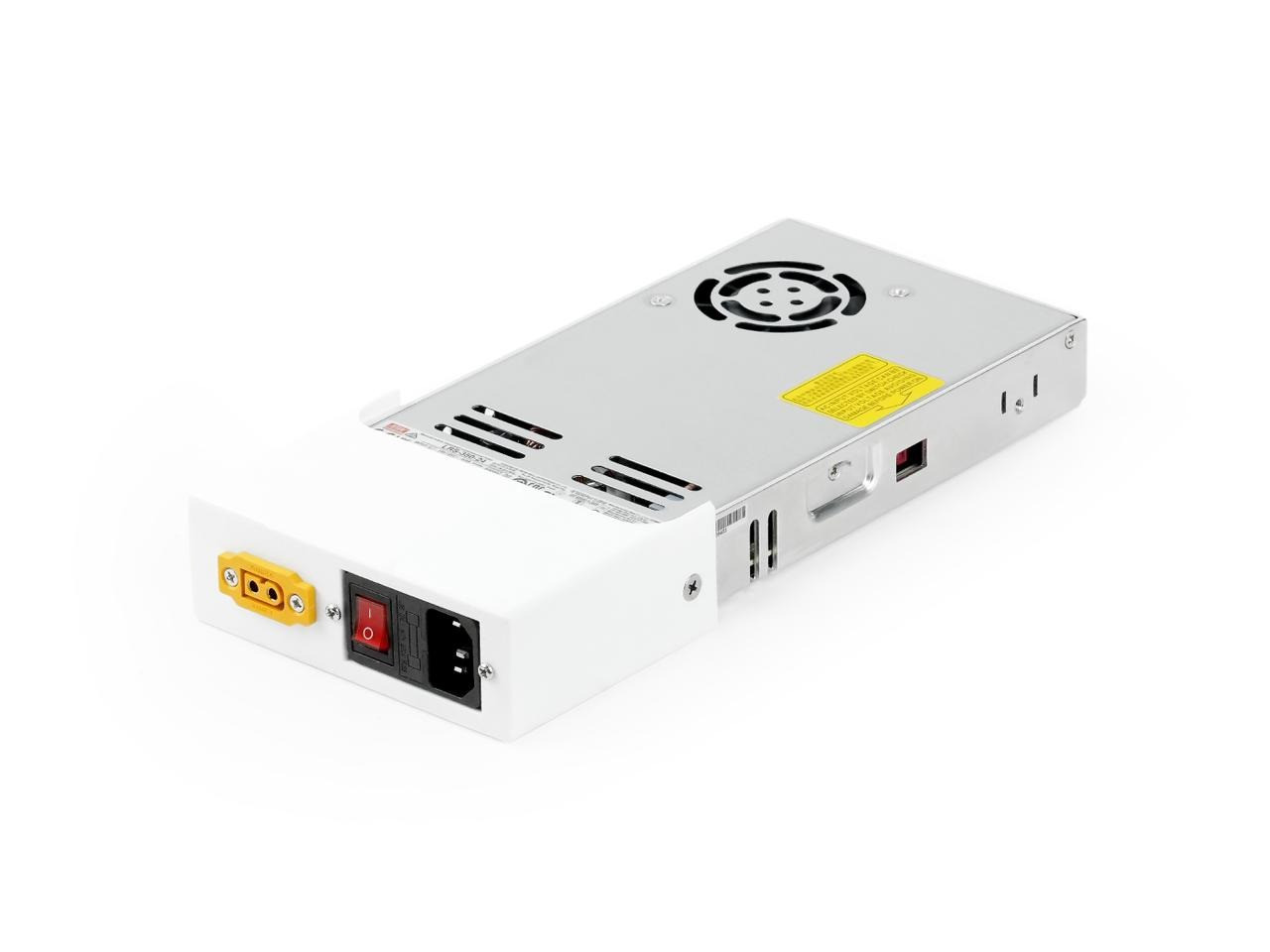

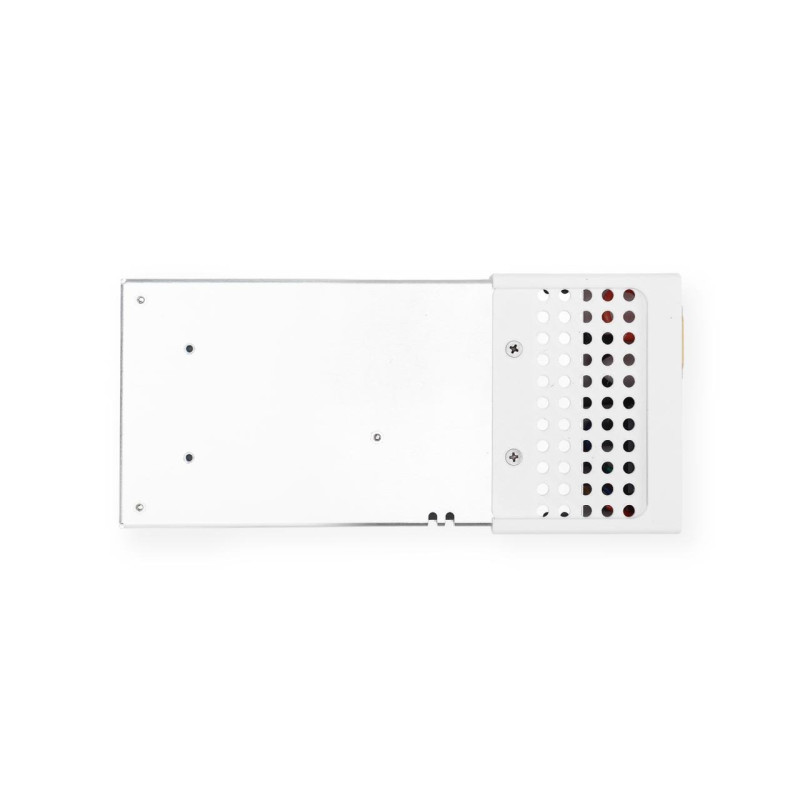

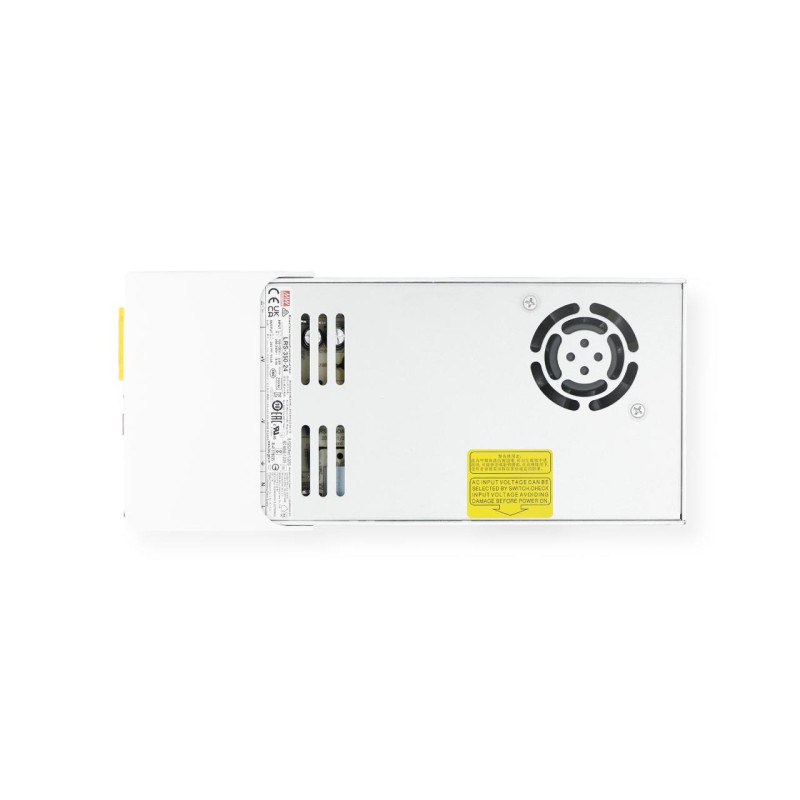

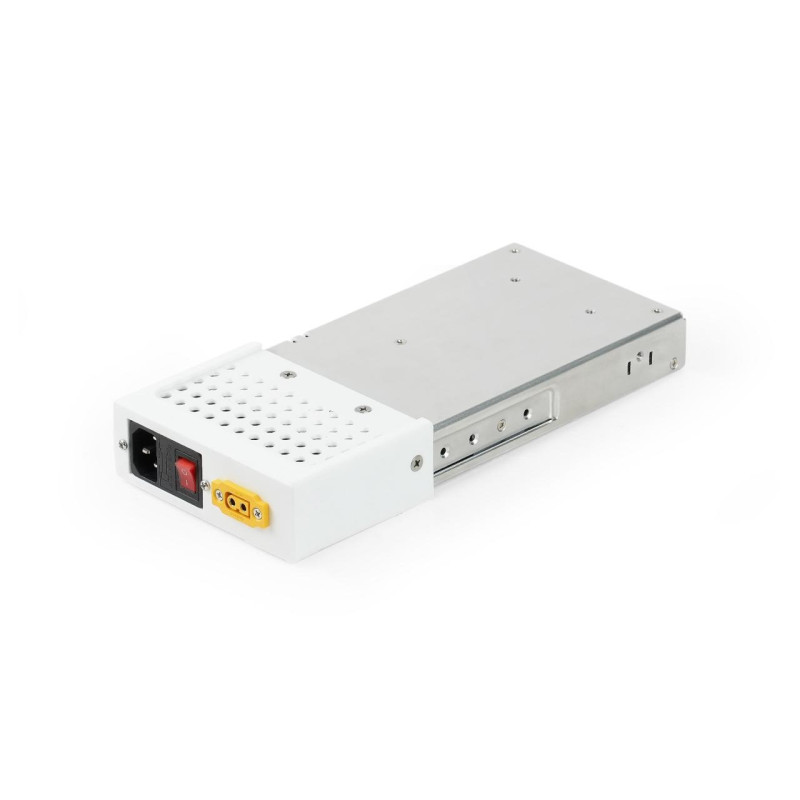

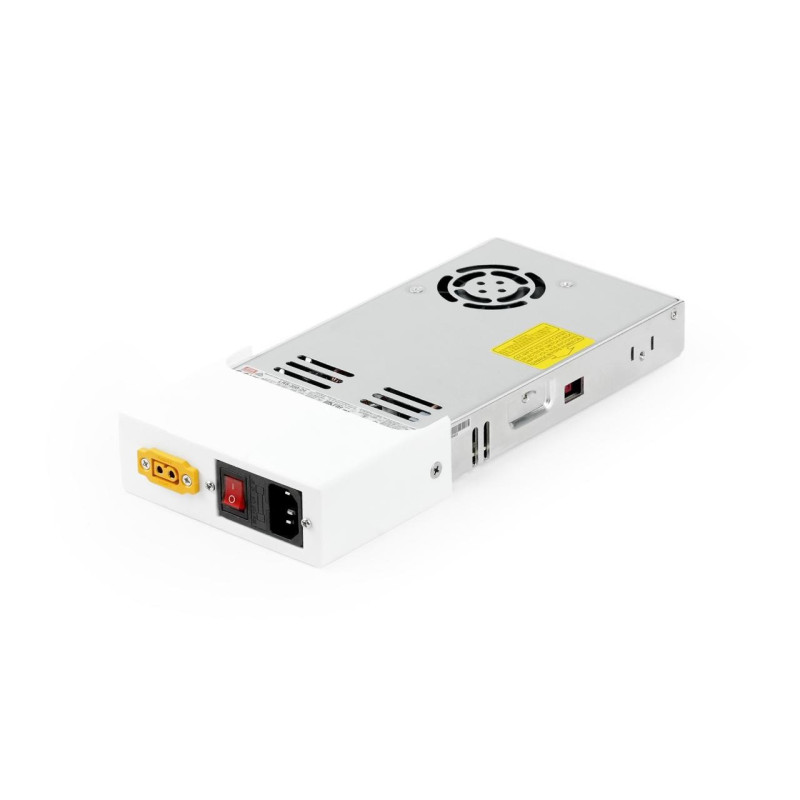

24V / 14.6A / 350W power supply for reBot Arm B601-DM robot arm - Seeedstudio 100029903
24 V / 350 W power supply with an XT30 connector for the reBot Arm B601-DM: a kit that completes the arm sold without a power supply.
- 24 V DC output, 14.6 A
- XT60 - XT30U cable for the arm included
- EU, US and CN power cords
We could not load the price.
The promotional price does not combine with quantity discounts.
Power for the reBot arm without modifications
The 24 V / 14.6 A power supply for the reBot Arm B601-DM is an industrial 350 W MEAN WELL switching supply with a mains socket, switch and XT60 output. You plug the included XT60 - XT30U cable straight into the power socket of the reBot Arm B601-DM, which is sold without a power supply.
The power supply has protection against short circuit, overload, overvoltage and overheating, and the fan switches on only above 50 °C. The kit includes three detachable power cords: EU, US and CN. You will find the same power supply in the reBot Arm B601-DM kit with Jetson Orin.
24V 14.6A 350W power supply for reBot Arm B601-DM
24 V / 14.6 A
output voltage and current
350 W
rated power
4 protections
short-circuit, overload, overvoltage and thermal
3 cords
power cords: EU, US and CN
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Is it the right choice for you?
A good choice if:
- you have the standalone reBot Arm B601-DM without a power supply
- you need a second power supply for another station with an arm
- you want a power supply with an XT30 connector that fits the arm without soldering
Consider another option if:
- you do not have the arm yet: the power supply is already part of the reBot Arm B601-DM kit with Jetson Orin
- you are looking for a 12 V power supply or one with a DC plug: this kit has a 24 V output with an XT60 connector
Fun fact
The power supply enclosure is an open project
The manufacturer provides the instructions and the parts list for the enclosure of this power supply in the reBot Arm project repository, just like the files for the arm itself. Building the enclosure yourself is recommended only for people with experience in assembling power supplies.
Frequently asked questions
Does the robot arm come with a power supply in the box?
The standalone reBot Arm B601-DM is sold without a power supply, so you need this kit to run it. The power supply is already included with the version of the arm with a Jetson Orin computer.
What should I set before switching the power supply on?
Set the input voltage switch on the side of the power supply to 230 V if you connect it to a 220-240 V mains supply. For a 110 V mains, choose the 115 V position.
How does the temperature-controlled fan in the power supply work?
The fan is temperature-controlled: it switches on when the temperature exceeds 50 °C and switches off when it drops to 40 °C, so the power supply runs quietly under a light load.

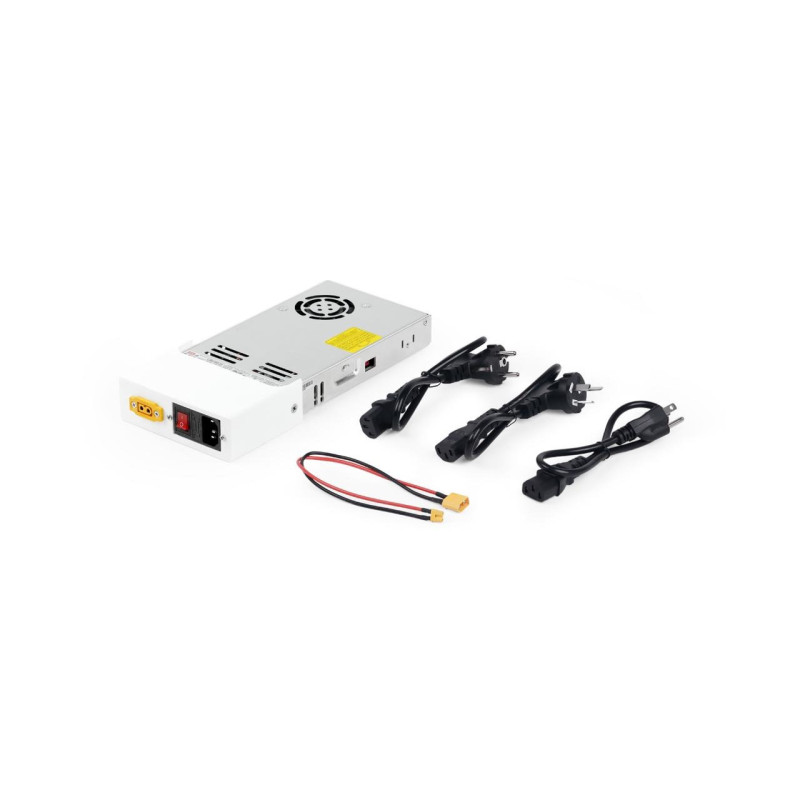

Package contents
- 1 x 24 V / 14.6 A / 350 W power supply in a housing
- 1 x Power cord with EU plug
- 1 x Power cord with US plug
- 1 x Power cord with CN plug
- 1 x XT30U (female) - XT60 (male) cable
Technical specifications
| Parameter | Value |
|---|---|
| Type | industrial AC/DC switching power supply in a housing with a mains socket and switch |
| Output voltage | 24 V DC |
| Output current | 14.6 A |
| Power | 350.4 W |
| Input voltage | 90-132 V AC or 180-264 V AC, selected with a 115/230 V switch |
| Mains frequency | 47-63 Hz |
| Input current | max. 3.4 A at 230 V AC |
| Inrush current | 60 A at 230 V AC, cold start |
| Efficiency | 88% |
| No-load power consumption | below 0.75 W |
| Ripple and noise | max. 150 mVp-p (20 MHz bandwidth) |
| Protections | short-circuit, overload (110%-140%, hiccup mode with automatic recovery), overvoltage (28.8-33.6 V), thermal |
| Cooling | temperature-controlled fan: switches on from 50 °C, switches off at 40 °C |
| Operating temperature | from -25 °C to 70 °C, humidity from 20% RH to 90% RH non-condensing, up to 5000 m above sea level |
| Storage temperature | from -40 °C to 85 °C, humidity from 10% RH to 95% RH |
| Vibration resistance | 5 G, 10-500 Hz, 60 min in each axis |
| Power supply safety certifications | IEC/UL 62368-1, EN 61558-1, EN 61558-2-16, CCC, BSMI, EAC, BIS, KC |
| Output connector | XT60, XT60 (male) - XT30U (female) cable for the arm |

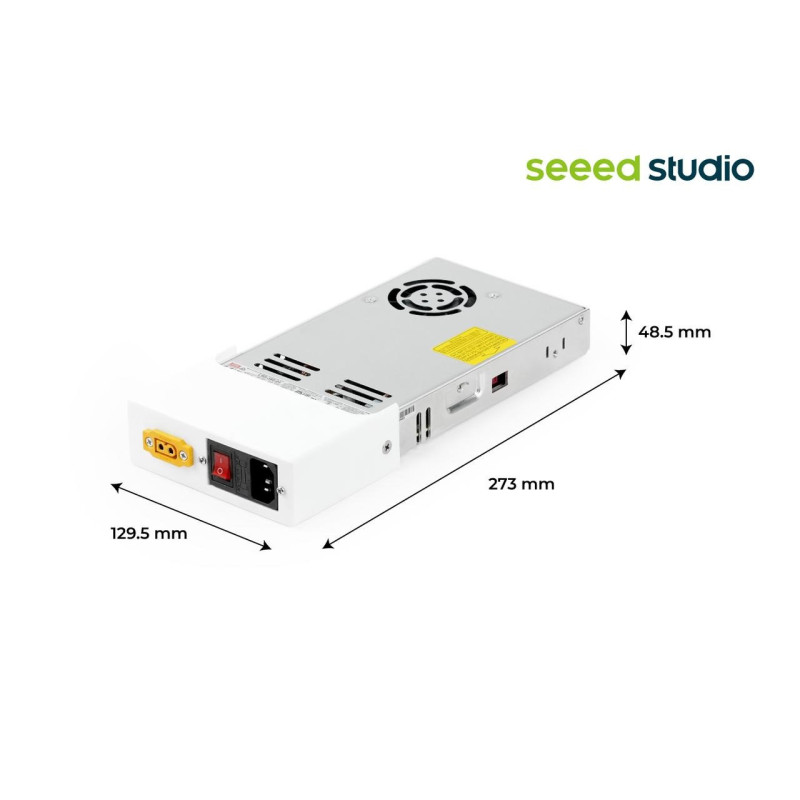

| Dimensions | 273 x 129.5 x 48.5 mm |
| Weight | approx. 0.76 kg |
| Compatibility | reBot Arm B601-DM |
| Manufacturer code | 100029903 |
| Manufacturer | Seeed Studio |
Useful links
| Name | Value |
|---|---|
| Voltage output from | 24.0 V |
| Output voltage to | 24.0 V |
| Nominal output voltage | 24.0 V |
| Nominal power | 350 W |
| Current | 14.6 A |
| Power supply - type | mounting |
| Width | 34 cm |
| Height | 25 cm |
| Depth | 7.8 cm |
| Weight | 1.39 kg |
