reBot Arm B601-DM - robot arm kit with 6+1 DoF gripper and Nvidia Jetson Orin Nano 8GB computer - Seeedstudio E26051901
A 6+1 DoF robot arm, a Jetson Orin Nano 8 GB computer and a power supply in one kit: an assembled reBot Arm B601-DM for working with ROS 2 and LeRobot.
- Reach of 767 mm and payload of 1.5 kg
- reComputer J3011 with a 128 GB SSD and the JetPack system
- Open project: parts list, drawings and software
We could not load the price.
The promotional price does not combine with quantity discounts.
A robot arm and an AI computer ready to work out of the box
reBot Arm B601-DM with Jetson Orin is an assembled 6+1 DoF robot arm, meaning six joints and a gripper, bundled with an AI computer and a power supply. The computer is a reComputer J3011 with an Nvidia Jetson Orin Nano 8 GB module, and the arm power supply is rated 24 V / 14.6 A. This way you do not have to put hardware together from several sources.
The arm has a reach of 767 mm, lifts up to 1.5 kg and has a positioning repeatability of 0.2 mm. It is driven by seven Damiao motors, and the whole project is open: the manufacturer publishes the parts list, drawings and software. It is the same manipulator you will find as the standalone reBot Arm B601-DM, complemented by a computer and a 24 V / 350 W power supply.
reBot Arm B601-DM - robot arm with gripper
767 mm
arm reach with gripper (without gripper: 607 mm)
1.5 kg
payload without gripper at 70% of reach
6+1 DoF
six joints and a gripper
40 TOPS
AI performance of the computer with Jetson Orin Nano 8 GB
What sets this model apart
Arm, AI computer and power supply in one kit
The kit combines an assembled arm with a Jetson computer on which you run control, vision and machine learning models without a separate PC. Keep in mind that the kit includes no camera or table clamp, and if you already have a Jetson computer, the standalone reBot Arm B601-DM is enough.
40 TOPS
AI performance of the included reComputer J3011 (arm only: no computer)
128 GB
SSD with the JetPack system preinstalled at the factory
350 W
arm power supply 24 V / 14.6 A included (arm only: no power supply)
Arm calibration and first start-up
The video shows how to set the zero position in MotorBridge and start controlling the arm.
Video: official YouTube channel of the manufacturer.

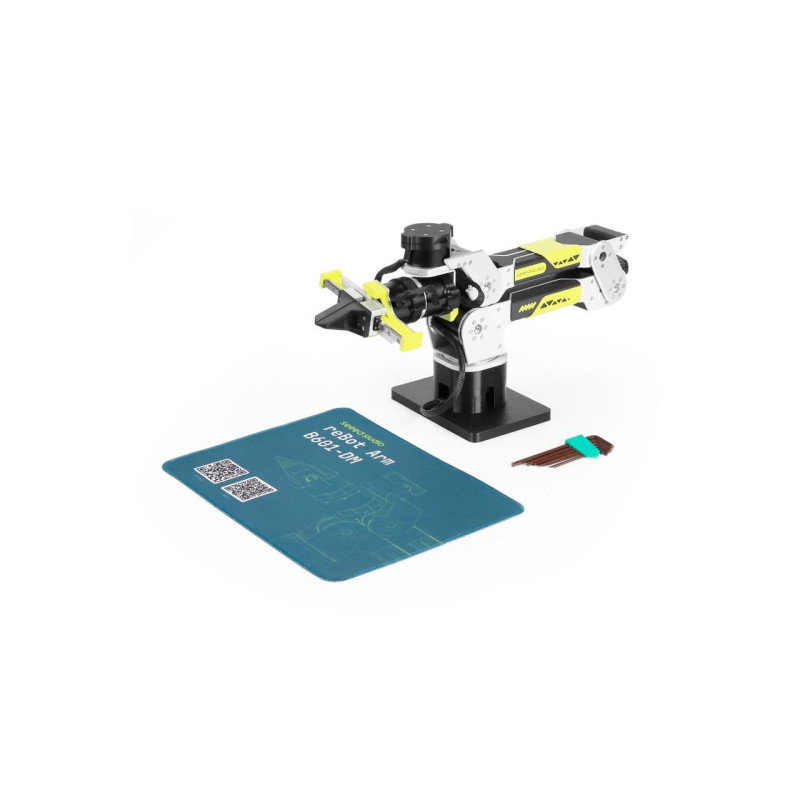

reBot Arm B601-DM - arm on its base, mat and cable beside it
The Jetson controls the arm over USB
You connect the arm to the reComputer J3011 through a USB to CAN adapter, meaning a converter from USB to the CAN bus over which the motors exchange data with the controller. You install the MotorBridge driver with a single command, and in the browser you configure the motor parameters, check the arm status and set the zero position.
The computer has a Jetson Orin Nano 8 GB module with a 6-core Arm Cortex-A78AE processor and an Ampere GPU with 1024 cores, a 128 GB SSD with the JetPack system, meaning Nvidia software for Jetson modules, WiFi, Bluetooth, 4 USB 3.2 Type-A ports, HDMI 2.1, an Ethernet port and 2 CSI camera connectors. You can raise the performance of 40 TOPS, meaning 40 trillion AI operations per second, to 67 TOPS if you update the system to JetPack 6.2 yourself and enable Super mode.
reBot Arm B601-DM and LeRobot
The first part of the course shows how the arm works with the LeRobot library for robot learning.
Video: official YouTube channel of the manufacturer.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Is it the right choice for you?
A good choice if:
- you want to program the arm right away on a Jetson computer, without putting hardware together
- you are building a station for teleoperation and robot learning in LeRobot or ROS 2
- you value an open project with an available parts list and drawings
Consider another option if:
- you already have a Jetson computer or a PC with Ubuntu: choose the standalone reBot Arm B601-DM
- you plan larger AI models: combine the standalone arm with the reComputer Robotics J4012
Arm alone or the kit with a Jetson?
| reBot Arm B601-DM | reBot Arm B601-DM with Jetson Orin | |
|---|---|---|
| Assembled 6+1 DoF arm with gripper | yes | yes |
| AI computer | no | reComputer J3011 with Jetson Orin Nano 8GB |
| AI computing power | no | 40 TOPS (67 TOPS in Super mode after updating to JetPack 6.2) |
| SSD with JetPack system | no | 128 GB |
| Arm power supply 24 V / 14.6 A / 350 W | no | yes |
| Camera | no | no |
| Clamp for mounting the arm | no | no |
| See | reBot Arm B601-DM | this page |
Fun fact
DM in the name stands for Damiao motors
The reBot Arm project comes in two versions with the same appearance: the B601-DM with Damiao motors and the B601-RS with RobStride motors. The manufacturer provides the files for both versions, including sheet metal and 3D-printed parts and a bill of materials with the size of every screw.
Frequently asked questions
What is included in the kit besides the robot arm itself?
Besides the assembled arm with a gripper, the kit includes a reComputer J3011 computer with a Jetson Orin Nano 8 GB module, a 128 GB SSD and a 12 V power supply, as well as a 24 V / 14.6 A arm power supply with power cords.
Is a camera included in the kit?
No. For grasping with machine vision you need a separate RGB-D depth camera or a USB camera. The computer also has 2 CSI camera connectors.
How do I connect the robot arm to the Jetson computer?
The arm connects to the computer through a USB to CAN adapter plugged into a USB port. On the Jetson you install the MotorBridge driver with the pip command, and the arm shows up in the system as a serial port.
What software does it work with?
The arm supports ROS 1 and ROS 2 with MoveIt, Python, LeRobot, Isaac Sim and the Pinocchio library for kinematics calculations. The code and examples are available in the open project repository.
Do I need to calibrate the arm?
With the assembled version, you do not have to write the motor IDs or calibrate them from scratch. Before first controlling the arm, you only set the zero position in the MotorBridge program.
Can I control the arm from a Windows or macOS computer?
Yes, MotorBridge works on Windows, Ubuntu and macOS. To run the examples, the manufacturer recommends Ubuntu 24.04 on a physical computer, because a virtual machine is not powerful enough.
Package contents
- 1 x Assembled reBot Arm B601-DM robot arm with gripper
- 1 x Set of hex keys
- 1 x Mouse pad
- 1 x reComputer J3011 computer with Nvidia Jetson Orin Nano 8GB and installed system
- 1 x 128 GB SSD (installed)
- 1 x WiFi and Bluetooth module (installed)
- 2 x WiFi antenna
- 1 x 12 V / 5 A computer power supply with 5.5/2.5 mm plug
- 1 x Arm power supply 24 V / 14.6 A / 350 W
- 3 x Power cord for the arm power supply: EU, US and CN
- 1 x XT30U (female) - XT60 (male) cable
The camera, the clamp for mounting the arm and the power cord for the computer power supply are not included.
Technical specifications
| Parameter | Value |
|---|---|
| Type | kit: robot arm with gripper, AI computer and power supply |
| Degrees of freedom | 6+1 (6 joints and a gripper) |
| Reach | 767 mm with gripper, 607 mm without gripper |
| Payload | 1.5 kg without gripper, 70% of reach recommended |
| Repeatability | 0.2 mm |
| Joint range of motion | J1 ±150°, J2 from -220° to 0°, J3 from -220° to 0°, J4 ±90°, J5 ±90°, J6 ±90°, gripper from -325° to 0° |
| Motors | Damiao DM-J4340P-2EC x 3, DM-J4310-2EC x 4 |
| Arm weight | approx. 4.7 kg |
| Arm power supply | 24 V DC, 10 A, XT30 (2+2) connector |
| Arm operating temperature | from -20 °C to 50 °C |
| Software | ROS 1, MoveIt 1, ROS 2, MoveIt 2, Python, LeRobot, Isaac Sim, Pinocchio, MotorBridge |
| Computer connection | USB to CAN adapter, USB port |
| Computer | reComputer J3011, Nvidia Jetson Orin Nano 8GB |
| AI computing power | 40 TOPS, up to 67 TOPS in Super mode after updating to JetPack 6.2 |
| Processor and graphics | 6-core Arm Cortex-A78AE, Nvidia Ampere GPU with 1024 cores and 32 Tensor cores |
| RAM | 8 GB LPDDR5, 128-bit |
| Drive | M.2 NVMe 2280 SSD, 128 GB, with the JetPack system installed |
| Computer ports | 4 x USB Type-A 3.2 (10 Gb/s), USB Type-C 2.0 (device mode), HDMI 2.1, Ethernet 1 Gb/s, 2 x CSI, M.2 Key E (WiFi and Bluetooth), M.2 Key M, CAN, 40-pin GPIO header |
| Computer power supply | 9-19 V DC, 12 V / 5 A power supply included |
| Computer dimensions | 130 x 120 x 58.5 mm |
| Computer operating temperature | from -10 °C to 60 °C |
| Arm power supply | 24 V DC, 14.6 A, 350 W, 115/230 V AC input selected with a switch |
| Component codes | arm 100065783, computer 110110147, power supply 100029903 |
| Manufacturer code | E26051901 |
| Manufacturer | Seeed Studio |
