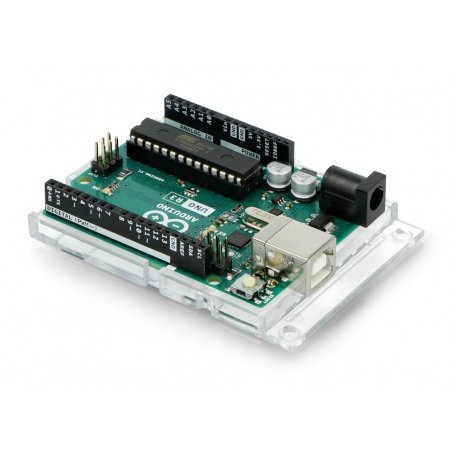

Arduino Uno R3
 - zdjęcie 1
 - zdjęcie 2
 - zdjęcie 3
 - zdjęcie 4
Arduino Uno R3 - zdjęcie 5

Arduino Uno Rev3 - module A000066

Index: ARD-01060 EAN: 8058333490090
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

The original module from the Arduino® Uno with the AVR microcontroller ATmega328 in an interchangeable housing. It has 32 KB Flash memory, 2 KB RAM, 14 digital I/o of which 6 can be used as PWM channels, 6 analog inputs and popular communication interfaces.

€21.38
€17.38 tax excl.

In stock, shipping 24 hours!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Arduino

Description

Arduino Uno is the main and, at the same time, the most popular edition of the entire series. The Board containsan ATmega328 microcontroller, equipped with 14 digital I/o of which 6 can be used as PWM outputs (e.g. for motor control), and 6 analog inputs. The system works with the signal ticking with the frequency of 16 MHz and has 32 KB Flash memory and 2 KB RAM SRAM.



The subject of the sale is the original product of Arduino Uno, Botland isthe official distributor of this company.

Key features

Below are a few features that distinguish modules Arduino Uno compared to other programmable tiles.



Name Description

Installed

bootloader

Thanks to installed bootloader, to programme the device, the appropriateUSB cableandsoftware from manufacturer's website is enough .

Arduino

Shield

The distribution of connectors allows the installation of special plates, so-calledArduino Shield.

Digital

outputs

14 digital inputs/outputs allows, in particular, control of LEDs, relays and reading the buttons' states.

Efficiency of

current

The maximum power load for a single output is 40 mA.

PWM

Outputs

6 PWM outputs allow e. g. motor control and brightness control of the LEDs.

Analog

inputs

6 inputs of built-in analog-digital converter box with a resolution of 10-bit support, in particular, sensors with analog output.

Serial

Communication

The device supports popular network interfaces, including UART, I2C and SPI.
Special functions Some of the pins have special functions and their brief description is available inour guide.

Built-in

memory

Atmega328 system with a clock signal with a frequency of 16 MHz, has 32K Flash memory, 1 KB EEPROM and 2 KB of RAM SRAM.

Power

DC connector

To power the Arduino, you can useany power sourcewith a voltage from 7 V to 12 V with DC connector 5.5 x 2.1 mm.

Power

USB port

The tile can be powered from a computer via USB cable, bearing in mind that the maximum power load for the USB port is 500 mA. Arduino has a system that protects the socket from short-circuit and the flow of too large current.

ICSP

Connector

The module has ICSP outputs for connecting an externalAVR programmer.

IOREF

Pin

The IOREF Pin provides direct access to the volatge with which I/O outputs work.

Built-in

led

The connected led on pine 13 allows debugging of simple programs.

Output

3.3 V

Built-in voltage regulator provides power to external devices with the voltage of 3.3 V with current consumption of 50 mA.

Microcontroller

in THT

Thanks to the use of THT case, in case of damagingthe main microcontroller Atmega328Pyou can easily replace it.



First run

To help you get started with the module, we have prepareda tutorial that concerns the installation and first run of the Arduino environment.



Arduino uno rev3 - moduł, platforma, atmega328, płytka,

The distribution of elements on the Arduino Uno.



Specification

  • Supply voltage from 7 V to 12 V
  • Model: Arduino Uno
  • Microcontroller: ATmega328
    • Maximum clock frequency: 16 MHz
    • SRAM: 2 KB
    • Flash memory: 32 KB (5 KB is reserved for bootloader)
    • EEPROM: 1 KB
  • I/O Ports: 14
  • PWM outputs: 6
  • Number of analog inputs: 6 (channels of converter A/C with 10 bit resolution)
  • Serial interfaces: UART, SPI, I2C
  • External interruptions
  • The connected led on pin 13
  • USB A connector for programming
  • DC connector 5.5 x 2.1 mm for power
  • Transparent, self-adhesive stems in kit

ThingSpeak platform for Arduino and Raspberry Pi IoT.



Voltage to 7.0 V
Voltage from 12.0 V
Voltage output from 5.0 V
Output voltage to 5.0 V
Nominal output voltage 5.0 V
UC - Microcontroller ATmega328
UC - Core 8-bit AVR
UC - EEPROM 1 kB
UC - Flash 32 kB
UC - RAM 2 kB
UC - core 1. Single Core
UC - Digital pins 14
UC - analog in 6
UC - freq 16 MHz
UC - A/C 10-bit
UC - PWM 6
UC - USB USB B
UC - I2C yes
UC - UART yes
UC - SPI interface yes
