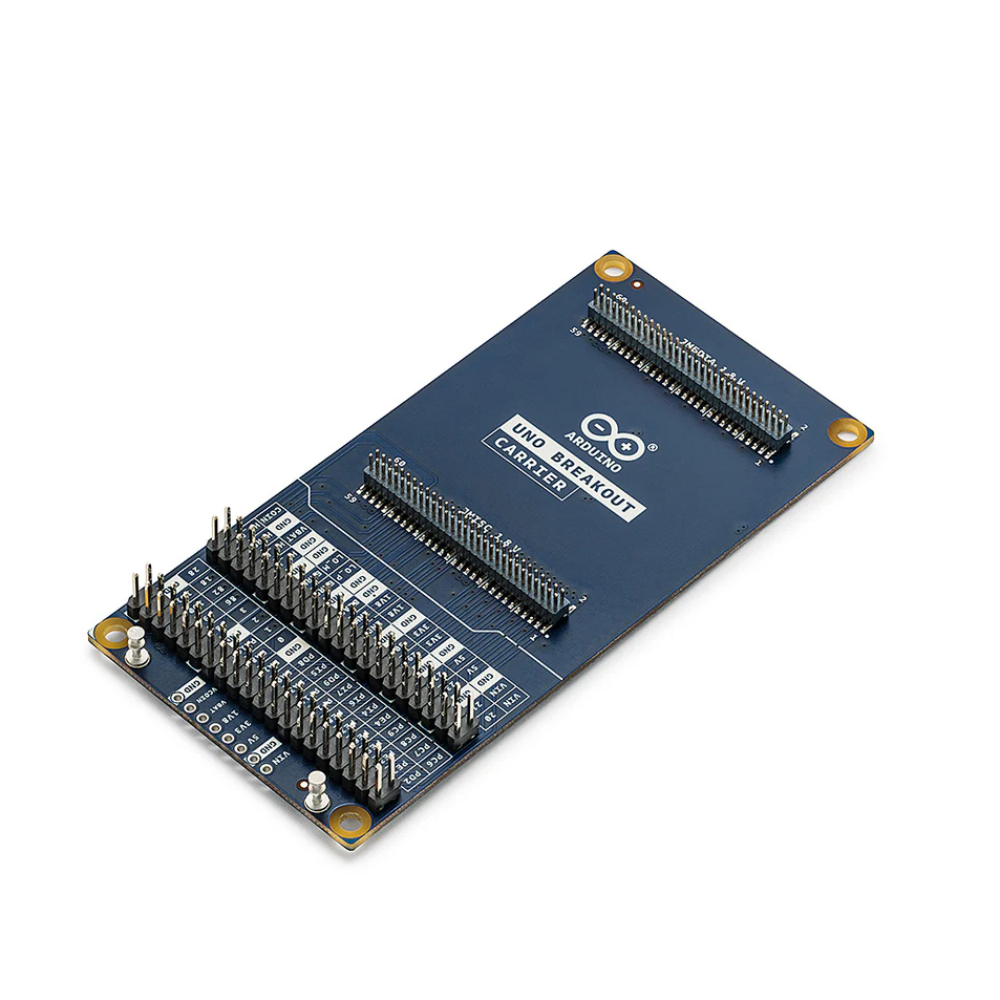

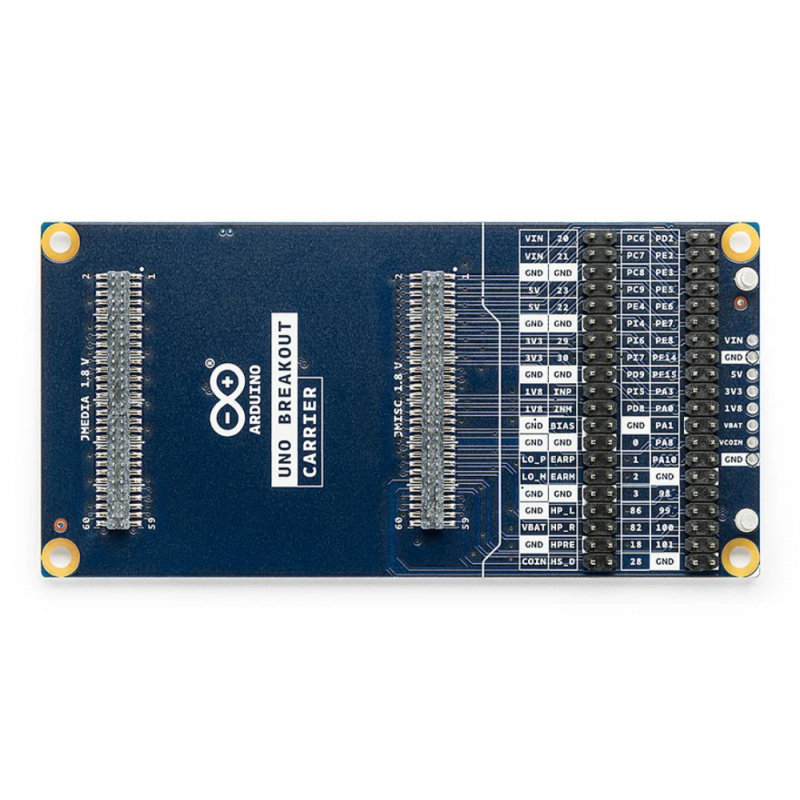

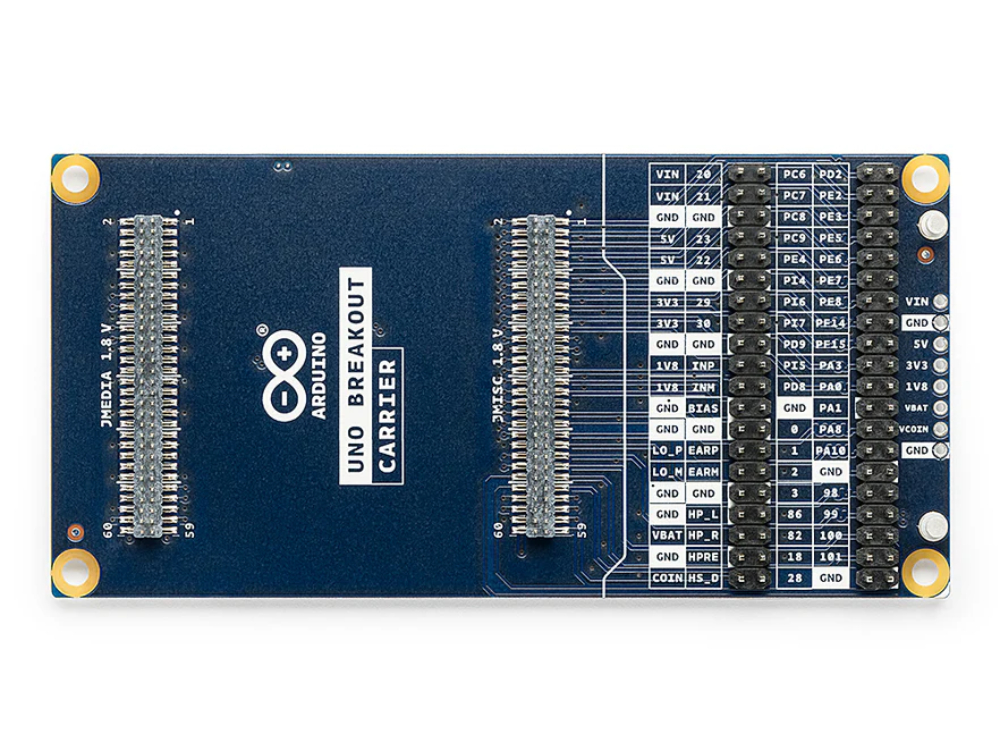

Product description: UNO Breakout Carrier - signal expansion module for Arduino UNO Q
The UNO Breakout Carrier is a practical expansion module that provides full access to signals available on the UNO Q's high-speed JMEDIA and JMISC connectors. Designed for advanced prototyping, testing, and embedded system integration, it conveniently connects key interfaces to clearly labeled goldpin connectors. Standard male connectors allow users to directly connect the module to measurement systems, prototyping boards, or their own circuits without the need for adapters or soldering .
UNO Breakout Carrier - signal expansion module for Arduino UNO Q.
The UNO Breakout Carrier is a practical expansion module that provides full access to the signals available on the UNO Q JMEDIA and JMISC high-speed connectors.Special features
- Full access to signals: interfaces from JMEDIA and JMISC connectors to clearly labeled pins
- Wide interface support: access to I2C, SPI, UART, PWM and audio signals
- Direct connection: no adapters or soldering required
- Standard goldpin connectors: compatible with breadboards, cables and modules
- Easy debugging: ideal for working with an oscilloscope and logic analyzer
- Prototyping support: rapid development and testing of electronic circuits
- System integration: Easily connect UNO Q to larger embedded projects
- Clear pin markings: minimize the risk of connection errors
- Reusable design: Durable construction suitable for lab and field use
Technical specifications
- Compatibility: Arduino UNO Q
- Input connectors: JMEDIA, JMISC
- Output connectors: goldpin connectors (male)
- Supported interfaces: I2C, SPI, UART, PWM, audio
- Additional signals: power lines and control signals
- Application: prototyping, testing, debugging, system integration
By using standard male connectors, the user can directly connect the module to measurement systems, prototype boards or their own circuits. Useful links |
