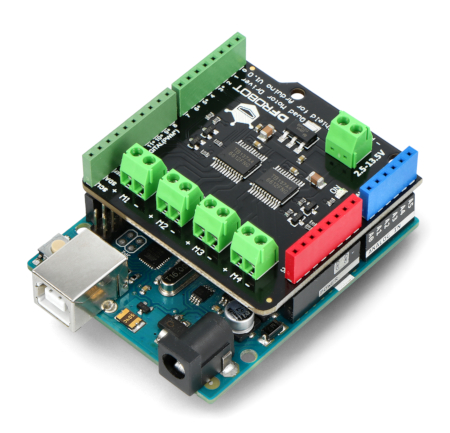

DFRobot TB6612 - 4-channel motor driver 13.5V/1.2A - Shield for Arduino
The module allows you to control four DC motors (DC) using boards of the Arduino. The system allows you to adjust the direction and rotation speed of the motors with a current consumption of 1200 mA and a supply voltage of 13,5 V. It works on the basis of the TB6612 driver.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
The module allows you to control four DC motors (DC) using boards of the Arduino. The system allows you to adjust the direction and rotation speed of the motors with a current consumption of 1200 mA and a supply voltage of 13,5 V. The module has a built-in low voltage detection system and thermal protection.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
Specification
- Supply voltage of motors:from 2.5 V to 13.5 V
- Supply voltage of logical part: 2.7 V to 5.5 V
- Driver: 2 x TB6612FNG
- The number of supported motors: 4
- Maximum current per channel: 1.2 A
- Used Arduino pins: 3, 4, 5, 6, 7, 8, 11, 12
- Operating temperature: -20 °C to 85 °C
- Dimensions: 53 x 52 mm
- Weight: 24 g
Useful links
| Name | Value |
|---|---|
| Voltage to | 2.5 V |
| Voltage from | 13.5 V |
| Current | 1.2 A |
| Channels | 4 |
| Width | 6.6 cm |
| Height | 8 cm |
| Depth | 2.4 cm |
| Weight | 0.028 kg |
