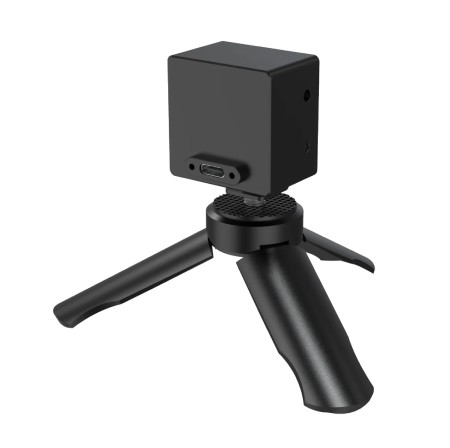

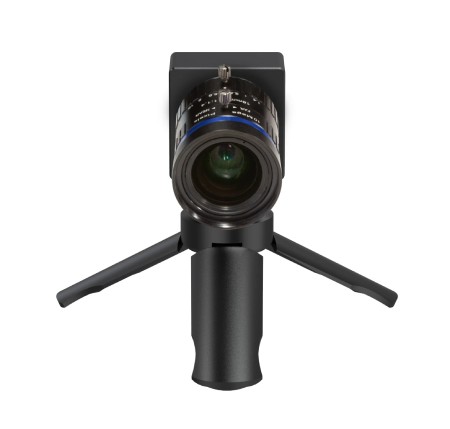

20MPx IMX283 USB 3.0 camera module with 16mm C-Mount lens - ArduCam B0477
USB 3.0 camera module from ArduCam with 1-inch CMOS IMX283 sensor and 16 mm manual C-Mount lens . It offers resolution up to 5472 x 3648 px , providing exceptional image quality. Configurable recording speed allows recording up to 120 fps in 720p , making the camera ideal for machine vision, streaming or monitoring . It has built-in ISP , supports Windows and Linux and does not require drivers. Solid, metal housing guarantees durability and stability of operation.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 20 MPx IMX283 USB 3.0 Camera Module with 16 mm C-Mount Lens - ArduCam B0477
Camera module from ArduCam uses an advanced 1-inch Sony IMX283 CMOS sensor that allows you to capture images at a resolution of up to 20 MPx (5472 x 3648 px). It supports an adjustable frame rate, so you can get 120 fps at 720p, 60 fps at 1080p and 9 fps in full resolution . With a built-in ISP processor, the camera provides advanced image processing, including automatic exposure, white balance, backlight compensation and color conversion . The 16 mm C-Mount lens offers a 60 ° viewing angle , which allows for detailed shots in telephoto mode. The camera is compatible with Windows and Linux , supports USB 3.0 (with the ability to operate on USB 2.0) and works on a plug and play basis, eliminating the need to install additional drivers. The compact metal housing ensures durability and stability in professional applications.
20 MPx IMX283 USB 3.0 camera module with 16 mm C-Mount lens - ArduCam B0477.
Botland is an official distributor of Arducam cameras, lenses and accessories in Poland. The brand's leading electronics complement the Raspberry Pi and Arduino platforms perfectly. Our range holds original Arducam products only.
USB 3.0 connectivity ensures fast data transfer.
Main Features of the Camera Module
- Sony IMX283 (1'') sensor : high resolution of 20 MPx (5472 x 3648 px) guarantees exceptional image quality
- Configurable recording speed : Supports up to 120 fps at 720p, ensuring smooth recordings of dynamic scenes
- 16mm C-Mount lens : 60° viewing angle allows for precise detail capture
- Built-in ISP : Improves image quality with automatic exposure, white balance and color conversion functions
- USB 3.0 interface : fast data transfer and backward compatible with USB 2.0 for greater versatility
- Plug and play : works immediately after connection, no need to install drivers on Windows and Linux
- Metal casing : solid construction ensures protection and stability of operation
Attention!
Tripod is not included.
Configuration and Compatibility

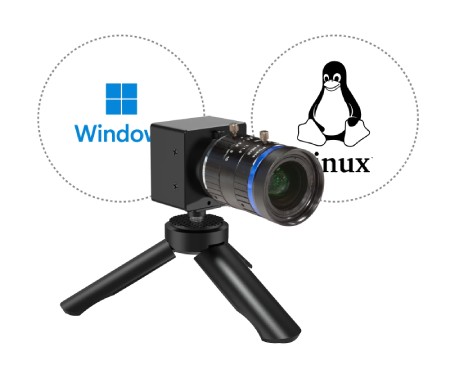

The ArduCam IMX283 camera is compatible with Windows and Linux systems , and thanks to the USB 3.0 interface, it provides fast data transfer. It does not require additional drivers, which makes configuration easier. Works with popular applications such as PotPlayer (Windows) and qv4l2 (Linux). C-Mount lens allows for exchange with other models compatible with the standard.
How do I turn on the camera?
- Connect the camera to your computer using the included USB Type-C cable
- In Windows / Linux, the camera will be detected automatically
- Launch your preferred image viewer, such as PotPlayer or qv4l2
- Adjust image parameters in UVC settings, such as contrast, brightness, and exposure
- The camera is ready to go!
The camera is compatible with Windows and Linux systems and does not require additional drivers.

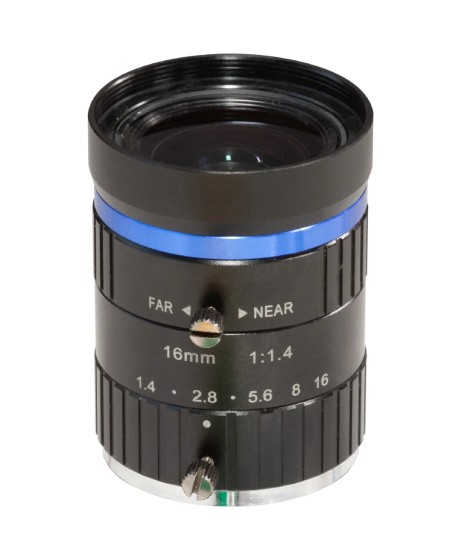

The camera module is equipped with a 16mm manual C-Mount lens that offers a 60° viewing angle.
Practical applications
The ArduCam IMX283 camera can be used in many areas, such as:
- Machine vision - quality control in production, vision systems
- Video Surveillance - High Resolution Monitoring
- 3D Scanning and Metrology - Precise Image Analysis
- Streaming and videoconferencing - high image quality for professional broadcasts
Camera Technical Specifications
- Sensor: Sony IMX283 (1-inch CMOS)
- Resolution: 5472 x 3648 (20MPx)
- Pixel size: 2.4µm x 2.4µm
- Shutter type: Rolling Shutter
- Dynamic range: integrated IR-cut filter (visible light)
- Maximum Frame Rate (USB 3.0): 120 fps at 720p, 60 fps at 1080p, 40 fps at 1536p, 20 fps at 4K, 9 fps at 5472 x 3648 px
- Max Frame Rate (USB 2.0): 720p@10fps
- Output format: YUY2
- Lens: 16mm C-Mount, F1.4-16, 60° FOV
- Lens mount: C-Mount
- Minimum focusing distance: 5 m
- Interface: USB 3.2 Gen 1 (USB 2.0 compatible)
- Supply voltage: 5V ± 5%
- Power consumption: 0.75 W to 1.38 W
- Housing: metal
- Supported operating system: Windows, Linux
- Operating temperature: 0°C to 70°C
- Module dimensions: 34 x 34 mm

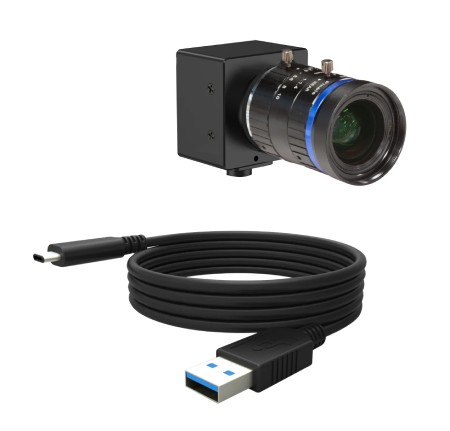

Kit Contents
- 1x ArduCam IMX283 USB 3.0 Camera Module with Metal Case
- 1x USB Type-A to USB Type-C Cable (1m)
Items included in the set.
Useful links
| Name | Value |
|---|---|
| Resolution | 20 MPx |
| Camera - matrix | IMX283 |
| Camera - IR filter | Yes |
| Camera - lens | C-mount |
| Camera - format | 1 " |
| Camera - type | module |
| Width | 10.5 cm |
| Height | 7.5 cm |
| Depth | 8.7 cm |
| Weight | 0.267 kg |
