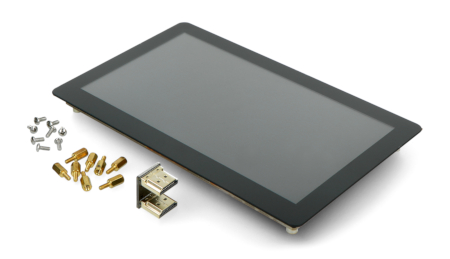

Capacitive touch screen LCD 7 '' 1024x600px HDMI + USB
Touch screen, capacitive 7" for minicomputers Raspberry Pi, LattePanda and other HDMI devices. Display resolution up to 1024 x 600 pixels. Touch screen supports up to 5 touches at once. It is powered by USB port, no need of external power supply.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description

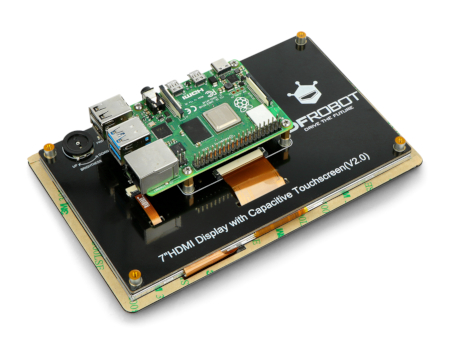

Touch screen, capacitive 7" for minicomputers Raspberry Pi, LattePanda and other HDMI devices. Display resolution up to 1024 x 600 pixels. Touch screen supports up to 5 touches at once. It is powered by USB port, no need of external power supply. The screen works with Windows, Linux, MAC OS. The screen also has a special hole for mountingthe Arduino.
The screen requires no external power supply, it can be powered via the USB and HDMIconnectors. The display has a backlight adjustment via the potentiometer located on the rear side.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
Before connecting an external power source, make sure that the current delivery of the power supplyis not less than 1.5 A / 5 V during powering the Raspberry Pi. Lower performance would reduce the touch sensitivity. |
Specification
- Working voltage: 5 V
- Current: 160 mA (when connected to HDMI)
- Max current: 1200 mA
- Refresh frequency: 43 Hz (60 Hz is not recommended, the image will not be displayed on entire screen)
- Display's resolution: 1024 x 600 px
- Video interface: HDMI
- Dimensions: 183 x 100 mm
- Dimensions of mounting holes: 3.1 x 6 mm
- Weight: 328 g
Set includes
- 1x: 7" screen with capacitive touch
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD TFT |
| Screen - diagonal | 7'' |
| Screen - interface | HDMI+USB |
| Screen - touch | yes |
| Screen - resolution | 1024x600px |
| Width | 22.5 cm |
| Height | 4.5 cm |
| Depth | 15 cm |
| Weight | 0.345 kg |
