Module with IPS LCD 1,47'' 172x320px display - DFRobot DFR0995
Module with an IPS LCD display with a diagonal of 1.47" based on the ST7789V3 controller. Its resolution is 172 x 320 px . The display can be used to display text messages, images or animations .
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
Product description: Module with IPS LCD display 1.47'' 172 x 320 px - DFRobot DFR0995
Module with a 1.47'' IPS LCD display based on the ST7789V3 controller. Its resolution is 172 x 320 px . It uses the SPI interface for communication. The frame of the module is only 1 mm wide and has rounded corners. The display can be used to display text messages, images, animations or videos . In addition, thanks to the supported Arduino GLD and LVGL libraries, you can get even more phenomenal graphic effects. The module will work as a display in projects such as a video player, mini game console, weather station or clock.

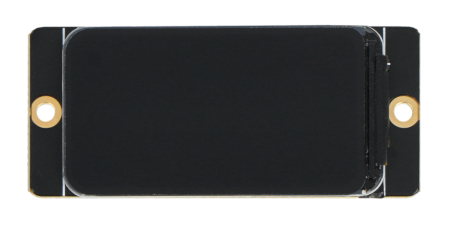

Module with IPS LCD 1.47'' 172 x 320 px display - DFRobot DFR0995.
Module pins.
Main features of the product
- IPS LCD display
- Can be viewed from any angle
- Narrow frame with rounded corners
- Possibility to display text messages, images, animations or videos
- Support for Arduino GLD and LVGL libraries for better graphical effects
Example application of the module
- Weather station
- meter display
- Video player
- Mini game console
- Clock
Module pins
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | Supply voltage 3.3V |
| GND | System weight. |
| SCLK | SPI clock line. |
| MOSI | SPI data line. |
| CS | Chip selection, activated by low state. |
| RES | System reset, activated by low state. |
| DC | Selection of data / commands (high state for data, low state for commands). |
| BLK | Backlight. |
Display technical specification
- Display type: IPS LCD
- Display diagonal: 1.47''
- Resolution: 172 x 320 px
- Communication: SPI
- Display controller: ST7789V
- Full viewing angle: yes
- Brightness: 600Cd/ m2
- Backlight: 3 LEDs, white
- Supply voltage: 3.3V
- Operating temperature: -20°C to 70°C
- Display dimensions: 19.1 x 33.8mm
- Module dimensions: 19.5 x 44.5 mm
Kit contents
- Module with IPS LCD 1.47'' 172 x 320 px display
- Goldpin strip 1x8 - 1 piece
- FPC tape - 1 piece

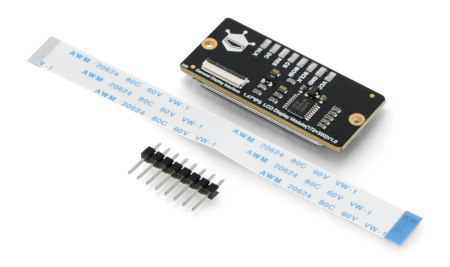

Components included in the set.
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD IPS |
| Screen - diagonal | 1.47 " |
| Screen - resolution | 172x320px |
| Width | 5.5 cm |
| Height | 6 cm |
| Depth | 2.5 cm |
| Weight | 0.013 kg |
