Specification of the Pololu 75 motor: 1
|
Supply voltage: |
3 May - 9 May |
|
No-load current (6V): |
120 mA |
|
Current with the shaft stopped (6 V): |
1600 mA |
|
No load speed (6V): |
400 rpm |
|
Torque (6V): |
1.6 kg * cm (0.156 Nm) |
|
Gear ratio: |
75: 1 |
|
Shaft Diameter: |
3 mm |
|
Body dimensions: |
24 x 10 x 12 mm |
|
Mass: |
10 g |
|
Double-sided shaft: |
NO |
Product description: Pololu HP 75 motor: 1
Small, light and powerful Pololu engines are used by robot constructors as drive units. Devices can be supplied with voltages up to 9 V, and useful power over 3 V. The optimal voltage with the best power to endurance ratio is 6 V.
Engine dimensions
The motor body is a cuboid with dimensions of 24 x 10 x 12 mm. The gearbox is 9.27 mm long. There is a 3mm D-shaped shaft at the exit. The total weight is approximately 10g.

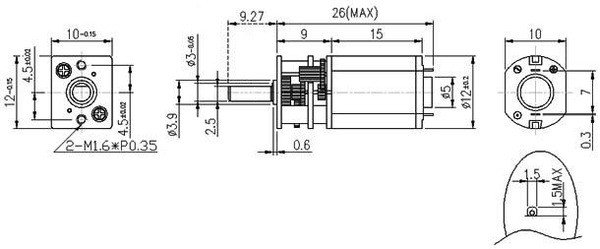

The figure shows the dimensions of the Pololu micro motor with gear.
Accessories
We offer a number of accessories that work with Pololu micro motors:
- Fasteners
Special whiteorblackmounts have been designed for mounting the motors.An extendedversion is also available, and it is made ofaluminumwith increased strength.
For 1000: 1 and 1000: 1 HP micro motors, the mounts do not cover the entire gearbox.
- Engine drivers
Control of the direction and speed of rotation is possible thanks to the drivers of DC motors. The offerincludes both integrated circuitsfor self-soldering as well as ready-to-connectmodulescooperating with sets (eg Arduino).
The store also offers many otherengines.
