Product description: Raspberry Pi CM4 Compute Module 4 - 4 GB RAM + WiFi / Bluetooth - CM4104000ET
Raspberry Pi CM4 Compute Module 4 is a compact module designed for embedded systems, industrial automation, IoT and applications requiring low power consumption. Based on the quad-core Broadcom BCM2711 Cortex A72 processor (1.5 GHz) and 4 GB of LPDDR4 RAM , it provides high performance at low power consumption. The built-in WiFi / Bluetooth module enables wireless connectivity , eliminating the need for additional adapters. CM4 does not have physical connectors like HDMI or USB - instead, it offers dedicated pins to the base board, e.g. Compute Module 4 IO Board , which extends the functionality with the necessary interfaces. The Extended Temperature (ET) version makes the module suitable for industrial solutions , operating stably at temperatures from -40 ° C to 85 ° C.
Attention!
This version of CM4 does not come with eMMC memory.

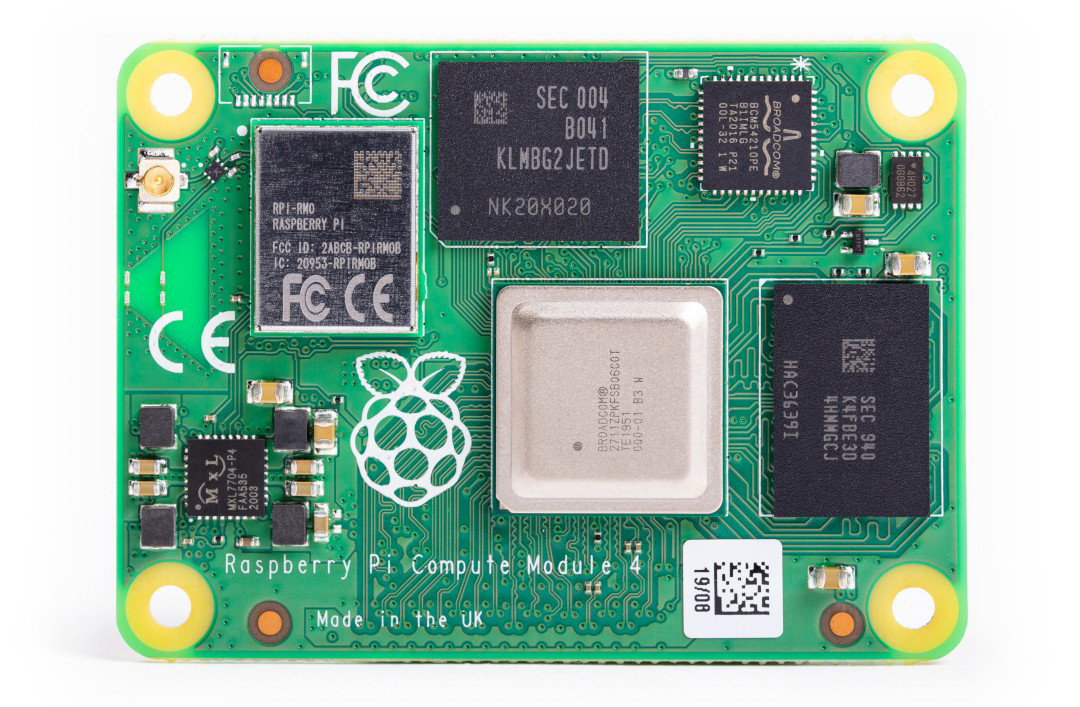

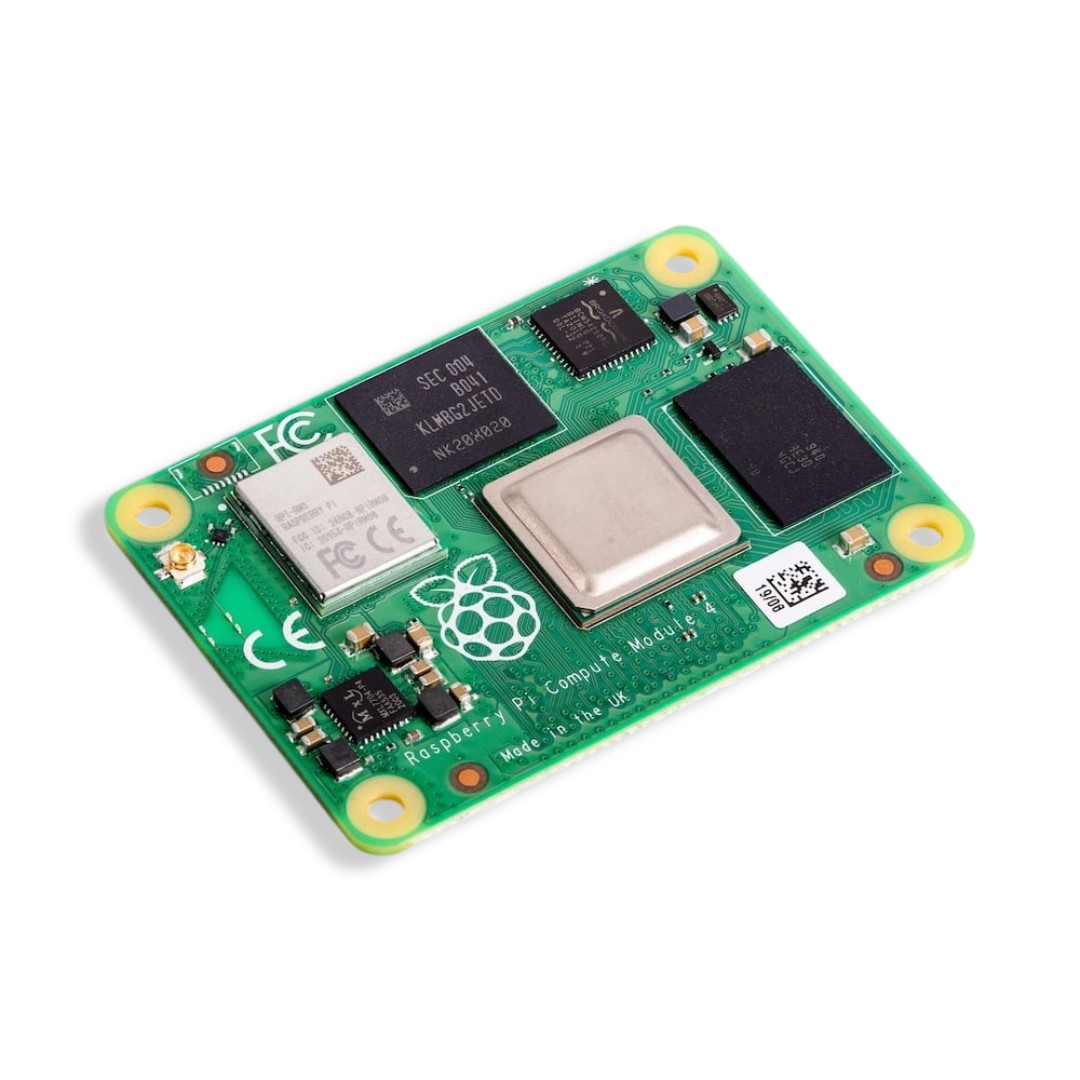

Raspberry Pi CM4 Compute Module 4 - 4 GB RAM + WiFi / Bluetooth - CM4104000ET.
The board is based on the Broadcom BCM2711 processor.CM4 Compute Module Key Features
- Powerful processor - quad-core Broadcom BCM2711 Cortex A72 clocked at 1.5 GHz
- RAM memory - 4 GB LPDDR4 ensuring smooth system operation
- Wireless connectivity - built-in 2.4/5 GHz WiFi and Bluetooth 5.0 BLE
- Multiple interface support - PCIe Gen 2, MIPI CSI/DSI, I2C, SPI, UART, GPIO
- Extended temperature range - works from -40°C to 85°C
- Compact format - small dimensions allow for integration in embedded projects
- Compatibility - works with dedicated base boards for CM4
In our offer you will also find Raspberry Pi CM4 in other configurations .
Pins and Interfaces Raspberry Pi Compute Module 4

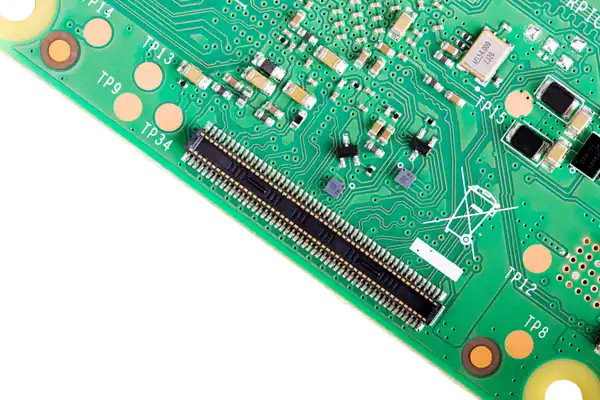

Raspberry Pi CM4 offers a wide range of interfaces , enabling integration with dedicated base boards and expansion of functionality. All pins are accessible via two 100-pin connectors, providing versatility in designing embedded systems. Available interfaces:
- GPIO - 28 multifunction input/output lines
- SD interface - support for microSD cards or external eMMC memory (for versions without built-in memory)
- PCIe Interface - PCIe Gen 2 x1 for connecting expansions
- USB - Single USB 2.0 Interface
- Ethernet - built-in Gigabit Ethernet PHY controller with IEEE1588 support
- MIPI Interfaces - 2 x 2-lane or 1 x 4-lane MIPI DSI for displays and 2 x 2-lane or 1 x 4-lane MIPI CSI for cameras
- Video Outputs - 2 x HDMI with support for resolutions up to 4K at 60 fps
- Wireless connectivity - WiFi 2.4/5 GHz and Bluetooth 5.0 BLE
- Power Supply - 5V DC Input

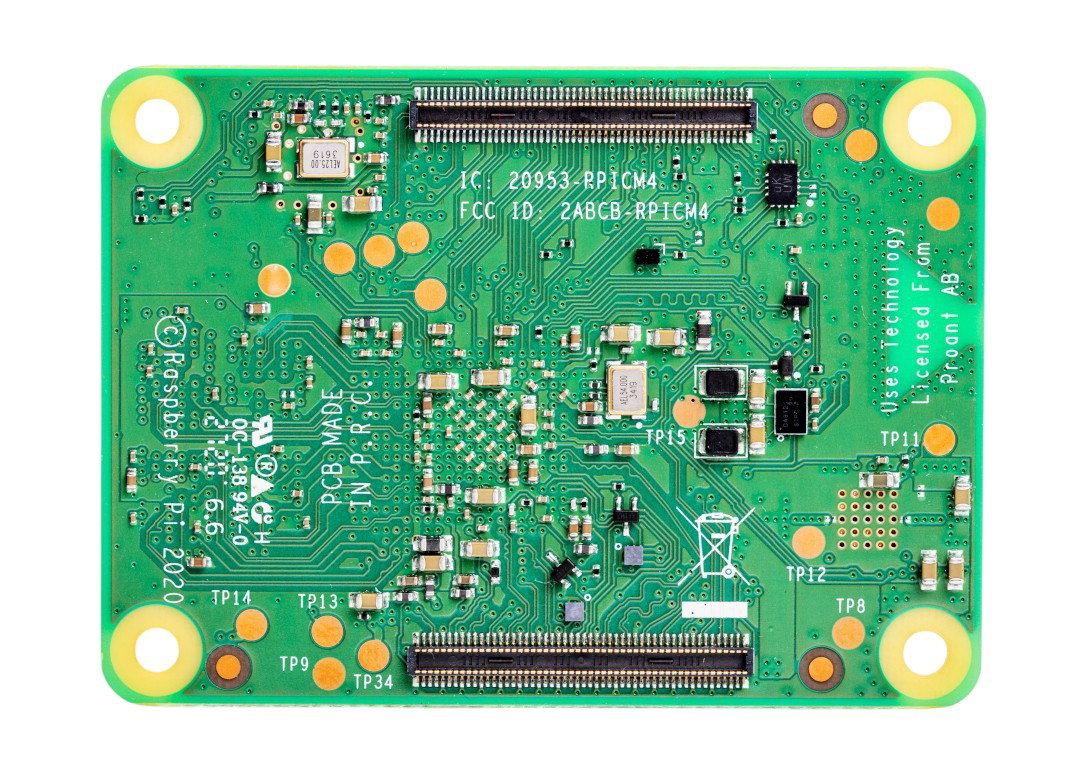

The module has the capabilities of a classic Raspberry Pi with interfaces led out to two multi-pin connectors compatible with the CM4IO Board sockets.
Practical applications
- IoT Systems - Smart Devices Connected to the Network
- Industrial Automation - Process Control and Monitoring
- Robotics - Control of Autonomous Systems
- Embedded systems - dedicated single board computers
| Raspberry Pi CM4 Specifications | |
|---|---|
| Processor | Broadcom BCM2711 64-bit |
| Core | Quad-Core ARM Cortex A72 |
| Clocking | 1.5GHz |
| Architecture | ARMv8 |
| RAM memory | 4GB LPDDR4 |
| eMMC memory | - |
| Wireless connectivity | WiFi 2.4 GHz / 5.0 GHz IEEE 802.11b/g/n/ac and Bluetooth 5.0 BLE |
| Ethernet | built-in Gigabit Ethernet PHY controller with IEEE1588 support |
| Power supply | 5V |
| Interfaces |
|
| Operating temperature | from -40°C to 85°C |
| Dimensions | 55x40mm |
