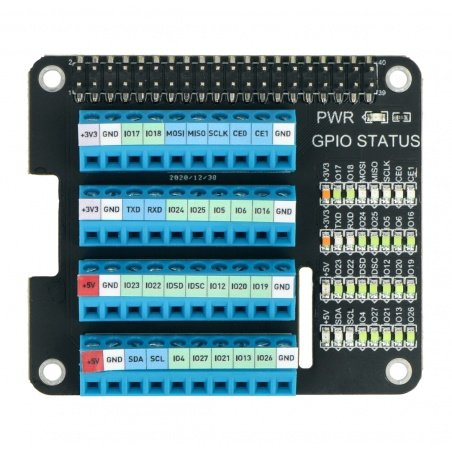

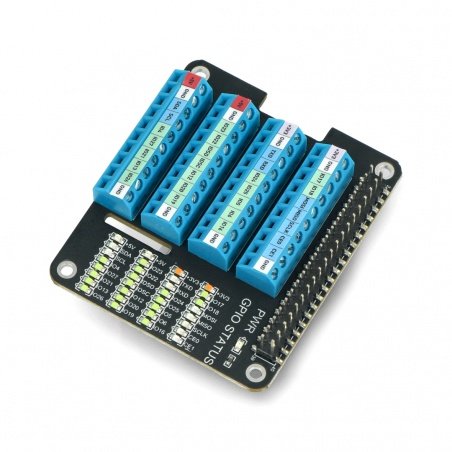

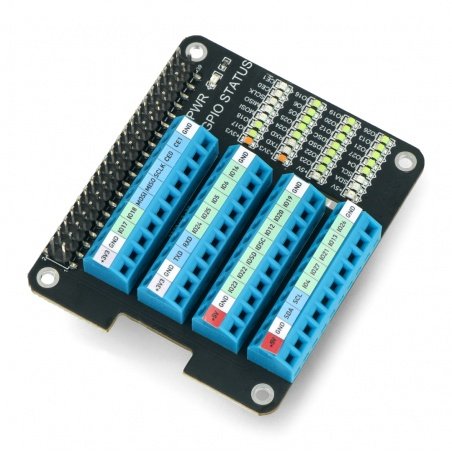

Product description: GPIO cap with screw terminals for Raspberry Pi
This version of theGPIOoverlaywithscrewconnectorsmanufactured bySeedStudiocompany has been enriched withRaspberry Piconnectors. Its very easy installation will surely prove convenient for any user. The GPIO pin information can be found on the top of the terminal and on the side. If a GPIO pin is currently supported and active on the terminal, the LED matrix on its right side will display the status of the pin. The manufacturer reports that some distinctions have been made in the selection of LED colors. For example, the 5 V power light is red while the 3.3 V power light is pink, the special function pin light is dark blue and the regular GPIO pin light is light blue. This is very convenient and will definitely help in using the product. Watching the status of the pins will definitely be a great help for electronic experiments. This is an overlay that allows you to easily connect modules to GPIO pins on yourRaspberry Piusing screw connectors.
- Great ease of installation that any user can surely handle
- Status indicators for the GPIO pins with different colored LEDs for easy connections
- GPIO pinout information on top of the terminal and on the side
- Spacers for easy attachment to Raspberry Pi
The item sold is an overlay,Raspberry Piminicomputer can be purchased separately.
Compatible with the following Raspberry Pi models:
GPIO cap with screw terminals for Raspberry Pi.
The kit includes:
- 1 x GPIO overlay with screw terminals
- 4 x copper post M2,5
- 4 x nuts M2,5
- 1 x screwdriver
- 1 x GPIO pinout strip
