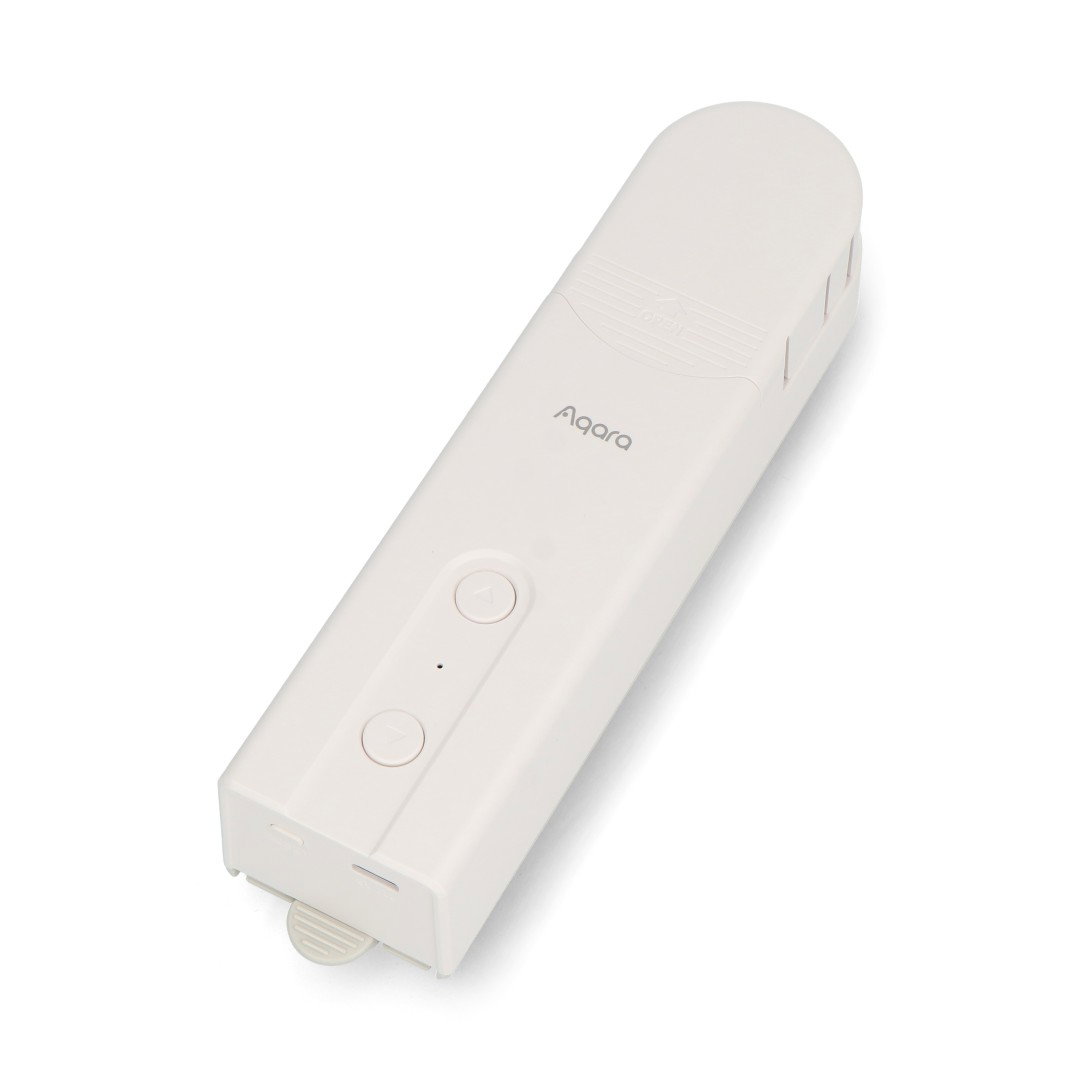

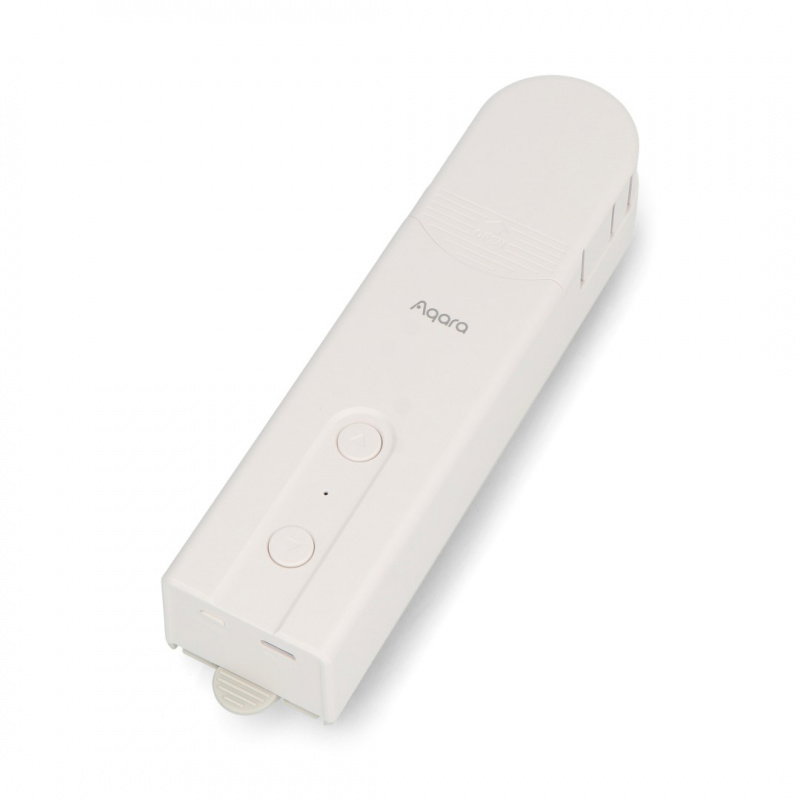

Product description: Aqara E1 RSD-M01 - controller for internal roller blinds with a bead chain - ZigBee
The Aqara E1 allows you to easily expand your classic chain-controlled blinds with smart home functionality. The controller can raise and lower the blinds completely or to a pre-set level , while schedules and automations allow you to adjust their operation to the time of day, the presence of household members, and other Aqara devices. The RSD-M01 model communicates via ZigBee 3.0 and, when connected to a compatible Aqara gateway , can work with Apple HomeKit, Amazon Alexa, Google Assistant, and IFTTT , among others. Installation is possible using screws or double-sided tape, and the included adapters support bead chains with diameters from 3 mm to 6 mm . The built-in lithium battery allows for up to 2 months of operation, according to the manufacturer's specifications, and the USB Type-C port is used for both charging and continuous power.
Aqara E1 RSD-M01 - controller for internal roller blinds with bead chain - ZigBee.
The controller allows you to automatically open the blinds in the morning, limit the amount of sunlight during the day, or close them at a set time in the evening.
Main features of the Aqara E1 roller shutter motor
- Automatic roller blind control : allows you to raise, lower and set the roller blind at the selected level
- ZigBee 3.0 connectivity : enables communication with a compatible Aqara gateway and integration with your smart home system
- Aqara Home app support : allows you to control the blinds, create schedules and configure automations
- Integration with popular ecosystems : works with Apple HomeKit, Amazon Alexa, Google Assistant, and IFTTT, among others
- Up to 2 months of battery life : the declared time applies to controlling a 1.8 mx 1.8 m roller shutter once a day
- Power supply via USB Type-C : the device can be charged or operated with a permanent connection to the power supply
- Wide chain compatibility : adapters allow for compatibility with chains with beads ranging from 3mm to 6mm in diameter
- Easy installation : can be mounted using screws or double-sided tape
- Built-in lithium battery : the battery is non-replaceable
ZigBee 3.0 connectivity and Smart Home communication
The Aqara E1 uses ZigBee 3.0 IEEE 802.15.4 , allowing it to communicate with other elements of the Aqara ecosystem via a compatible gateway. This solution allows you to combine roller shutter control with motion sensors, door and window opening sensors, lighting, and wireless buttons . After configuring the device in Aqara Home, you can create extensive automations, schedules, and control scenarios, as well as use supported platforms such as Apple HomeKit, Amazon Alexa, Google Assistant, and IFTTT. A compatible Aqara hub is required for networking features.

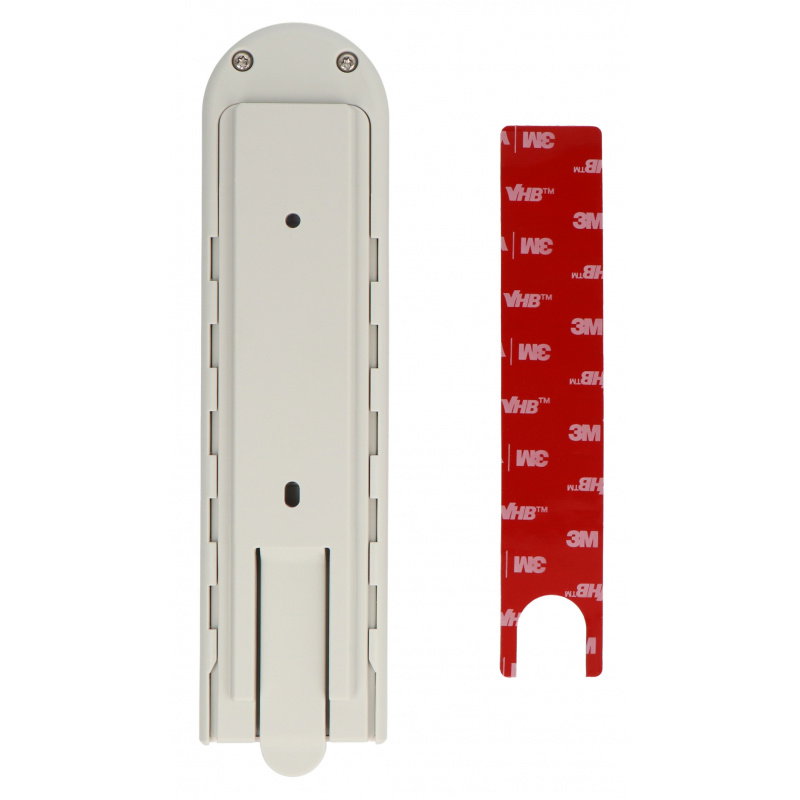

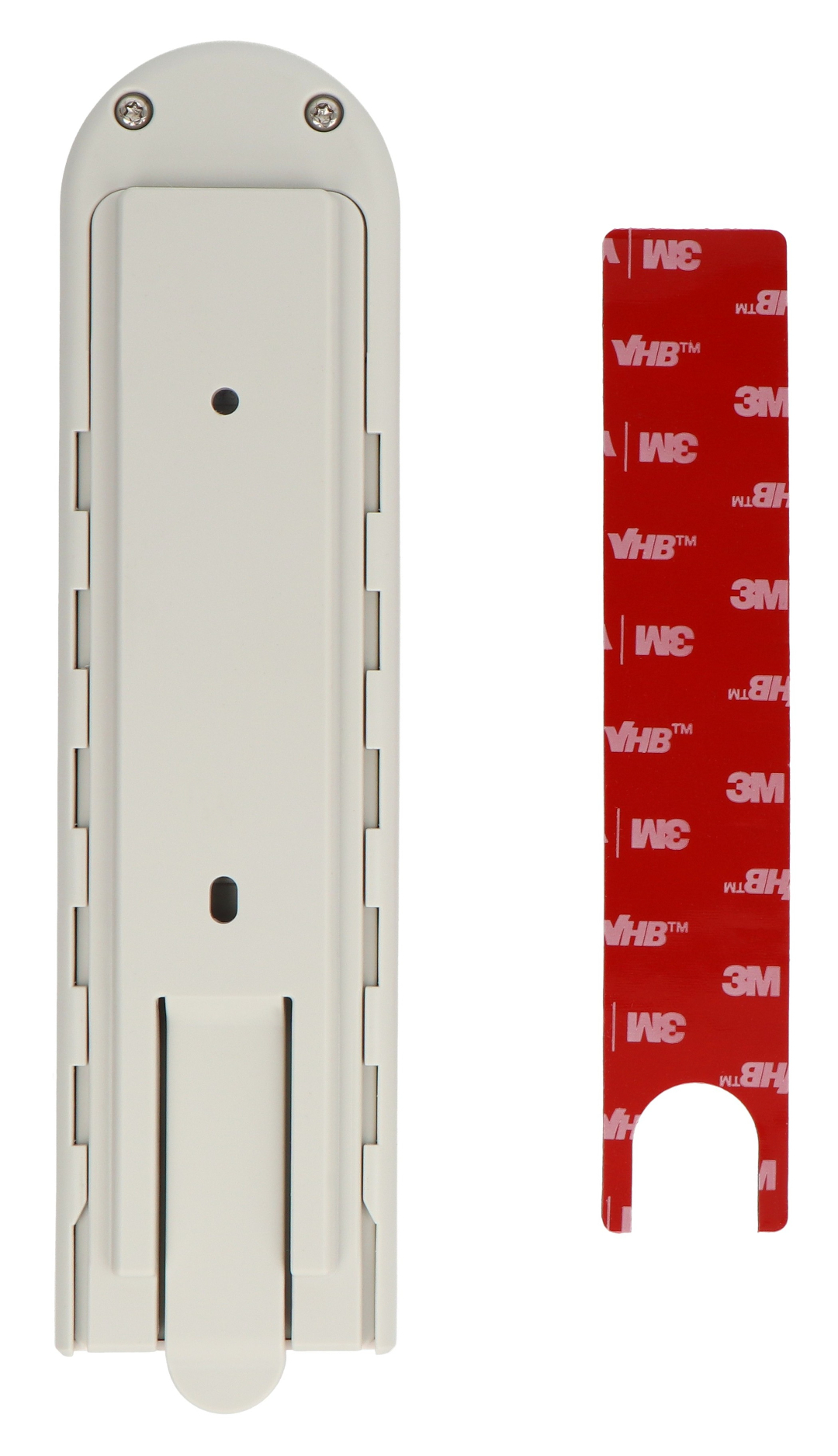

The controller can be mounted using self-tapping screws or double-sided adhesive tape.
Technical specifications of the Aqara Roller Shade Driver E1 RSD-M01
- Model: RSD-M01
- Type: motor/controller for bead chain roller blinds
- Wireless protocol: ZigBee 3.0 IEEE 802.15.4
- Gateway required: Yes, compatible Aqara hub
- Supported ecosystems: Apple HomeKit, Amazon Alexa, Google Assistant, IFTTT, Alice, Marusya
- Chain size supported: beads from 3mm to 6mm in diameter
- Battery type: lithium, non-replaceable
- Input power: 5V/1A
- Power consumption: 5 W
- Power and charging port: USB Type-C
- Declared operating time: up to 2 months when controlling a 1.8 mx 1.8 m roller shutter once a day
- Operating temperature: -10°C to 55°C
- Operating humidity: 0% RH to 95% RH, non-condensing
- Color: white
- Dimensions: 42 x 37 x 165 mm

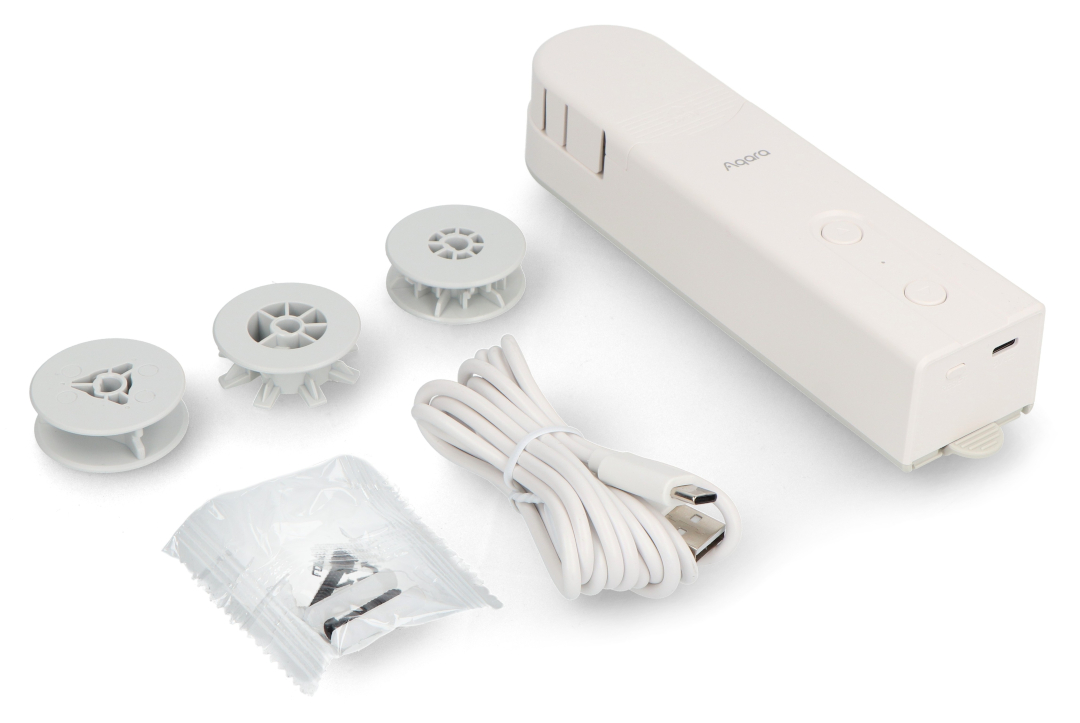

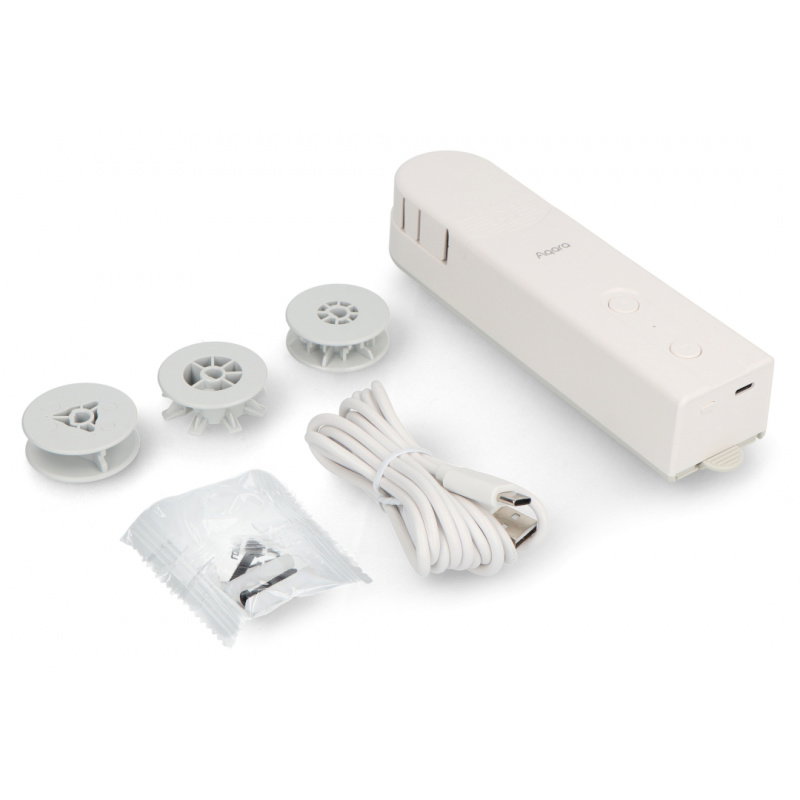

Contents of the set
- Aqara E1 controller
- Screw x 2
- Expansion bolt x 2
- Double-sided tape
- Spare Swivel Plate/Adapter x 3
- USB Type-C - USB Type-A cable
