DFRobot barcode and QR reader GM65 - DFR0660
The CM65 module is designed for accurate reading barcodes or QR codes. It works at high speed (about 1 s) in low-light areas. It uses an intelligent image recognition algorithm to easily decode popular 1D and 2D codes. Built-in interface microUSB and UART can be connected directly to a computer or integrated into various devices. It has a built-in light source that allows you to work in the dark.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
Product description: DFRobot GM65 barcode and QR reader - DFR0660
TheCM65module is designed for accurate reading ofbar codesorQR codes. It works at high speed (about 1 s) in low light conditions. It uses an intelligent image recognition algorithm to easily decode popular 1D and 2D codes. It has a built-inmicroUSB and UARTinterface,can be connected directly to a computer or integrated with various devices. The module can be configured using the scan "configuration mode" to meet stringent scanning requirements. It has a built-in light source for working in the dark. The scanner provides consistent scanning performance over an extreme temperature range. The module is easy to fit into multi-media barcode scanning equipment, including self-service vending machines, subway gates, access control, vending machines and more.

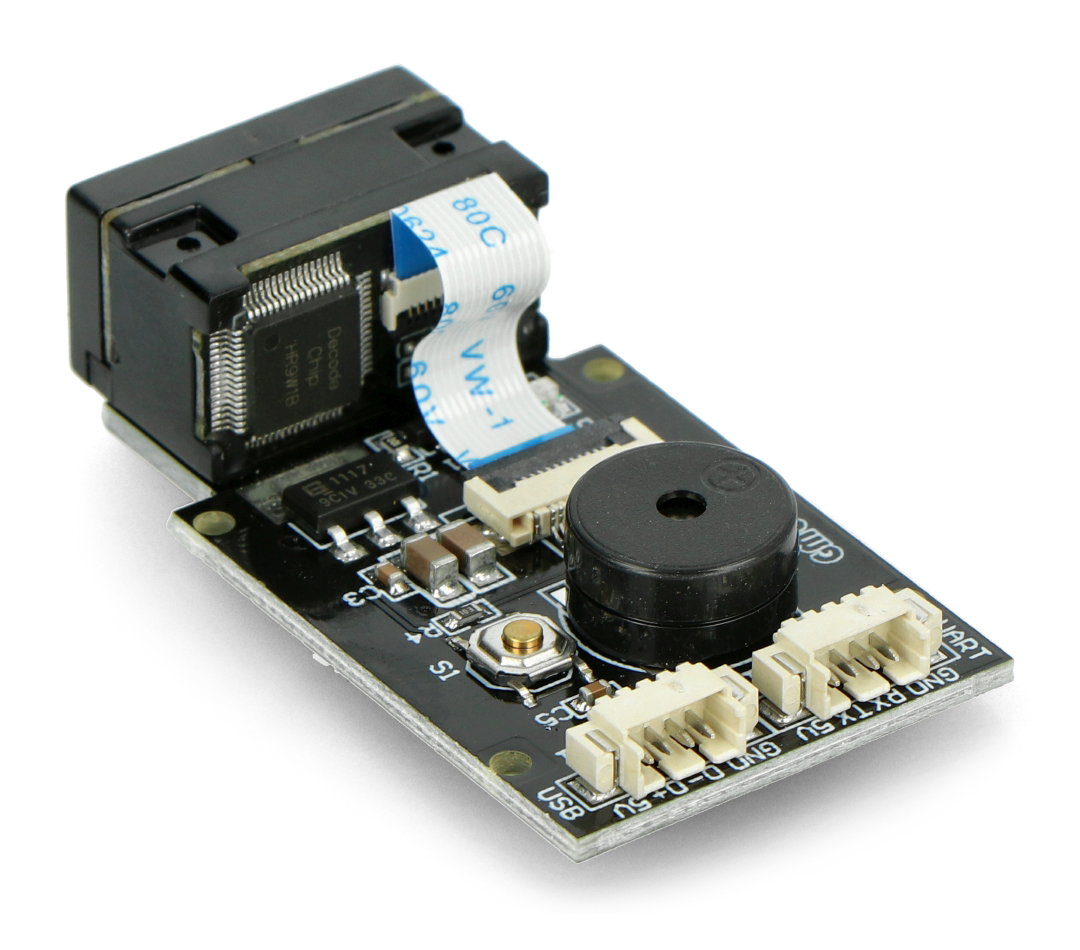

DFRobot GM65 barcode scanner and QR GM65 - DFR0660.
Application of GM65 board
- Multi-carrier barcode scanning equipment
- Self-service machines
- Metro gate machines
- Access control
- Payment machines
Specification DFRobot GM65
- Power supply voltage: 5 V DC
- Rated current: 160 mA
- CMOS optical system
- Light source capture: 617 nm LED
- Resolution: 648 x 488 px
- Ambient light: 0 to 86000 lux
- Scanning angle: 34° (horizontal), 26° (vertical)
- Minimum contrast: 30%
- Light source: white
- LED light source: 6500 K
- Interfaces: UART and USB
- Code bar, code 11, code 39 / code 93, UPC / EAN, code 128 / EAN128, interlaced 2 of 5, Matrix 2 of 5, MSI code, Industry code 2 of 5, GS1 Databar (RSS) code support 1D
- QR Code Support, Data Matrix, PDF417 2D
- Operating temperature range: 0°C to 50°C
- Storage temperature range: -40°C to 70°C
- Working humidity: 10% to 80%
- Weight: 34.75 g
Useful links
| Name | Value |
|---|---|
| Width | 12 cm |
| Height | 15.5 cm |
| Depth | 1.5 cm |
| Weight | 0.043 kg |
