Product description: Shelly Wall Display X2 - intelligent control panel with 5A WiFi/Bluetooth relay + BLU H&T sensor - black

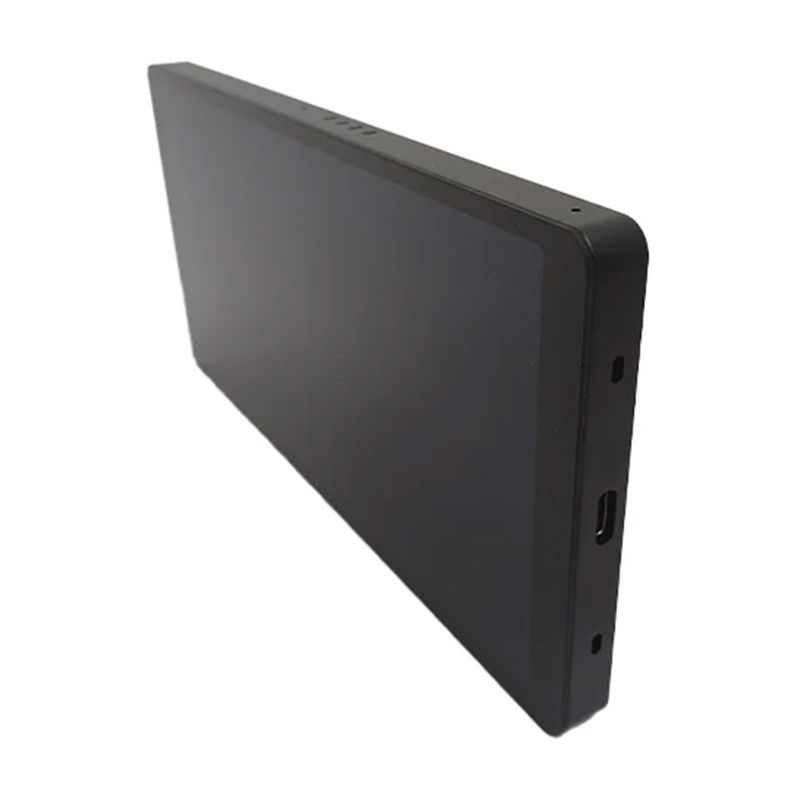

The Shelly Wall Display X2 is a versatile control panel designed to serve as a smart replacement for traditional wall switches, conveniently introducing IoT functionality . The front of the device features a 6.95" color touchscreen offering intuitive interface operation, customizable home screens, and the ability to display in either landscape or portrait orientation. The panel's integrated relay , with a maximum load capacity of 5A , allows for both direct control of electrical devices and management of heating systems and air conditioners. Additionally, built-in sensors allow for measuring light intensity, temperature, and humidity, enabling the creation of automation solutions that respond to changing environmental conditions. The device communicates via Wi-Fi and Bluetooth – it can operate independently, without the need for a dedicated hub, and can also act as a Bluetooth gateway for other sensors and Bluetooth devices in the Shelly system. When integrated with the BLU H&T sensor , the software also includes a thermostat function, allowing for room temperature control based on measurements. The panel runs on Android 8.1 and integrates with the Shelly and Home Assistant ecosystem.
Shelly Wall Display X2 - intelligent control panel with 5A WiFi/Bluetooth relay + BLU H&T sensor - black.

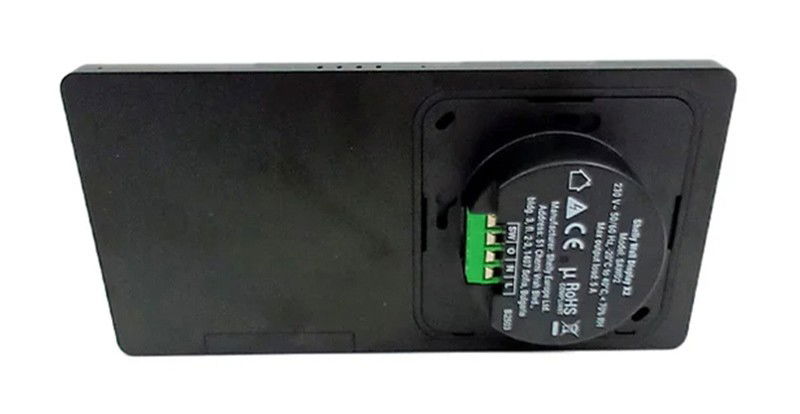

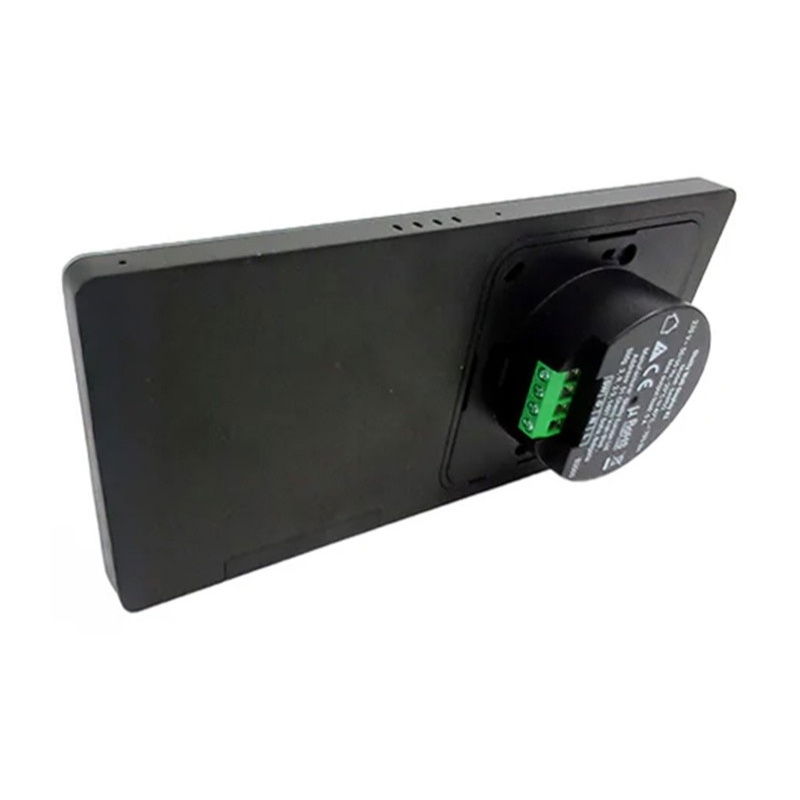

The control panel is compatible with standard junction boxes, which simplifies the installation process in place of a traditional switch.
Main Features of Shelly Wall Display X2
- 6.95" touch panel: ensuring convenient control thanks to a large, color screen and enabling convenient access to all devices in one place
- Built-in 5A relay: allows direct control of appliances, lighting, heating systems and air conditioners
- WiFi and Bluetooth connectivity: Provides direct, standalone connectivity to the internet and devices in the Shelly ecosystem, without the need for a central hub
- Bluetooth gateway function: possibility of integration with sensors and other Bluetooth devices in the Shelly system
- Environmental sensors: built-in temperature, humidity and light sensors
- Android OS: Ensures fast performance and easy automation
- Full integration with Shelly and Home Assistant: ability to create scenes, groups, schedules, notifications and automation based on recorded environmental conditions
- Stable connectivity: WiFi 802.11 b/g/n and Bluetooth 5.0 support
Intelligent features of Shelly Wall Display X2 and the ability to create advanced automation scenarios
The Shelly Wall Display X2 offers full home screen customization and quick access to favorite devices and scenes . Users can assign devices to specific rooms, monitor their status in real time, and use automatic schedules, such as turning on lights at sunset. Sensors allow the panel to respond to changes in the environment , for example, by turning on a fan when humidity is too high or turning on lights when light intensity drops below a preset level. All of these functions operate without the need for additional control devices.

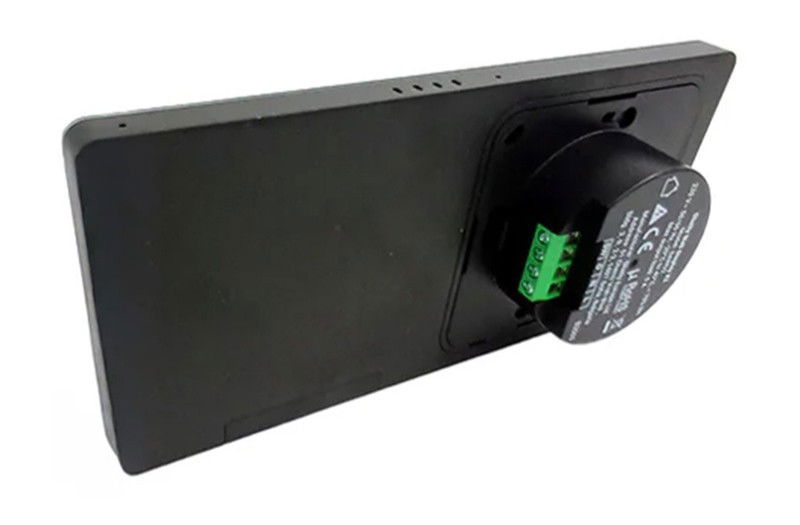

The built-in 5 A relay allows for direct control of devices, lighting, heating systems and air conditioners.
WiFi connectivity and access to the Shelly Smart Control app provide the ability to remotely control and monitor device status.
Full device control thanks to WiFi and Bluetooth connectivity and the Shelly Smart Control app

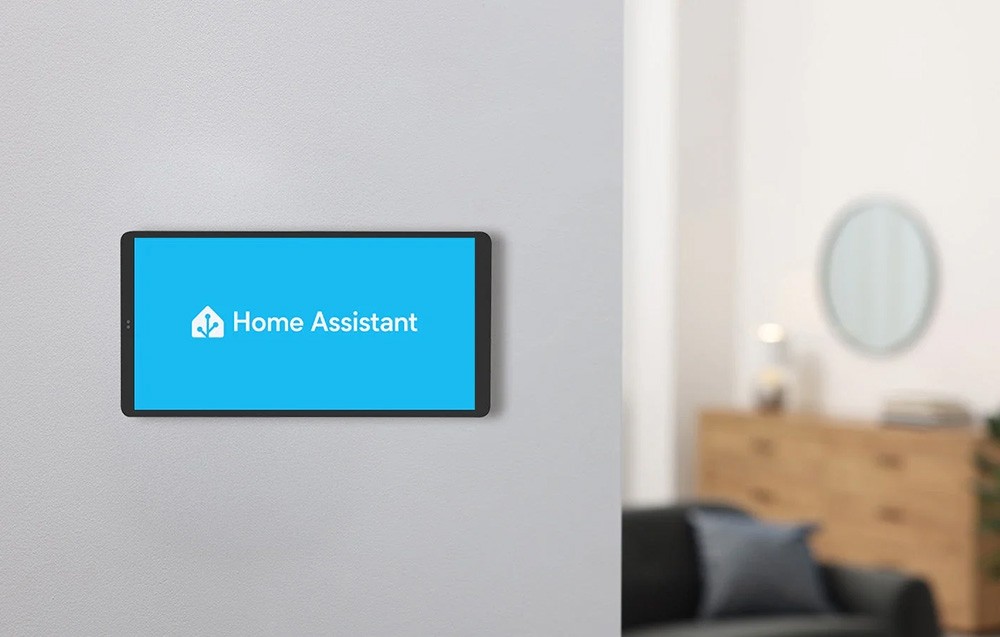

The panel provides stable wireless connectivity thanks to 2.4 GHz WiFi and Bluetooth 5.0 technology, which enables quick pairing and easy device configuration, as well as convenient access to the panel from anywhere in the world. The Shelly Smart Control app allows users to manage groups of devices, assign them to specific rooms, create scenes and schedules, and monitor energy consumption. Integration with Home Assistant allows for expanded functionality and the integration of even more devices, making the Shelly Wall Display X2 the central hub of a smart home .
Examples of practical applications
The Shelly Wall Display X2 works perfectly as a central control device in Smart Home systems , offering incredibly convenient and intuitive access to managing your entire home or office. The panel allows you to control lighting, ventilation, heating, air conditioning, and other connected electrical devices. Built-in temperature, humidity, and light intensity sensors allow for automatic response to changes in the environment—for example, turning on the fan when humidity is too high, turning on the lights when light is low, or sending a notification to the user. The panel is ideal for living rooms, bathrooms, kitchens, basements, den rooms, and offices, enabling the creation of personalized scenes and schedules that increase the comfort and energy efficiency of your home or workplace.
Shelly Wall Display X2 allows you to monitor the energy consumption of connected devices.

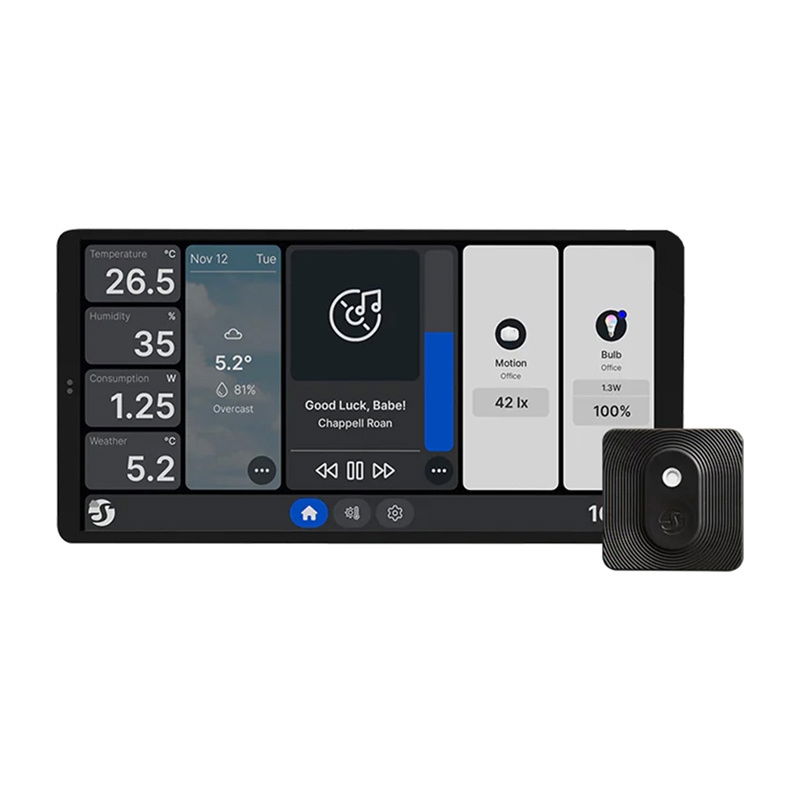

The 6.95" touch panel ensures convenient control and allows convenient access to all devices in one place.
Technical Specifications of Shelly Wall Display X2
- Screen: 6.95'', capacitive, 5-point
- Power supply: 230 V AC 50/60 Hz or USB Type-C 5 V/1 A
- Relay: 1 output, max. 5 A / 230 V AC
- Processor: SC7731E (Quad Core A7, 1.3 GHz)
- Memory: 1 GB RAM, 4 GB Flash
- Operating system: Android 8.1
- Connectivity: WiFi 802.11 b/g/n (2.4 GHz), Bluetooth 5.0
- Sensors: ambient temperature, humidity, light, G-sensor
- Communication protocol: MQTT, Webhooks
- Supports: Up to 20 schedules and 20 webhooks with 2 URLs
- Dimensions: 87 x 173 x 33 mm
- Weight: 256 g
Contents of the set
- Shelly Wall Display X2 (black)
- BLU H&T sensor
- Mounting kit
- User manual
