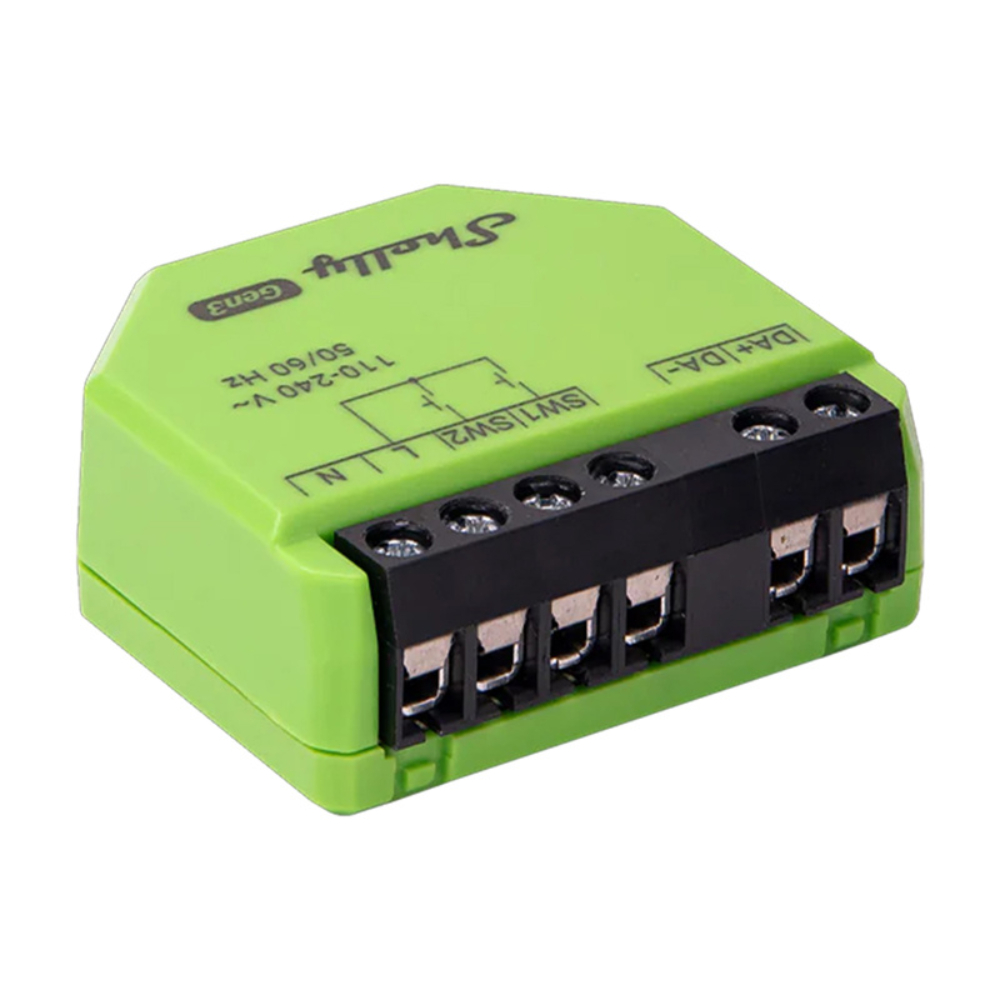

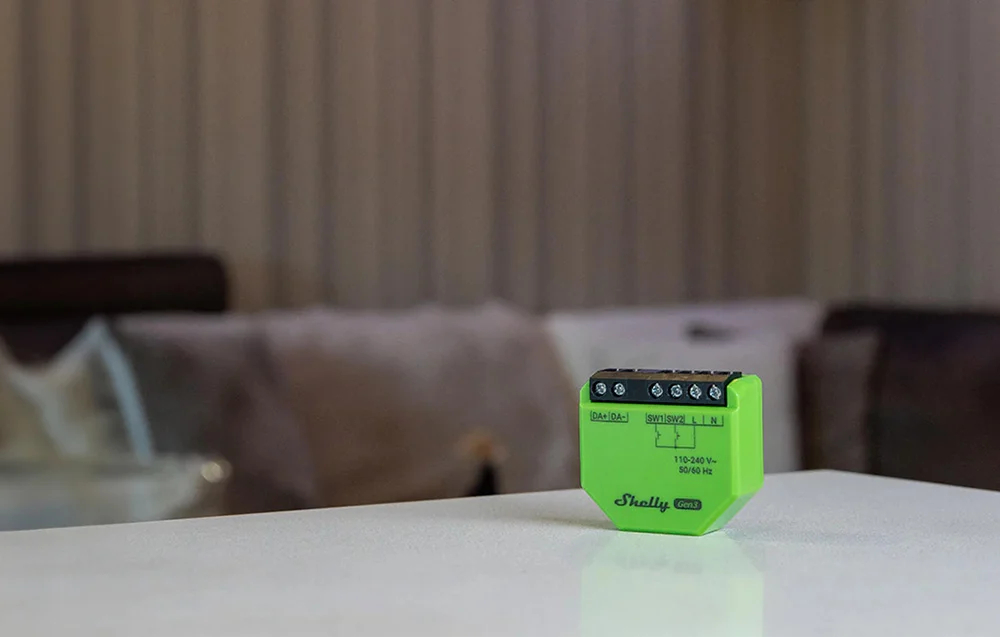

Product description: Shelly DALI Dimmer Gen3 - lighting dimmer - WiFi / Bluetooth - Android / iOS application
The Shelly DALI Dimmer Gen3 is an advanced lighting dimmer designed for DALI systems that enables precise brightness control of luminaires without the need for an additional hub. The device operates as a single-master controller and supports DALI Part 207 (DT6)-compliant luminaires , sending messages to all devices on the bus. A built-in 10mA DALI power supply allows for simultaneous control of up to 5 luminaires , significantly simplifying installation and reducing the need for additional components. With Wi-Fi and Bluetooth connectivity, and features such as BLE Gateway and Wi-Fi repeater, the device enhances the capabilities of the entire Smart Home system.
Shelly DALI Dimmer Gen3 - lighting dimmer - WiFi / Bluetooth - Android / iOS app.
An advanced lighting dimmer designed for DALI systems, which enables precise control of the brightness of luminaires without the need for an additional hub.
Special features
- DALI support: DALI Part 207 (DT6) compatible and control of multiple luminaires simultaneously
- Built-in bus power supply: power up to 5 DALI devices without additional modules
- Precise dimming: adjust minimum and maximum brightness and smooth light transitions
- Schedules and automations: ability to create scenes, timers and night mode
- Local control: compatibility with classic wall switches (1- and 2-button)
- Wireless connectivity: WiFi and Bluetooth provide convenient control and quick pairing
- BLE Gateway function: integration and extension of communication with other Bluetooth devices
- WiFi Repeater: Increase Wireless Range at Home
- System integration: compatibility with MQTT, webhooks, KNXnet/IP and smart home platforms
- Scripting: the ability to create your own automation and action logic
- Operational safety: built-in temperature sensor to protect against overheating
- Modern Gen3 platform: powerful processor and memory enabling future upgrades (e.g. Matter)
Technical specifications
- Model: DALI Gen3
- Device type: DALI lighting dimmer (single-master)
- Power supply: 110 to 240 VAC ±10%, 50/60 Hz
- Power consumption: < 2 W
- Neutral wire required: no
- DALI bus power supply: 10 mA (up to 5 devices), short circuit current < 35 mA
- DALI bus voltage: 16 V (nominal)
- Supported standard: DALI Part 207 (DT6)
- Control: WiFi 802.11 b/g/n, Bluetooth 4.2
- WiFi band: 2401 to 2495 MHz
- WiFi range: up to 30 m indoors, up to 50 m outdoors
- Bluetooth band: 2400 to 2483.5 MHz
- Bluetooth range: up to 10 m indoors, up to 30 m outdoors
- Maximum WiFi RF power: <20 dBm
- Maximum Bluetooth RF power: < 4 dBm
- Processor: ESP32-C3 Shelly
- Flash memory: 8 MB
- Number of schedules: up to 20
- Webhooks: up to 20 (up to 5 URLs per webhook)
- MQTT support: yes
- Scripting support: yes
- Encryption: TLS 1.2
- Temperature sensor: built-in

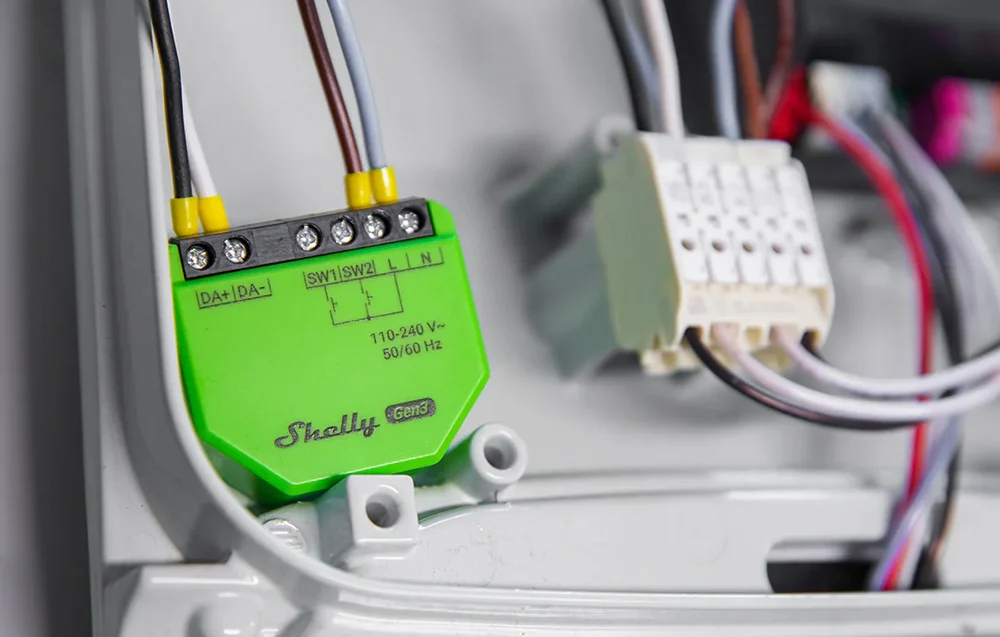

- Installation: in wall boxes, suspended ceilings
- Wire cross-section: 0.5 to 1.5 mm²
- Stripped wire length: 5 to 6 mm
- Maximum tightening torque: 0.4 Nm
- Operating temperature: -20°C to 40°C
- Operating humidity: 30% to 70% RH
- Maximum operating altitude: 2000 m
- Housing material: plastic
- Housing color: green
- Dimensions: 42 x 37 x 1
Thanks to WiFi and Bluetooth connectivity and functions such as BLE Gateway and WiFi repeater, the device increases the capabilities of the entire Smart Home system.
