Product description: WisMesh Pocket V2 - EU868 - LoRaWAN + Bluetooth module - RAK Wireless 105130
The WisMesh Pocket V2 with the WisBlock RAK4631 module is a compact, fully integrated device enabling communication within a Meshtastic LoRa Mesh network , designed for IoT enthusiasts, field users, and those seeking a reliable solution for connectivity beyond cellular coverage. The device comes pre-loaded with Meshtastic firmware , allowing for immediate deployment. With built-in components such as a GNSS module , an acceleration sensor, and a 1.3" OLED display , the WisMesh Pocket V2 is ideal as a GPS tracker , field communication tool, or component of a broader mesh infrastructure.
WisMesh Pocket V2 - EU868 - LoRaWAN + Bluetooth module - RAK Wireless 105130.
WisMesh Pocket V2 with WisBlock RAK4631 module is a compact, fully integrated device enabling communication in the Meshtastic LoRa Mesh network.Special features
- Ready to work with Meshtastic firmware - no need for any programming yourself
- Built-in GNSS module - enables accurate location tracking
- 1.3'' OLED display - clear preview of device messages and statuses
- Acceleration sensor - for motion detection or expansion with additional functions
- 3200 mAh battery - IEC certified and temperature protected
- USB port protection - surge protection
- Durable housing - with easy access to connectors and buttons
- Compact format - fits in your pocket or backpack
Practical applications
- Off-grid communication during expeditions, mountain trips and camping
- Track the location of team members in the field without network access
- Communication backup in emergency situations (e.g. natural disasters)
- IoT and mesh networking projects - quick integration in a test or production environment
- Location and security systems for outdoor, survival and event activities
Technical specifications of the module
- Module: RAK4631
- Communication: LoRa + Bluetooth Low Energy
- Firmware: Meshtastic pre-loaded
- Display: 1.3-inch OLED screen
- Connectivity: SMA connector
- Sensors: GNSS, accelerometer
- Battery: 3200 mAh, lithium polymer
- Power supply: USB Type-C port
- Color: white
- Dimensions: 94 x 52 x 30 mm

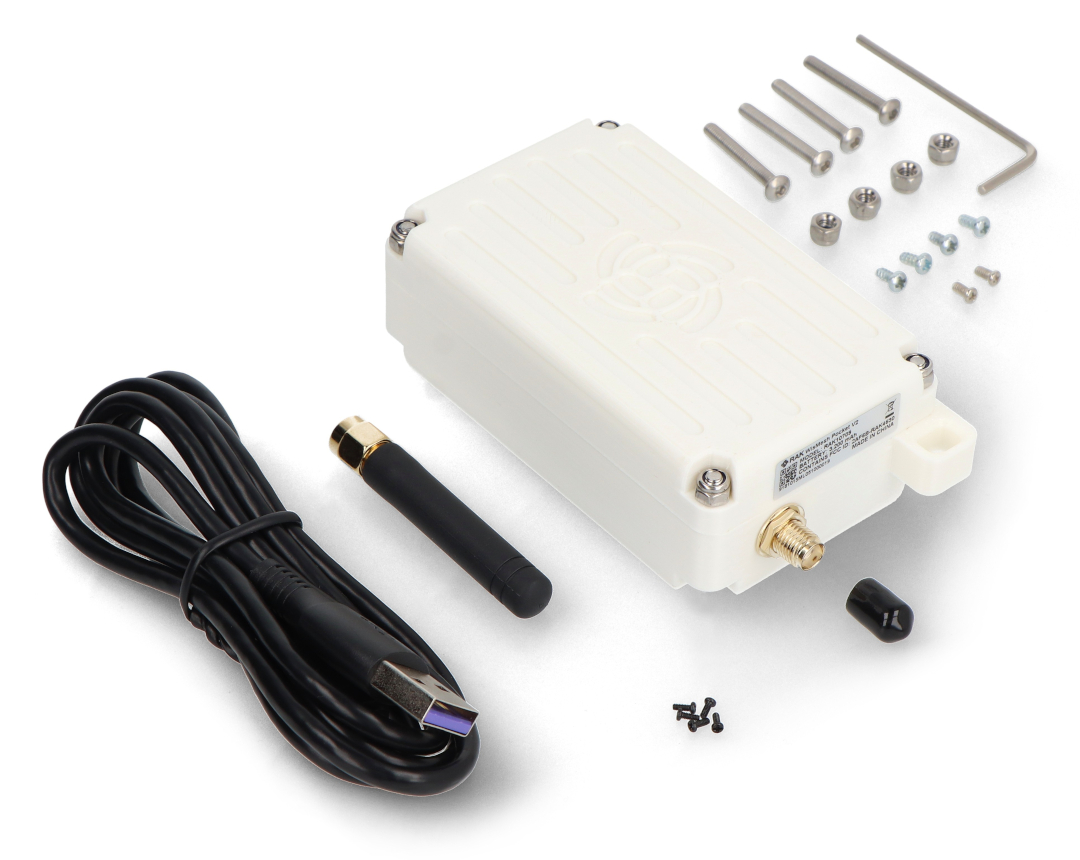

Contents of the set
- 1x WisMesh Pocket V2
- 1x LoRa Antenna (SMA)
- 1x USB cable
