Product description: PerfMate universal printed circuit board for XIAO and QT Py - PiHut 106567

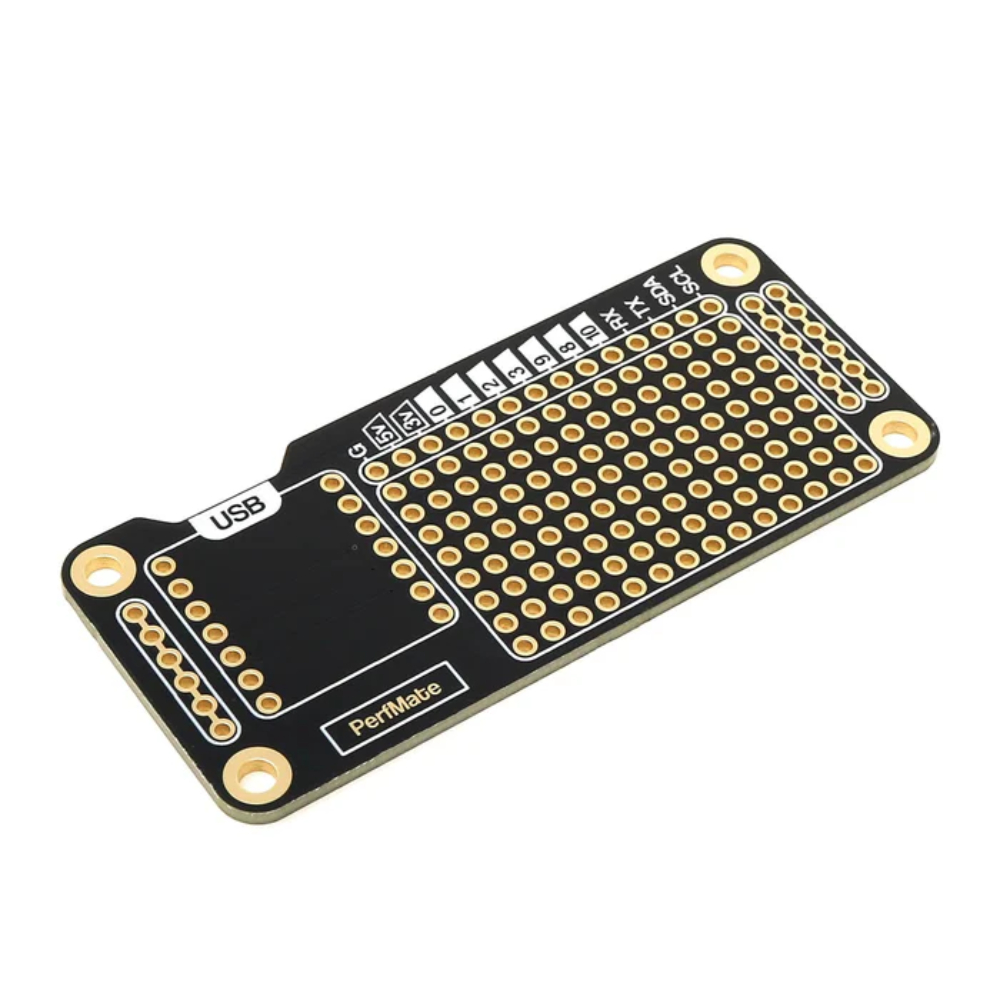

PerfMate is a perfboard- style prototyping board designed for Seeed XIAO and Adafruit QT Py modules (modules not included) . It allows you to easily transform a breadboard project into a durable and reliable PCB solution . The main 14x8 pad layout features independent pads (not connected by traces), giving you complete freedom in designing your own connections. The XIAO module's GPIO lines are routed in a logical order along the top of the board, significantly simplifying project planning and implementation . Additionally, there are combined power rails on both sides, ideal for creating shared 5V and GND lines. If necessary, you can cut the trace bridges to separate the power supply sections.
PerfMate is a perfboard-style prototyping board designed for Seeed XIAO and Adafruit QT Py modules.

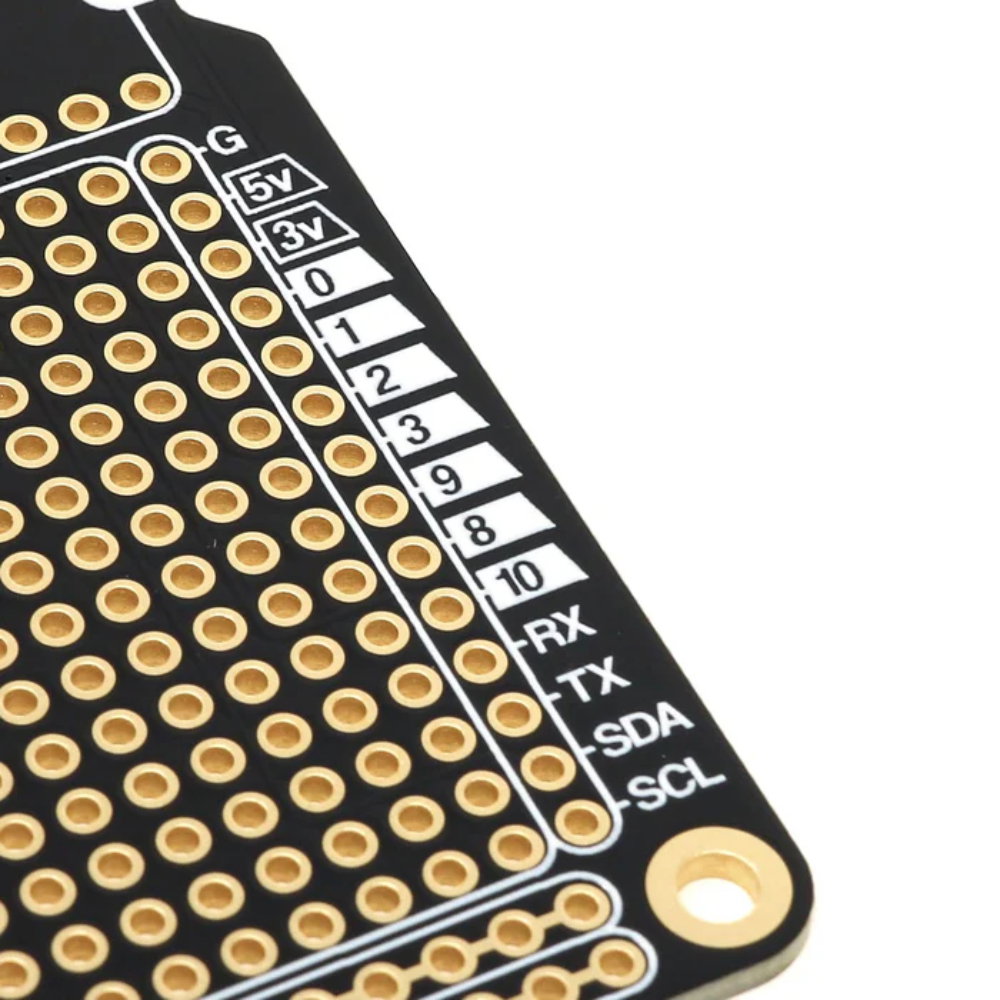

The GPIO lines of the XIAO module are led out in logical order along the top of the board.Special features
- Perfboard (unconnected pads)
- Main solder pad 14 x 8
- GPIO lines of the XIAO module derived and arranged
- Side power rails with the option of splitting the tracks
- ENIG coating (gold plating) for increased resistance to oxidation

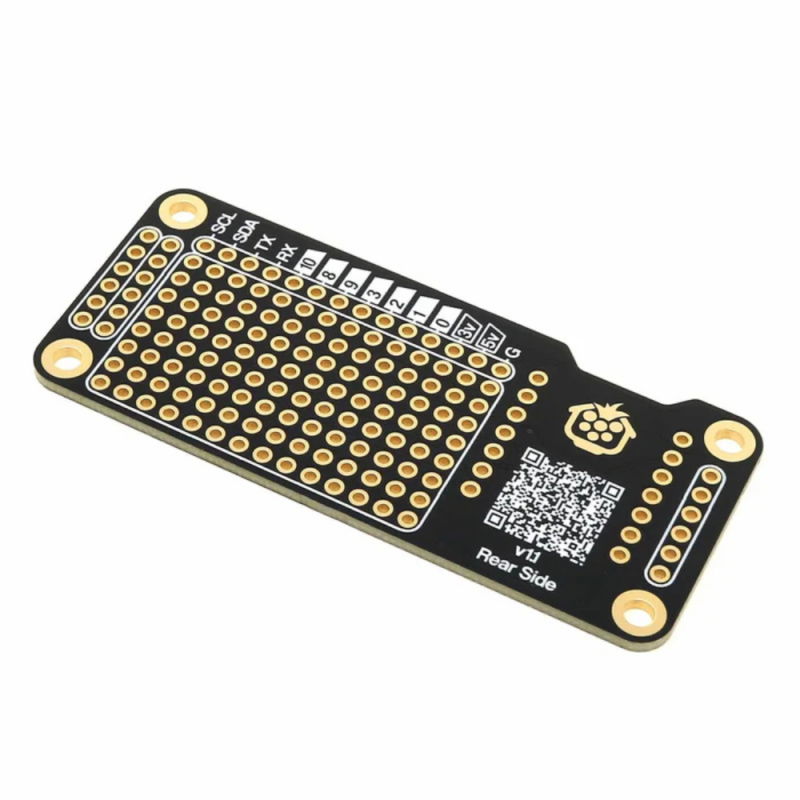

- "Rear Side" marking for easy correct installation
- M2.5 mounting holes
- Possibility of mounting the module as a removable socket or permanently
- Compatible with Seeed XIAO and Adafruit QT Py
Technical specifications of the board
- Board type: perfboard (unconnected pads)
- Solder pad: 14 x 8
- Compatibility: Seeed XIAO, Adafruit QT Py
- PCB coating: ENIG (gold plated)
- Mounting holes: M2.5
- Additional power rails: on both sides of the board
- Dimensions: 67 x 29 mm

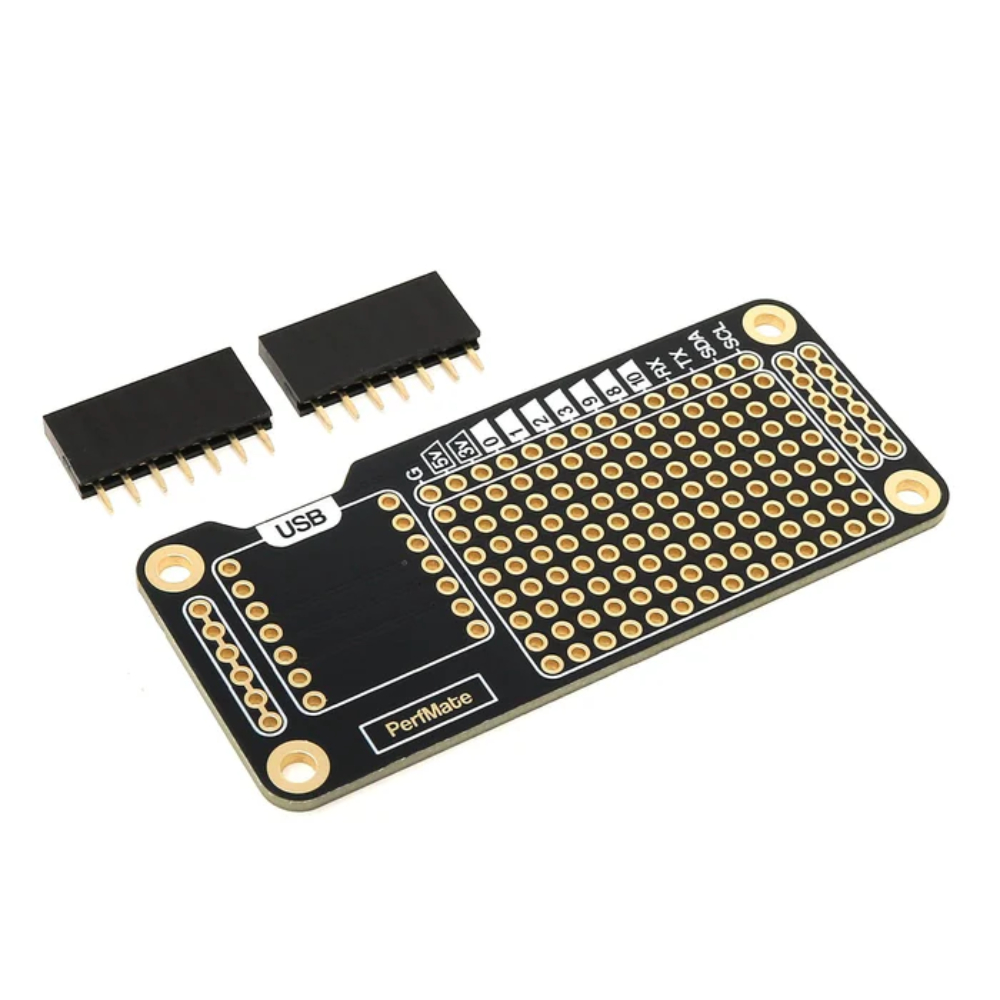

Contents of the set
- 1x PerfMate Prototype Board for XIAO and QT Py
- 2x 7-pin female connector
Additionally, there are combined power rails on both sides, ideal for creating common 5V and GND lines. Useful links |
