Capacitive Touch Screen LCD IPS 11.9'' 320x1480px HDMI - Waveshare 19454
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: LCD IPS capacitive touch screen 11.9" 320 x 1480 px HDMI - Waveshare 19454
The 11.9" LCD IPS HDMI capacitive touchscreen from Waveshare is an advanced display with a resolution of 320 x 1480 pixels , providing vivid colors and sharp images from every viewing angle. The touch panel is covered with tempered glass with a hardness of 6H, which guarantees exceptional scratch resistance. The screen supports up to five touch points and is compatible with various operating systems, including Windows and Raspberry Pi OS . The built-in 3.5 mm audio jack allows you to connect a speaker or headphones. Simple and hassle-free installation makes the screen automatically synchronize with the PC operating system, without requiring additional software.
LCD IPS capacitive touch screen 11.9" 320 x 1480 px HDMI - Waveshare 19454.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
The screen automatically synchronizes with the operating system.
Main features of the Waveshare touch screen
- The screen has a diagonal of 11.9 inches, which provides a sufficiently large field of view in electronic projects and allows it to be used as a computer monitor.
- It has a resolution of 320 x 1480 pixels, which guarantees clear and sharp images and readable text.
- Equipped with an HDMI interface that allows easy connection to various devices supporting Windows, Raspberry Pi OS or Nvidia.
- The IPS panel used provides a wide viewing angle, so the image remains clear from any perspective.
- The screen has a capacitive touch panel that responds to finger touch with high sensitivity, ensuring smooth and precise touch operations.
- It supports up to 5 touch points simultaneously, which enables more advanced gestures and user interaction with the screen.
- A tempered glass panel with a hardness of up to 6H ensures resistance to scratches and mechanical damage, protecting the display during everyday use.
- The screen has an audio output in the form of a 3.5 mm jack, allowing you to connect headphones or speakers.
Support for many devices and systems
Waveshare's touchscreen LCD provides compatibility with a variety of devices and operating systems, including Raspberry Pi OS, Ubuntu, Kali, Retropie and Windows 11/10/8.1/8/7 . This makes it perfect for a wide range of applications. Support for HDMI and USB interfaces allows easy adaptation to various hardware and software configurations.
The manufacturer has also prepared a user guide describing the installation process in other systems and instructions on changing the orientation of the displayed image and touch.
The screen is compatible with a variety of devices, including Mini PC, Raspberry Pi and Nvidia Jetson Nano.
Elements included in the set.
Waveshare LCD IPS 11.9'' screen specifications
- Diagonal: 11.9"
- Resolution: 320 x 1480 px
- Screen connector: HDMI
- Touch connector: USB
- Display type: IPS
- Viewing angle: 170°
- Touch type: capacitive
- Number of touch points: 5
- Touch panel: 6H tempered glass
- Audio output: 3.5 mm jack
- Power Switch: Yes
- Compatibility: Raspberry Pi, Nvidia Jetson Nano, Mini PC
- Dimensions: 28.73 x 6.98 cm

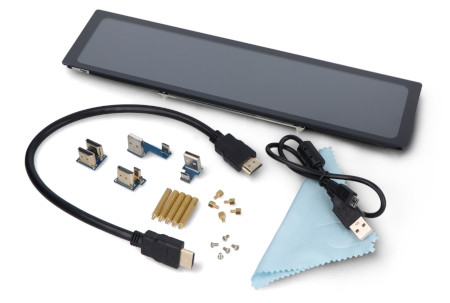

Set contents
- 1x 11.9 inch HDMI LCD screen
- 1x HDMI cable
- 1x USB A - microUSB cable
- 1 x HDMI adapter (B)
- 1 x USB adapter (B)
- 1 x HDMI adapter (C)
- 1 x USB adapter (C)
- Screw set
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD IPS |
| Screen - diagonal | 11.9" |
| Screen - interface | HDMI+USB |
| Screen - touch | yes |
| Screen - resolution | 320x1480px |
| Width | 34.5 cm |
| Height | 10.5 cm |
| Depth | 5.5 cm |
| Weight | 0.445 kg |
