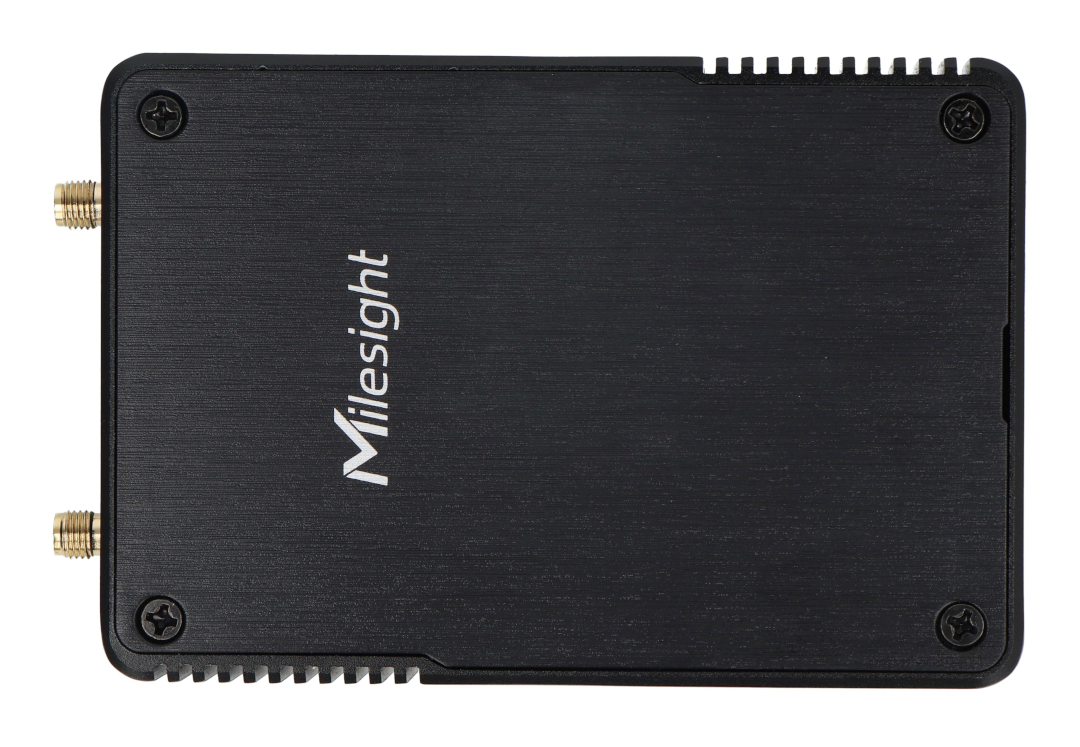

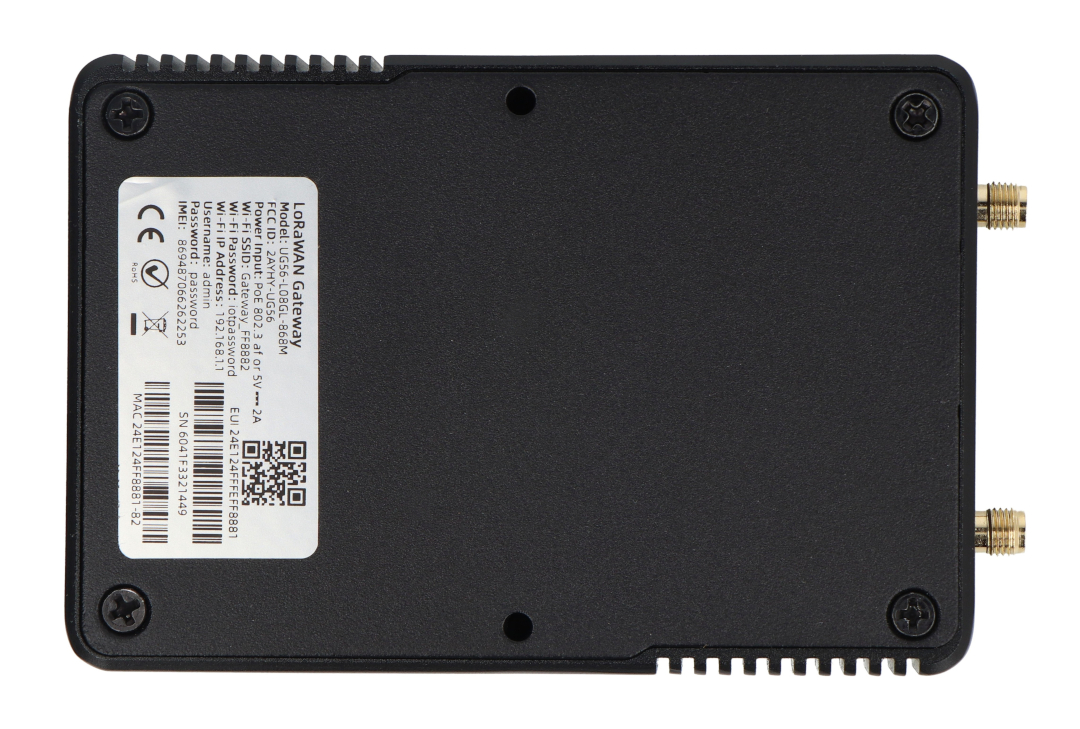

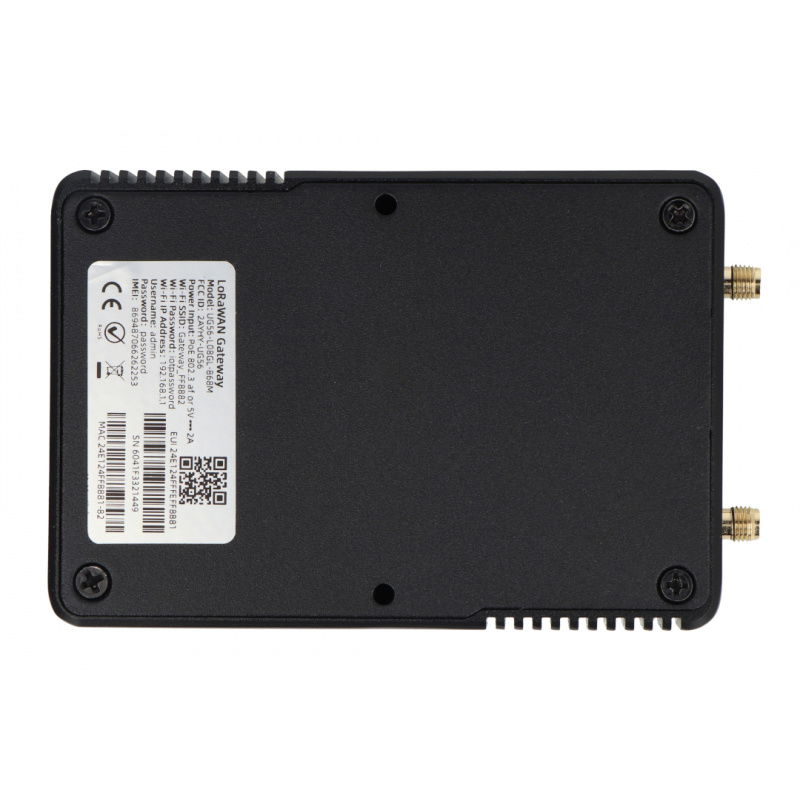

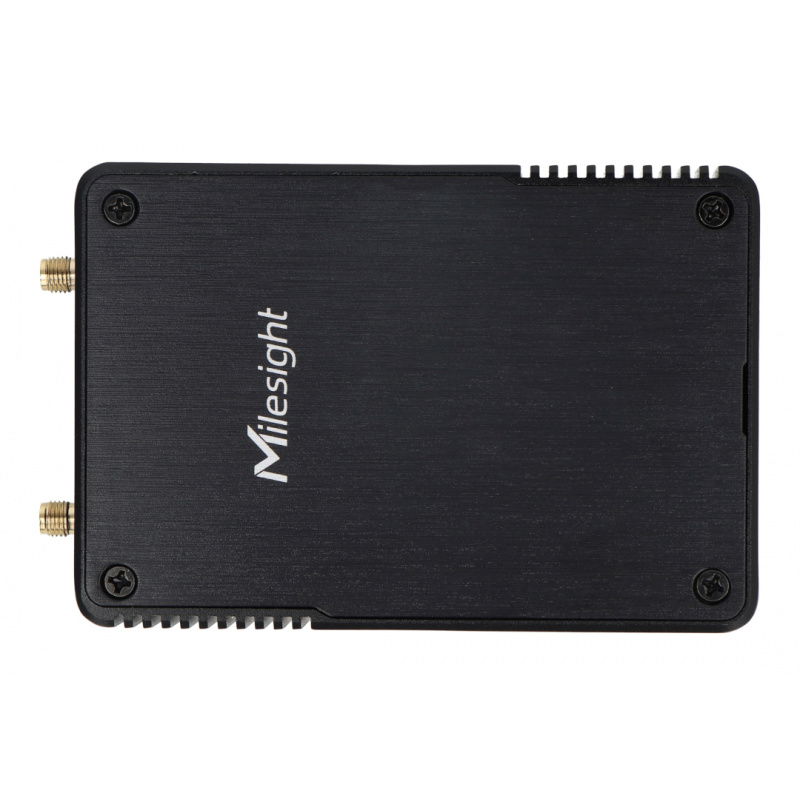

Product description: LoRaWAN WiFi / Ethernet + LTE central unit - black - Milesight UG56-L08GL-868M
The Milesight UG56-L08GL is a high-performance, 8-channel LoRaWAN gateway designed for reliable indoor operation. Thanks to the modern Semtech SX1302 chip and a quad-core Cortex-A35 processor, the device can simultaneously support up to 2,000 end nodes . A unique feature of this model is its compact design, which allows for installation in small control cabinets while maintaining full industrial functionality. The gateway supports multiple data transmission methods (backhaul), including 4G LTE, WiFi, and Ethernet , ensuring continuous connection even in the event of a network failure. An integrated Network Server and support for MQTT, HTTP, and BACnet protocols make the UG56 ready for the most demanding IoT and BMS ecosystems.

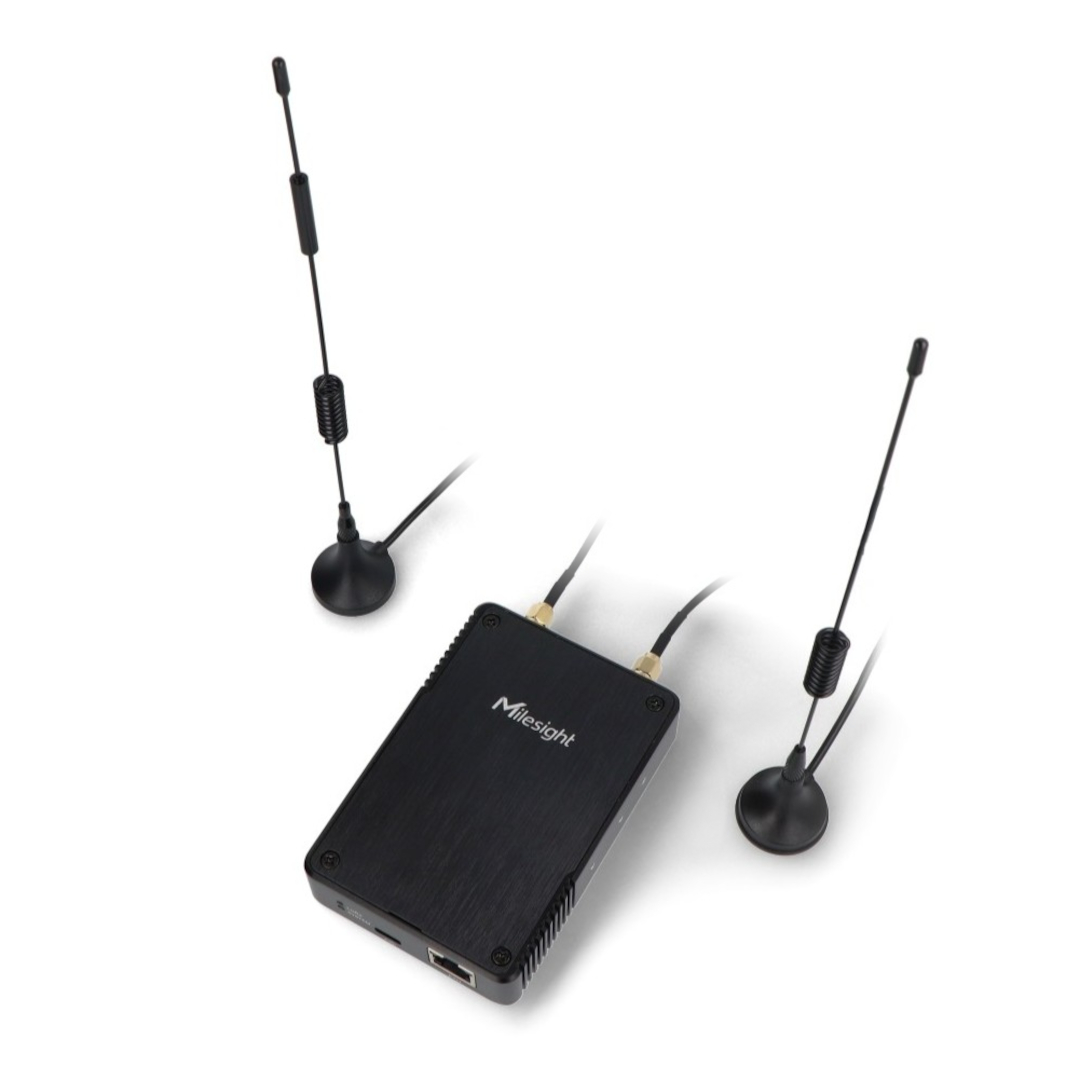

LoRaWAN WiFi / Ethernet + LTE central unit - black - Milesight UG56-L08GL-868M.
The network gateway is used to manage all smart devices on the network.
Milesight UG56 Gateway Main Features
- 8-channel communication: supports the LoRaWAN standard in half-duplex mode with high interference immunity
- Built-in LTE module: integrated 4G router for wireless internet connectivity in all conditions
- Advanced programming: Python SDK support and Node-RED graphical environment for your own applications
- Multi-protocol integration: support for MQTT, HTTP, HTTPS, BACnet/IP and Modbus TCP
- PoE PD power supply: the ability to power the device directly via an Ethernet cable (802.3af standard)
- Data security: support for VPN tunnels such as OpenVPN, IPsec, L2TP and WireGuard
Reliable connectivity and long range LoRaWAN
The Milesight UG56-L08GL gateway offers impressive transmission performance, providing coverage of up to 15 km in open areas and up to 2 km in dense urban areas . Inside multi-story buildings, the signal effectively penetrates ceilings, covering up to 3 floors up and down from the installation site . With the Listen Before Talk (LBT) feature, the device intelligently manages channels, minimizing packet collisions and optimizing the transmission environment for all connected sensors.
LoRaWAN wireless communication protocol.
The LoRaWAN gateway is designed for use in buildings and industrial spaces.
Device connection and full compatibility
The UG56‑L08GL is designed to seamlessly support over 2,000 LoRaWAN devices , including sensors, meters, control modules, and other IoT components. The gateway deeply integrates with leading network servers and supports interoperability with solutions such as The Things Stack, ChirpStack, Actility, AWS IoT, and others . Support for standard network protocols (MQTT, HTTP/S, TCP/UDP) allows for easy connection to SCADA systems, IoT platforms, and custom applications without the need for additional bridges or converters.
Integration, management and modern applications
The Milesight UG56 supports DeviceHub and Milesight IoT Cloud platforms, enabling remote monitoring of the gateway's status and firmware updates (FUOTA). Support for BACnet and Modbus allows data from wireless sensors to be transmitted in real time to building automation systems (BMS). Developers can use the Python SDK and Node‑RED to create custom rules, integrations, and automation without having to write low‑level code.

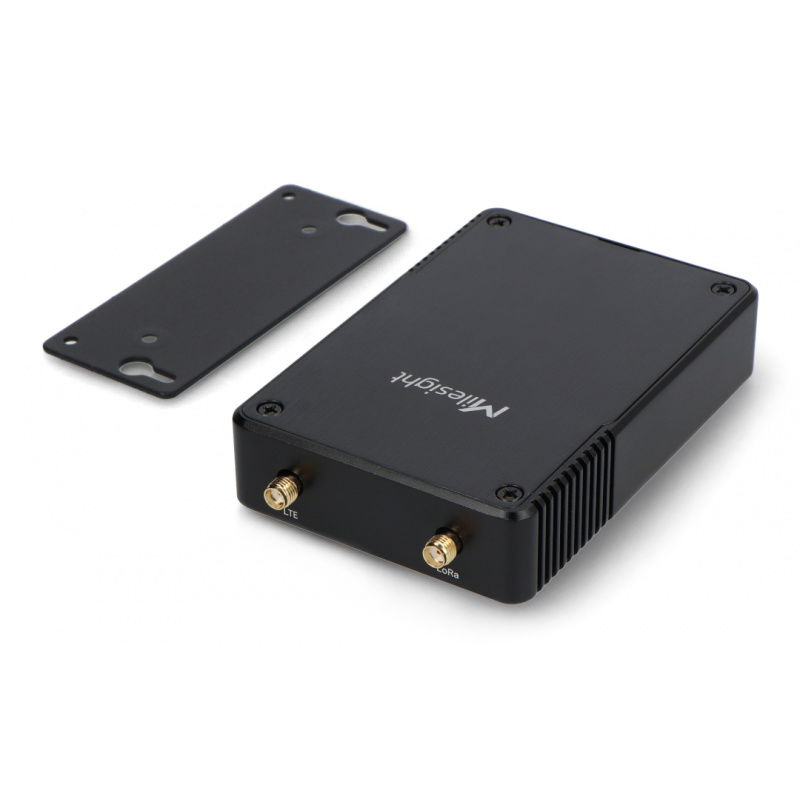

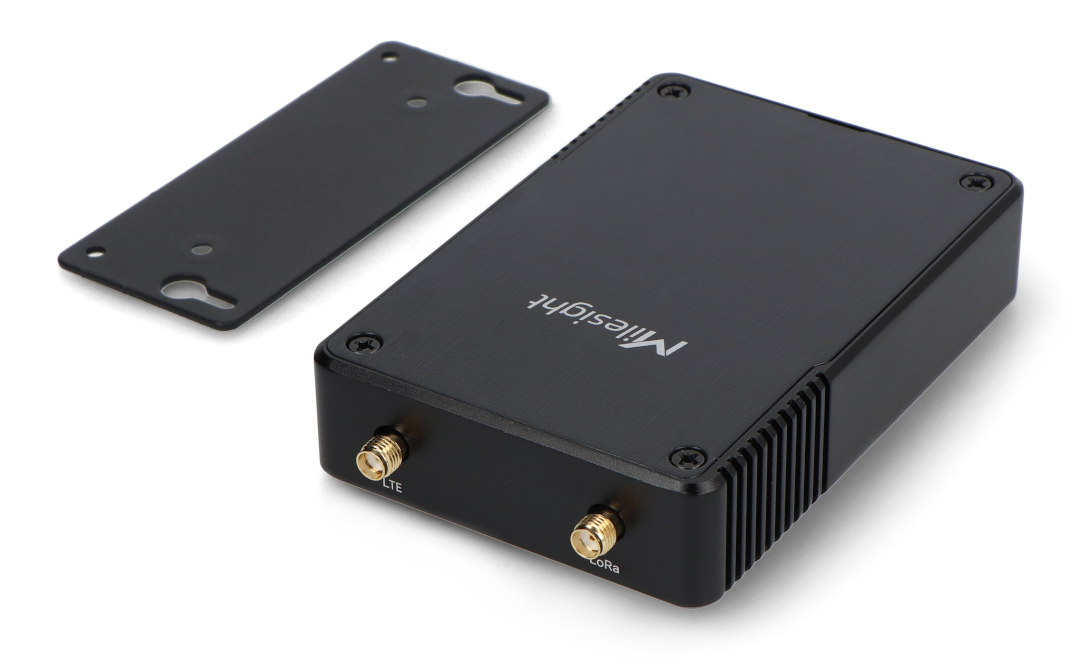

The gateway comes with a wall mounting bracket.

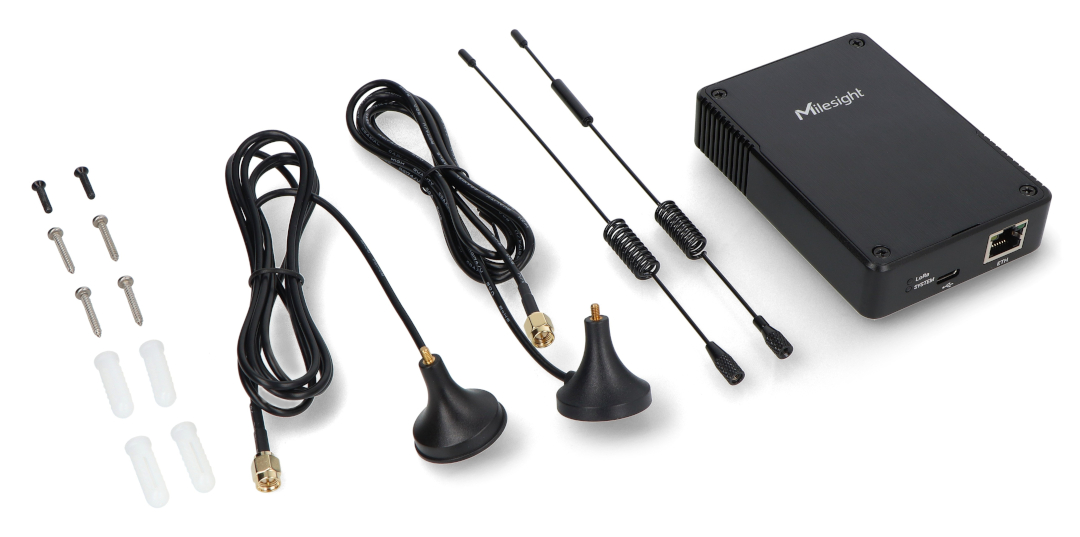

Elements included in the set.
Milesight UG56 Gateway Technical Specifications
- Model: UG56‑L08GL‑868M
- Processor: quad-core 1.3 GHz ARM Cortex-A35
- RAM: 512MB DDR3
- Flash Memory: 8GB eMMC
- LoRaWAN channels: 8 half-duplex
- Frequency: 868 MHz
- LoRaWAN range: up to 15 km (open area), up to 2 km (urban)
- Connectivity: Ethernet (PoE PD), WiFi 2.4 GHz, 4G LTE
- Protocols: MQTT, HTTP/S, TCP/UDP, BacNet/IP, Modbus TCP
- Interfaces: RJ45, USB Type-C (power/console), SMA antenna
- Power: PoE 802.3af / 5V 2A via USB Type-C
- MicroSD card slot: 1 internal
- Operating temperature: -20°C to 60°C
- Degree of protection: IP30
- Dimensions: 110 x 75 x 24 mm
- Weight: 186 g

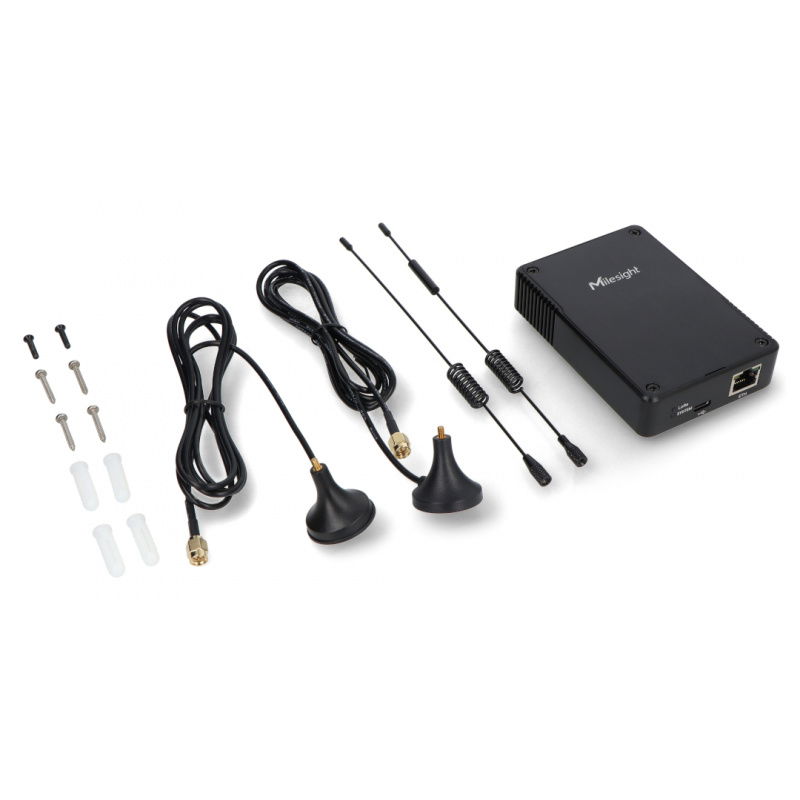

Contents of the set
- 1x Milesight UG56-L08GL Gateway
- 1x Magnetic LoRaWAN antenna
- 1x Magnetic LTE antenna
- 1x Wall mounting bracket
