Product description: Raspberry Pi 4 model B WiFi DualBand Bluetooth 2 GB RAM 1.8 GHz - Dual RAM version

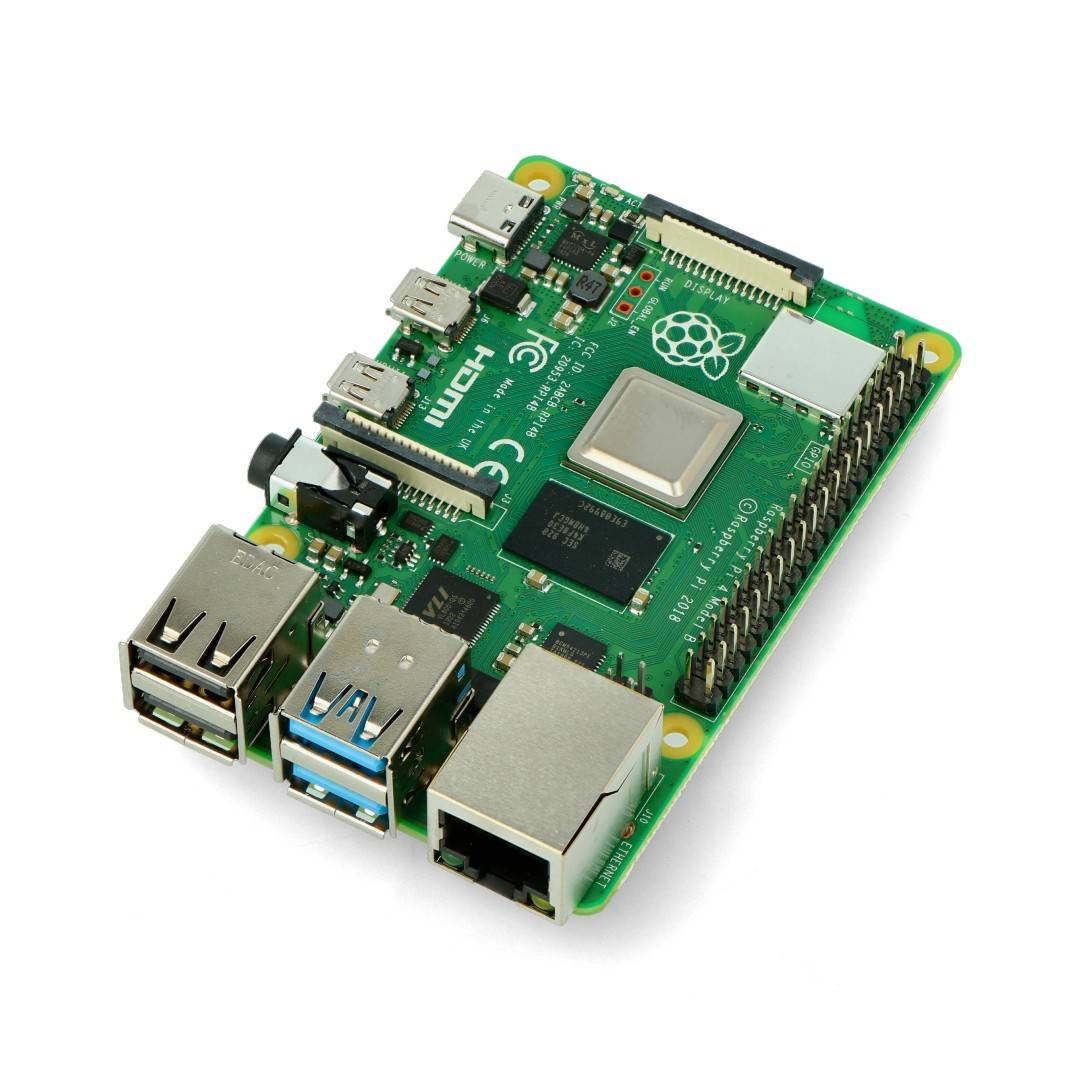

The Raspberry Pi 4 model B Dual RAM is a modern minicomputer equipped with 2 GB of LPDDR4 memory and a powerful Broadcom BCM2711 Quad-Core Cortex-A72 64-bit 1.8 GHz processor. It offers two microHDMI outputs for 4K display, two USB 3.0 ports, two USB 2.0 ports, Gigabit Ethernet , and wireless connectivity with DualBand WiFi and Bluetooth 5/BLE . The Dual RAM variant is based on the new PCB revision 13a, which uses two physical LPDDR4 memory chips . This change was introduced by Raspberry Pi to increase DRAM supply flexibility and does not affect functionality or electrical parameters. The board also still includes 40 GPIO connectors, a CSI and DSI connector, and a memory card slot (microSD) .

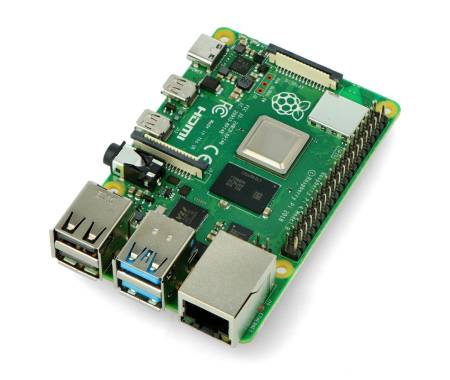

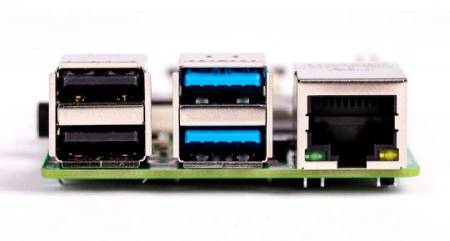

Raspberry Pi 4 model B WiFi DualBand Bluetooth 2 GB RAM 1.8 GHz - Dual RAM version.
The Dual RAM variant uses a modified PCB, but the most important functions of the Raspberry Pi 4 model B remain unchanged - the minicomputer retains the same format, connectors and application possibilities .
Main features of the Raspberry Pi 4B Dual RAM
- Dual RAM version: The new PCB revision 13a uses two LPDDR4 memory chips arranged on both sides of the board
- Broadcom BCM2711 processor: Quad-core 64-bit Cortex-A72 clocked at 1.8 GHz for high computing performance
- 2GB LPDDR4 memory: enough memory for multimedia, automation, IoT, and learning programming
- Two microHDMI outputs: support for two monitors simultaneously and resolutions up to 4K
- 2x USB 3.0 and 2x USB 2.0: quick connection of peripherals and storage devices
- WiFi DualBand and Bluetooth 5: 2.4 GHz and 5 GHz wireless communication and BLE
- Gigabit Ethernet: fast wired communication up to 1000 Mb/s
- USB C power supply: recommended voltage 5V and current output 3A
New Raspberry Pi 4 PCB Revision

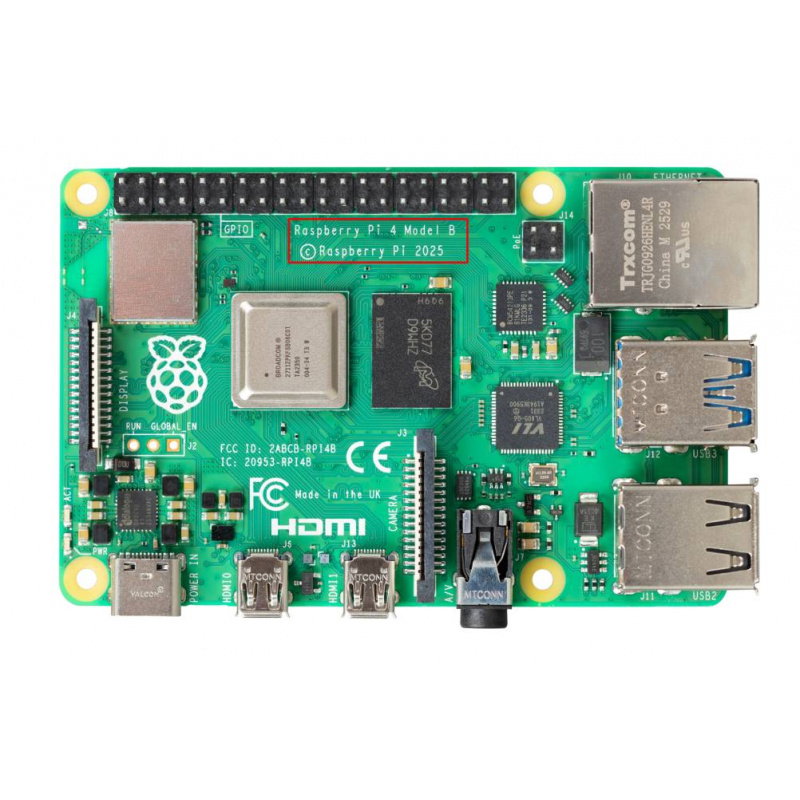

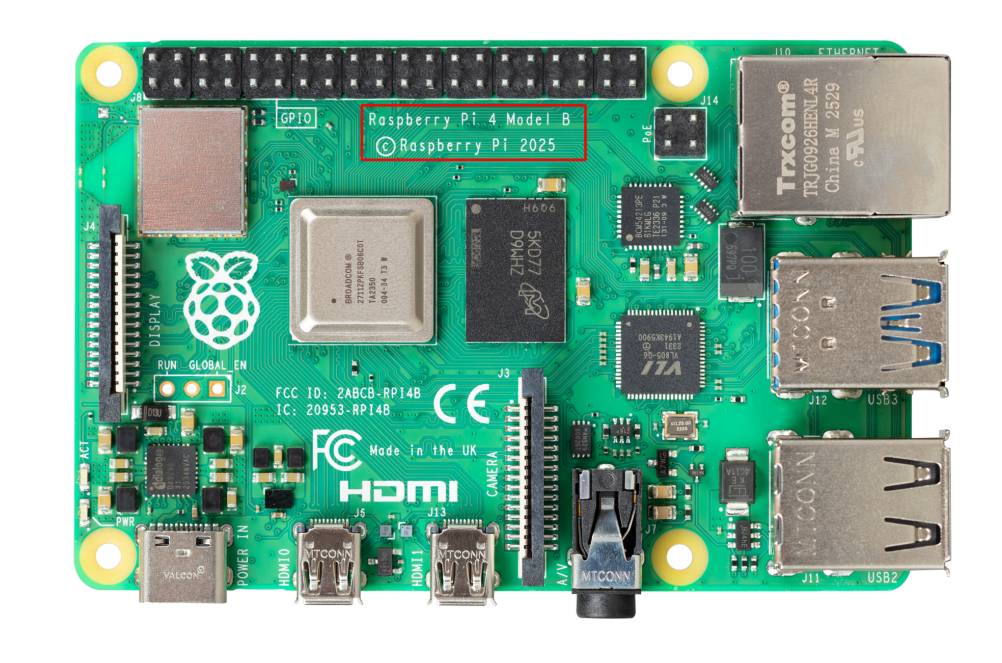

The Dual RAM version uses a new PCB revision designated PCB 13a and software model Rev 1.5 . A second LPDDR4 chip has been added to the bottom of the board , and some passive components have been moved to accommodate the new memory layout. Raspberry Pi confirms that the changes are for manufacturing and logistical reasons, and that the electrical parameters and capabilities of the device remain unchanged from previous versions of the Raspberry Pi 4 Model B.
Power supply for the Raspberry minicomputer version 4
To power the Raspberry Pi 4, it requires a power supply with a USB-C connector and an output voltage of 5V. The minimum recommended current output is 3A. We offer original power supplies and branded replacements compatible with the Raspberry Pi.

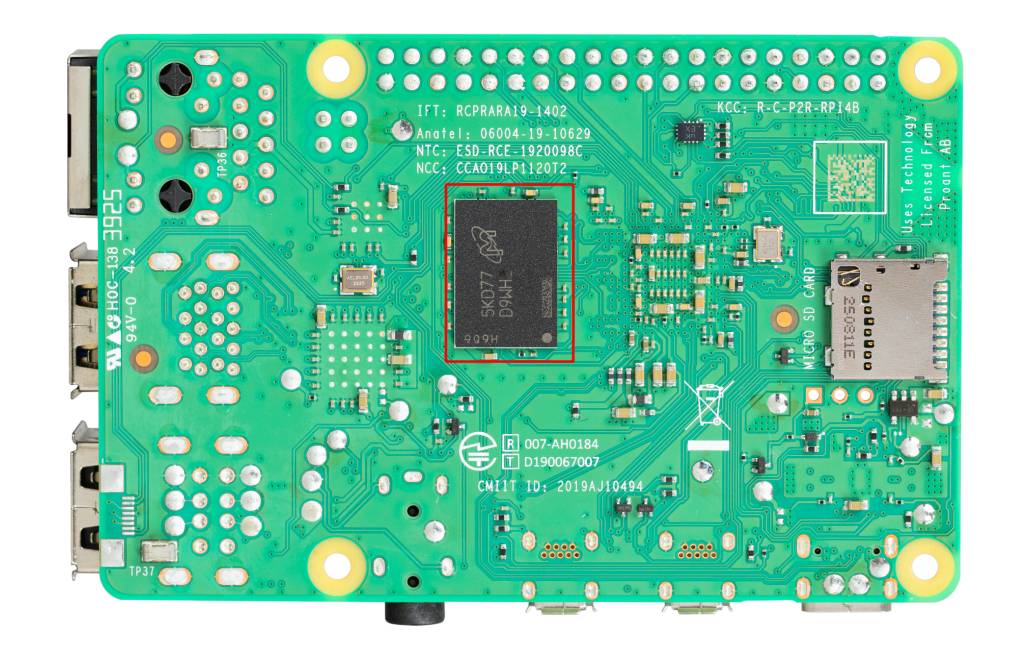

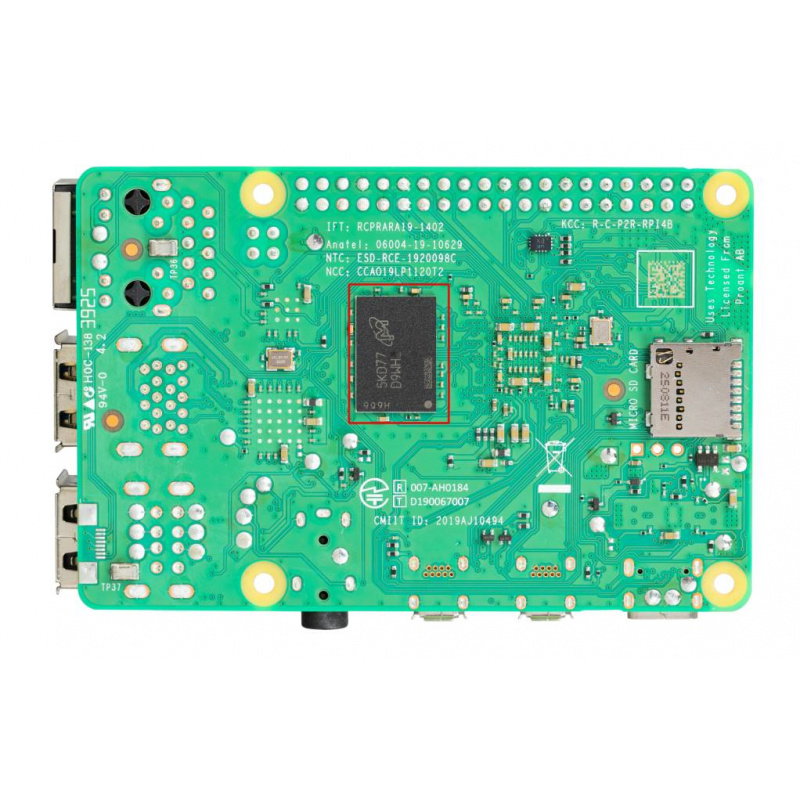

There is an additional LPDDR4 chip on the bottom of the board, and some of the small passive components have been moved.

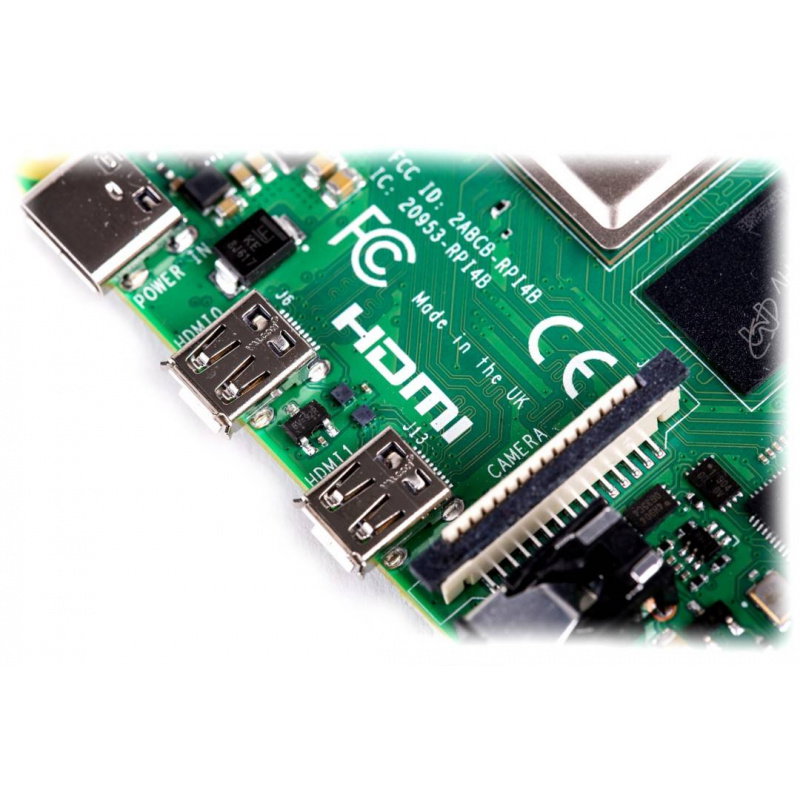

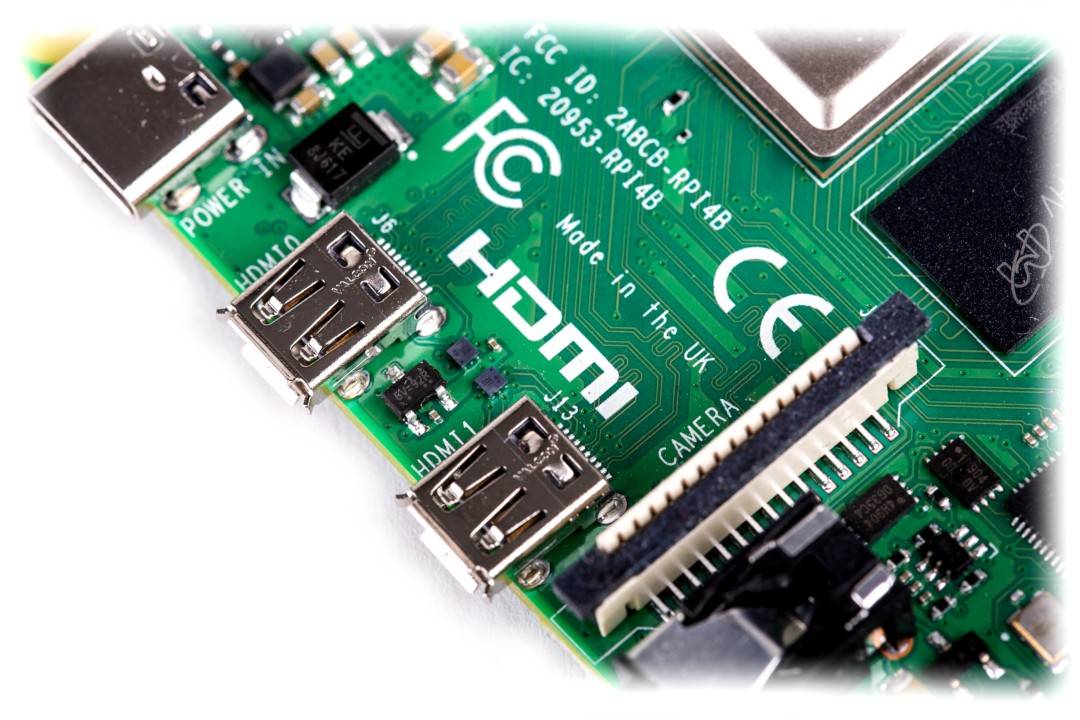

Two microHDMI ports supporting image resolutions up to 4K.
Image and sound in the Raspberry Pi 4 minicomputer
The Raspberry Pi 4 has two smaller HDMI ports—microHDMI— that allow you to connect two monitors and transmit audio and video in 4K resolution. An additional 4-pole 3.5mm jack allows you to connect headphones, speakers, or output video via RCA Composite. The device uses the H.265 (4Kp60), H.264 (1080p30) compression standards, and OpenGL ES 1.1, 2.0, and 3.0 graphics.
Operating system for Raspberry
The Raspberry Pi 4 doesn't have an eMMC module. A microSD card serves as storage. The operating system can be flashed using a computer with a reader. Our store offers cards with the NOOBs program installed , which simplifies installation of Raspberry Pi OS, Openelec, RaspBMC, or OSMC Linux.
Communication in Raspberry Pi 4
The Raspberry Pi features traditional communication ports found on desktop PCs and laptops. The following connectors are available to users:
- 2 microHDMI ports for connecting two monitors at the same time, each with a resolution of up to 4K
- WiFi module - dual-band WiFi network module: 2.4 GHz and 5 GHz 802.11b/g/n/ac - the latest Raspbian / NOOBs system is equipped with appropriate drivers
- Bluetooth 5 module - enables data transfer via the popular interface, now in version 5.

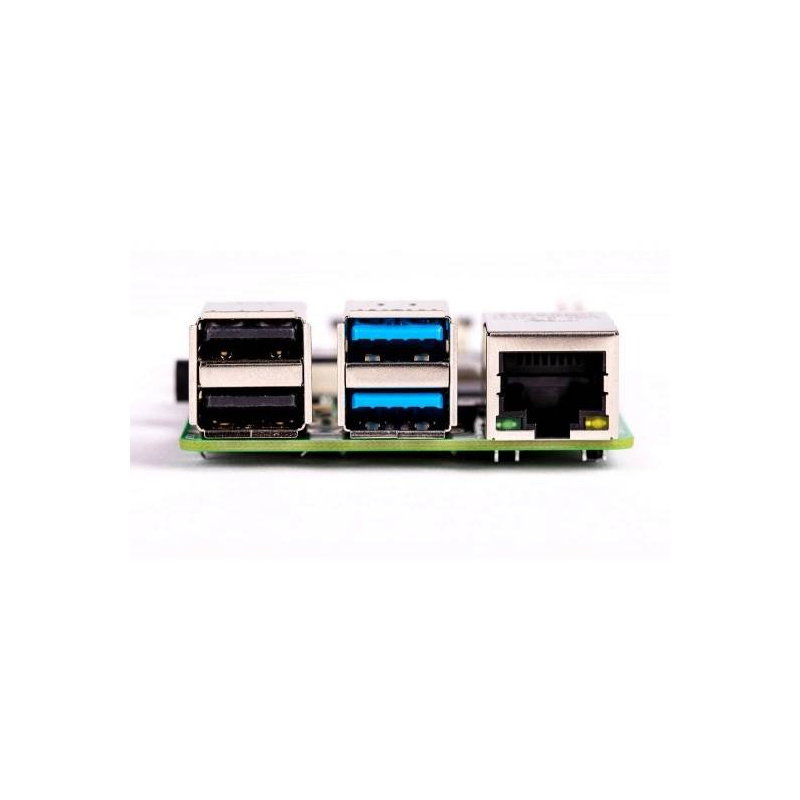

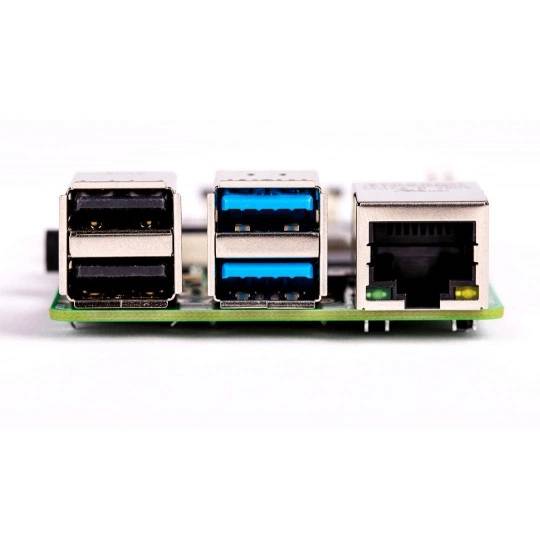

- Two USB 3.0 ports and two USB 2.0 ports for connecting peripherals such as a mouse, keyboard, WiFi adapter, flash drive, or hard drive. The number of ports can be increased by using an external USB hub.
- Ethernet socket for connecting to the Internet via cable at speeds up to 1000 Mb/s
- GPIO - The board has 40 pins (2x20, 2.54 pitch) that can be used to connect switches, LEDs, and sensors. Communication is via I2C, SPI, and UART interfaces.
The board has dual-band 2.4 GHz and 5 GHz WiFi, Bluetooth 5 / BLE, an Ethernet port with speeds up to 1000 Mb/s and the possibility of powering via PoE (with an additional overlay).
Raspberry Pi 3, 3B+ and 4 Specifications and Comparison
| Basic information | |||
|---|---|---|---|
 |  |  | |
| Model | Raspberry Pi 3 model B | Raspberry Pi 3 model B+ | Raspberry Pi 4 model B |
| Issue | 3 - 2016 | 3 - 2018 | 6 - 2019 |
| Technical specifications | |||
| Chipset processor | Broadcom BCM2837 64-bit | Broadcom BCM2837B0 64-bit | Broadcom BCM2711 64-bit |
| Core | Quad-Core ARM Cortex A53 | Quad-Core ARM Cortex-A53 | Quad-Core ARM Cortex-A72 |
| Operating systems | Linux Raspberry Pi OS Windows 10 loT | Linux Raspberry Pi OS Windows 10 loT | Linux Raspberry Pi OS |
| Clocking | 1.2 GHz | 1.4 GHz | 1.8 GHz |
| Architecture | ARMv8-A | ARMv8-A | ARMv8-A |
| RAM | 1GB LPDDR2 @ 900MHz | 1GB LPDDR2 @ 900MHz | Three versions
|
| Memory | microSD card | microSD card | microSD card |
| GPIO socket | 40-pin connector (2x20 pin) 2.54 mm raster | 40-pin connector (2x20 pin) 2.54 mm raster | 40-pin connector (2x20 pin) 2.54 mm raster |
| Power supply | 5.1V / 2.5A via microUSB |
|
|
| Tile dimensions | 85 x 56 x 17 mm | 85 x 56 x 17 mm | 85 x 56 x 17 mm |
| Interfaces | |||
| USB interface | 4x USB 2.0 - type A socket | 4x USB 2.0 - type A socket | 2x USB 2.0 - type A socket 2x USB 3.0 - type A socket |
| Network interface | 10/100 Mbps Ethernet port | 300 Mbps Ethernet port | 100/1000 Mbps Ethernet port |
| WiFi interface | 802.11 b/g/n 150 Mbps | Dual Band 2.4 GHz and 5 GHz 802.11 b/g/n/ac | Dual Band 2.4 GHz and 5 GHz 802.11 b/g/n/ac |
| Bluetooth | Low Energy, BLE 4.1 | Low Energy, BLE 4.2 | Low Energy, BLE 5 |
| Camera | CSI nest | CSI nest | CSI nest |
| Touchscreen display | DSI socket | DSI socket | DSI socket |
| Video | HDMI HD 1080px / 30fps | HDMI HD 1080px / 30fps H.264 1080p30 OpenGLES 1.1, 2.0 | 2 x microHDMI H.265 4K 60 fps H.264 1080p 30 fps OpenGLES 1.1, 2.0, 3.0 |
| Communication | UART, SPI, I2C, GPIO | UART, SPI, I2C, GPIO | UART, SPI, I2C, GPIO |
