Product description: Case for Raspberry Pi 5 - open with a fan - transparent
Transparent case for the Raspberry Pi 5 minicomputer. Additionally, it is equipped with a fan that is mounted on the upper part of the housing using four screws included in the set. The external dimensions of the housing are 89 x 60 x 32 mm . The housing is mounted with screws, which allows it to be dismantled at any time. The set also includes four non-slip silicone feet .

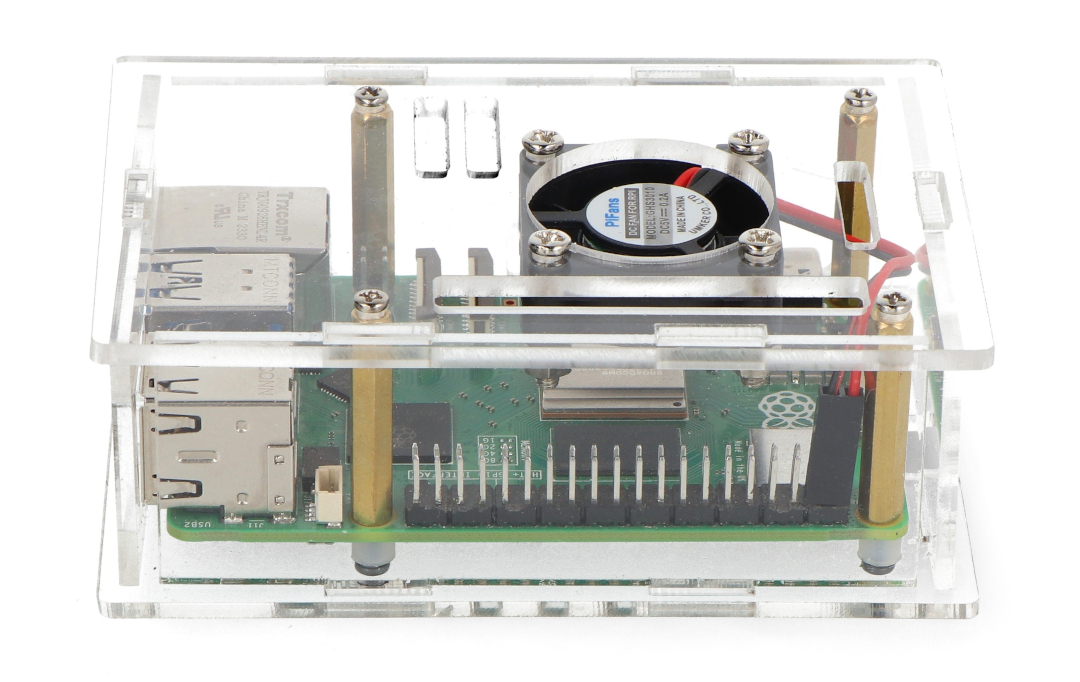

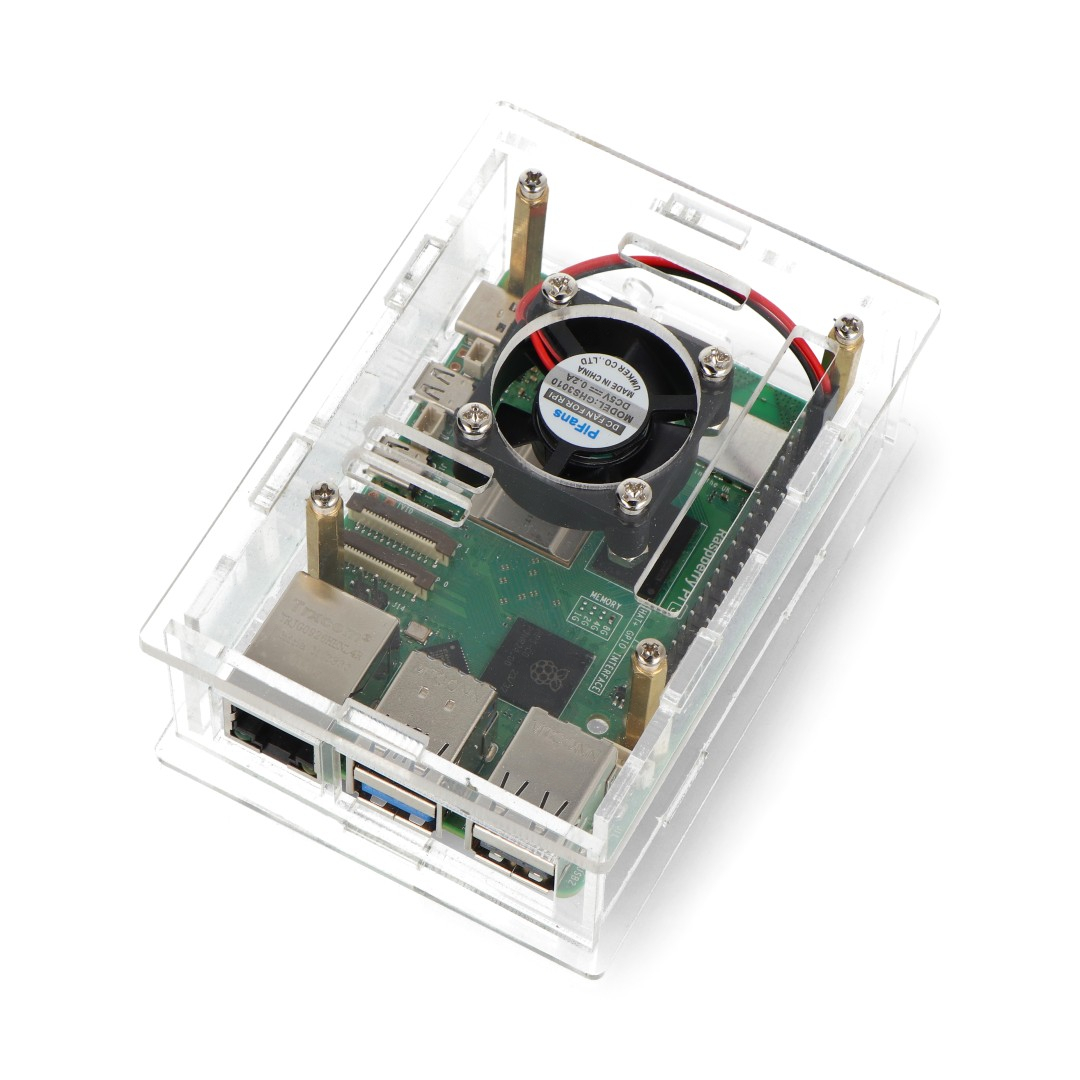

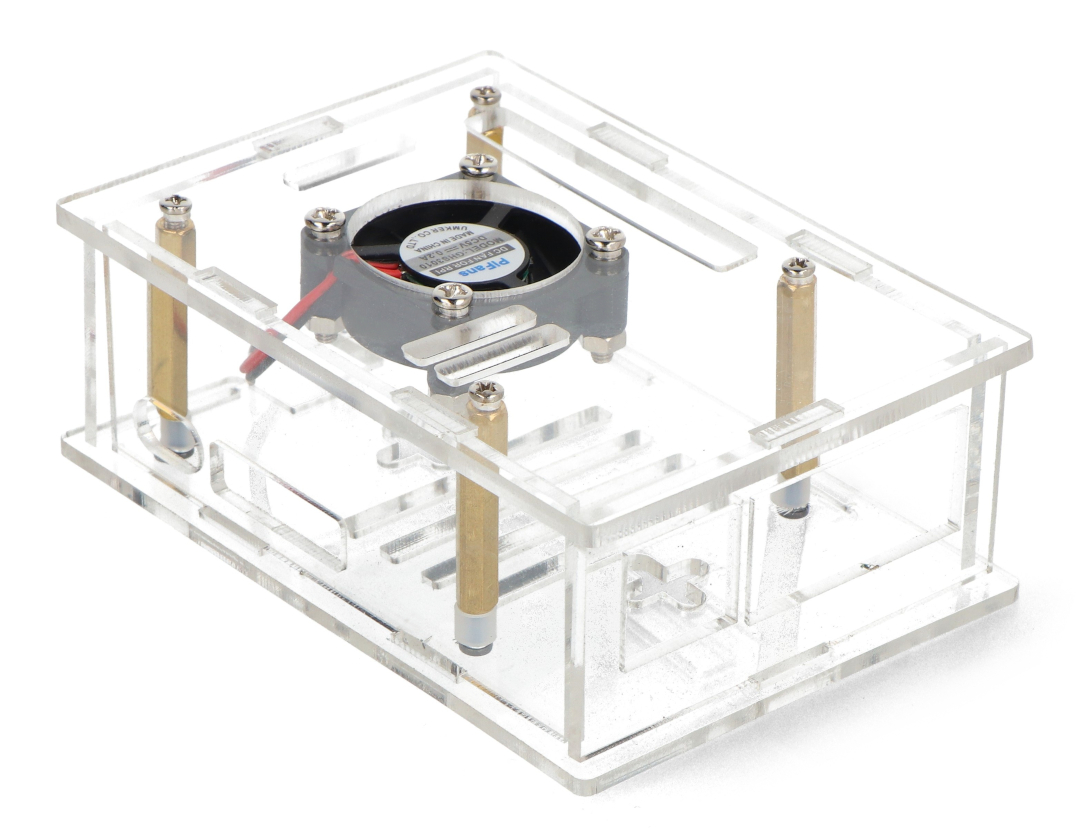

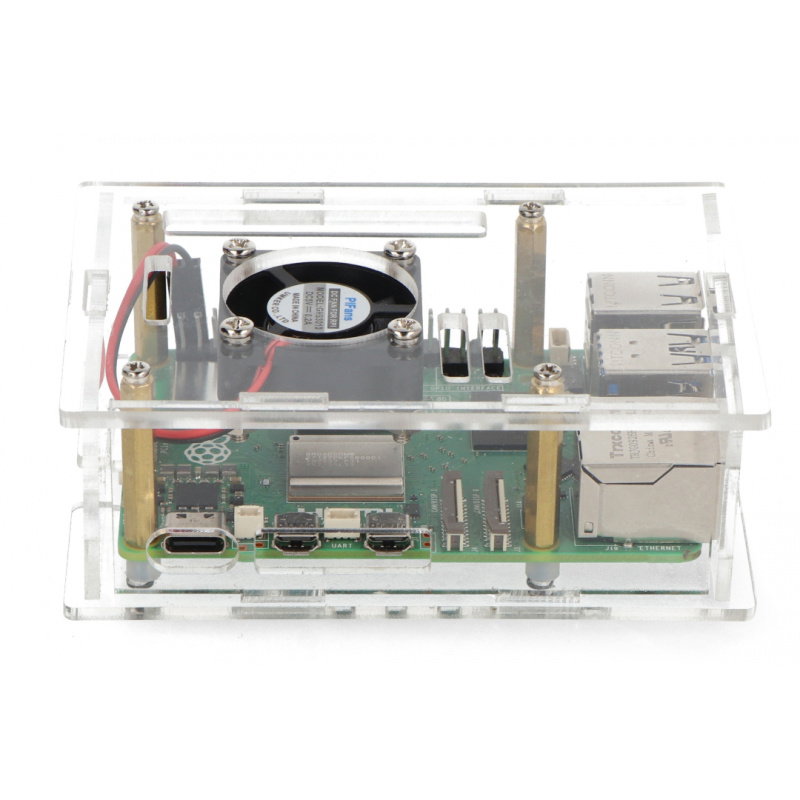

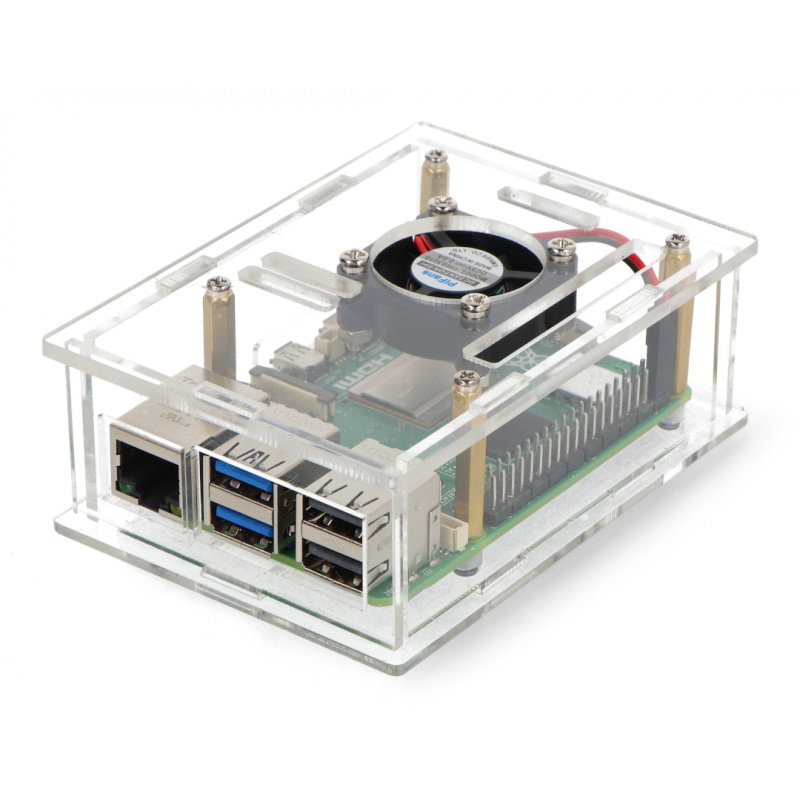

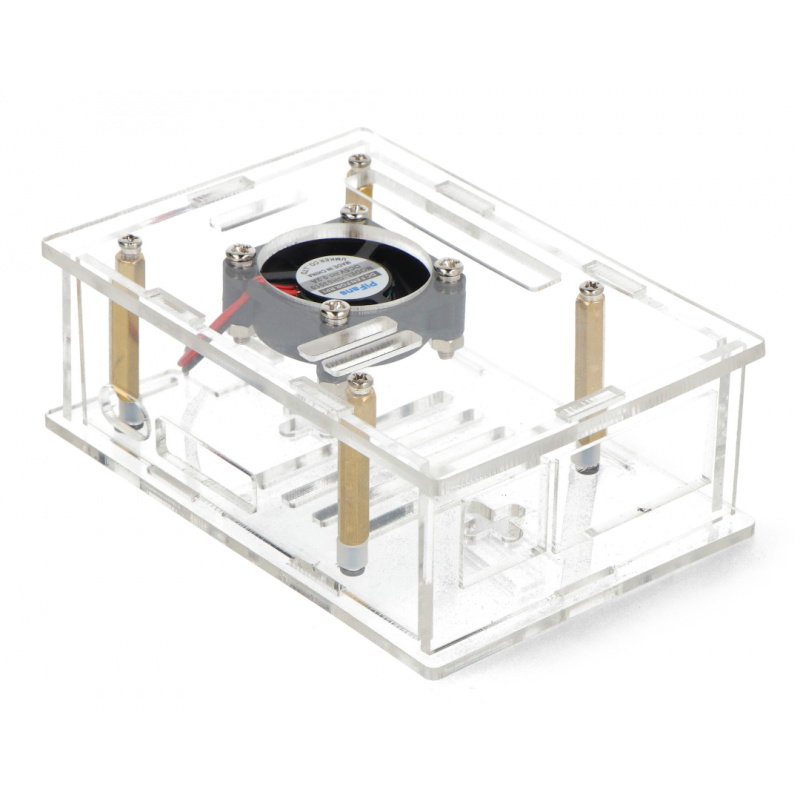

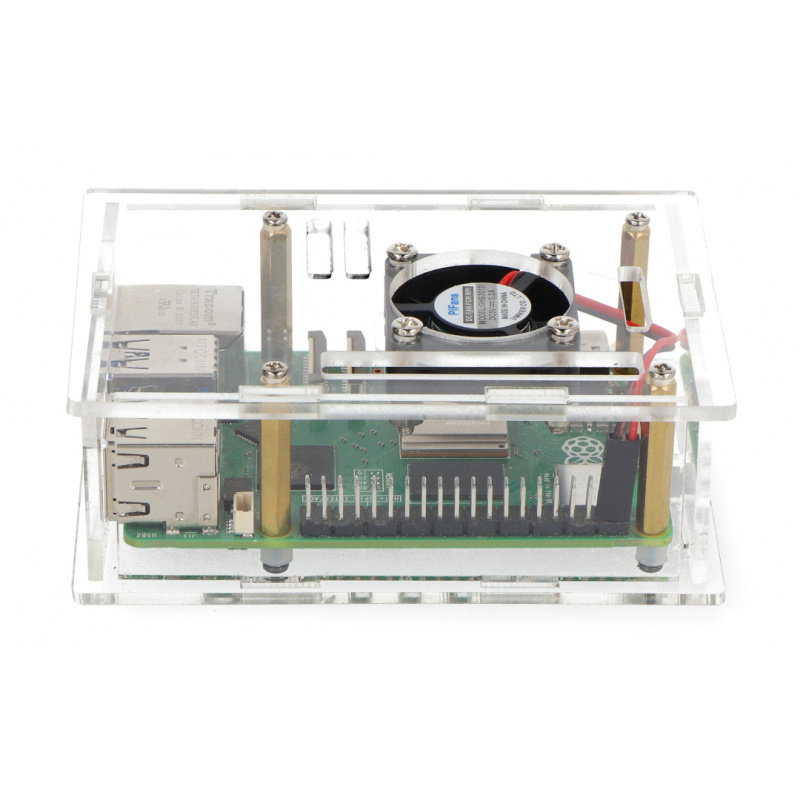

Case for Raspberry Pi 5 - open with fan - transparent.
The external dimensions of the housing are 89 x 60 x 32 mm.Assembly of housing elements
The housing is made of laser-cut plexiglass. In the first stage of assembly, we screw the fan to the top cover using four screws so that the fan nameplate is visible through the hole in the cover. Then we place spacer posts between the Raspberry Pi 5 board and the upper cover, and place the lower cover under the bottom of the board. Connect the fan to the GPIO pins, the black wire to ground (GND), and the red wire to the 5 V voltage source. Additionally, you can stick anti-slip pads on the bottom, which are included in the set.
Set contents
- Microcomputer housing
- Screws and spacers for mounting Raspberry Pi and fan
- Fan
- Four anti-slip feet
Technical Specifications
- Housing color: transparent
- Material: plastic
- Housing dimensions: 89 x 60 x 32 mm
- Fan:
- 2 pins
- Dimensions: 30 x 30 x 7 mm
- Voltage: DC 5V
Transparent case for the Raspberry Pi 5 minicomputer.
