Product description: Aqara Multi-State Sensor P100 - opening, vibration and position sensor - ZigBee / Thread / Matter
The Aqara Multi-State Sensor P100 is a multifunctional smart home sensor designed to monitor doors, windows, and various objects. The device offers two operating modes, allowing it to detect opening and closing, or monitor movement, orientation, tilt, vibration, and object fall . One mode can be active at a time. The one-piece design eliminates the need for precise alignment of two elements, as with traditional reed switches . ZigBee, Thread, and Matter support expand integration options, while self-calibration, sensitivity adjustment, and event history in Aqara Home allow for precise adjustment of the sensor's operation to specific applications.

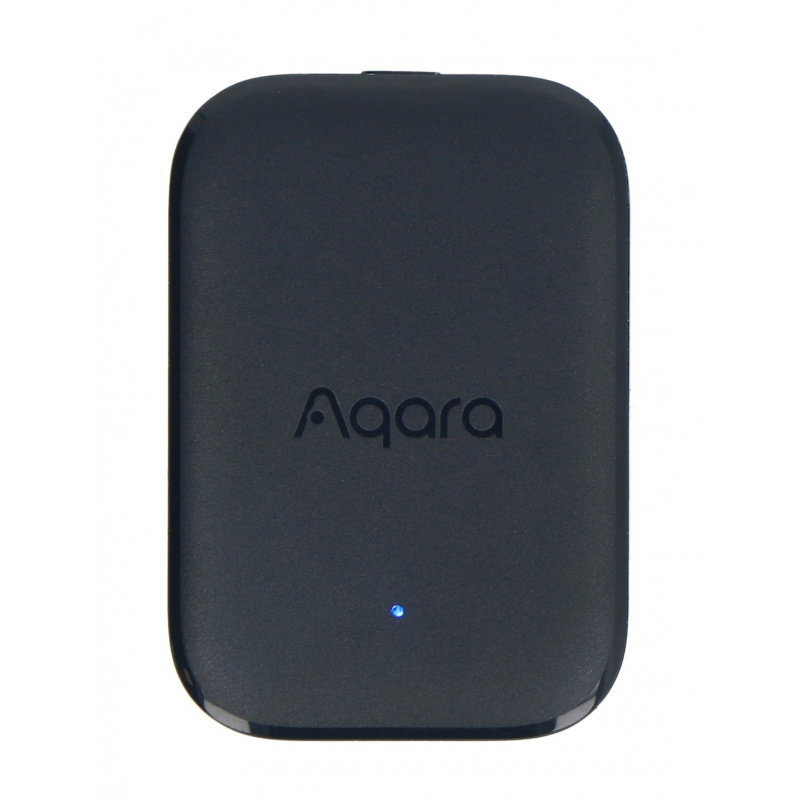

Aqara Multi-State Sensor P100 - opening, vibration and position sensor - ZigBee / Thread / Matter.
Aqara Multi-State Sensor P100 combines an opening, vibration and position sensor.
Main features of the Aqara P100 multifunctional sensor
- Two operating modes : possibility to choose between opening and closing monitoring or object monitoring
- Opening and closing monitoring : detecting changes in the status of doors, tilting windows, refrigerators and safes based on changes in angle
- Object monitoring : orientation, movement, fall, vibration and triple-tap detection in ZigBee mode
- ZigBee and Thread : possibility to choose the protocol according to the Smart Home system used
- Matter Compatibility : Thread integrates with popular smart home ecosystems using the appropriate Matter controller and Thread Border Router
- 10 sensitivity levels : the ability to adjust the sensor's response to the monitored object and environmental conditions
- Adjustable reporting interval : time can be set from 5 seconds to 5 minutes in object monitoring mode
- Intelligent self-calibration : automatic determination of the reference position relative to the mounting location
- Self-learning algorithms : Correcting for small position changes over time helps improve detection accuracy and reduce false alarms
- Event history : ability to analyze recorded status changes and graphs in the Aqara Home app
- One-piece design : simpler installation without the need to align the two sensor elements with each other
- Battery powered : one CR2450 3V battery
ZigBee, Thread, and Aqara Multi-State Sensor P100 Connectivity
The Aqara Multi-State Sensor P100 supports ZigBee and Thread , allowing you to choose the communication method according to the capabilities of your Smart Home installation. In Thread mode, the sensor can use the Matter standard and work with compatible ecosystems such as Apple Home, Amazon Alexa, Google Home, Samsung SmartThings, and Home Assistant . A suitable Matter Controller and Thread Border Router are required to operate in a Matter over Thread network. Selecting ZigBee provides access to a wider range of device functions in the Aqara Home app and requires a compatible Aqara gateway . This mode provides object monitoring, including motion, orientation, falls, vibrations, and triple taps. The sensor can also use Matter via a compatible Aqara ZigBee gateway, such as the Hub M100. Protocols can be switched, but the availability of individual features depends on the chosen communication method and the ecosystem used.
The sensor supports ZigBee and Thread protocols, and the Matter standard ensures compatibility with Apple Home, Alexa, Google Home and SmartThings.

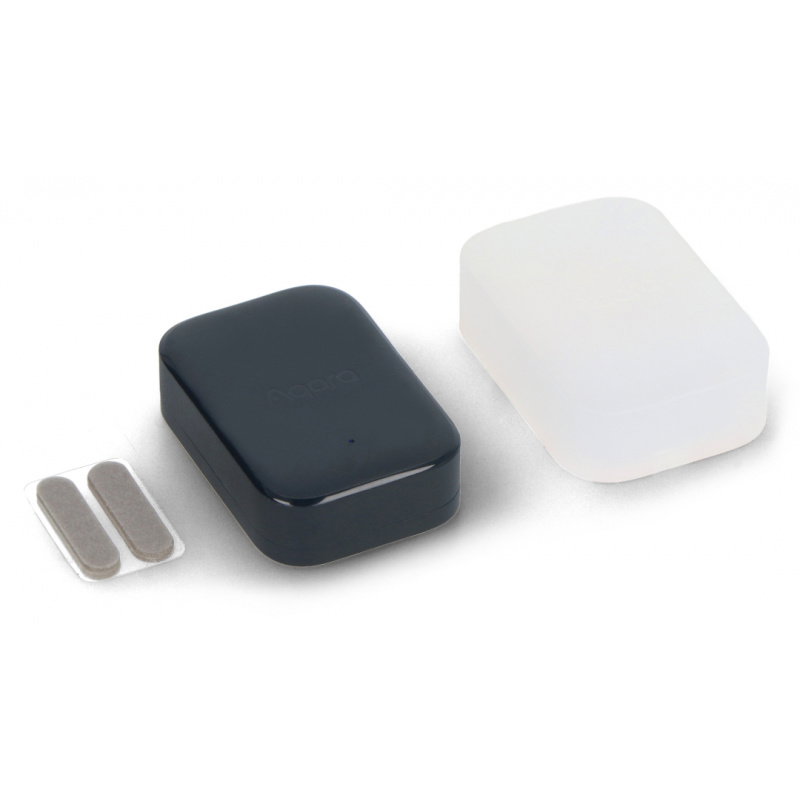

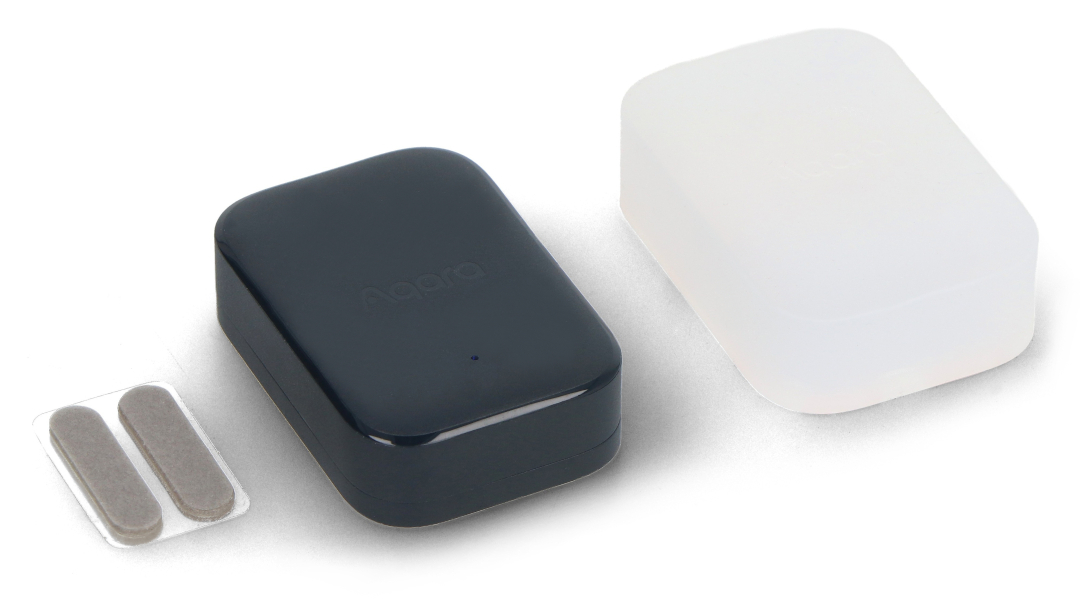

Elements included in the set.
Technical specifications of the Aqara Multi-State Sensor P100 Kit
- Model: VB-S03D
- Type: Multifunctional Smart Home Sensor
- Operating modes: opening/closing monitoring, object monitoring
- Detected events in object monitoring mode: orientation, movement, fall, vibration, triple tap
- Wireless protocols: ZigBee / Thread, Bluetooth
- Matter Support: Yes, via Thread or compatible ZigBee gateway
- Number of sensitivity levels: 10
- Reporting interval: from 5 s to 5 min in object monitoring mode
- Power supply: 1x CR2450 battery, 3V DC
- Operating temperature: -10°C to 55°C
- Operating humidity: 0% RH to 95% RH, non-condensing
- Sensor intended use: indoor use
- Sensor dimensions: 45 x 31 x 13 mm
- Protective case dimensions: 125 x 68 x 32 mm
Contents of the set
- 1x Aqara Multi-State Sensor P100
- 2x Self-adhesive sticker
- 1x Protective case
