Product description: A608 Carrier Board - expansion board for Nvidia Jetson Orin NX / Nano - Seeedstudio 105110001
The A608 Jetson Carrier Board is a versatile expansion board for Nvidia Jetson Orin NX and Orin Nano modules , which is used in areas such as robotics, video analysis or artificial intelligence. It includes two Gigabit Ethernet ports, M.2 interfaces (for SSD , WiFi and 4G / 5G), four USB 3.2 ports, CSI connectors for two cameras and an HDMI port for image display. It also has ports for integration with external systems, such as CAN, I2C, SPI and UART . It supports power supply from 9 V to 20 V (max. 60 W) and a wide operating temperature range (from -25 ° C to 65 ° C). It also has an RTC slot, audio ports, connectors for microphones and speakers, and a fan port (PWM).
The manufacturer has prepared a detailed user guide that will help you get started with the expansion board - check it out!
A608 Carrier Board - expansion board for Nvidia Jetson Orin NX / Nano - Seeedstudio 105110001.
The board supports Nvidia Jetson Orin NX / Nano modules, allowing you to connect many peripherals.
Key Features of the A608 Carrier Board
- Gigabit Ethernet ports (2x) : enable fast network connection, ideal for applications requiring high data throughput
- M.2 slots (SSD, WiFi, 4G/5G) : provide the ability to expand storage and add communication modules such as WiFi, 4G and 5G
- USB 3.2 ports (4x) : allow you to connect various external devices with fast data transfer
- CSI camera connectors (2x) : enables connection of two cameras, enabling advanced video and machine vision applications
- HDMI connector : designed for image display, compatible with monitors and other display devices
- CAN port : enables integration with real-time communication systems used in robotics and automation
- Power supply range from 9V to 20V (max. 60W) : provides power flexibility and the ability to work in various environments
- Support for I/O, UART, SPI, I2C functions : a wide range of ports allows easy integration with a variety of external devices
Expansion Board Applications
The A608 Carrier Board is ideal for advanced AI applications such as:
- Autonomous Mobile Robots (AMR) - thanks to a wide range of I/O ports and camera support, enables integration with robots and autonomous devices
- AI Video Analytics - camera and video connectors enable use in intelligent real-time image analysis systems
- Machine Vision - camera integration and powerful computing resources enable the implementation of advanced machine vision algorithms
- Generative AI - handles compute-intensive tasks by supporting AI content generation

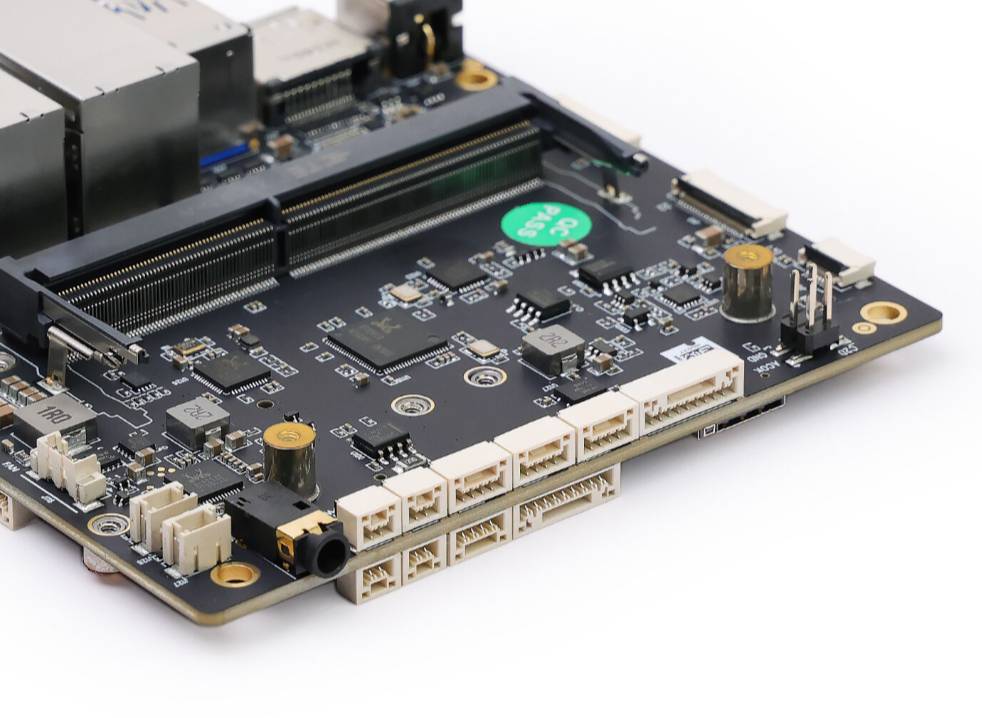

The A608 Jetson Carrier Board is equipped with numerous connectors.
Arrangement of components on the board.

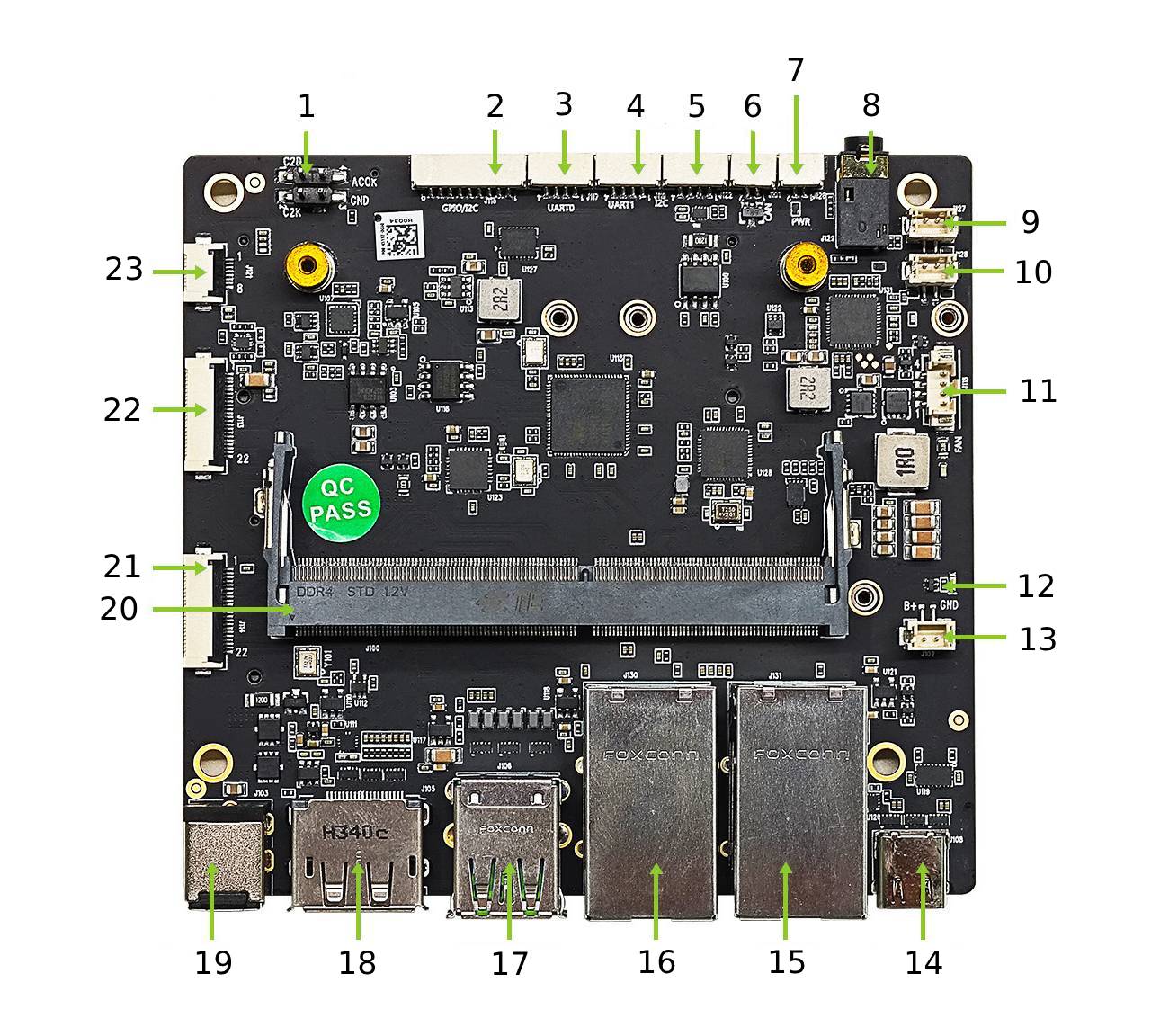

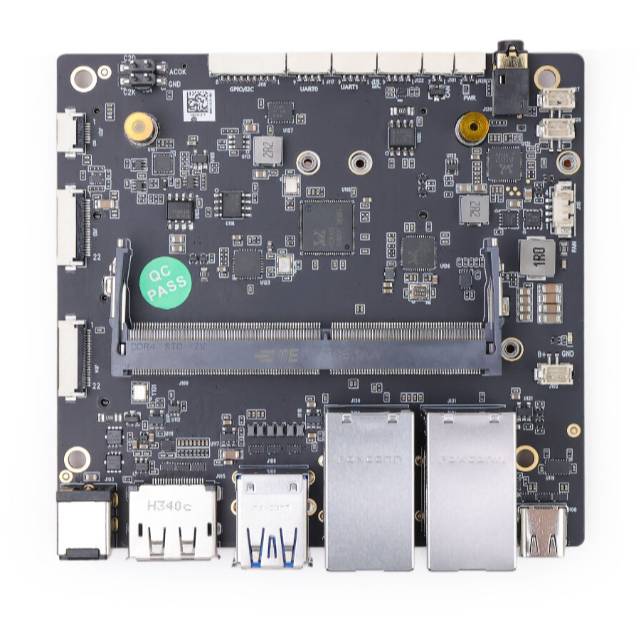

Layout of components on top of the A608 Carrier Board
- Microcontroller Programming Interface
- Multifunctional port
- UART interface
- UART interface
- I2C interface
- CAN interface
- Power button
- Audio jack
- Speaker connector
- Speaker connector
- 5V fan connector
- LED indicator
- RTC connector
- Type-C port (2.0 + 3.2)
- Ethernet port
- Ethernet port
- USB 3.2 port (2x)
- DisplayPort
- DC Jack connector for board power supply
- Connector for main compute module - Nvidia Orin NX / Orin Nano
- Camera connector
- Camera connector
- Multifunctional port

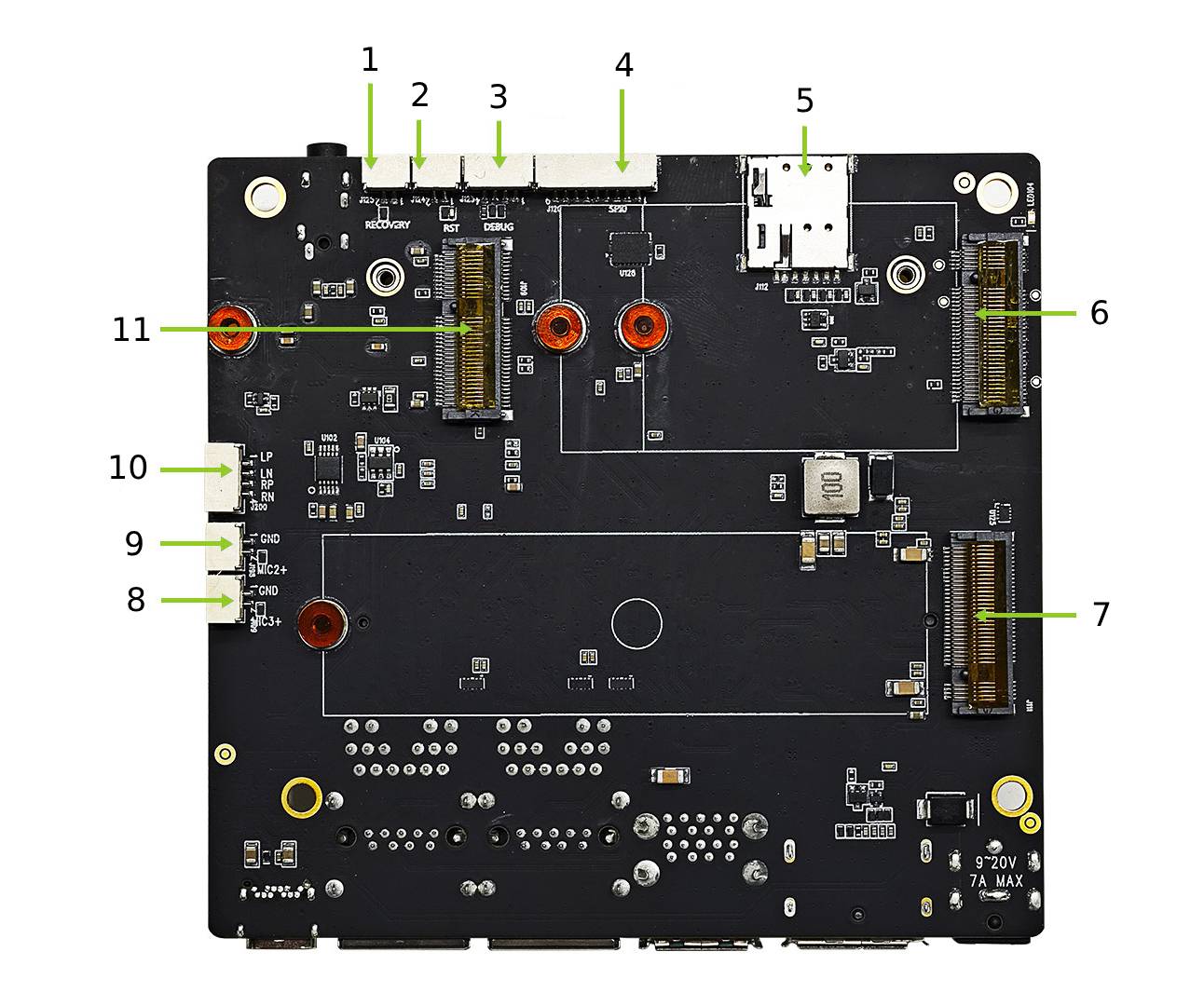

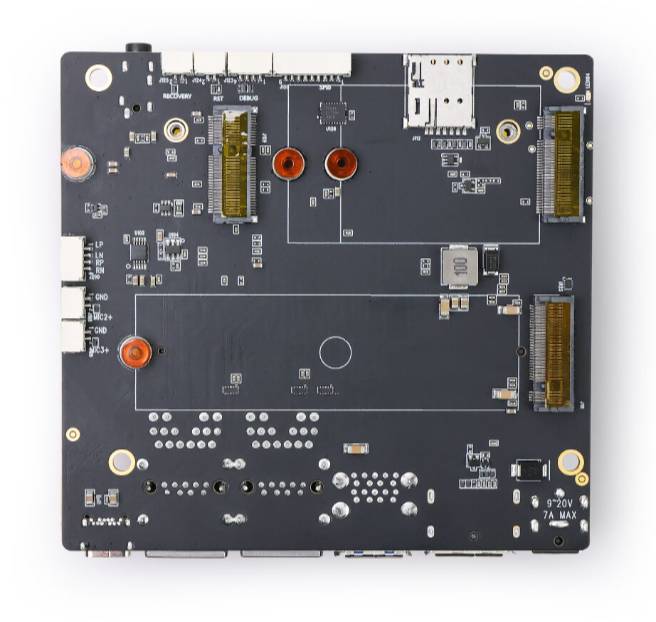

Layout of components on the bottom of the A608 Carrier Board
- Recover button
- Reset button
- UART interface
- Multifunctional port
- SIM card slot
- M.2 connector for 4G/5G communication modules
- M.2 connector for SSD drives
- Connector for connecting analog microphones
- Connector for connecting analog microphones
- Connector for receiving signal from speaker
- M.2 connector for WiFi modules
Arrangement of components on the board.

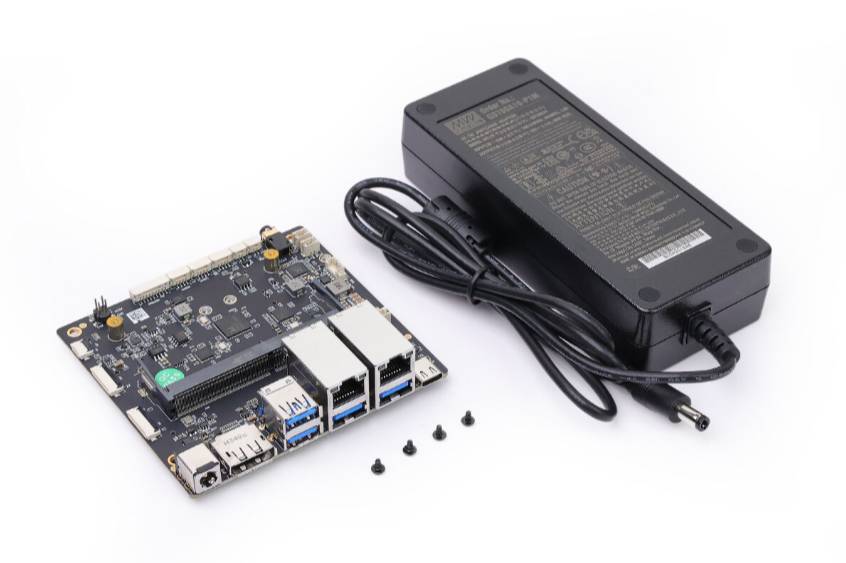

Items included in the set.
Technical specification of the board
- Board compatibility: Nvidia Jetson Orin NX / Orin Nano
- Network: 2x Gigabit Ethernet (10/100/1000M)
- M.2 interfaces: 1x M.2 Key M (SSD), 1x M.2 Key B (WiFi), 1x M.2 Key E (4G / 5G)
- USB ports:
- 4x USB 3.0 Type-A (integrated USB 2.0)
- 1x USB 2.0 + 3.2 Type-C
- Camera connector: 1x 15-pin CSI
- Audio: 1x 3.5mm audio jack, 2x microphone jack, 2x speaker jack, 1x speaker feedback
- Display: 1x HDMI
- Fan: 1x fan connector (5V PWM)
- Multifunction port: 2x UART, 1x CAN, 1x SPI, 2x I2C, 7x I/O 3.3V
- RTC: 1x 3V lithium battery connector
- Supply voltage: 9 V to 20 V DC (max. 60 W)
- Operating temperature: -25ºC to 65ºC
- Dimensions: 101.5 x 95 mm
Kit Contents
- A608 Carrier Board - expansion board for Nvidia Jetson Orin NX / Nano - Seeedstudio 105110001
- 19V/4.74A Power Supply (5.5/2.5mm Jack) - Power Cord Not Included
