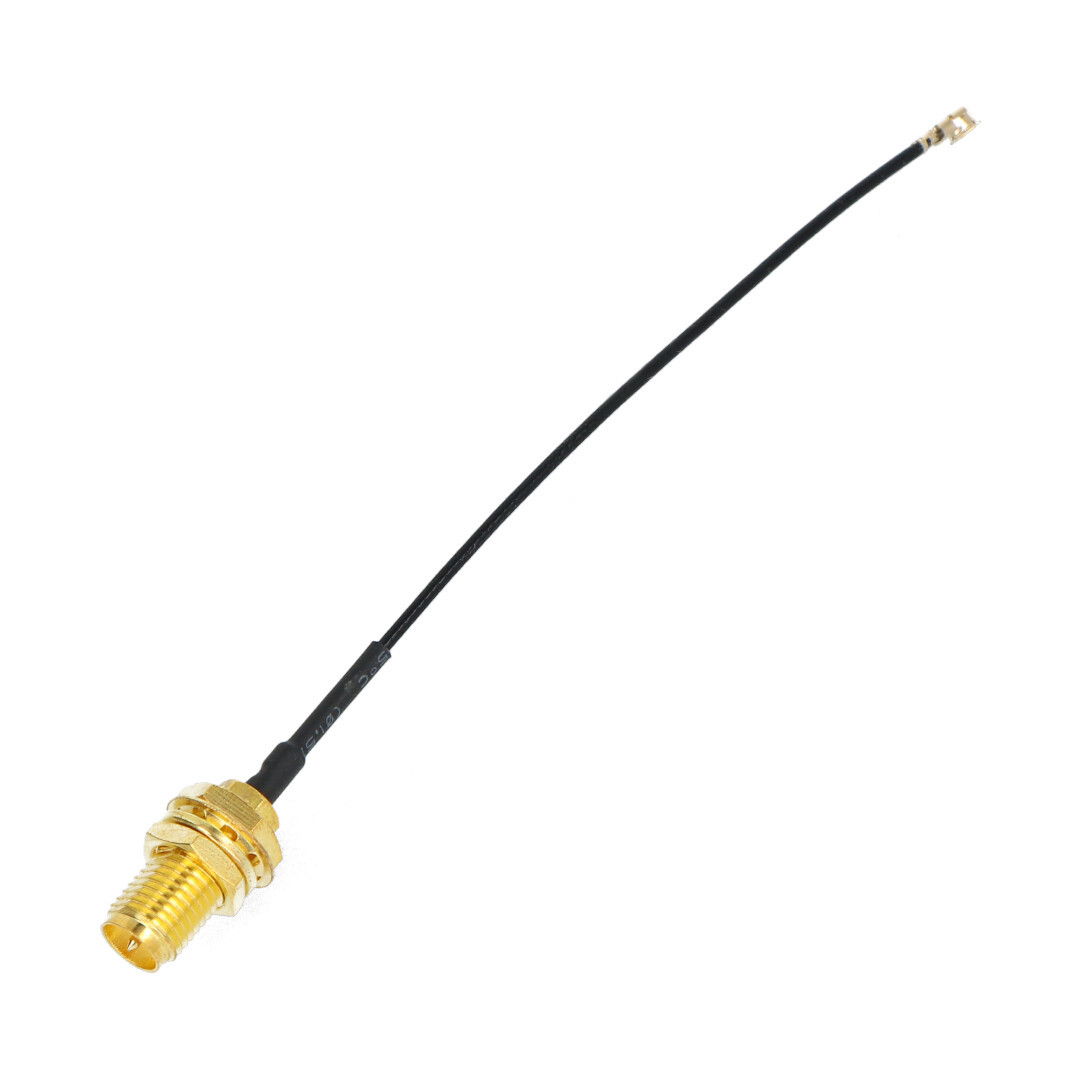

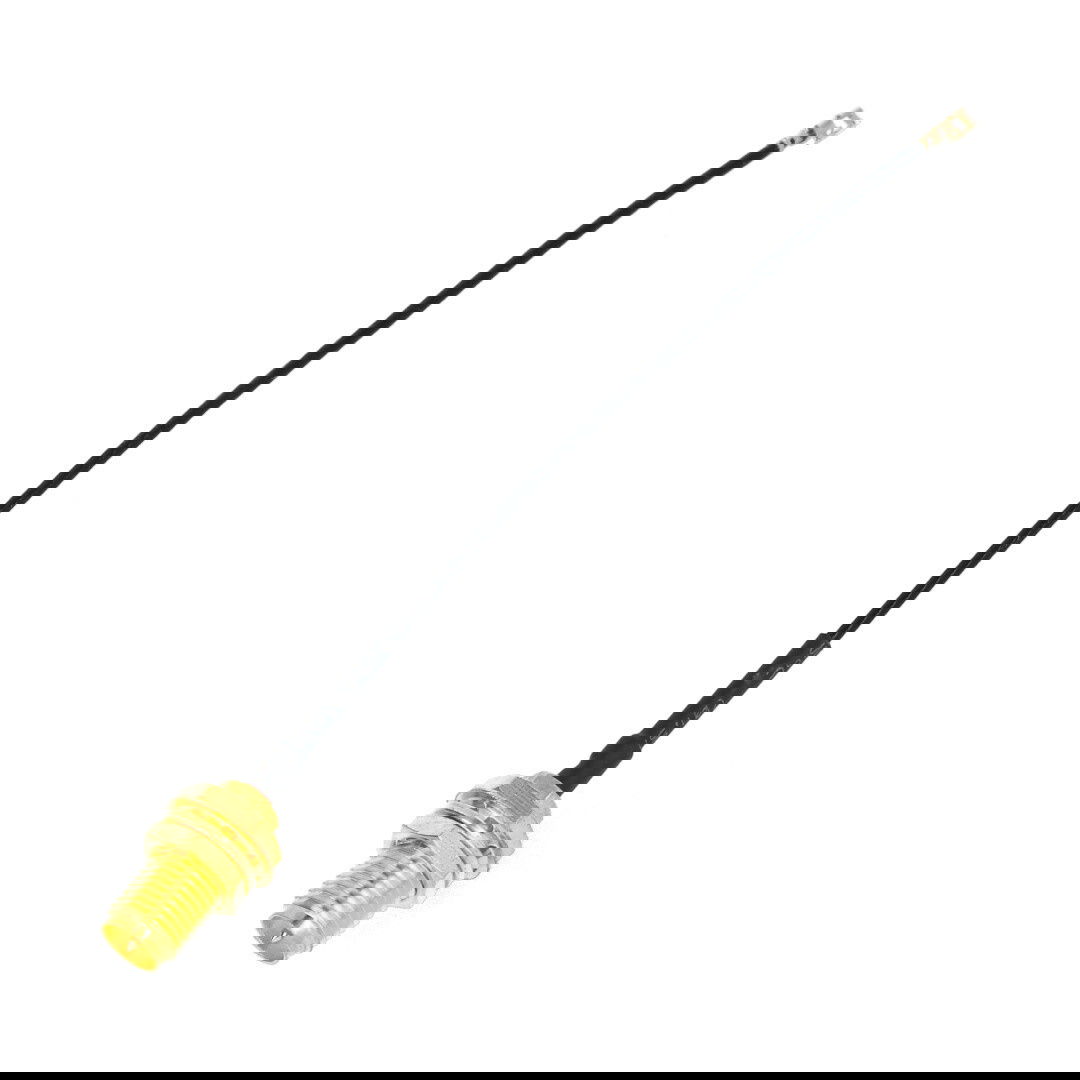

Product description: U.FL - RP‑SMA adapter - female - 8 cm - ITBP-0089
The U.FL - RP‑SMA RF Adapter is a universal and robust solution for IoT devices, routers, communication modules and modems that require an external antenna and transmit high-frequency signals. On the one hand, it is equipped with a U.FL connector (also known as IPEX / MHF1), often used in M.2 modules, mini PCIe and wireless cards , and on the other, an RP‑SMA connector, enabling easy connection of standard GSM, GPS, LoRa, WiFi or ZigBee antennas. The 8 cm long cable provides adequate flexibility and easy installation even in tight device interiors.
U.FL - RP‑SMA adapter - female - 8 cm - ITBP-0089.
The U.FL - RP‑SMA RF Adapter is a universal and robust solution for IoT devices, routers, communication modules and modems.Special Features

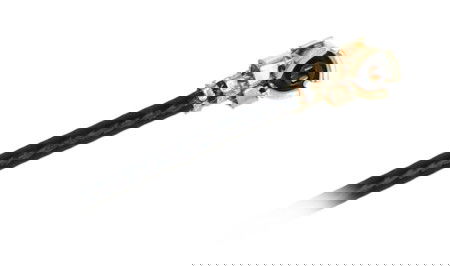

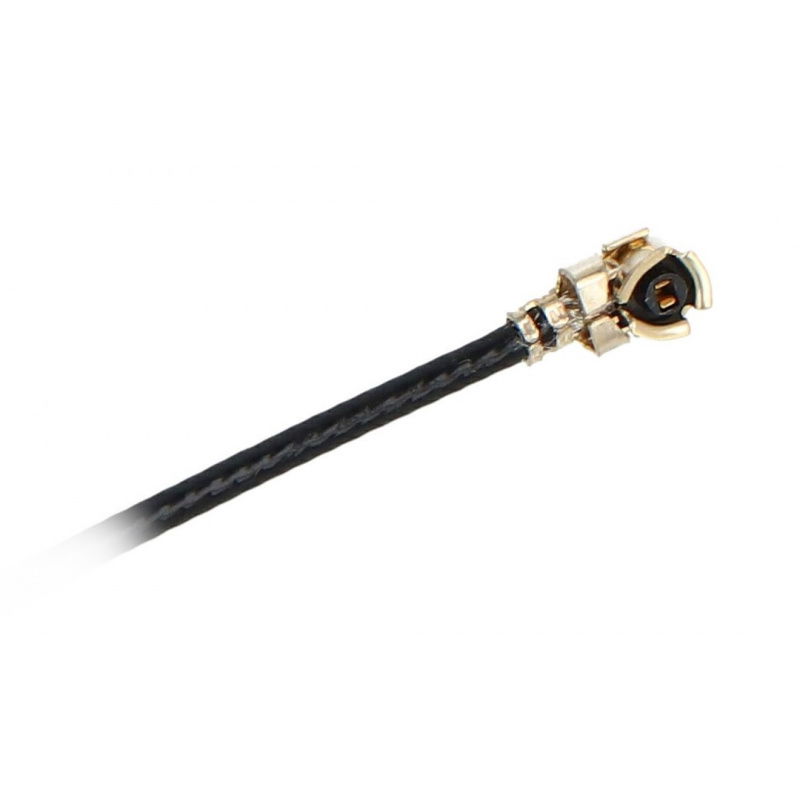

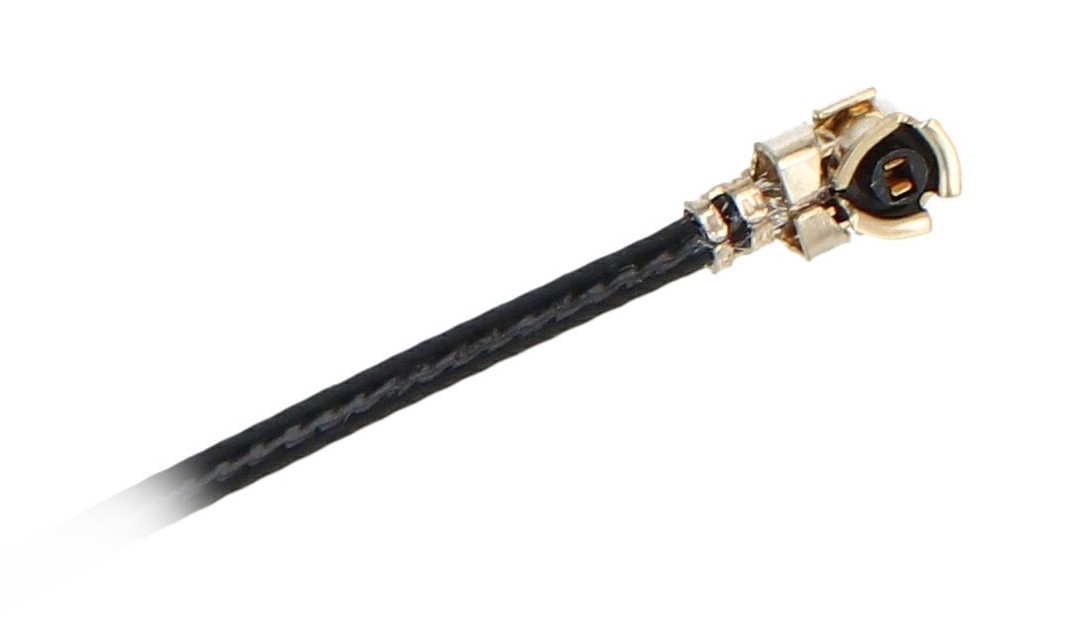

- U.FL connector (Hirose/IPEX/MHF1) - a small, high-quality connector for internal wireless modules

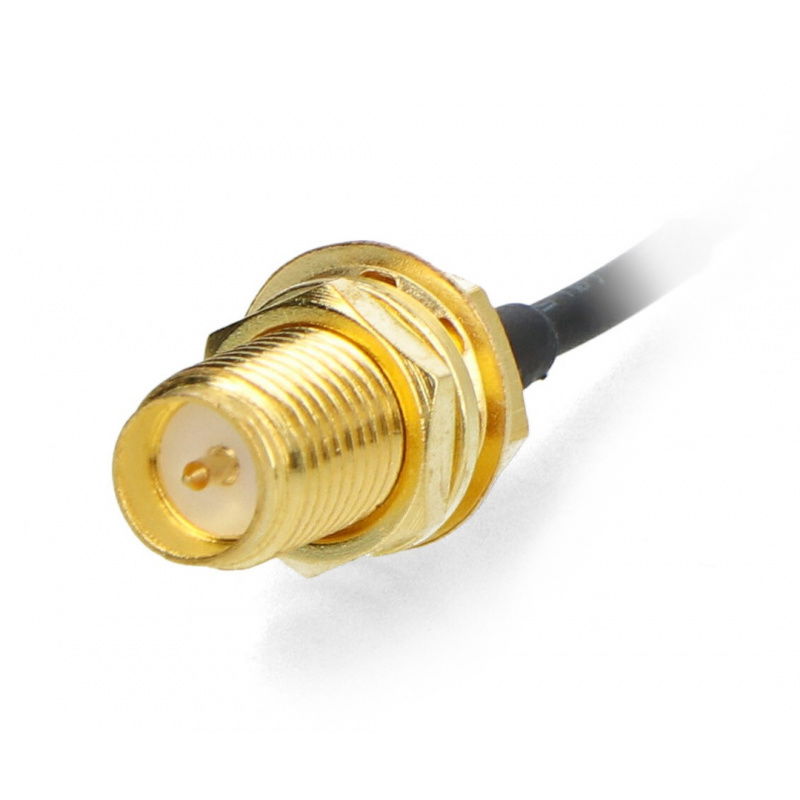

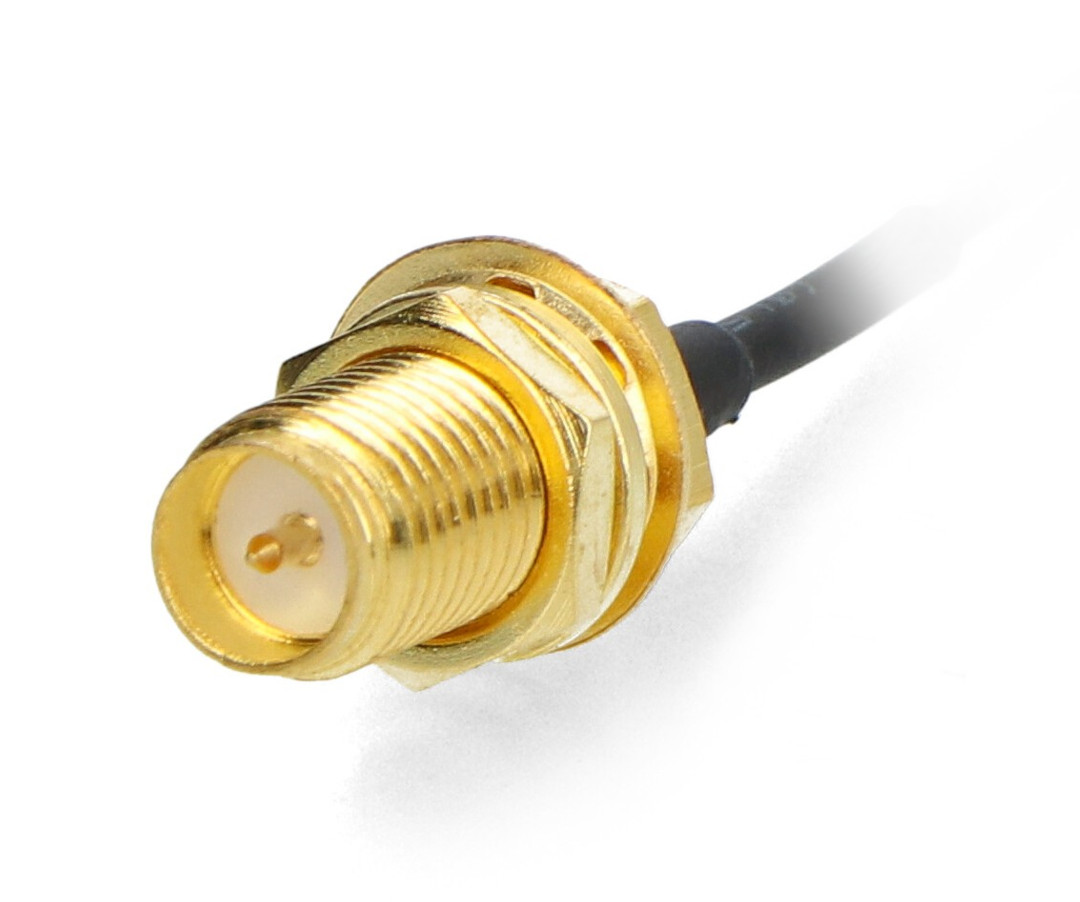

- RP‑SMA plug - a commonly used, reverse SMA connector for full‑thread antennas
- 50 Ω coaxial cable - provides low signal attenuation at frequencies up to several GHz
- Wide compatibility - works with GSM, 3G/4G/LTE, GPS, LoRa, ZigBee, WiFi, etc. devices.
Technical specifications of the adapter
- Adapter type: female
- Sockets: U.FL (MHF1, IPEX) - RP‑SMA
- Cable length: 8 cm
- Compatibility: GSM, 3G / 4G / LTE, GPS, LoRa, ZigBee, WiFi, Bluetooth
- Cable type: RF 1.13
- Operating frequency: up to 3.2 GHz
- Operating temperature: -20°C to 85°C
The 8 cm long cable ensures adequate flexibility and ease of installation even in tight device interiors.
