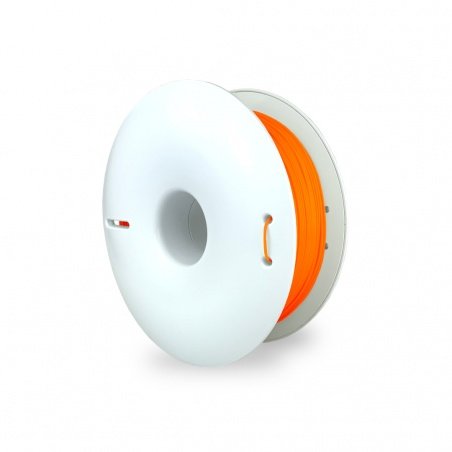

Filament Fiberlogy ASA 1,75mm 0,75kg - Orange

Index: FLA-18484 EAN: 5902560991840
ASA Filament is characterized by high strength, easy printing and color fastness. It is versatile in applications such as automotive, electronics, and during the printing of everyday items. The material does not require a heated chamber to ensure successful printing. ASA can be treated with acetone, so that the printed layers are not visible. The material is suitable for sanding and painting. The product is orange in colour and comes pre-wound on a spool. The net weight of the product is 0.75 kg.
Filament Fiberlogy ASA 1,75mm 0,75kg - Orange
€29.50
€23.98 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Fiberlogy

Description: Fiberlogy ASA Filament 1,75 mm 0,75 kg - Orange

ASA Filamentis characterized by highdurability,easy printingandcolorfastness. It is widely used in automotive, electronics, and printing of everyday objects. The material does not require a heated chamber to ensure successful printing. ASA can be treated with acetone, so that the printed layers are not visible. The material is suitable for sanding and painting. The product isorangein colour and comes pre-wound on a spool. Net weight of the product is0.75 kg.

Filaments

In our offer of filaments you will also find other materials and colors.

Filament Fiberlogy ASA 1,75 mm 0,75kg - Orange

Fiberlogy ASA 1,75 mm 0,75 kg - Orange.

Properties of Fiberlogy ASA filament

  • Versatile use thanks to high printing strength
  • Used to print sports accessories, interior design elements, as well as car and motorcycle parts
  • Resistant to ultraviolet UV radiation
  • Compared to other types of felt, ASA does not emit as unpleasant odor as other materials
  • It has significantly less shrinkage than ABS, so there is no need to use heated printer working chamber. Increased adhesion prevents the phenomenon of "curling" of the model
  • It is characterized by very high color durability
  • resistant to high temperatures, even up to 94°C
  • Models printed with ASA filament can be smoothed, sanded, painted

Printing tips

  • Printing with ASA filament does not require a closed working chamber
  • Suggested airflow rate: up to 25%
  • Flowrate value: from 90% to 100%
  • Base type: glass,kapton tape
  • Retraction settings:
    • for Direct type extruders: from 1 to 2 mm
    • for Bowden-type extruders: from 4 to 6 mm
  • Suggested retraction speed: from 20 to 45 m/s
  • When printing in a chamber that is not heated, it is recommended to avoid drafts and sudden gusts of air

Wykres właściwości filamentu ASA

Properties graph for Fiberlogy ASA felt.

Suggested parameters for printing with the filament

Printing temperature: 255°C to 270°C
Table temperature: 90°C to110°C
Printing speed: up to 100 mm/s

Due to differences in printer construction, the above data should be treated as guidelines, and the relevant values should be determined experimentally.

Specifications of ASA filament

Parameter Range
Filament diameter: 1.75 mm
Dimensional tolerance of the filament +/- 0.02 mm
Colour orange
Printing temperature from 255°C to 270°C
Table temperature from 90°C to 110°C
Spool material Acrylonitrile-Styrene-Acrylate(ASA)
Spool diameter 200 mm
Spool width 80 mm
Mounting hole diameter 52 mm
Moisture absorber yes
Vacuum packaging yes
Roundness +/- 0.01 mm
Packaging dimensions 205 x 205 x 90 mm
Net weight 0,75 kg
Colour orange
Mass 750 g
Filament - material ASA
Filament - diameter 1.75 mm
Package width 20.5 cm
Package height 20.5 cm
Package depth 9 cm
Package weight 1.2 kg
