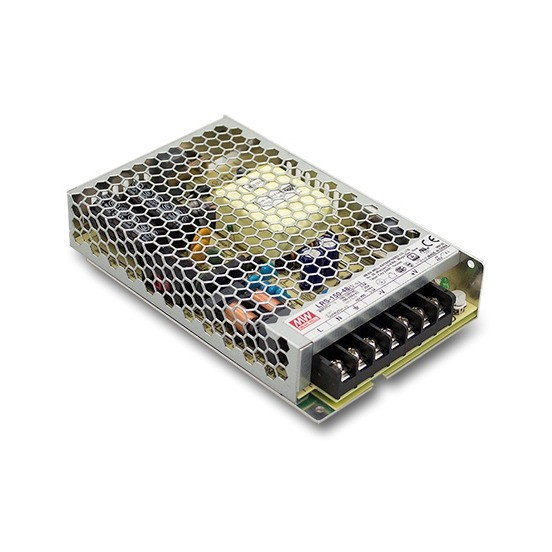

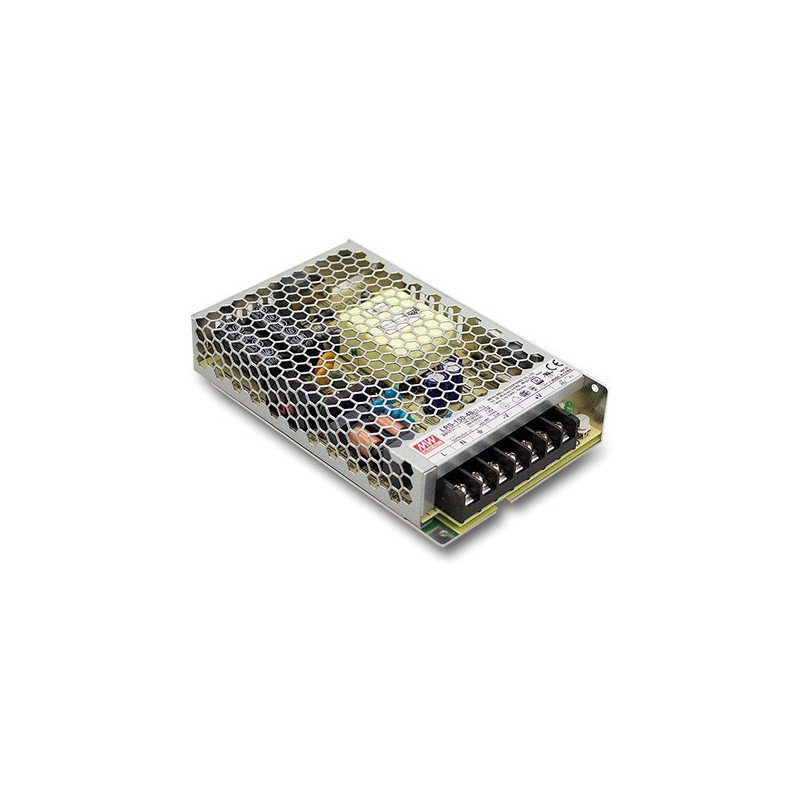

Mean Well LRS-150-12 power supply - 12V / 12.5A / 150W
12 V and current up to 12.5 A: Mean Well LRS-150-12 enclosed power supply with a power of 150 W.
- Adjustable 10.2-13.8 V
- Overheating protection
- Case 159 x 97 x 30 mm
We could not load the price.
The promotional price does not combine with quantity discounts.
12.5 A at 12 V for installation in a device
Mean Well LRS-150-12 delivers 12 V and an output current of up to 12.5 A, that is 150 W, and is the 12 V version of the LRS-150 series. It is useful where many 12 V loads run at the same time, e.g. in devices with motors, fans or lighting.
You can set the output voltage with a potentiometer from 10.2 V to 13.8 V. The power supply has protection against short circuit, overload, overvoltage and overheating, a typical efficiency of 87.5% and a metal case 30 mm high that is fastened with M3 screws.
Mean Well LRS-150-12 power supply open-frame type
12 V / 12.5 A
rated power 150 W
10.2-13.8 V
voltage adjustment range
OTP
shutdown on overheating
159 x 97 x 30 mm
case dimensions
A good choice for you?
A good choice if:
- you need a high current at 12 V
- you power several 12 V loads from a single power supply
- the power supply will be enclosed inside the device
Consider another option if:
- you prefer DIN rail mounting: see Mean Well HDR-30-12 power supply (12 V, 2 A)
- you need low power at 5 V: choose Mean Well RS-25-5 power supply
Technical specifications
| Parameter | Value |
|---|---|
| Type | enclosed switching power supply in a metal case |
| Output voltage | 12 V DC, adjustable 10.2-13.8 V |
| Output current | 0-12.5 A |
| Rated power | 150 W |
| Ripple and noise | max. 150 mVp-p |
| Input voltage | 85-132 V AC or 170-264 V AC (selector switch), 240-370 V DC |
| Efficiency | typically 87.5% |
| No-load power consumption | below 0.5 W |
| Protections | overload (110%-140% of power), short-circuit, overvoltage (13.8-16.2 V) |
| Thermal protection | yes, output shutdown |
| Surge withstand | 300 V AC for 5 s |
| Operating temperature | -30 °C to +70 °C (power derating above 50 °C) |
| Cooling | natural convection, no fan |
| Mounting | M3 holes in the base and side of the case |
| Connectors | screw terminals: L, N, FG, -V, +V |
| Dimensions | 159 x 97 x 30 mm |
| Weight | 420 g |
| Manufacturer's warranty | 3 years |
| Manufacturer | Mean Well |
Did you know?
Over a billion dollars in revenue
According to Mean Well data, the group's total revenue in 2025 was USD 1.186 billion, and almost all of it comes from sales of standard power supplies under its own brand.
Source: Mean Well: Group Overview
Frequently asked questions
Can I power a 12 V LED strip with it?
Yes, as long as the strip's total power does not exceed 150 W. Leave a margin of about 20% and feed longer runs through separate wires.
Can I raise the voltage to 13.8 V?
Yes, with the potentiometer near the terminals you can set the voltage from 10.2 V to 13.8 V, but the output power should still not exceed 150 W.
What wires should I connect to the output?
At full current, use both the +V and -V terminals and choose the wire cross-section for a current of 12.5 A and the wire length.
Useful links
| Name | Value |
|---|---|
| Voltage output from | 10.2 V |
| Output voltage to | 13.8 V |
| Nominal output voltage | 12.0 V |
| Nominal power | 150 W |
| Current | 12.5 A |
| Power supply - type | mounting |
| Power supply - Plug | ARK screw |
| Width | 10.5 cm |
| Height | 16.8 cm |
| Depth | 3.8 cm |
| Weight | 0.424 kg |
