5V Li-Pol/Li-Ion battery charging module bq25185 with USB Type-C, DC and solar panel inputs - Adafruit 6106
The Adafruit bq25185 is a versatile charger module designed for 1S Li-Ion and Li-Pol batteries . It allows charging from a USB Type-C port, a DC power adapter, or a solar panel , and thanks to an integrated boost converter, it provides a stabilized 5V output with a capacity of up to 1A . The Power Path function allows you to power your device and charge the battery simultaneously, increasing convenience and battery life.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: Li-Pol / Li-Ion 5V bq25185 Battery Charging Module USB Type-C / DC / Solar Panel - Adafruit 6106
The Adafruit bq25185 is designed for mobile electronics projects requiring a reliable power source. The Texas Instruments bq25185 charger IC supports charging batteries from a USB Type-C port, a DC power supply , and solar panels . The built-in TPS61023 converter steps up the battery voltage to a regulated 5V , allowing direct powering of microcontrollers, communication modules, displays, and other electronic devices. The Power Path feature allows the battery to power a load while charging, reducing the number of charge-discharge cycles.
Li-Pol / Li-Ion 5V bq25185 USB Type-C / DC / Solar Panel Battery Charging Module - Adafruit 6106.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.
The USB Type-C connector with 5.1 kΩ CC resistors provides a voltage of 5 V and a current of up to 1 A.
Main features of the module
- Multi-source charging : Supports USB Type-C port, DC power adapters, and solar panels
- bq25185 system : charger designed for Li-Ion and Li-Pol 1S batteries
- TPS61023 converter : stabilized 5V output with a maximum current of 1A
- Power Path : Powering the load and charging the battery simultaneously
- Solar charging : dynamic regulation of energy consumption from the solar panel
- Configurable charging current : 1 A or 500 mA after changing the jumper
- Status LEDs : charging, error and active 5V output indication
- EN input : 5V converter can be disabled
- Protection : protection against overvoltage, overload, short circuit and overheating
- Easy integration : JST-PH and screw connectors
Module pins and interfaces

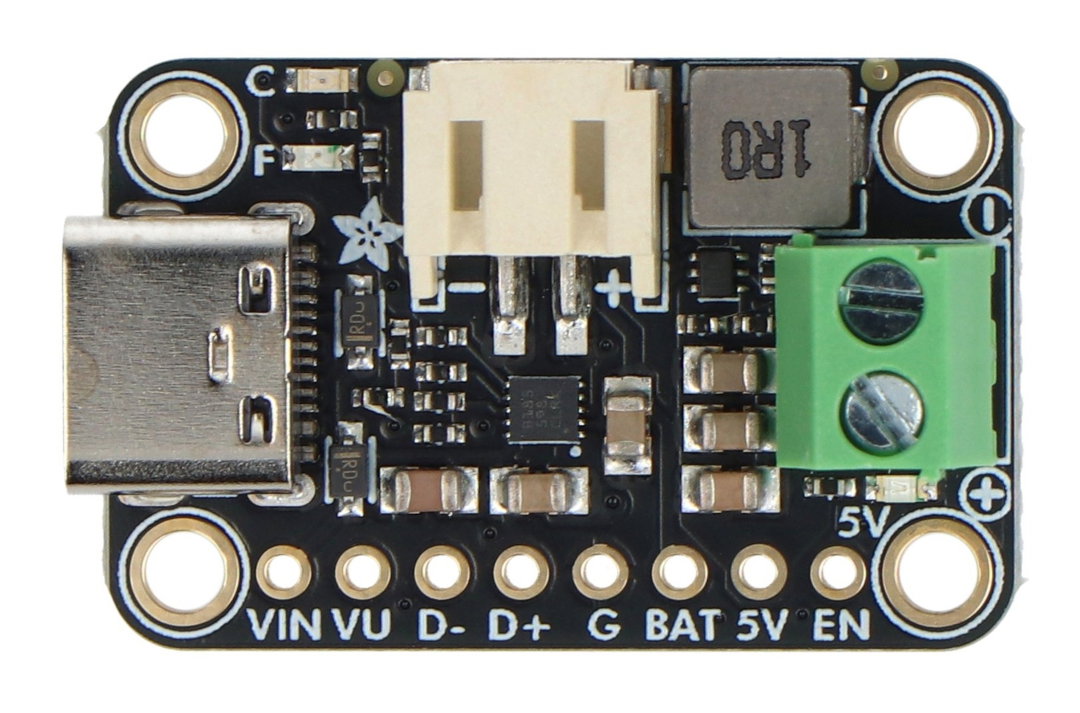

The module is equipped with a USB Type-C port for powering and charging the battery, and a VIN input supporting voltages from 5 V to 18 V. The Li-Ion or Li-Polymer battery is connected via the popular 2-pin JST-PH connector. The board also features USB D+ and D- signal pins, allowing the use of USB data lines in projects requiring communication with external devices. The stabilized 5 V output voltage is provided via a screw connector and solder pads. Access to the EN pin allows programmatic switching of the converter and access to the battery voltage measurement points.

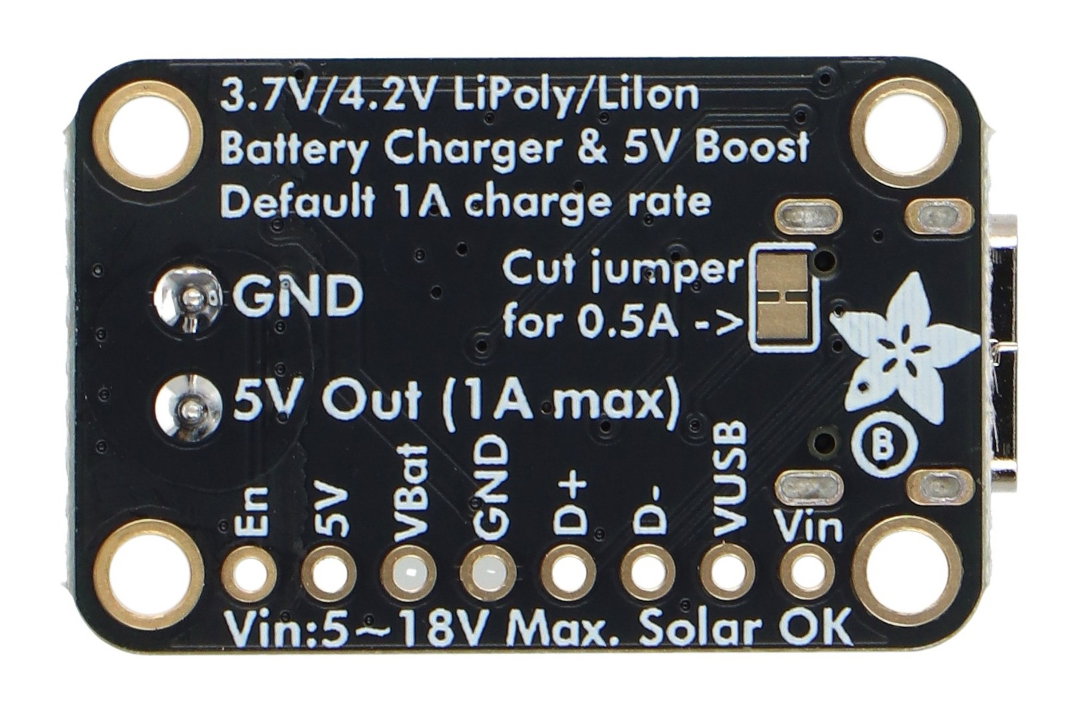

The default charging rate is 1A , but you can cut the jumper on the back to set the rate to 500mA.

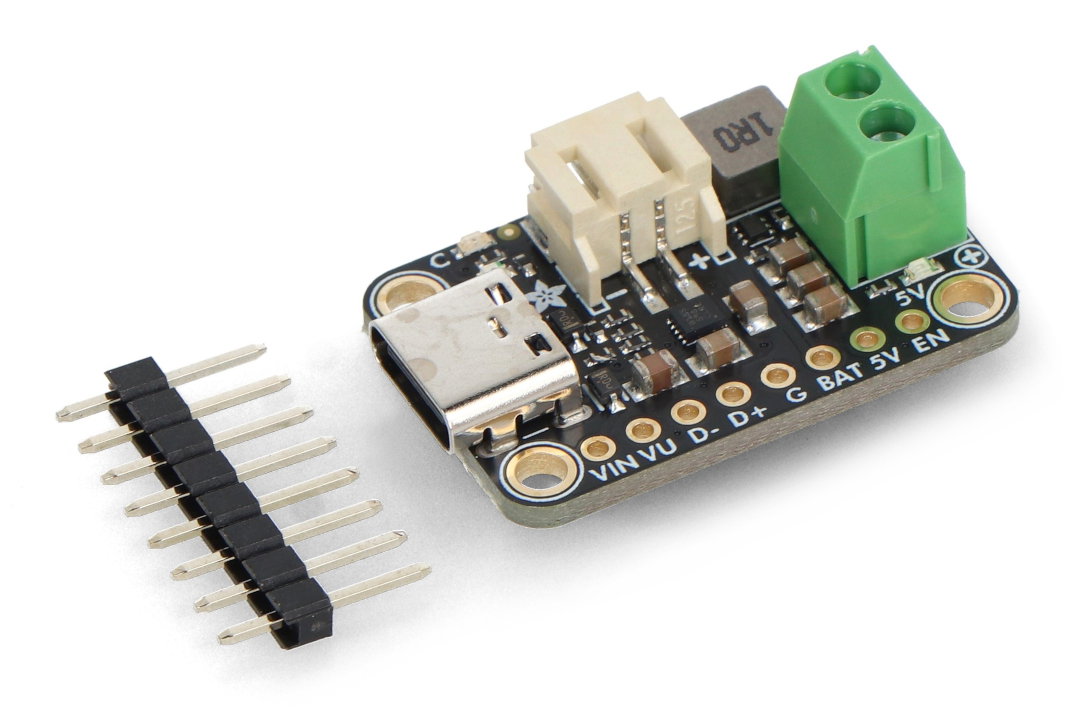

Elements included in the set.
Charger technical specifications
- Charger Chip: Texas Instruments bq25185
- Boost converter: TPS61023
- Supported batteries: Li-Ion / Li-Pol 1S
- Battery voltage: 3.7V nominal / 4.2V maximum
- Recommended solar panel voltage: 5V to 7V
- Minimum battery capacity: 500 mAh
- USB input: USB Type-C
- Battery connector: JST PH 2-pin
- Input voltage VIN: 5V to 18V
- Charging current: 1 A or 500 mA
- Output voltage: 5V
- Maximum output current: 1 A
- Power Path function: yes
- USB D+ and D- pins: yes
- EN input: yes
- LEDs: charging, error, 5V output
- Safe charging time: 6 hours
- Mounting holes: yes
- Dimensions: approx. 51 x 25 x 10 mm
- Weight: approx. 8 g
Contents of the set
- 1x Li-Pol / Li-Ion 5V bq25185 USB Type-C / DC / Solar Panel Battery Charging Module - Adafruit 6106
