Product Description: Li-Pol / Li-Ion 5V bq25185 Battery Charging Module USB Type-C / DC / Solar Panel - Adafruit 6106
The Adafruit bq25185 is designed for mobile electronics projects requiring a reliable power source. The Texas Instruments bq25185 charger IC supports charging batteries from a USB Type-C port, a DC power supply , and solar panels . The built-in TPS61023 converter steps up the battery voltage to a regulated 5V , allowing direct powering of microcontrollers, communication modules, displays, and other electronic devices. The Power Path feature allows the battery to power a load while charging, reducing the number of charge-discharge cycles.
Li-Pol / Li-Ion 5V bq25185 USB Type-C / DC / Solar Panel Battery Charging Module - Adafruit 6106.
The USB Type-C connector with 5.1 kΩ CC resistors provides a voltage of 5 V and a current of up to 1 A.
Main features of the module
- Multi-source charging : Supports USB Type-C port, DC power adapters, and solar panels
- bq25185 system : charger designed for Li-Ion and Li-Pol 1S batteries
- TPS61023 converter : stabilized 5V output with a maximum current of 1A
- Power Path : Powering the load and charging the battery simultaneously
- Solar charging : dynamic regulation of energy consumption from the solar panel
- Configurable charging current : 1 A or 500 mA after changing the jumper
- Status LEDs : charging, error and active 5V output indication
- EN input : 5V converter can be disabled
- Protection : protection against overvoltage, overload, short circuit and overheating
- Easy integration : JST-PH and screw connectors
Module pins and interfaces

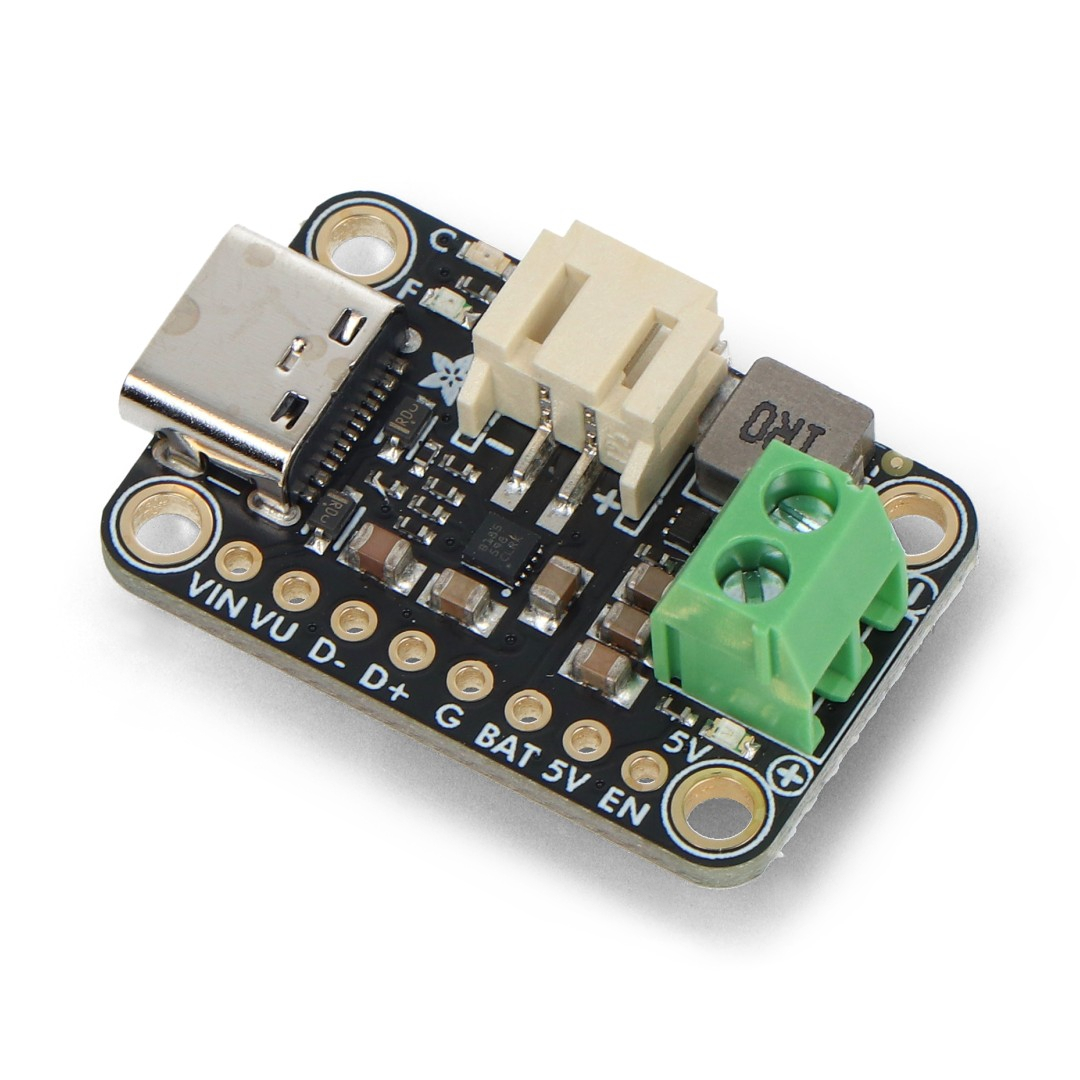

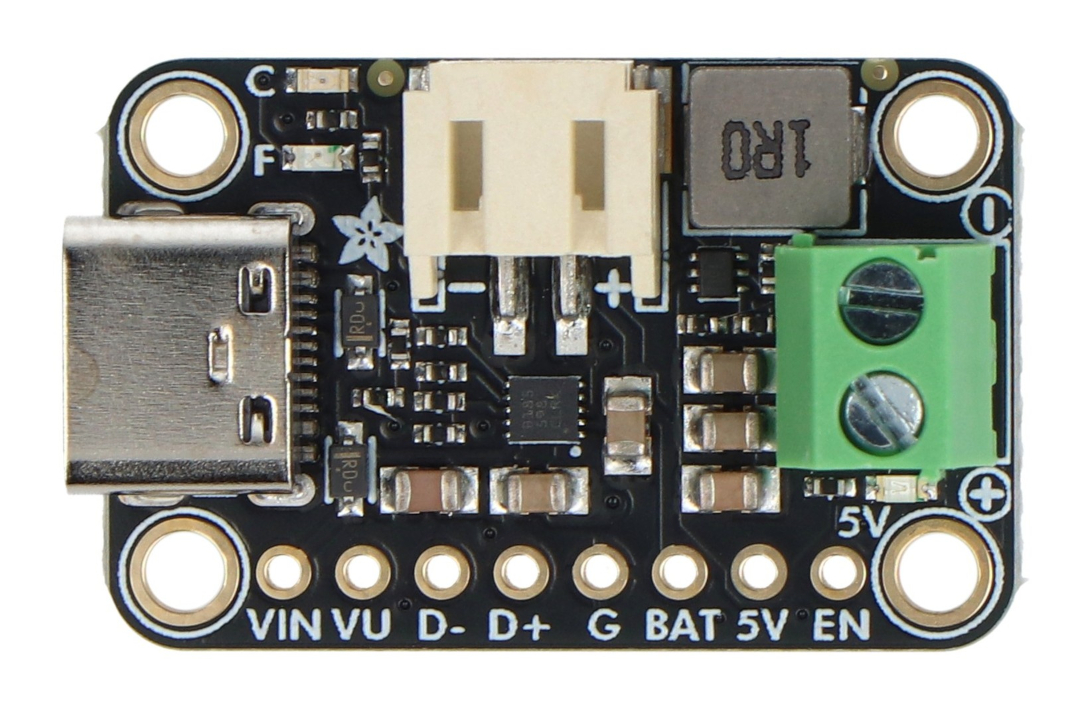

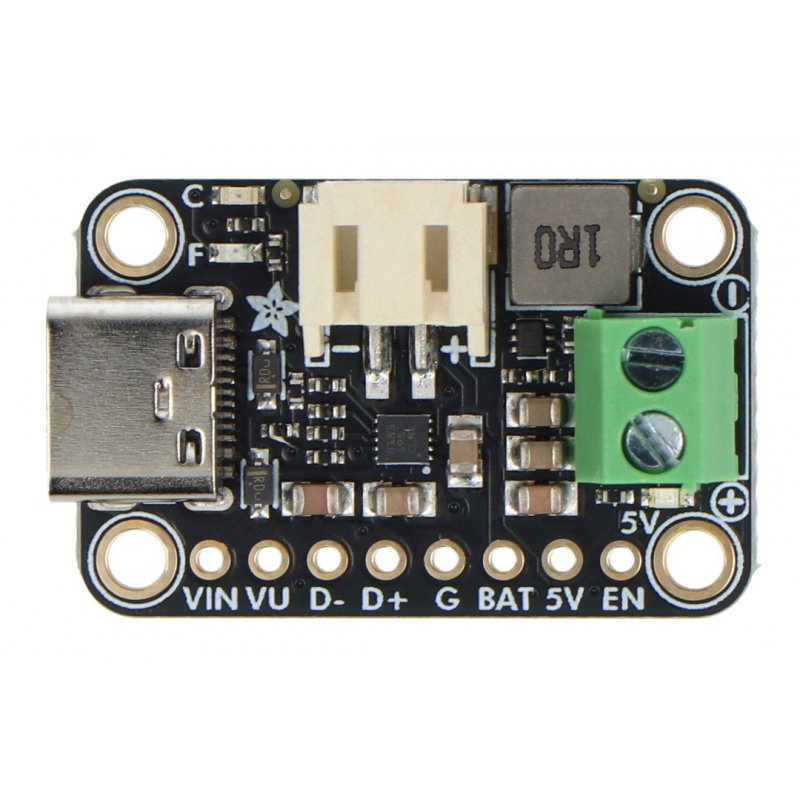

The module is equipped with a USB Type-C port for powering and charging the battery, and a VIN input supporting voltages from 5 V to 18 V. The Li-Ion or Li-Polymer battery is connected via the popular 2-pin JST-PH connector. The board also features USB D+ and D- signal pins, allowing the use of USB data lines in projects requiring communication with external devices. The stabilized 5 V output voltage is provided via a screw connector and solder pads. Access to the EN pin allows programmatic switching of the converter and access to the battery voltage measurement points.

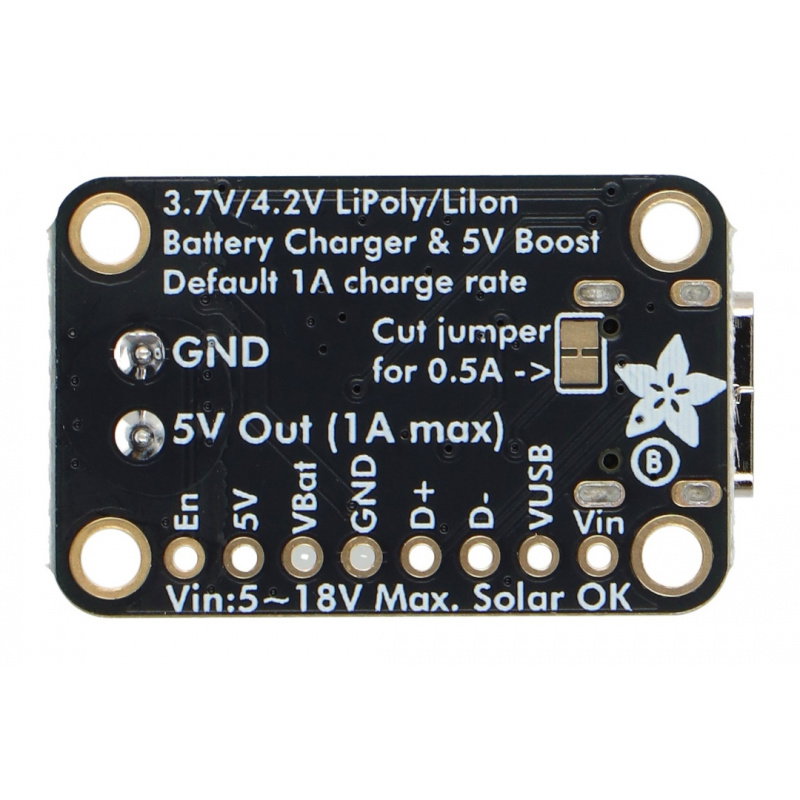

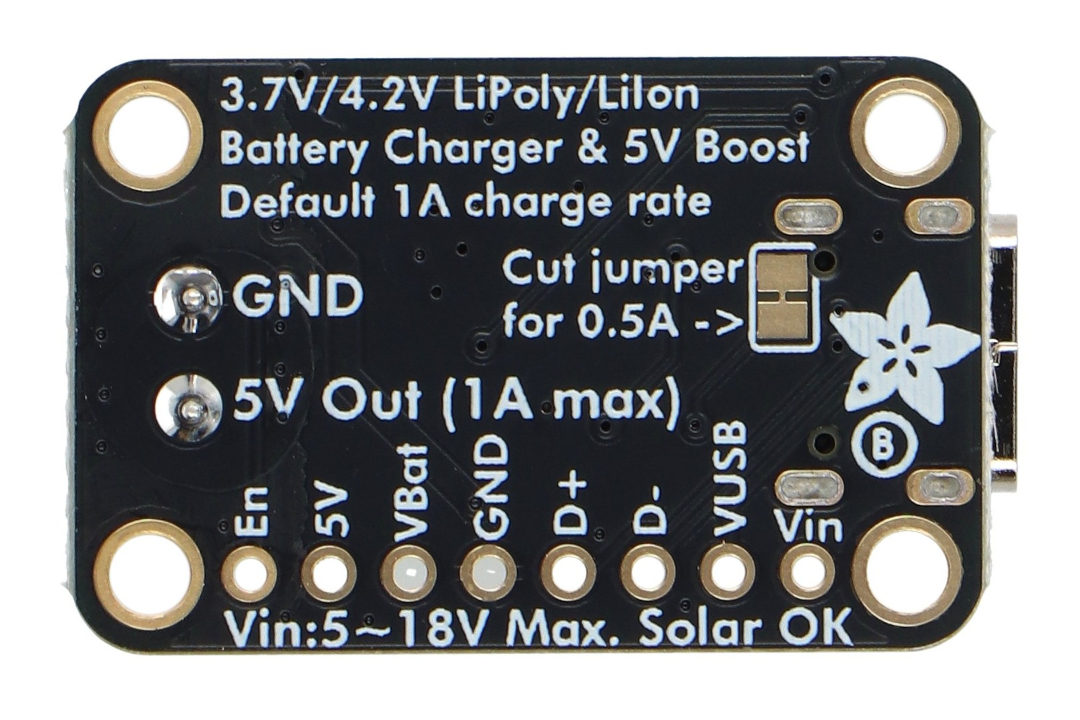

The default charging rate is 1A , but you can cut the jumper on the back to set the rate to 500mA.
Elements included in the set.
Charger technical specifications
- Charger Chip: Texas Instruments bq25185
- Boost converter: TPS61023
- Supported batteries: Li-Ion / Li-Pol 1S
- Battery voltage: 3.7V nominal / 4.2V maximum
- Recommended solar panel voltage: 5V to 7V
- Minimum battery capacity: 500 mAh
- USB input: USB Type-C
- Battery connector: JST PH 2-pin
- Input voltage VIN: 5V to 18V
- Charging current: 1 A or 500 mA
- Output voltage: 5V
- Maximum output current: 1 A
- Power Path function: yes
- USB D+ and D- pins: yes
- EN input: yes
- LEDs: charging, error, 5V output
- Safe charging time: 6 hours
- Mounting holes: yes
- Dimensions: approx. 51 x 25 x 10 mm
- Weight: approx. 8 g
Contents of the set

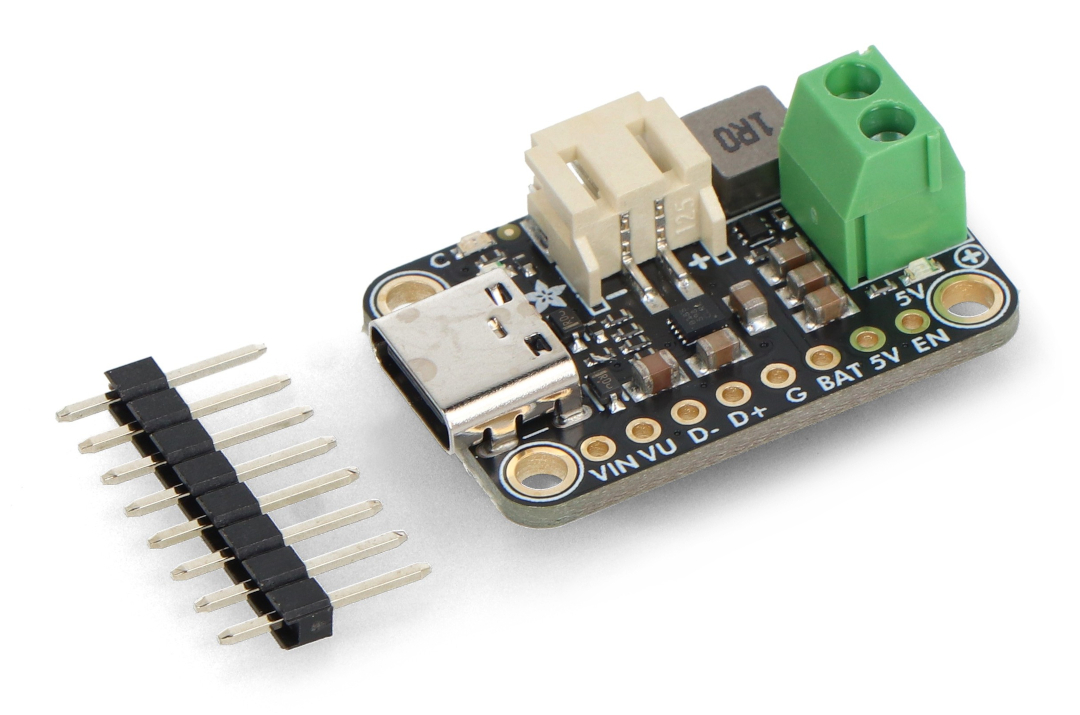

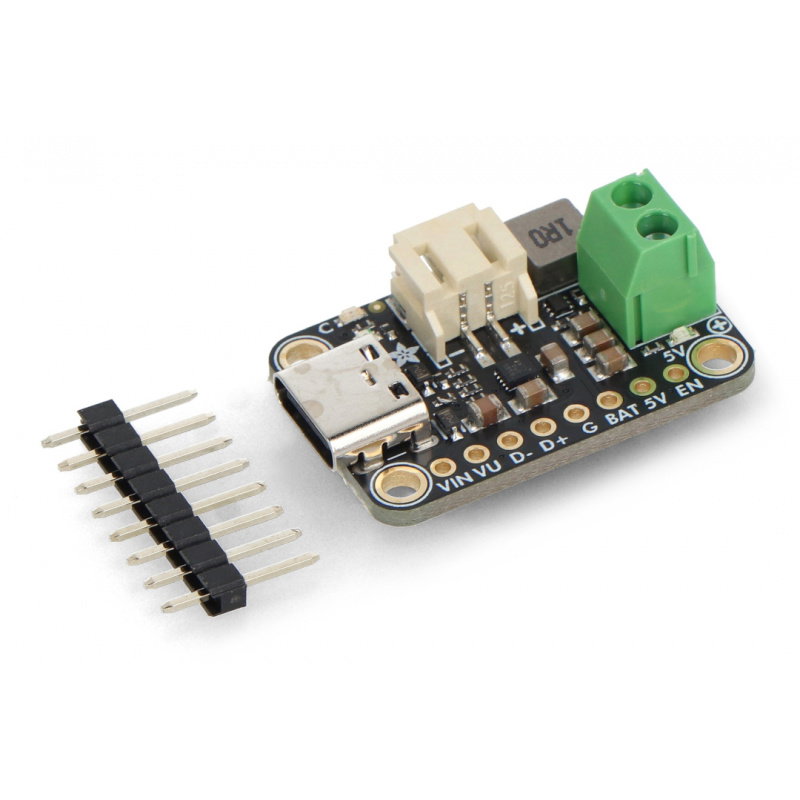

- 1x Li-Pol / Li-Ion 5V bq25185 USB Type-C / DC / Solar Panel Battery Charging Module - Adafruit 6106
