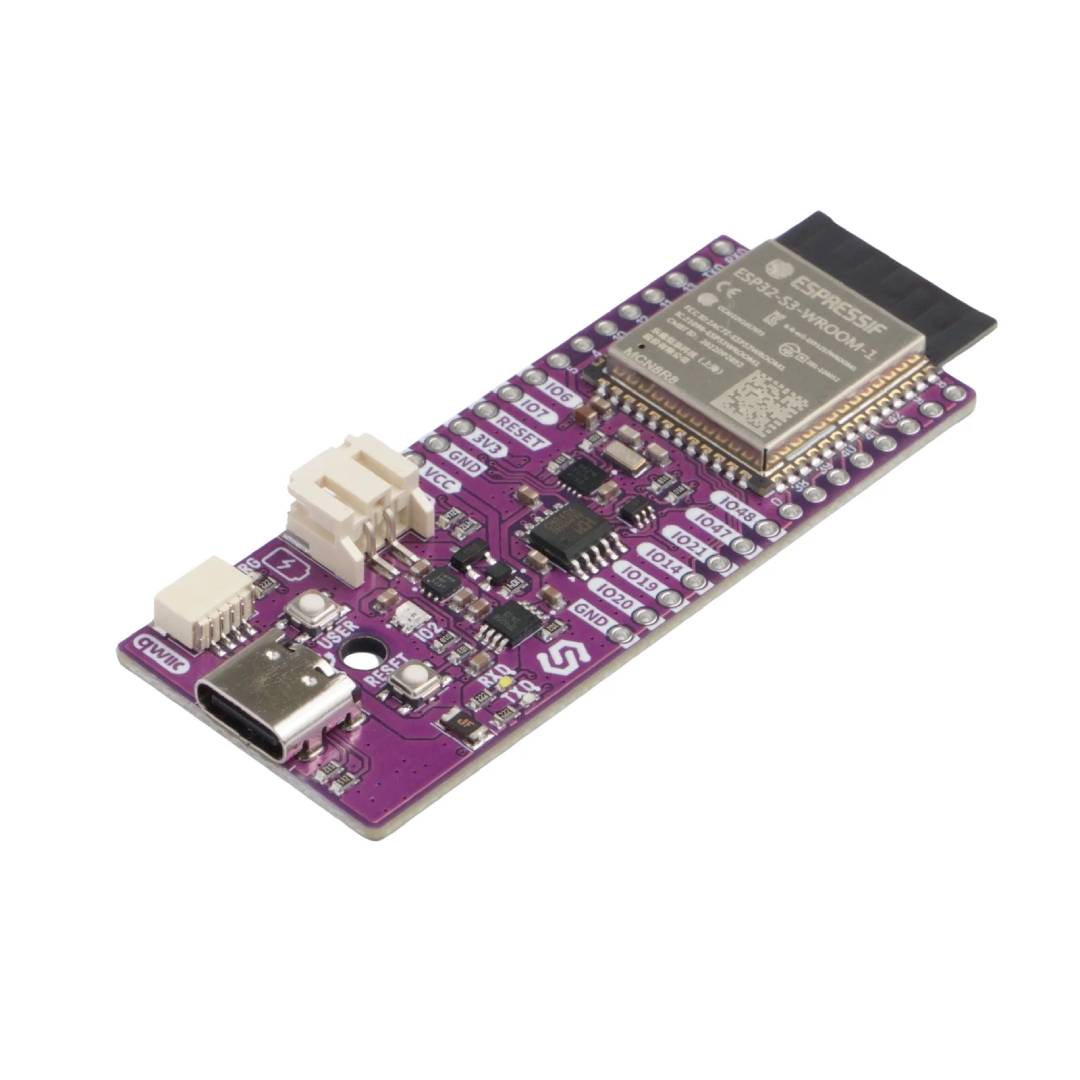

NULA DeepSleep ESP32-S3 - WiFi + Bluetooth development board - no headers- Soldered 333352
The NULA DeepSleep ESP32-S3 is a high-performance development board based on the ESP32-S3-WROOM-1-N8R8 chip, designed for ultra-low-power IoT projects. The module is equipped with a dual-core Xtensa LX7 240 MHz processor, 8 MB Flash, and 8 MB PSRAM . The board offers WiFi and Bluetooth 5 LE communication, an integrated RTC, a Li-Ion/Li-Pol charger, and exceptionally low current consumption in deep sleep mode of around 7 µA .
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: NULA DeepSleep ESP32-S3 - WiFi + Bluetooth development board - without connectors - Soldered 333352
The NULA DeepSleep ESP32-S3 is a modern development board designed for building energy-efficient IoT devices, telemetry systems, and intelligent wireless sensors. At the heart of the module is the ESP32-S3-WROOM-1-N8R8 chip with a dual-core Xtensa LX7 processor clocked at up to 240 MHz, supported by 8 MB of Flash memory and 8 MB of PSRAM . The board provides 2.4 GHz WiFi and Bluetooth 5 LE communication, enabling the development of advanced wireless applications. Onboard is the PCF85063A RTC chip responsible for precise timekeeping during sleep mode, and a TP4056M charger supporting Li-Ion and Li-Po batteries. The design has been optimized for very low power consumption – in deep sleep mode, the board draws approximately 7 µA . Compatibility with Arduino IDE, ESP-IDF, and MicroPython makes getting started quick and convenient for both beginners and advanced users.
NULA DeepSleep ESP32-S3 - WiFi + Bluetooth development board - without connectors - Soldered 333352.
Botland is an official distributor of Soldered products. Soldered is a European maker of modern electronic modules, sensors and accessories for DIY projects, education and industrial use. Soldered products stand out for build quality, inventiveness and easy integration with popular platforms such as Arduino and Raspberry Pi. Botland carries a wide choice of original Soldered modules for hobby and professional electronics projects alike.
The NULA DeepSleep ESP32-S3 is perfect for projects requiring very low power consumption and wireless communication.
Main features of the NULA DeepSleep ESP32-S3 board
- ESP32-S3-WROOM-1-N8R8 : a powerful dual-core Xtensa LX7 processor clocked at up to 240 MHz
- 8 MB Flash and 8 MB PSRAM : plenty of memory for extensive IoT projects
- Ultra low power consumption : about 7 µA in deep sleep mode
- Wireless connectivity : WiFi 802.11b/g/n and Bluetooth 5 LE
- Integrated RTC : PCF85063A chip for precise timekeeping
- Li-Ion/Li-Pol charger : TP4056M chip enabling battery charging
- Qwiic / STEMMA QT connector : quick connection of I2C modules without the need for soldering
- USB Type-C : Programming and powering with a single cable
- 22 GPIOs : wide expansion possibilities and support for multiple interfaces
- Arduino, ESP-IDF and MicroPython compatible : easy programming and integration
ESP32-S3 pins and communication interfaces
The NULA DeepSleep ESP32-S3 board features 22 GPIO pins for a variety of communication interfaces and peripheral functions. These include two SPI, three UART, two I2C, and two I2S interfaces , allowing the module to interface with displays, sensors, radio modules, and external memories. The board also includes 12-bit ADC inputs, PWM outputs, touch functions, and RTC lines for waking from deep sleep mode. An integrated connector The Qwiic / easyC / STEMMA QT allows you to quickly connect compatible I2C modules without the need for soldering wires. A USB Type-C connector is used for power and programming, while a Li-Ion or Li-Po battery can be connected via a JST connector. The board also has a hardware RESET button and the ability to disconnect the WS2812B LED via jumper JP1 to reduce power consumption.

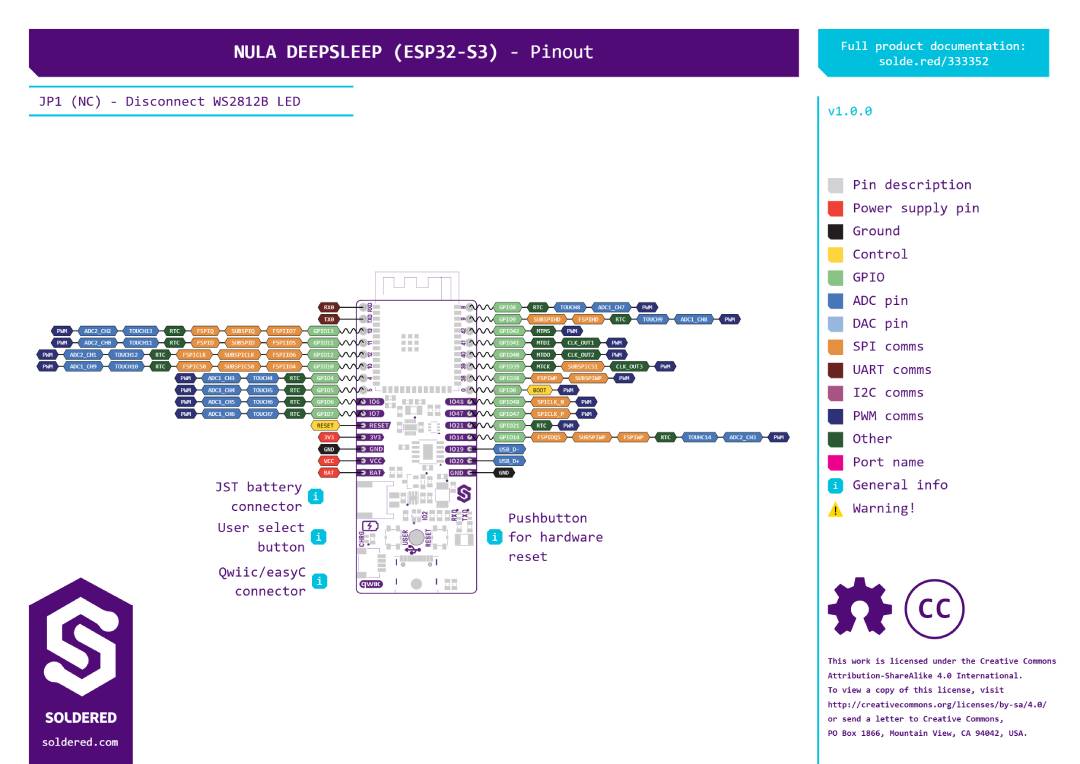

Pinout description.
Breadboard-friendly design ensures convenient prototyping on breadboards.
NULA DeepSleep ESP32-S Programming
The board is fully compatible with the Arduino IDE, ESP-IDF, and MicroPython environments, making it suitable for both simple educational projects and professional embedded applications. The official Espressif Arduino Core package includes a ready-made board definition, significantly simplifying programming environment setup. Programming is performed directly via the native USB port on the USB Type-C connector , eliminating the need for additional UART converters. The module also supports USB Serial/JTAG and HID interfaces, expanding the possibilities of creating devices that communicate with a computer. MicroPython support allows you to quickly create and test Python applications. Advanced developers can use the ESP-IDF framework, which offers full access to the ESP32-S3's features, including security mechanisms such as Secure Boot and Flash memory encryption.
NULA DeepSleep ESP32-S Technical Specifications
| Processor | dual-core Xtensa LX7 240 MHz |
|---|---|
| Module | ESP32-S3-WROOM-1-N8R8 |
| Flash memory | 8 MB |
| PSRAM memory | 8 MB |
| Communication | WiFi 802.11 b/g/n, Bluetooth 5 LE |
| GPIO | 22 |
| ADC | 20 channels, 12 bits |
| RTC | PCF85063A |
| Connectors | USB Type-C, Qwiic / easyC / STEMMA QT, JST |
| Operating voltage | from 3 V to 3.6 V |
| Operating temperature | from -40°C to 105°C |
| Deep sleep power consumption | about 7 µA |
| Dimensions | 69 x 26 mm |
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller |
|
| UC - Core | Tensilica Xtensa LX7 |
| UC - Flash | 8 MB |
| UC - RAM | 8 MB |
| UC - core | 2. Dual Core |
| UC - Digital pins | 22 |
| UC - freq | 240 MHz |
| UC - A/C | 12-bit |
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | USB typ C |
| UC - SPI interface | yes |
| Width | 11.6 cm |
| Height | 8.1 cm |
| Depth | 1.1 cm |
| Weight | 0.031 kg |
