Description

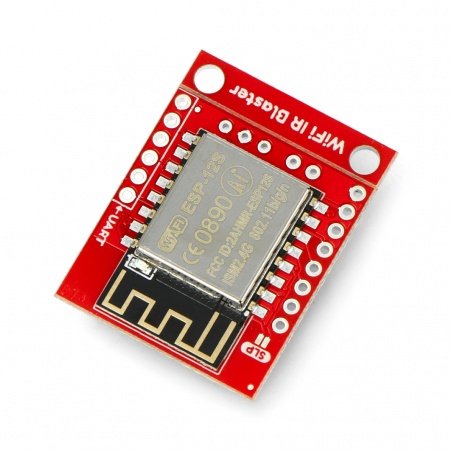

Module withESP8266system andIR transmitter and receiver enables control of IR devices via wi-fi. Wi-fi module can be programmed to provide an interface betweenHTTP, MQTT, TCP, and devices controlled via IR. ESP8266 has4 MB of flash memory, and aPCB antenna.
The transmitter and receiver are included, but they should be soldered independently. Components can be installed at a chosen angle.
|
The product is compatible withArduino The manufacturer provides alibrary for Arduinoand a detaileduser manual. |
Specification
- System wifi: ESP8266 ESP12S
- Flashing mode: QIO
- Debug level: no
- Reset method: ck
- Processor frequency: 80 MHz
- The size of flash memory: 4 MB
- Debug port: disabled
- Option IwIP: built-in v2 (MSS=536)
- Crystal frequency: 26 MHz
- Flash frequency: 40 MHz
- Transmission speed: 11520
- Dimensions: 34 x 25 mm
Set includes
- Board SparkFun WiFi IR Blaster
- IR transmitter LTE-302
- IR receiver TSOP382
