Touch screen H - capacitive LCD IPS 7'' V4.1 1024x600px HDMI + USB for Raspberry Pi 4B/3B+/3B/Zero - Waveshare 14628
Touchscreen display Waveshare capacitive 7" for the Raspberry Pi with a resolution of 1024 x 600 px. It works with Raspberry Pi in versions 4B, 3B+ 3B+ 2B, 1B+, 1B, 1A and Zero and Zero W via HDMI and USB cable. The board also has a connector mini-Jack 3.5 mm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Touch screen, capacitive 7" display for the Raspberry Pi with a resolution of 1024 x 600 px. It works withRasbperry Pi in versions 4B, 3B+, 3B, 2B and B+with HDMI connector and microUSB - cables are included in the package. The board also has a mini-Jack 3.5 mmconnector. The device also works with minicomputers:Banana PiandBeagle Bone Black.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
Connect to the Raspberry Pi
In order to run the screen, you must connect the device to a Raspberry Pi via the supplied wire: HDMI and microUSB. HDMI transmits the image, USB port receives data of the touch interface.
In the case of connecting the screen to the Raspberry Pi in version 4 B, it is necessary to use a microHDMI - HDMI adapter.
Example of connecting the screen to the Raspberry Pi.
Software
The screen works with the latest operating system Raspbian without the need to install drivers. However, in order that the screen displays the picture properly, you should change the resolution in the configuration file. To do this, open the file config.txt command:
sudo nano /boot/config.txt
and then at the end add the following statements:
max_usb_current=1hdmi_group=2hdmi_mode=87hdmi_cvt 1024 600 60 6 0 0 0hdmi_drive=1
After saving the file and reboot the raspberry image and the touch function should work fine.
A detailed description can be found onthe website of the manufacturer. |

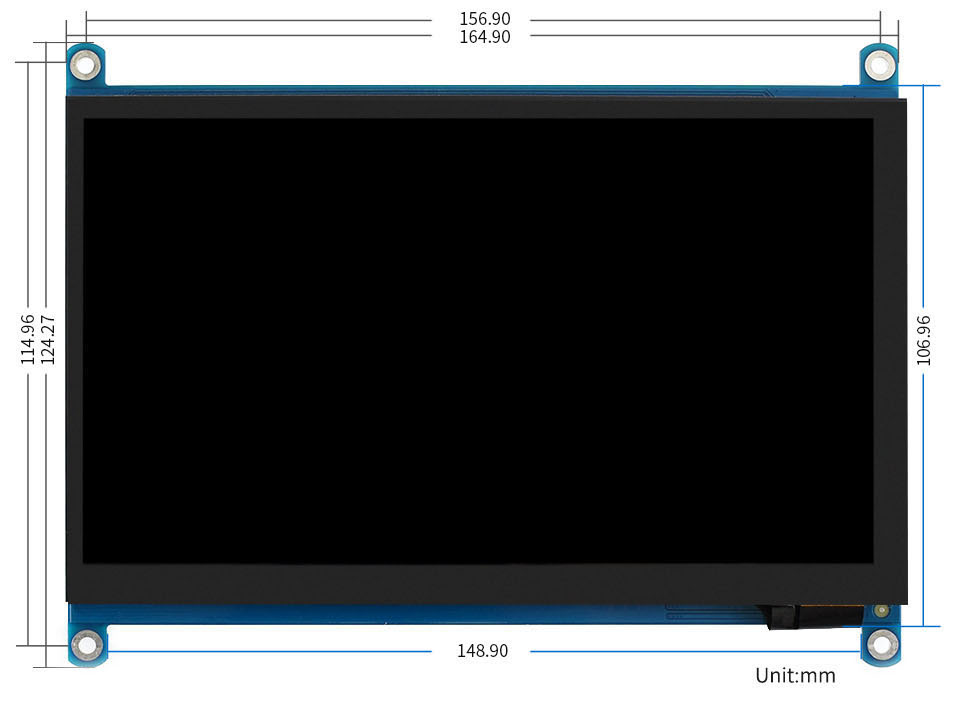

The outer dimensions of the screen.
Specification
- Screen type: IPS touch, capacitive
- Diagonal: 7 "
- Resolution: 1024 x 600 px
- Standard HID Protocol to integrate with the system
- Works with:
- Rasbperry Pi in versions 4B, 3B+, 3B, 2B and B+ Zero(works directly withcontrolfrom manufacturer)
- Beagle Bone Black
- Banana Pi/ Banana Pro
- The display also works with PCs with Windows 7/8/8.1/10 without the need to install drivers
- Also works with all other HDMI devices: (touch function not available)
- 4 mounting holes: (screws included in the package)
- Connector: mini-Jack 3.5 mm
- Screen size: 165 x 107 mm
Set includes
- Screen: 7" touch capacitive
- HDMI cable
- USB - microUSB cable: for the touch interface
- HDMI to Micro HDMI adapter
- USB A - microUSB cable
- Mounting screws and spacers
- Microfiber cloth: for the screen
Case
In our offer you will find alsoa special panelandkit containing the 7" screen and case.
In our offer you will find alsoa kit containing a screen 7" and a special case.
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD IPS |
| Screen - diagonal | 7'' |
| Screen - interface | HDMI+USB |
| Screen - touch | yes |
| Screen - resolution | 1024x600px |
| Width | 21 cm |
| Height | 5.5 cm |
| Depth | 15 cm |
| Weight | 0.378 kg |
