SmartLED Shield - driver for LED matrices compatible with Teensy 4 - SparkFun DEV-17521

Index: SPF-19302 EAN: 5904422370237
Expansion, enabling the use of the Teensy 4 module to control the display of graphics on HUB75 RGB LED panels at 36 bit color depth and 240 Hz refresh rate. It is compatible with large panels with resolution up to 128 x 64 px. Teensy version 4.0 or 4.1 should be plugged into SmartLED Shield socket. The extension itself can be connected to the LED matrix with a cable or placed directly in the panel. The driver has built-in IDC connector and four-pin JST cable for connecting APA102 LED matrix.
SmartLED Shield - driver for LED matrices compatible with Teensy 4 - SparkFun DEV-17521
€26.89
€21.86 tax excl.
Delivery scheduled for 2022-07-08
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: SparkFun

Product description: SmartLED Shield - driver for LED matrices compatible with Teensy 4 - SparkFun DEV-17521

Extension, enabling the use of Teensy 4 module to control the display of graphics on HUB75 RGB LED panels in 36 bit color depth and refresh rate of 240 Hz. It is compatible with large panels with resolution up to 128 x 64 px. Teensy version 4.0 or 4.1 should be plugged into SmartLED Shield socket. The extension itself can be connected to the LED matrix with a cable or placed directly in the panel. Driver has built-in IDC connector and four-pin JST cable for connecting APA102 LED matrix.

Manufacturer provides SmartMatrix library for Arduino and example code.

Przykład wykorzystania SmartLED Shield

Example of using SmartLED Shield.

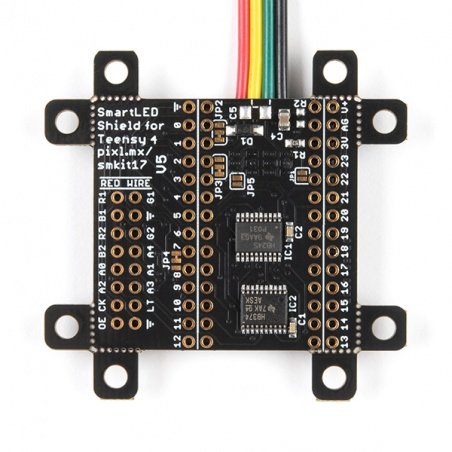

SmartLED Shield - sterownik do matryc LED kompatybilny z Teensy 4

SmartLED Shield- driver for LED matrix compatible with Teensy 4.

SmartLED Shield advantages

  • Great ease of use. SmartLED Shield is fully assembled. If the Teensy is equipped with pins, no soldering is required. It is easy to install and remove later.
  • It is compatible with matrices up to 9K pixels (e.g. 96 x 96 px). At the same time, it maintains high display quality. In case of its reduction it allows to work with larger panels.
  • Optionally it is possible to control DotStar / APA102 compatible LEDs using the built-in 5V buffers and the 4-pin JST-SM connector, the matching JST-SM cable is included.
  • Allows panels to be combined to create large, bright, high resolution displays.
  • Supports all 14 signals on HUB75 panels with 5V buffered outputs, using only 9 GPIO pins on Teensy 4.0 or 4.1.
  • Provides up to 240 Hz refresh rate.
  • Uses gamma color correction and brightness control.

SmartLED communication

The product has a four-wire JST cable coming out of the controller and terminated with a plug to connect the APA102 LED array . It has the following leads:

  • 5 V - power supply
  • DAT - data line
  • CLK - clock line
  • GND - ground

LED matrix driver has also built-in IDC connector marked on the picture beside.

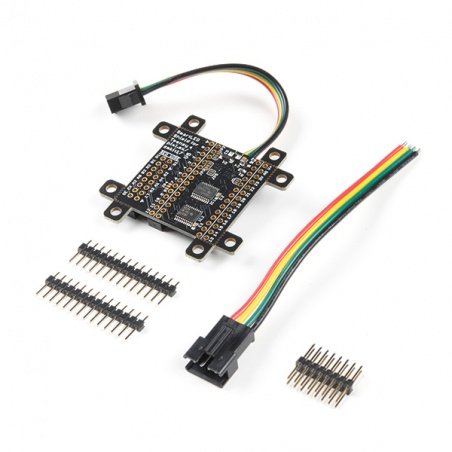

Set contents

  • SmartLED Shield - 1 pc.
  • Goldpin connector 2 x 8 - 1 pc.
  • 1 x 14 goldpin connector - 2 pcs.
  • 4-pin JST socket
Komunikacja w SmartLED shield


Communication in SparkFun Smart LED Shield.

SmartLED Shield - driver for LED matrix compatible with Teensy 4 - SparkFun DEV-17521

The extension designed by SparkFun experts perfectly solves all the troubles that may arise in cooperation between Teensy 4 modules and LED matrices. Besides, the extension module provides a lot of new possibilities.

SmartLED Shield - Teensy 4 compatible LED matrix driver - SparkFun DEV-17521 is driven by 36-bit HUB75 RGB chip with refresh rate up to 240 Hz. It works perfectly with the Teensy module and can be placed in the panel or connected to the matrix.

SmartLED Shield - the recommended expansion card to support LED matrices using Teensy 4

A brilliant advantage of the SparkFun expansion module is its compatibility with modern 9K pixel matrices. High image quality is always displayed - on smaller and larger matrices. The module does not require soldering, and once attached to the Teensy it can be removed at any time.

Presented set consists of main expansion module - SmartLED Shield from original SparkFun production, three goldpin connectors in different sizes and JST socket. We encourage you to buy and check out Teensy, Feather and Arduino base boards (e.g. Arduino Pro Mini).
