Product description: Sensirion SCD40 - CO2 sensor with temperature and humidity measurement - RJ12 - Tinycontrol 95016

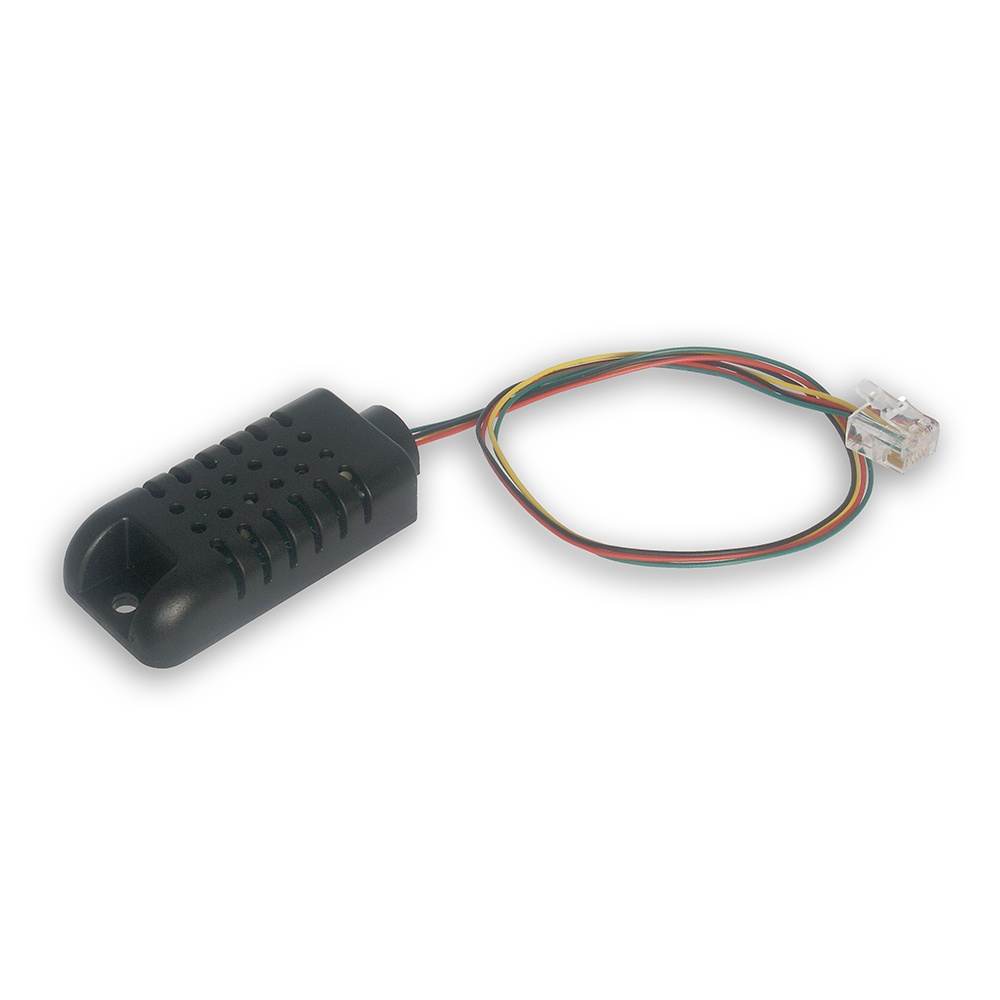

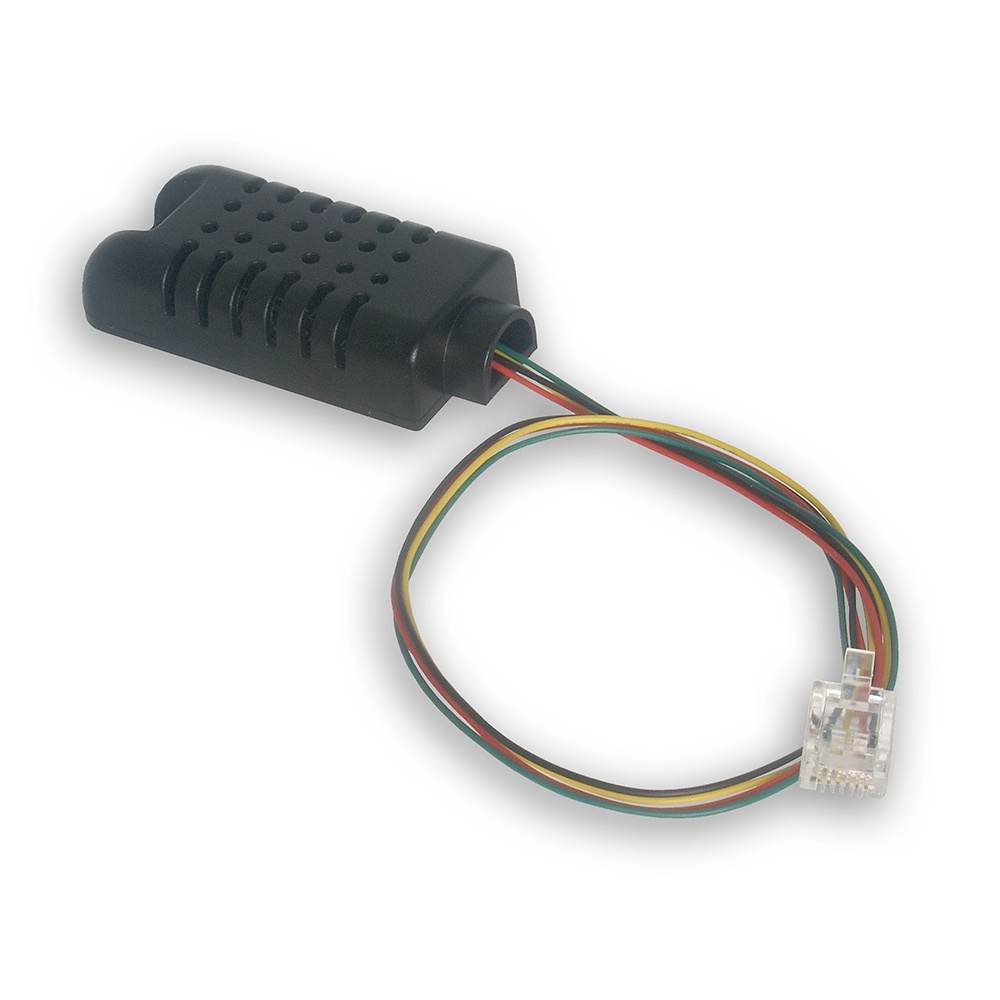

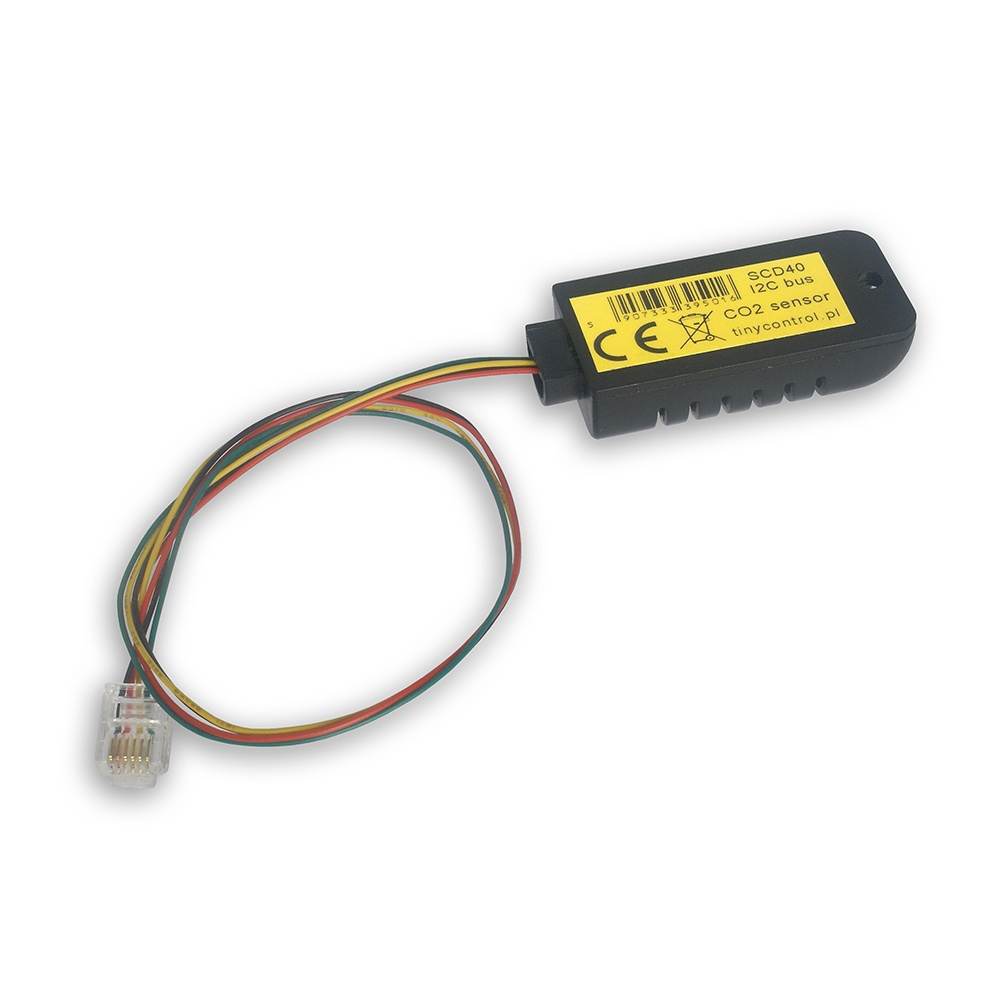

The CO2 Sensor with Temperature and Humidity Measurement is a module designed for monitoring air quality in indoor environments, automation systems, and installations working with the Tinycontrol LAN Controller . The device determines carbon dioxide levels using newly developed photo-acoustic technology, which allows for CO2 concentration measurements ranging from 400 ppm to 2000 ppm with an accuracy of ±(50 ppm + 5%) . The module also measures relative humidity and temperature, allowing it to function as a multi-parameter environmental sensor. An integrated 28 cm cable terminated with an RJ12 connector facilitates direct connection to the controller without the need for additional wiring. Its compact dimensions of 59 x 27 x 13 mm allow for convenient installation in enclosures, technical cabinets, or measurement points.
Sensirion SCD40 - CO2 sensor with temperature and humidity measurement - RJ12 - Tinycontrol 95016.
The CO2 sensor with temperature and humidity measurement is a module designed to monitor air quality in rooms, automation systems and installations.Special features
- CO2 measurement using the photo-acoustic method: modern measurement technology for monitoring carbon dioxide concentration
- CO2 measurement range from 400 ppm to 2000 ppm: suitable for indoor air quality monitoring
- Additional temperature and humidity measurement: one module provides three key environmental parameters
- RJ12 connector: facilitates direct connection of the sensor to the LAN Controller
- Integrated 28 cm cable: convenient connection without the need for a separate cable
- Compact design: small dimensions facilitate installation in automation systems
- Wide power supply range: operates from 2.4 V to 5.5 V DC
Technical specifications
- Supply voltage: 2.4 V to 5.5 V DC, typically 3.3 V or 5 V
- Peak supply current: 175 mA
- Connector: RJ12
- CO2 Output Range: 0 ppm to 40000 ppm
- CO2 measurement range: 400 ppm to 2000 ppm
- CO2 measurement accuracy: ±(50 ppm + 5%) in the range from 400 ppm to 2000 ppm
- CO2 measurement repeatability: ±10 ppm
- CO2 response time: 60 sec
- Humidity measurement range: 0% to 100% RH
- Humidity measurement accuracy: ±6% RH in the range from +15°C to +35°C and from 20% to 65% RH
- Humidity measurement accuracy over the full range: ±9% RH from -10°C to +60°C and from 0% to 100% RH
- Humidity measurement repeatability: ±0.4% RH
- Humidity response time: 90 s
- Temperature measurement range: -10°C to +60°C
- Temperature measurement accuracy: ±0.8°C in the range from +15°C to +35°C
- Temperature measurement accuracy in the full range: ±1.5°C in the range from -10°C to +60°C
- Temperature measurement repeatability: ±0.1°C
- Temperature response time: 120 s
- Compatibility: LK4, LK4 mini, LK3.9, LAN Controller v3.5 from firmware version 1.57
- Cable length: 28 cm
- Dimensions: 59 x 27 x 13 mm
The compact dimensions of 59 x 27 x 13 mm allow for convenient installation in enclosures, technical cabinets or measuring points.
